詳盡技術資料請見原廠或供應商 https://www.raspberrypi.com/documentation/computers/raspberry-pi-5.html [ https://www.raspberrypi.com/documentation/computers/raspberry-pi-5.html ] 料號:SC1112
溫馨提示
****請注意: 出貨前皆會拆封確認功能正常並實體拍照且登錄序號, 測試後將會提供測試報告, 不能接受拆封測試者請勿下標!!!

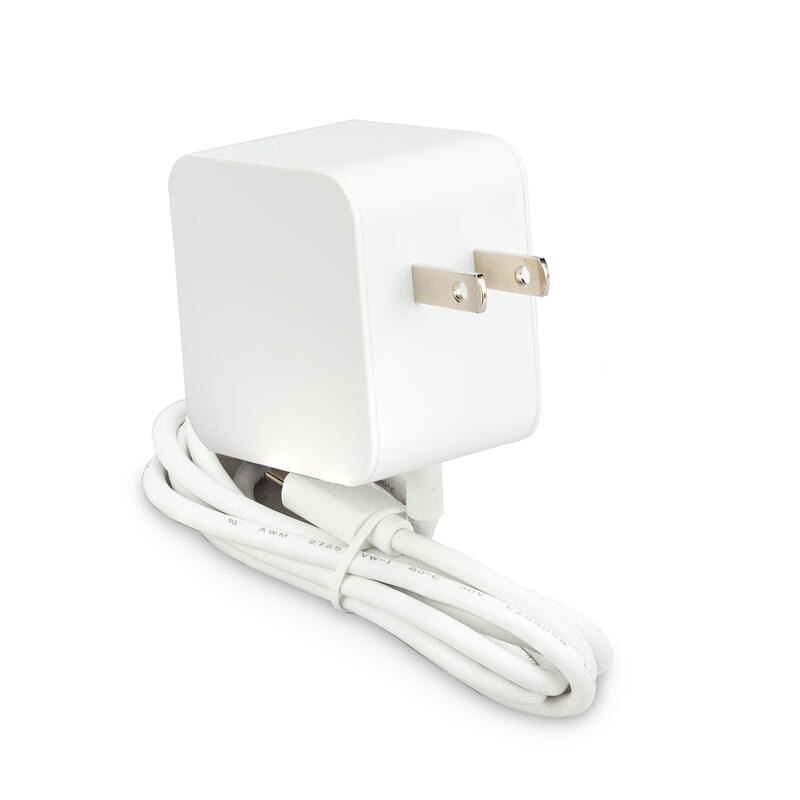

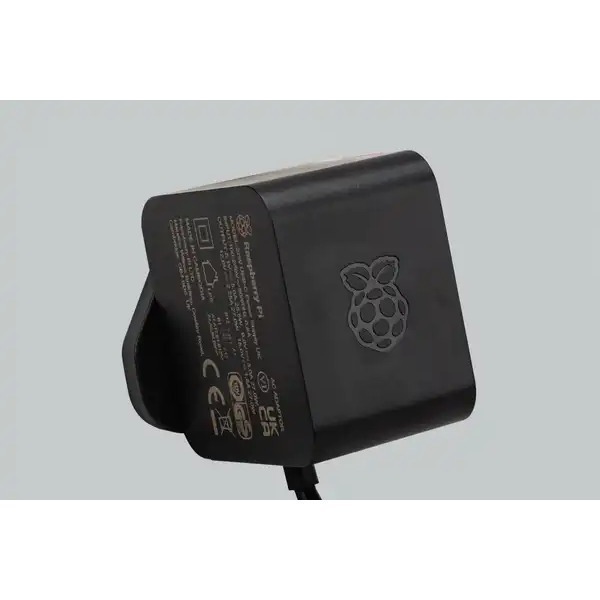

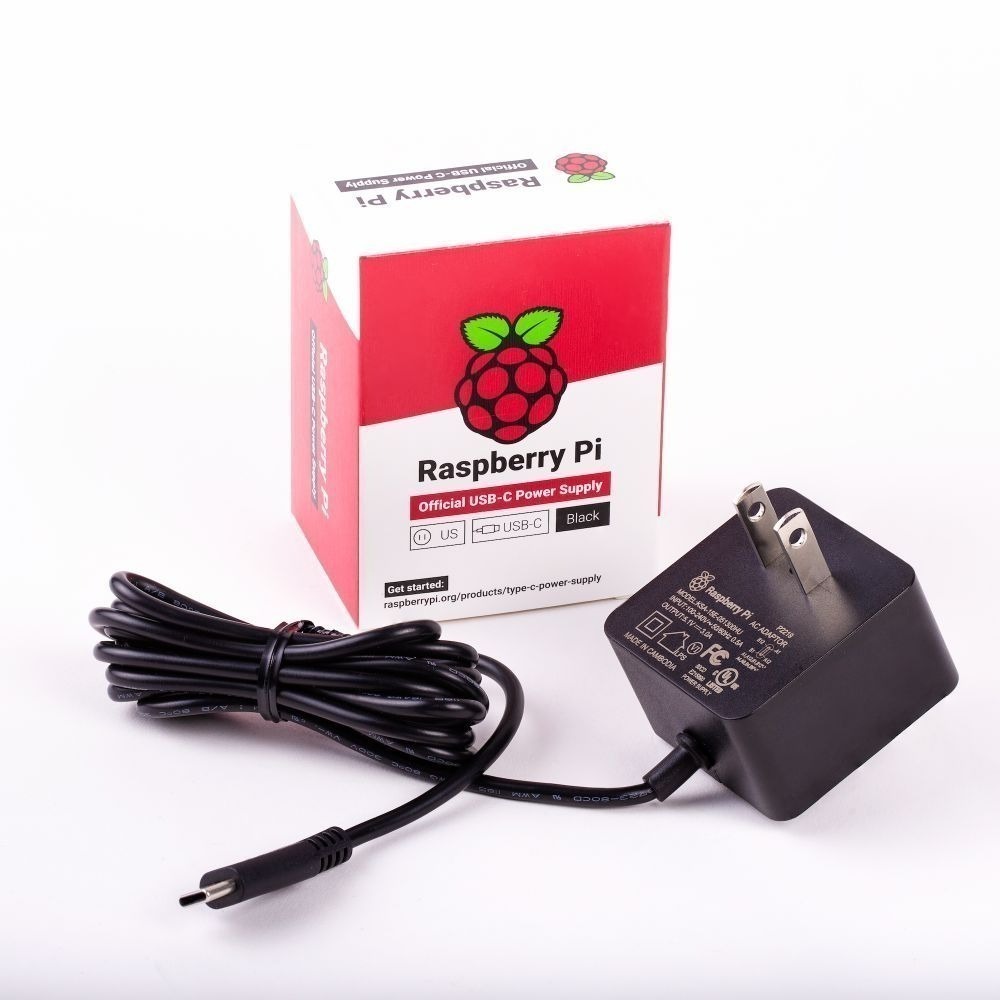

****單純Pi 5樹莓派主板使用採用原本Pi 4用的5V3A(圖七)變壓器即非常足夠, 若覺得需要更大電壓可另外選擇原廠5V5A(圖八&九)變壓器!!!
Raspberry Pi 5
Introduction
Edit this on GitHub [ https://github.com/raspberrypi/documentation/blob/develop/documentation/asciidoc/computers/raspberry-pi-5/introduction.adoc ]
IMPORTANT | If you are using a Raspberry Pi for the first time please see our instructions on how to get started [ https://www.raspberrypi.com/documentation/computers/getting-started.html#setting-up-your-raspberry-pi ] . |
![](https://www.raspberrypi.com/documentation/computers/images/pi5-labelled.jpg)

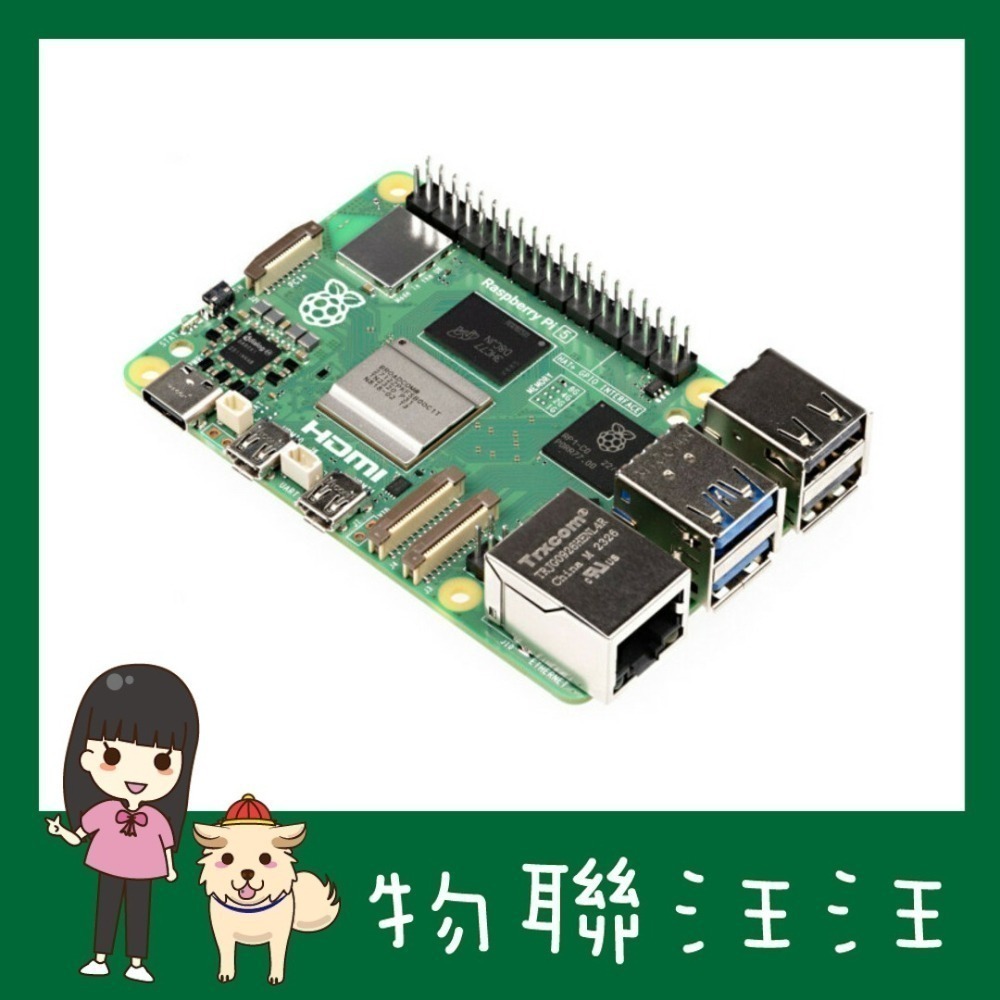

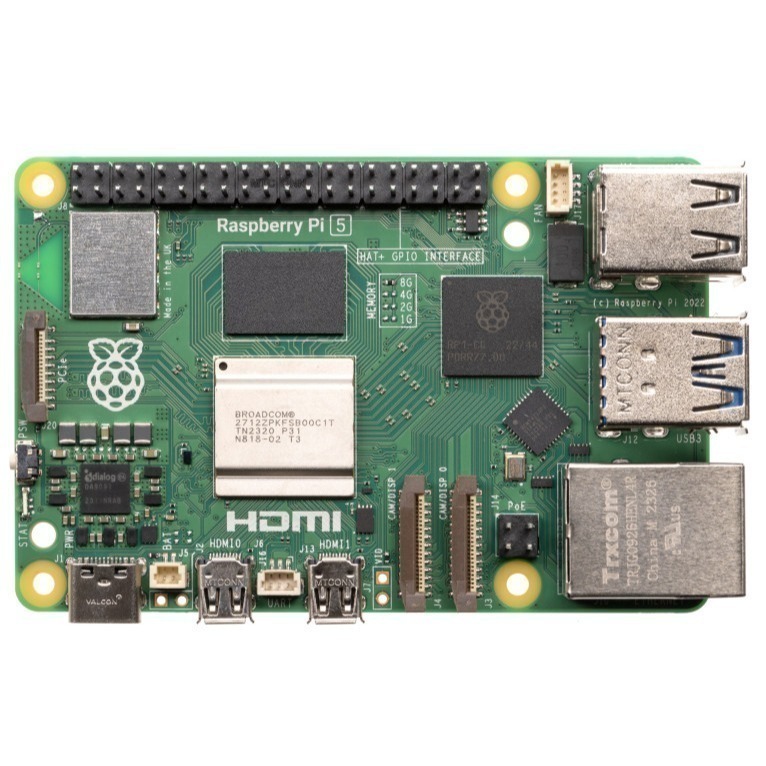

Featuring a 64-bit quad-core Arm Cortex-A76 processor running at 2.4GHz, Raspberry Pi 5 delivers a ×2 to ×3 increase in CPU performance relative to Raspberry Pi 4. Alongside a substantial uplift in graphics performance from an 800MHz VideoCore VII GPU; dual 4Kp60 display output over HDMI; and state-of-the-art camera support from a rearchitected Raspberry Pi Image Signal Processor, it provides a smooth desktop experience for consumers, and opens the door to new applications for industrial customers.
For the first time, this is a full-size Raspberry Pi computer using silicon built in-house at Raspberry Pi. The RP1 [ https://www.raspberrypi.com/documentation/microcontrollers/rp1.html ] provides the bulk of the I/O capabilities for Raspberry Pi 5, and delivers a step change in peripheral performance and functionality. Aggregate USB bandwidth is more than doubled, yielding faster transfer speeds to external UAS drives and other high-speed peripherals; the dedicated two-lane 1Gbps MIPI camera and display interfaces present on earlier models have been replaced by a pair of four-lane 1.5Gbps MIPI transceivers, tripling total bandwidth, and supporting any combination of up to two cameras or displays; peak SD card performance is doubled, through support for the SDR104 high-speed mode; and for the first time the platform exposes a single-lane PCI Express 2.0 interface, providing support for high-bandwidth peripherals.
Key features include:
Quad Arm Cortex-A76 @ 2.4GHz
Cryptographic Extension support (AES on hardware)
512KB per-core L2 caches
2MB L3 cache
4GB or 8GB LPDDR4X-4267 SDRAM
Dual 4kp60 HDMI display output with HDR support
4kp60 HEVC decoder
VideoCore VII graphics, with OpenGL-ES 3.1, Vulkan 1.2
Raspberry Pi Image Sensor Processor (ISP)
Raspberry Pi connector for PCIe (1 x 2.0 port, additional HAT required)
802.11ac dual-band Wi-Fi
Bluetooth 5.0 (with BLE support)
Gigabit Ethernet
2x USB 3.0 (capable of simultaneous full throughput)
2x USB 2.0
PoE support (additional HAT required)
Dual 4-lane MIPI CSI/DSI transceivers, supporting
2x display; or
2x camera; or
1x display + 1x camera
Raspberry Pi 40-pin GPIO header
Fan connector
Real Time Clock (RTC)
RTC battery connector
Power button
