[物聯汪汪] 附發票OBD-II CAN Bus GPS Arduino Development Kit行車記錄開發套件

商品編號:P0510700189278 原始貨號:P0510700189278

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 850
$ 900
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.seeedstudio.com/OBD-II-CAN-Bus-GPS-Development-Kit-p-2868.html [ https://www.seeedstudio.com/OBD-II-CAN-Bus-GPS-Development-Kit-p-2868.html ]  料號:109990405


PRODUCT DETAILS

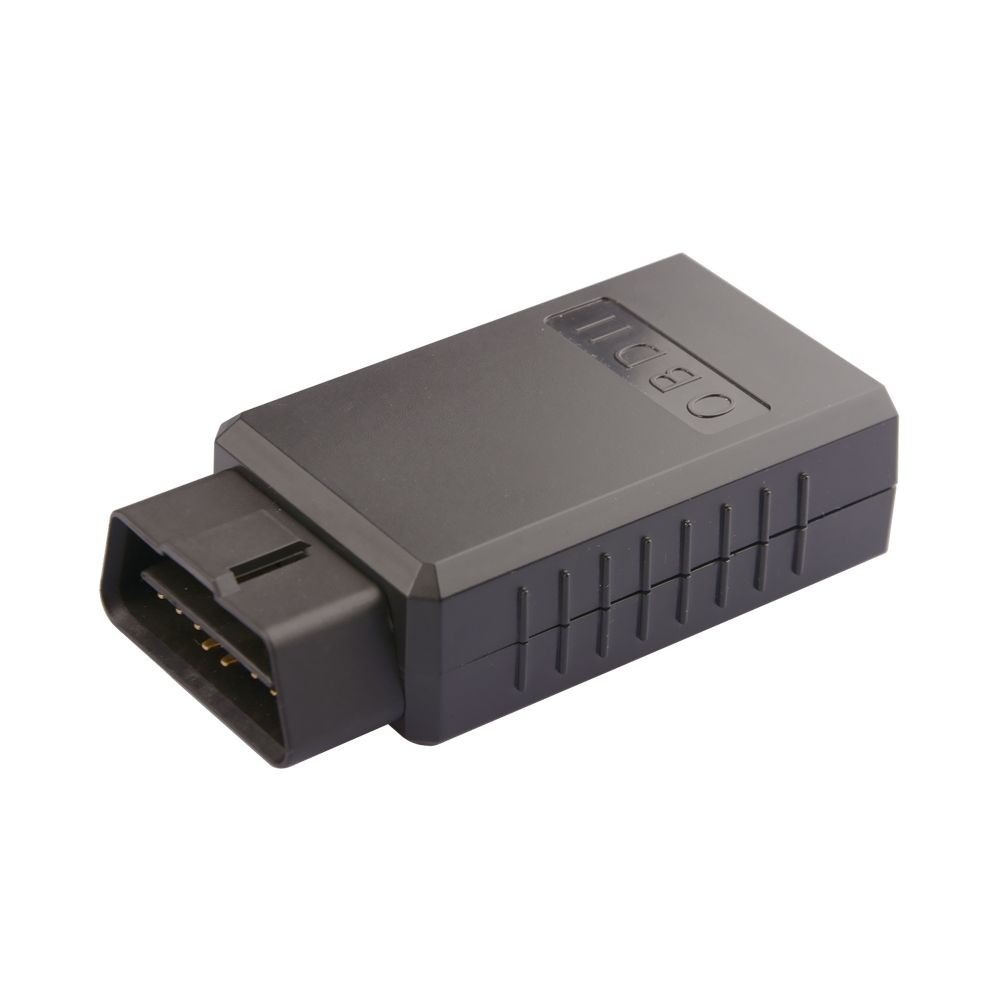

The development kit allows you to access your vehicle’s CAN bus via the OBD-II connector. The development kit can be connected (plugged) to your vehicle’s OBD-II port (On-Board Diagnostics port). The base board of the development kit is integrated with an Atmega32U4 microprocessor.

The CAN-Bus library is available to write sketches using Arduino IDE to send and receive messages from the CAN bus network and also allows you to fetch useful data from the messages. The output data can be taken through the USB Type-C port or you can store them to a microSD card (TF card) by inserting to the microSD slot.

The main board in the kit is based on MCP2551 CAN transceiver and MCP2515 CAN receiver, which provides baud rate from 5kb/s to 1Mb/s


A NEO-6 GPS breakout is seated on the base board allows you to track your vehicle with this fantastic small module by logging the GPS data to a microSD card.


It is obvious that you will love it, happy hacking!



Note

MicroSD card or TF card is not included with this package.





Features

  • Male OBD-II connector
  • Easy-to-use Arduino library
  • Integrated ATmega32U4 – 8-bit AVR microcontroller
  • NEO-6 GPS breakout
  • Integrated microSD card (or TF card) slot
  • USB Type-C port for output
  • Supports up to 115200 UART baud rate (default 9600)
  • Supports up to 1Mb/s CAN Bus baud rate
  • LED indicators for TX and RX

Part List

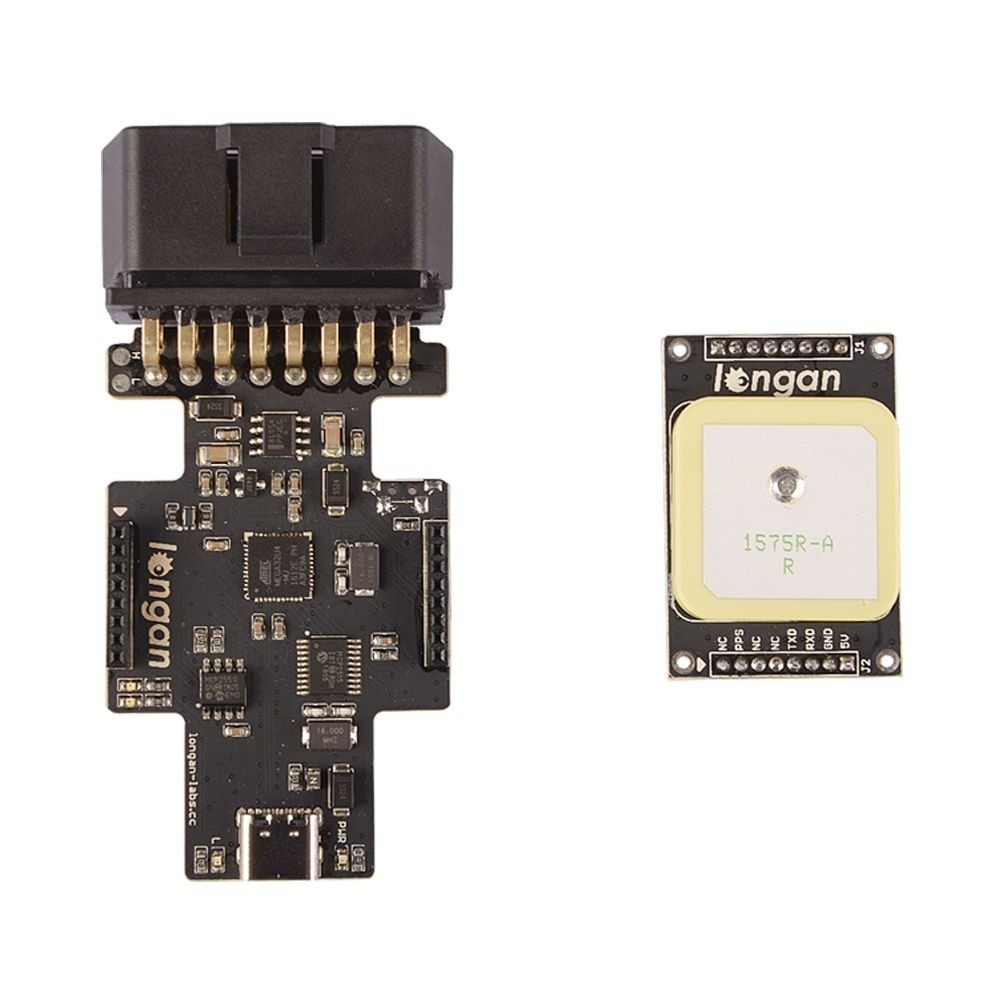

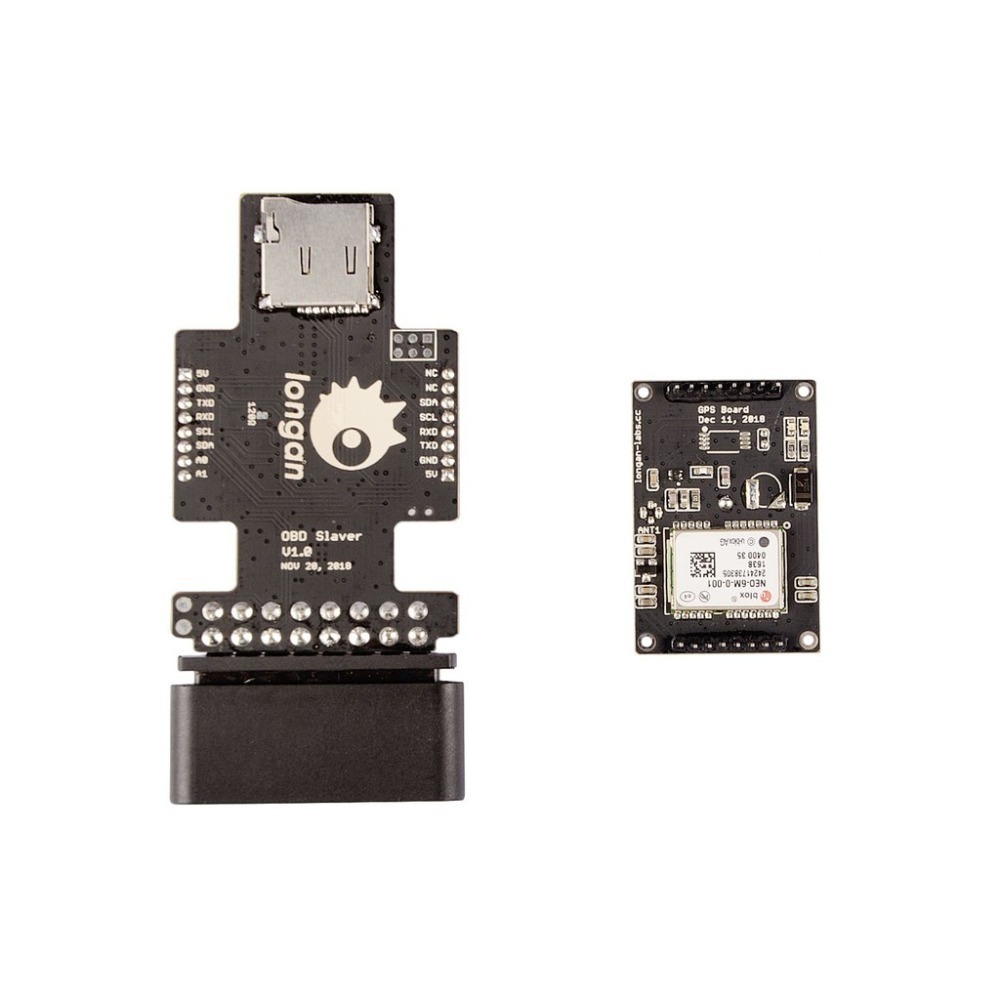

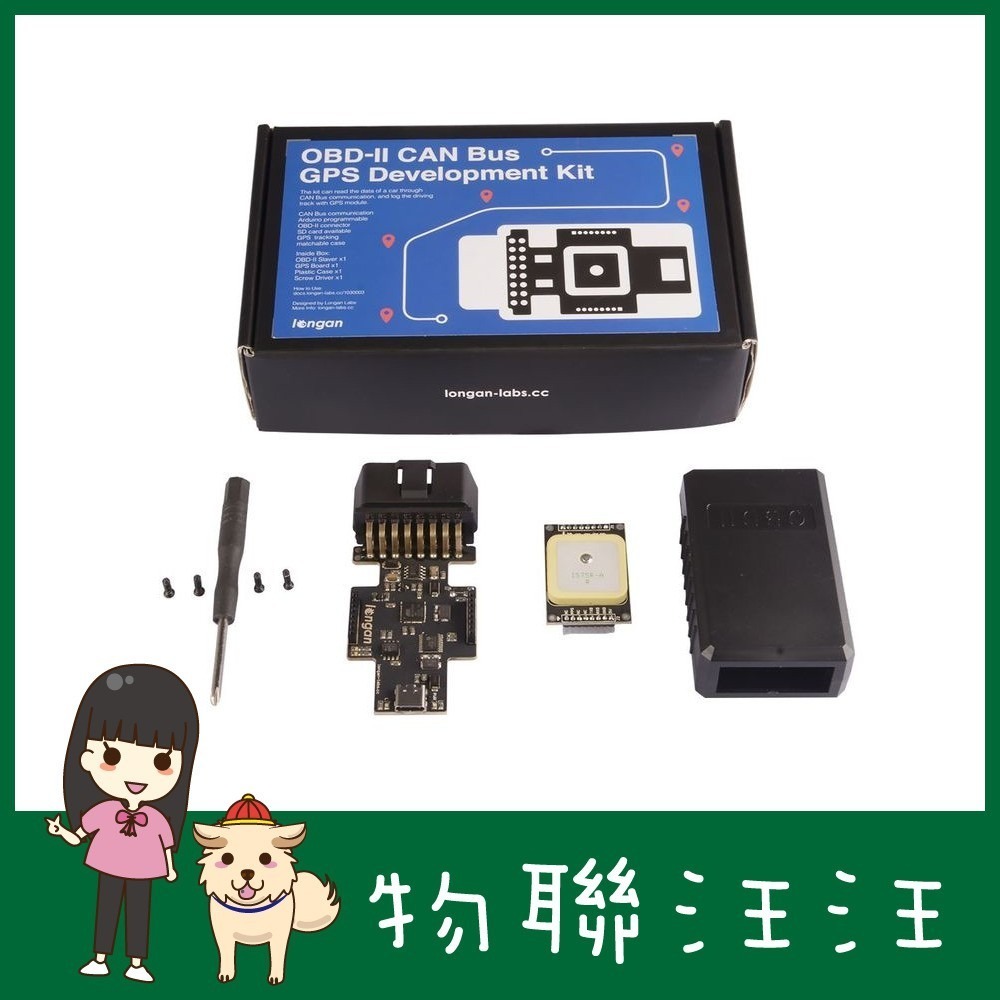

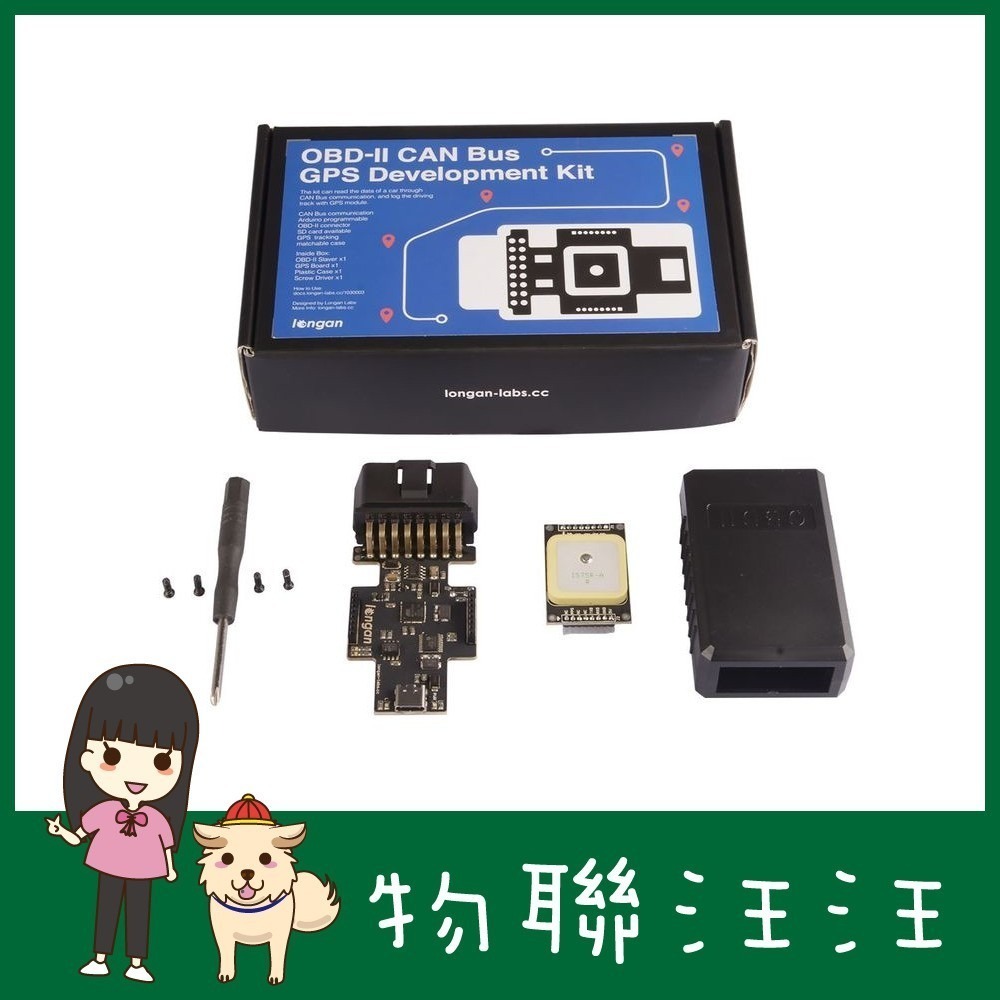

  • OBD Ⅱ Slaver(Base board) x 1
  • GPS Board x 1
  • Plastic Case x 1
  • Screw Driver x 1

Specifications

ParameterValue
MCUAtmega32U4
(with Arduino Leonardo bootloader)
Clock Speed16MHz
Flash Memory32KB
SRAM2.5KB
EERROM1KB
Operate Voltage5V
Input InterfaceOBD-II
Output InterfaceUSB Type C


Part List

  • OBD Ⅱ Slaver(Base board) x 1
  • GPS Board x 1
  • Plastic Case x 1
  • Screw Driver x 1

ECCN/HTS

HSCODE9023009000
USHSCODE9023000000
UPC
EUHSCODE9023001000
COOCHINA
RoHS1


LEARN AND DOCUMENTS

Documentations

  • How to Use [ https://docs.longan-labs.cc/1030003/ ]
  • Arudino Library [ https://github.com/Longan-Labs/CAN_BUS_Shield ]
  • Schematics in Eagle File [ https://github.com/Longan-Labs/OBD-II_Slaver_GPS_kit/raw/master/base_board.zip ]
  • An Easy Way to Get Data From Your Vehicle [ https://www.instructables.com/id/An-Easy-Way-to-Get-Data-From-Your-Vehicle/ ]
