[物聯汪汪] 含稅附發票~Raspberry Pi Debug Probe RP2040 Pico 或其它 MCU 燒錄

商品編號:P0510700188951 原始貨號:P0510700188951

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 500
$ 530
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.sparkfun.com/products/21802 [ https://www.sparkfun.com/products/21802 ]  料號:DEV-21802

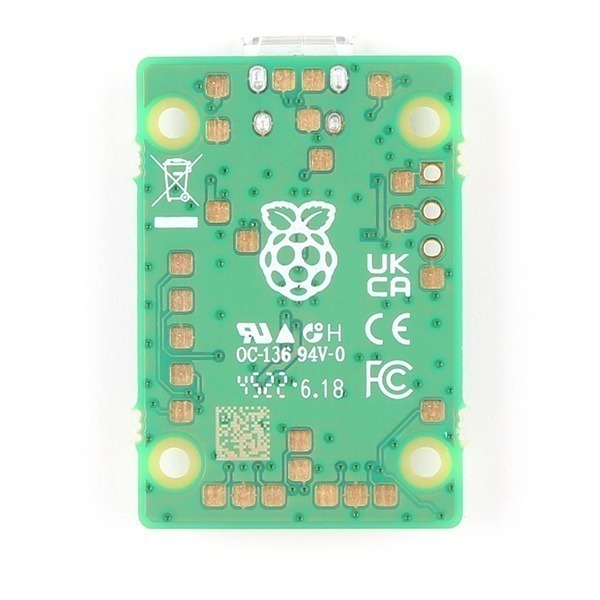

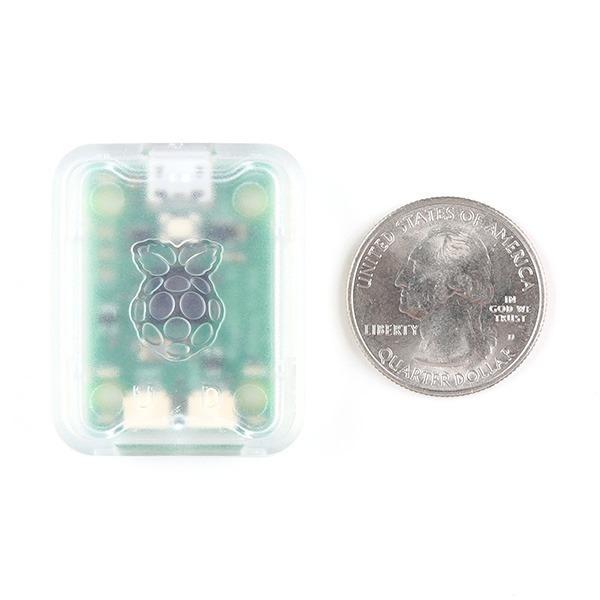

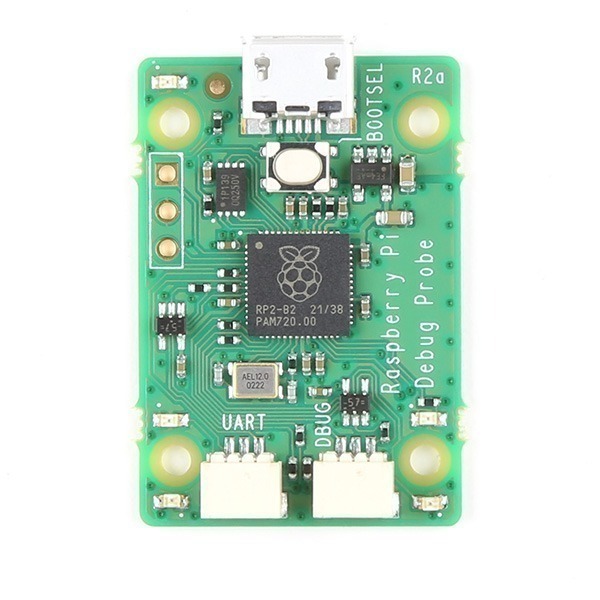

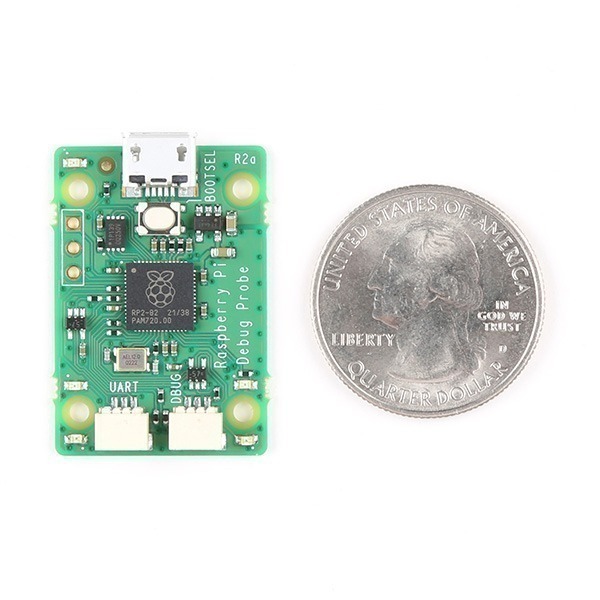

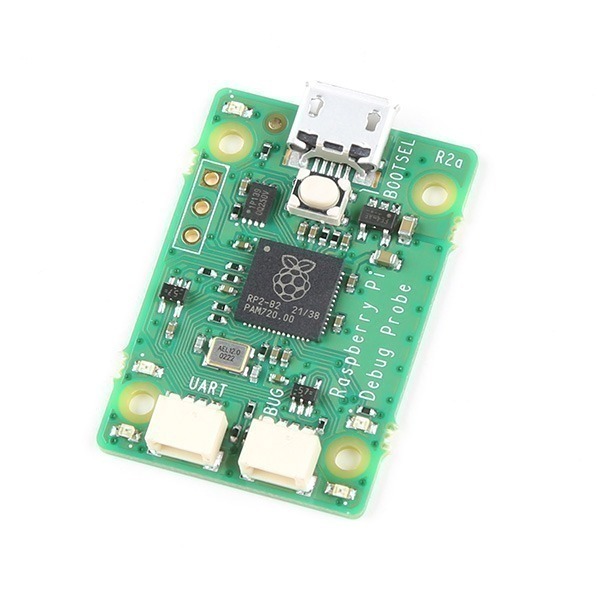

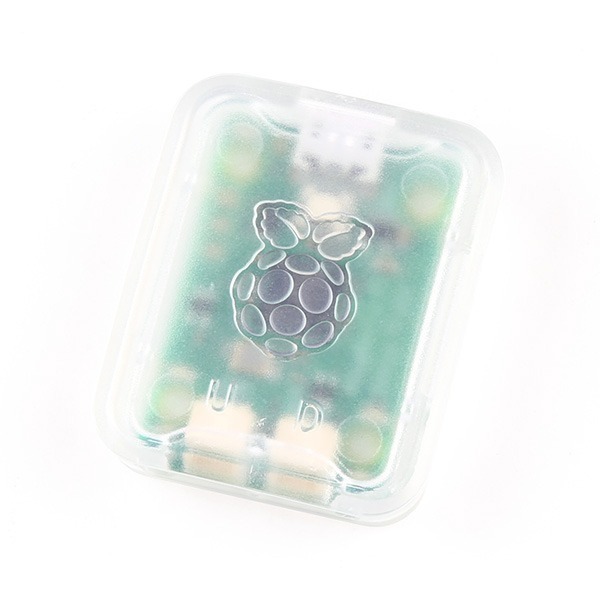

The Raspberry Pi Debug Probe is an inexpensive, all-in-one USB to serial debug and UART bridge. It provides the necessary hardware and cabling to support “plug and play” debugging of Raspberry Pi Pico and other microcontroller and microprocessor-based platforms.

The Raspberry Pi Debug Probe provides both a processor serial debug interface (by default this is the ARM Serial Wire Debug interface) and an industry-standard UART interface. Both interfaces use a 3-pin debug connector, as specified in the Raspberry Pi 3-pin debug connector specification.

Features:

  • USB to two-wire serial debug
    • Arm CMSIS-DAP Serial Wire Debug supported by default
  • USB to UART bridge
  • Works with OpenOCD
  • Open source, easily upgradeable firmware

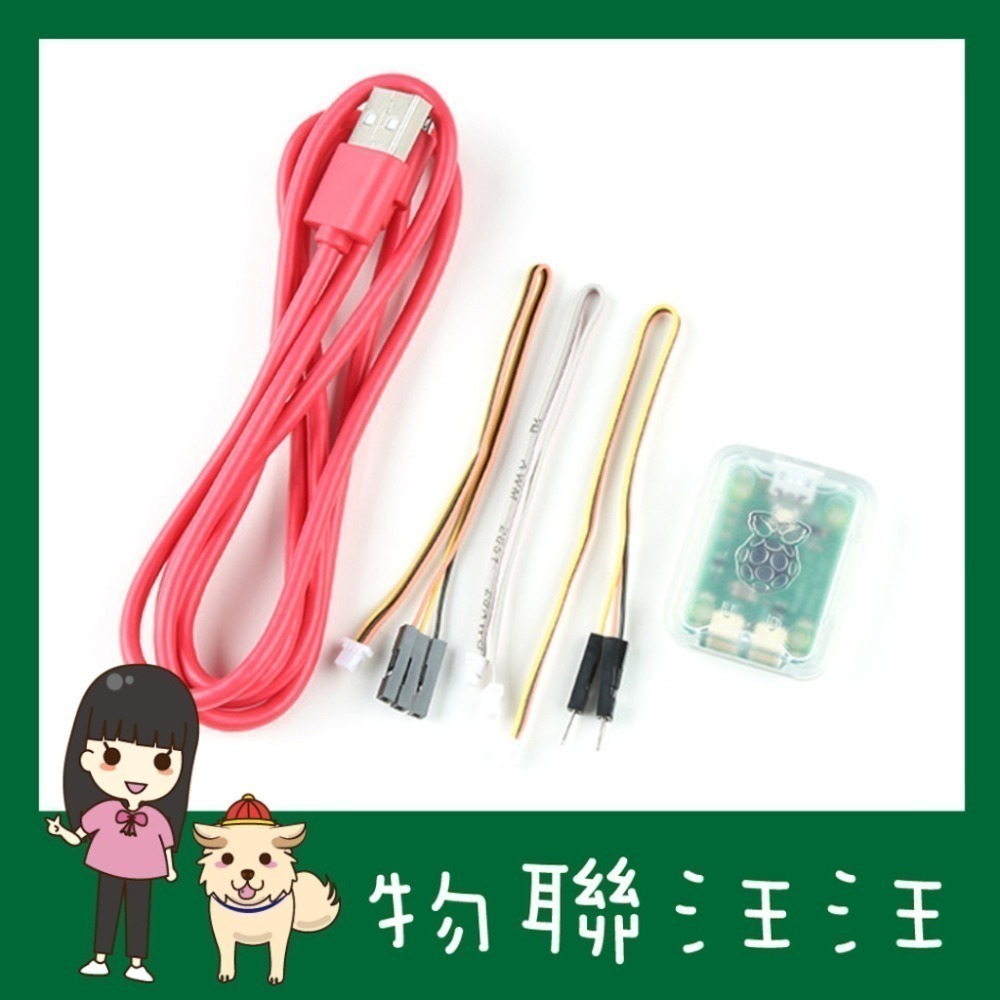

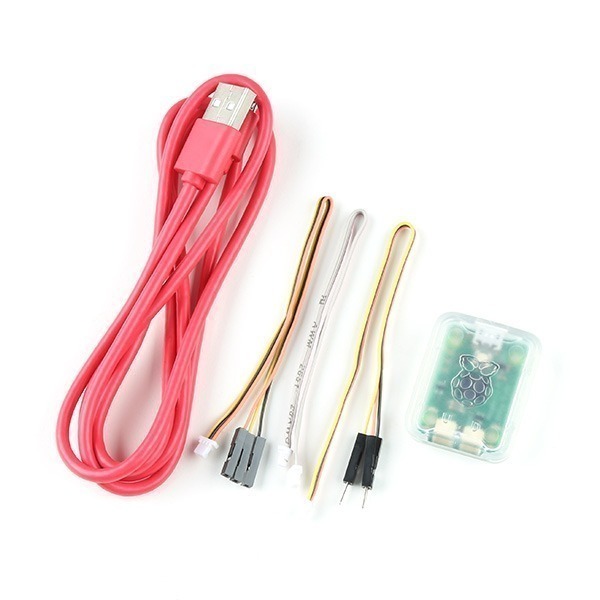

  • USB power cable and three debug cables included
  • 3.3V nominal I/O voltage
  • Follows the Raspberry Pi 3-pin Debug Specification

Documents:

  • Debug Connector Specifications [ https://datasheets.raspberrypi.com/debug/debug-connector-specification.pdf ]
