[物聯汪汪] 含稅附發票~ SparkFun Force Sensitive Resistor 0.5" 壓力感測器

商品編號:P0510712274384 原始貨號:P0510712274384

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 350
$ 370
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.sparkfun.com/products/9375 [ https://www.sparkfun.com/products/9375 ]  料號:SEN-09375

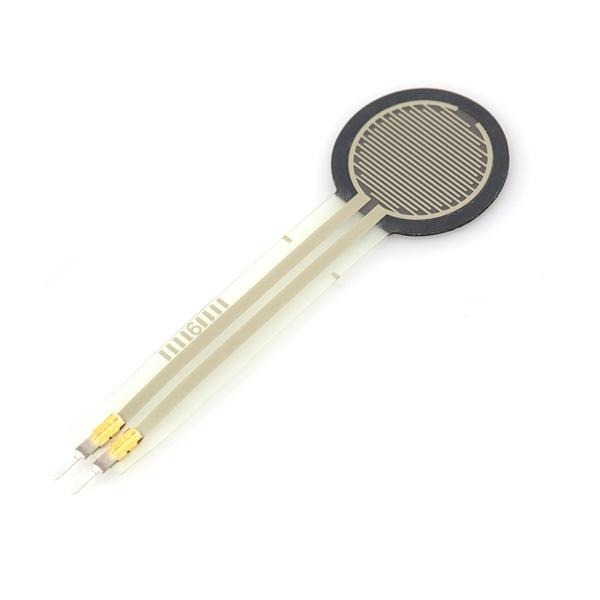

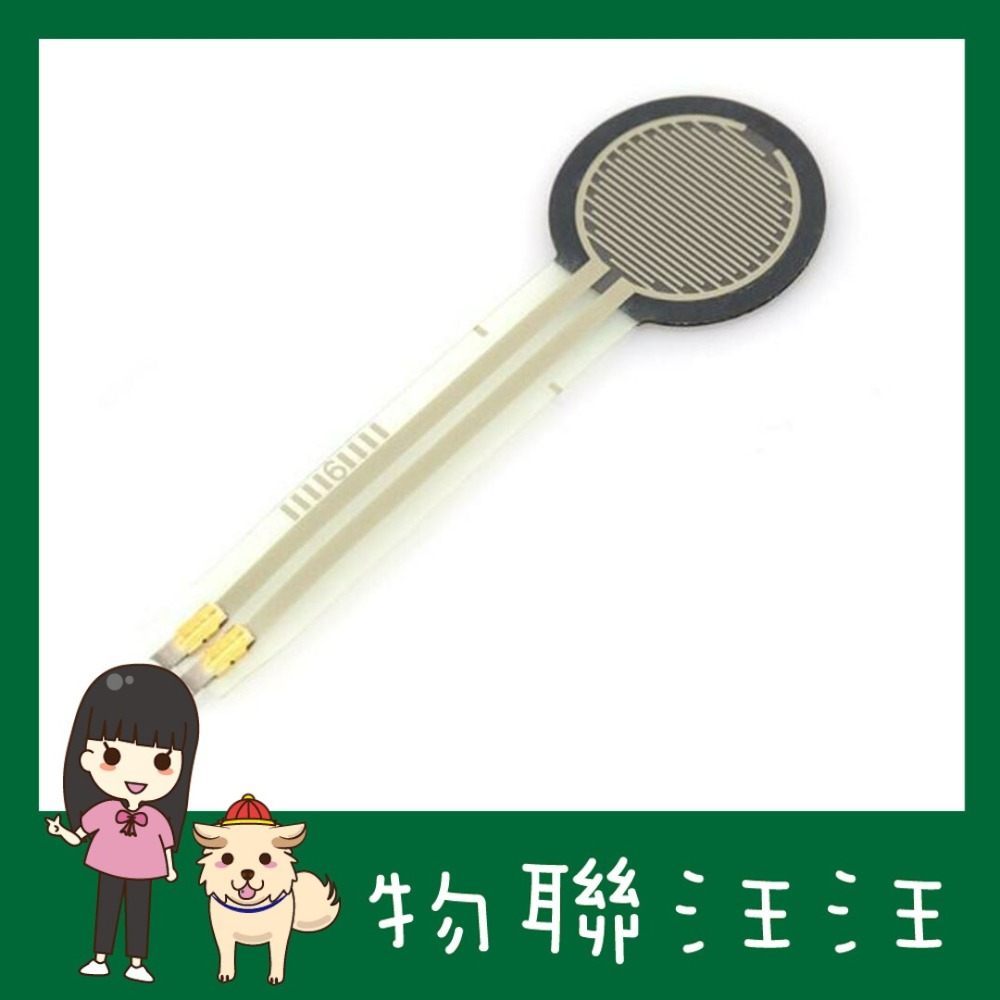

This is a force sensitive resistor with a round, 0.5" diameter, sensing area. This FSR will vary its resistance depending on how much pressure is being applied to the sensing area. The harder the force, the lower the resistance. When no pressure is being applied to the FSR its resistance will be larger than 1MΩ. This FSR can sense applied force anywhere in the range of 100g-10kg.

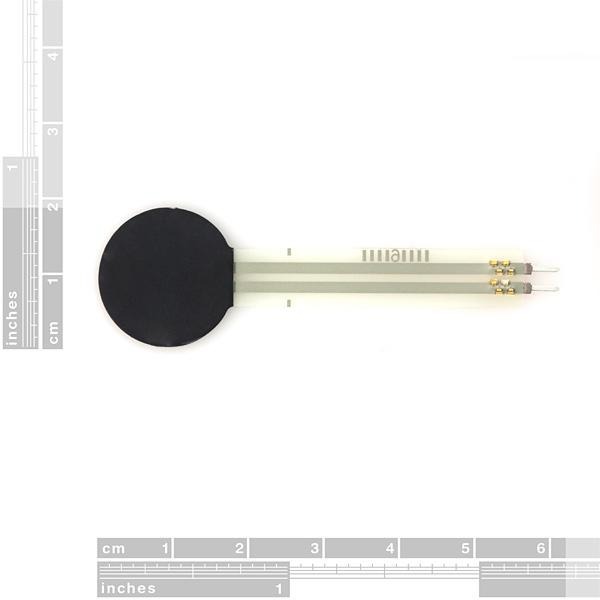

Two pins extend from the bottom of the sensor with 0.1" pitch making it bread board friendly. There is a peel-and-stick rubber backing on the other side of the sensing area to mount the FSR.

These sensors are simple to set up and great for sensing pressure, but they aren't incredibly accurate. Use them to sense if it's being squeezed, but you may not want to use it as a scale.

Note: As it states in the Integration Guide, do NOT solder directly to the exposed silver traces. With flexible substrates, the solder joint will not hold and the substrate can easily melt and distort during the soldering. We recommend using a male [ https://www.sparkfun.com/products/14195 ] or female [ https://www.sparkfun.com/products/14194 ] clincher connector instead.

Get Started with the Force Sensitive Resistor Guide [ https://learn.sparkfun.com/tutorials/force-sensitive-resistor-hookup-guide ]

Features:

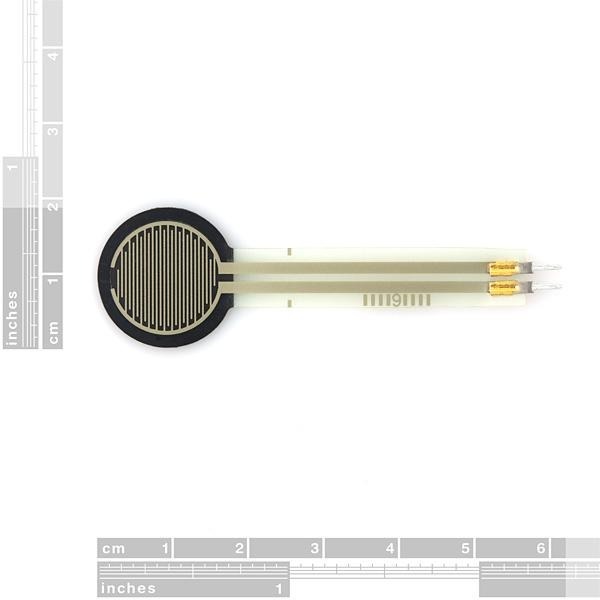

  • Overall length: 2.375"
  • Overall width: 0.75"
  • Sensing diameter: 0.5"

Documents:

  • Datasheet [ https://cdn.sparkfun.com/assets/8/a/1/2/0/2010-10-26-DataSheet-FSR402-Layout2.pdf ] (402 FSR)
  • FSR Integration Guide [ https://cdn.sparkfun.com/assets/4/d/0/f/7/DS-9375-Force_Sensitive_Resistor_0.5in.pdf ]
  • QuickStart Guide [ http://www.sparkfun.com/tutorials/269 ]
  • Hookup Guide [ https://learn.sparkfun.com/tutorials/force-sensitive-resistor-hookup-guide ]
