Description

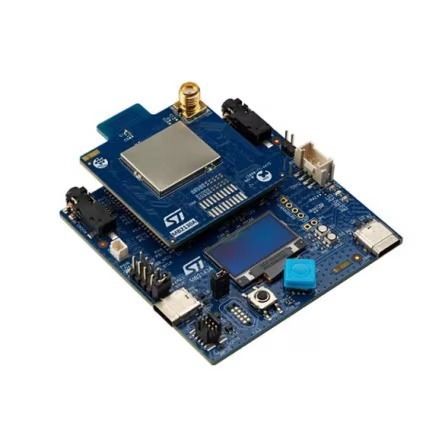

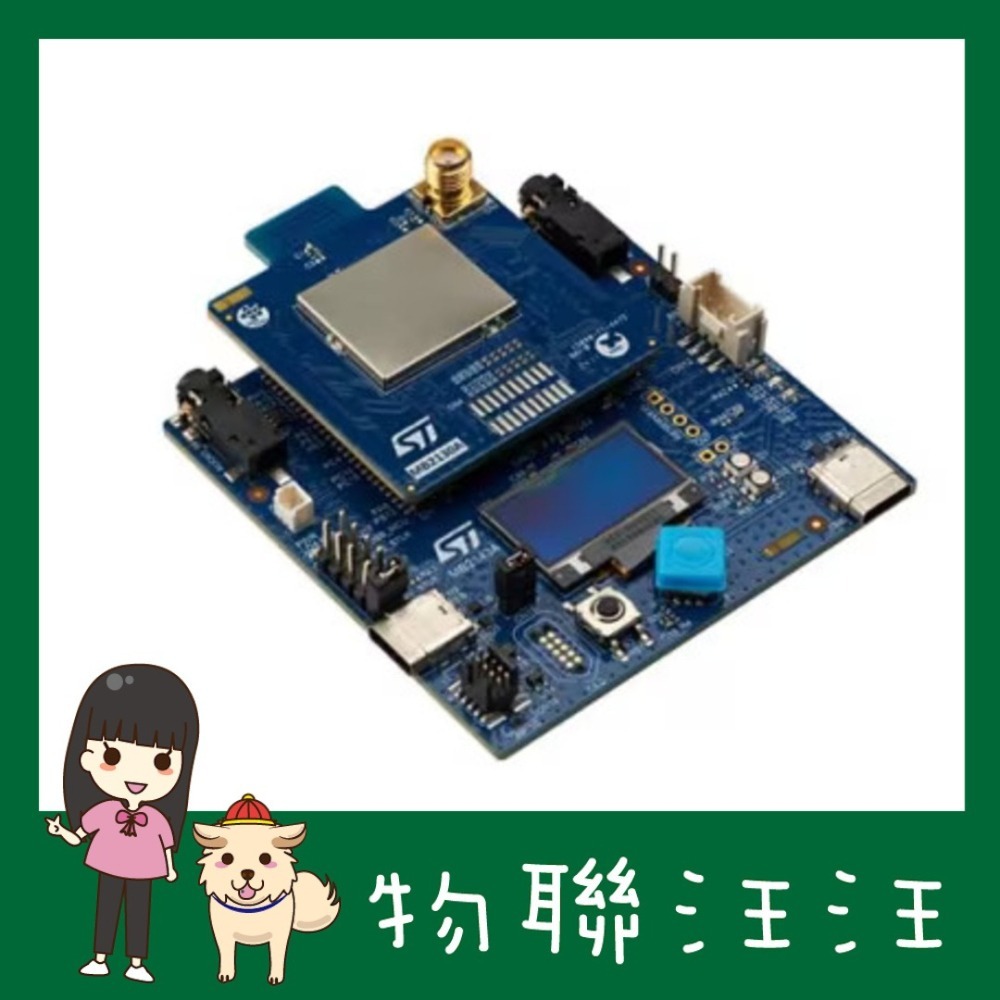

The STM32WBA65I-DK1 Discovery kit is a complete demonstration and development platform for the STM32WBA65RIV7 microcontroller, featuring an Arm® Cortex®‑M33 core with Arm® TrustZone® and mainline security extension, 2 Mbytes of flash memory, and 512 Kbytes of SRAM, as well as smart peripheral resources.
The STM32WBA65I-DK1 Discovery kit embeds a powerful and ultralow-power radio compliant with the Bluetooth® LE SIG resources. This Discovery kit enables a wide diversity of applications by exploiting low-power communication, the Bluetooth® SIG isochronous channel feature related to audio capability for Bluetooth® LE audio, Matter, and Zigbee®.
The support for ARDUINO® Uno V3 connectivity provides expansion capabilities with a wide choice of specialized add-on boards.
The STM32WBA65I-DK1 Discovery kit integrates an STLINK-V3EC embedded in-circuit debugger and programmer for the STM32 microcontroller with a USB Virtual COM port bridge. It comes with the STM32CubeWBA MCU Package, which provides an STM32 comprehensive software HAL library and various software examples.
The STM32WBA65I-DK1 Discovery kit leverages the STM32WBA series key assets to enable prototyping for a variety of wireless, low‑energy applications in fitness, metering, industry, or medicine, with state-of-the-art energy efficiency, and higher security.
All features
- Ultralow‑power wireless STM32WBA65RIV7 microcontroller based on the Arm® Cortex®‑M33 core, featuring 2 Mbytes of flash memory and 512 Kbytes of SRAM in a VFQFPN68 package
- MCU RF board (MB2130):
- 2.4 GHz RF transceiver supporting Bluetooth® LE
- Bluetooth® LE:LE 2MLE CodedDirection‑findingLE Power controlIsochronous channelsExtended advertisingPeriodic advertisingLE Secure connectionsLE AudioMesh networkingCore specification v6.0
- Arm® Cortex®‑M33 CPU with Arm® TrustZone®, MPU, DSP, and FPU
- Integrated PCB antenna
- One digital microphone
- OLED display
- Three user LEDs
- User joystick with 4-direction control and selector button
- Reset push button
- Board connectors:
- ARDUINO® Uno V3 expansion connector
- Grove
- USB Type-C®
- Battery
- Two 3.5 mm stereo jack sockets for input and output with microphone
- MIPI10
- Tag‑Connect™ 10‑pin footprint
- Flexible power-supply options: ST-LINK USB VBUS or external sources
- On-board STLINK-V3EC debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port, and debug port
- Comprehensive free software libraries and examples available with the STM32CubeWBA MCU Package
- Support of a wide choice of Integrated Development Environments (IDEs) including IAR Embedded Workbench®, MDK-ARM, and STM32CubeIDE
