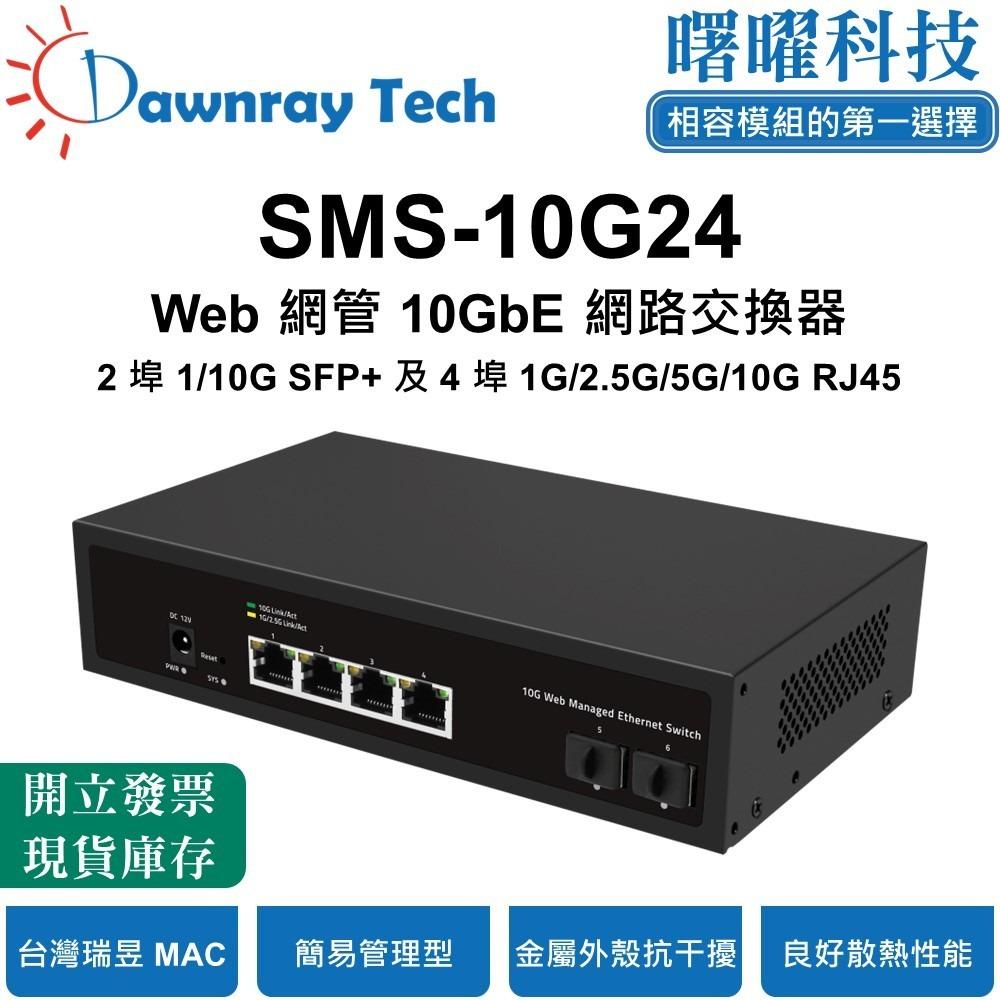

SMS-10G24 商用簡易網管型乙太網路交換器 2x 10GSFP 4x 10G RJ45
產品特色
- Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex
- Supports automatic port flipping (Auto MDI/MDIX)
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x
- RJ45 port supports 100M/1G/2.5G/5G/10G adaptive
- 2 埠 10GBASE-R SFP+ 及 4 埠 10GBASE-T RJ45, 彈性配置各式 10GbE 光纖模組
- Supports QoS data priority
- The panel indicator LEDs will monitor the working status and assist in fault analysis
硬體規格
| 功耗 | 24.3 W |
| 包裝內容 | Switch 1pcs, power adapter 1pcs, instruction manual 1pcs, certificate of qualification 1pcs |
| LED 指示 | PWR LED On: Powered on Off: Powered off SYS LED On: The system is running normally Flashing: System startup in progress Port LED Port 1 - 4 Green On: 10G Link normal Yellow On: 100M/1G/2.5G Link normal Off: Link blocked Flashing: Data transmitting Port 5 - 6 Green On: 10G Link normal Yellow On: 1G/2.5G Link normal Off: Link blocked Flashing: Data transmitting |
| 網纜埠口 | 4 10GBASE-T RJ45 Ports |
| 重置按鈕 | Long press for 6 seconds to restore factory settings |
| 風扇數量 | 1 |
| 光纖埠口 | 2 10GBASE-R SFP+ Ports |
| 電源輸入規格 | DC 12V 2.5A |
| 安裝方式 | Desktop |
| 外觀尺寸 | 200 x 118 x 44 mm |
網路規格
| MAC 位址表 | 16K |
| VLAN 範圍 | 1-4094, maximum active VLAN is 4K |
| 最大封包 | support |
| 背板頻寬 | 120 Gbps |
| 封包轉發率 | 89.28 Mpps |
| 封包緩衝 | 12 Mbits |
| 交換器結構 | Store-and-Forward |
產業標準
| 突波防護 | Port Surge: Common mode 4KV, differential mode 2KV (Class A) |
| 乙太網路協議 | IEEE 802.3 Ethernet IEEE 802.3u 100BASE-TX/FX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5GBASE-T 2.5/5G Ethernet IEEE 802.3an 10GBASE-T 10G Ethernet IEEE 802.3z 1000BASE-X Ethernet IEEE 802.3cb 2.5G/5GBASE-X 2.5/5G Ethernet IEEE 802.3ae 10GBASE-R Ethernet IEEE 802.3x Flow Control |
| ESD 防護 | Electrostatic ESD: Contact 6KV (Class A), Air 8KV (Class B) |
環境規格
| 儲存溫度 | -40 to 70°C |
| 工作溫度 | 0 to 40°C |
