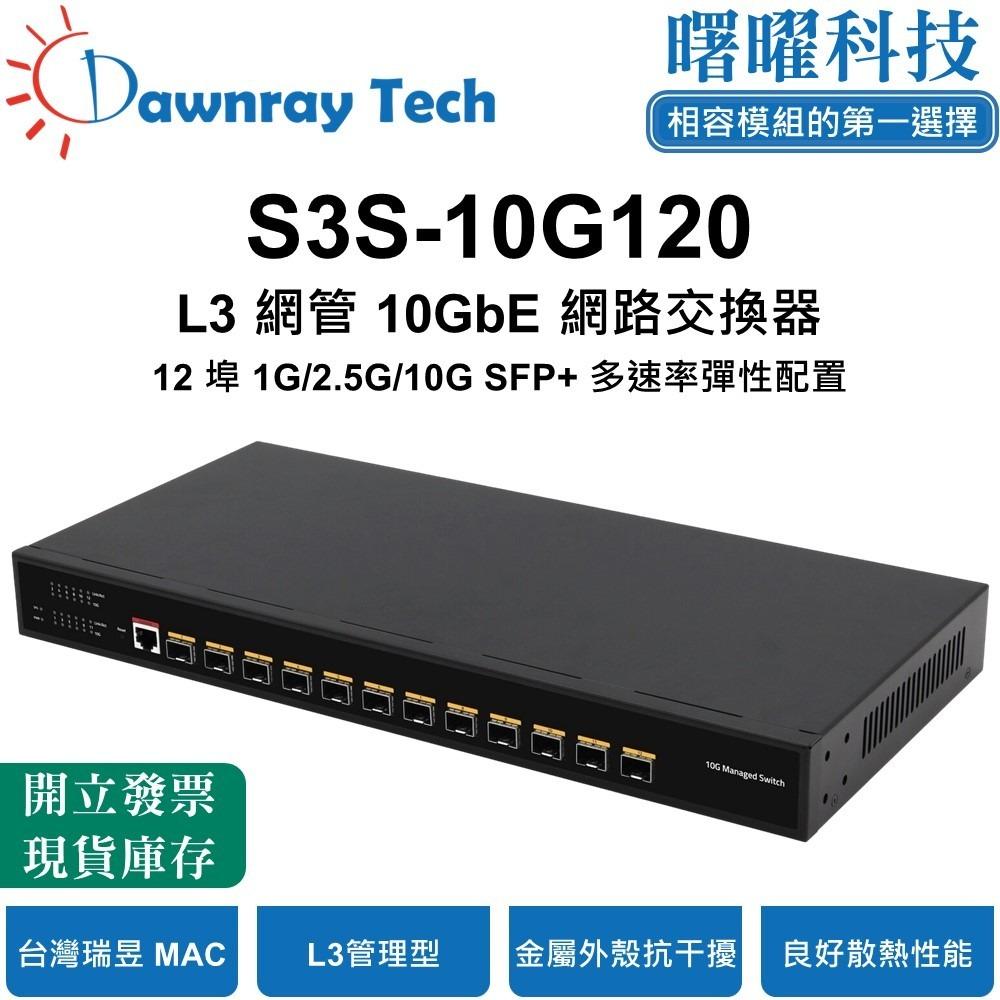

S3S-10G120 商用網管型乙太網路交換器 12x 10GSFP
產品特色
- 12 埠 10GBASE-R SFP+, 彈性配置各式 10GbE 光纖模組
- Supports multiple VLAN partitions, including MAC VLAN, protocol VLAN;
- Supports IP address+MAC address+VLAN+port binding, supports DHCP Snooping, supports IP source and DAI protection;
- Supports IPV4/IPV6, RIP v1/v2, OSPF v2
- L3 management, supports DHCP Server, QoS, ACL control, supports SNMP V1/V2/V3, supports IGMP Snooping v1/v2;
- Supports Spanning Tree Protocol STP/RSTP/MSTP (ERPS), supports loop detection and self-healing, and supports remote loopback monitoring and control (802.3ah OAM)
- Supports IEEE 802.1d, IEEE 802.1w, IEEE 802.1s, IEEE 802.1p, IEEE 802.3, IEEE 802.3u, IEEE 802.3x, IEEE 802.3z, IEEE 802.3ab, IEEE 802.3ae
硬體規格
| 光纖埠口 | 12 10GBASE-R SFP+ Ports |
| Console 埠口 | 1 RJ45 to RS232 Serial Port (115200, 8, N, 1) |
| 淨重 | 2.50 kg |
| 外觀尺寸 | 440 x 205 x 44 mm |
| 功耗 | 29.6 W |
| 安裝方式 | Desktop, rack-mounting |
| 重置按鈕 | Long press for 6 seconds to restore factory settings |
| 包裝重量 | 3.12 kg |
| LED 指示 | PWR LED Red On: Powered on Off: Powered off SYS LED Green On: The system is running normally Flashing: System startup in progress Port LED Port 1 - 12 Green On: 10G Link normal Green On: LinK/ACT Link normal Off: Link blocked Flashing: Data transmitting |
| 包裝內容 | Switch 1pcs, power adapter 1pcs, instruction manual 1pcs, certificate of qualification 1pcs, serial port cable 1pcs, rack-mounting kit 1 pair |
| 電源輸入規格 | DC 12V 8A |
| 風扇數量 | 1 |
網路規格
| MAC 位址表 | 32K |
| 封包轉發率 | 178.56 Mpps |
| 封包緩衝 | 16 Mbits |
| 最大封包 | 10 Kbytes |
| 背板頻寬 | 240 Gbps |
| 交換器結構 | Store-and-Forward |
| VLAN 範圍 | 1-4094, maximum active VLAN is 4K |
產業標準
| 乙太網路協議 | IEEE 802.3 Ethernet IEEE 802.3z 1000BASE-X Ethernet IEEE 802.3cb 2.5G/5GBASE-X 2.5/5G Ethernet IEEE 802.3ae 10GBASE-R Ethernet IEEE 802.3x Flow Control IEEE 802.3ad Link Aggregation IEEE 802.3az Efficient and Energy saving Ethernet IEEE 802.1AB LLDP/LLDP MED (Link Layer Discovery Protocol) IEEE 802.1D Spanning Tree Protocol IEEE 802.1p VLAN Tag IEEE 802.1Q Virtual Local Area Network IEEE 802.1s Multiple Spanning Tree Protocol (Fast Spanning Tree) IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1X User Authentication |
| ESD 防護 | Electrostatic ESD: Contact 6KV (Class B), Air 8KV |
環境規格
| 儲存溫度 | -40 to 70°C |
| 工作溫度 | 0 to 40°C |
