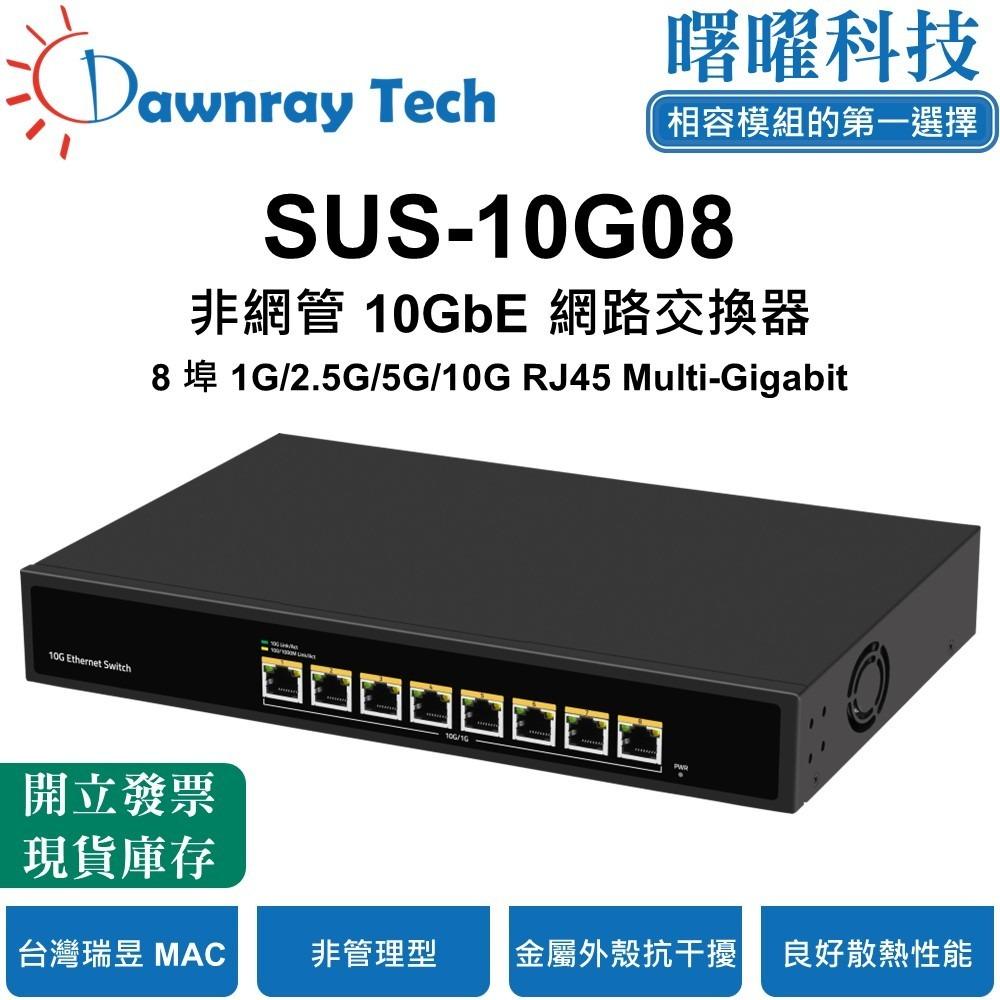

SUS-10G08 商用非網管型乙太網路交換器 8x 10G RJ45
產品特色
- The panel indicator LEDs will monitor the working status and assist in fault analysis
- RJ45 port supports 100M/1G/2.5G/5G/10G adaptive
- Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex
- 8 埠 10GBASE-T RJ45
- Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x, IEEE 802.3az
- Supports VLAN transparent transmission and giant frame function
- Supports automatic port flipping (Auto MDI/MDIX)
硬體規格
| LED 指示 | PWR LED Green On: Powered on Off: Powered off Port LED Port 1 - 8 Green On: 2.5G/5G/10G link connection is normal Yellow On: 10M/100M/1G connection is normal Off: Link blocked Flashing: Data transmitting |
| 包裝重量 | 2.12 kg |
| 風扇數量 | 1 |
| 安裝方式 | Desktop |
| 淨重 | 1.72 kg |
| 網纜埠口 | 8 10GBASE-T RJ45 Ports |
| 功耗 | 13.8 W |
| 重置按鈕 | Long press for 6 seconds to restore factory settings |
| 外觀尺寸 | 320 x 207 x 45 mm |
| 電源輸入規格 | DC 12V 8A |
| 包裝內容 | Switch 1pcs, power adapter 1pcs, instruction manual 1pcs, certificate of qualification 1pcs |
網路規格
| 交換器結構 | Store-and-Forward |
| 封包轉發率 | 119.04 Mpps |
| 最大封包 | 10 Kbytes |
| 背板頻寬 | 160 Gbps |
| MAC 位址表 | 16K |
| 封包緩衝 | 12 Mbits |
產業標準
| 乙太網路協議 | IEEE 802.3 Ethernet IEEE 802.3i 10BASE-T Ethernet IEEE 802.3u 100BASE-TX/FX Fast Ethernet IEEE 802.3ab 1000BASE-T Gigabit Ethernet IEEE 802.3bz 2.5G/5GBASE-T 2.5/5G Ethernet IEEE 802.3an 10GBASE-T 10G Ethernet IEEE 802.3x Flow Control IEEE 802.3az Efficient and Energy saving Ethernet |
| ESD 防護 | Electrostatic ESD: Contact 6KV (Class B), Air 8KV |
| 突波防護 | Port Surge: Common mode 4KV |
環境規格
| 儲存溫度 | -40 to 70°C |
| 工作溫度 | 0 to 40°C |
