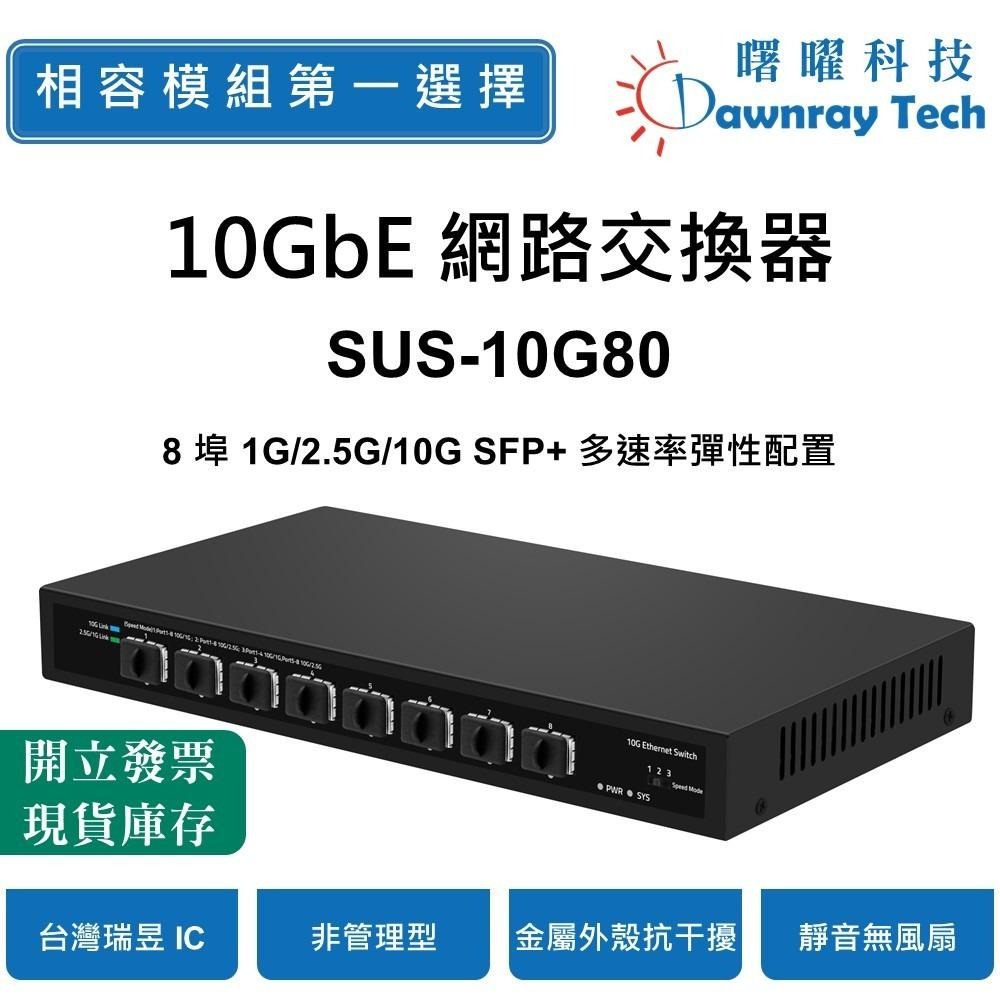

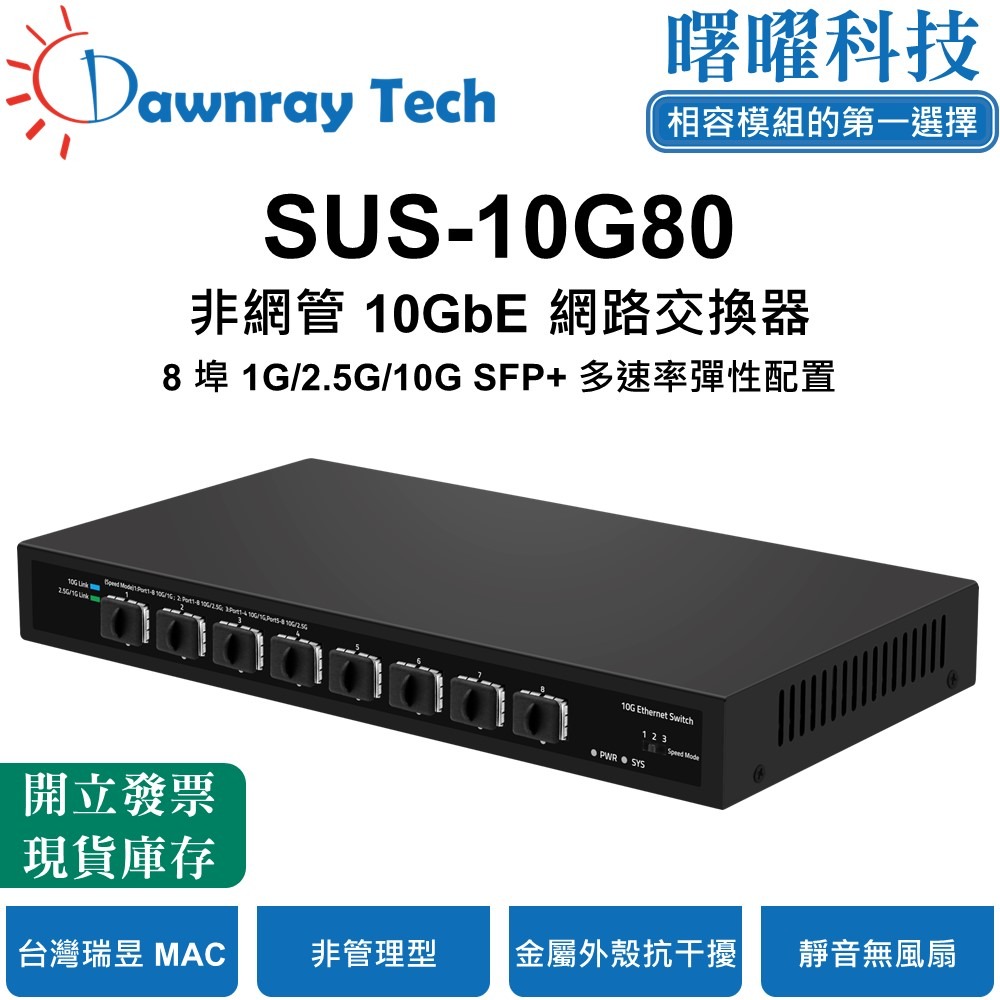

【曙曜】SUS-10G80 非網管乙太網路交換器 8 埠 1G/2.5G/10G SFP+ 金屬外殼 靜音無風扇 桌上型

商品編號:P8928912560326 原始貨號:SUS-10G80

曙曜科技提供 SUS-10G80 商用非網管型乙太網路交換器, 具備 8埠 10GBASE-R SFP+ 插槽, 可視不同應用場景, 彈性選配所需之光纖模組. 適合中小企業及SOHO的室內應用, 運作於 0 to 40°C 的商用溫度範圍. SUS-10G80 交換器面板前方配備有 LED 指示燈, 使用者可快速了解交換器的運作狀態, 為用戶提供高速且穩定的連接, 確保卓越的網路效能與流暢體驗.

$ 4,999
預計出貨天數1
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

⭐⭐ 注意事項 ⭐⭐

  • 圖片僅提供參考,商品外觀以實際出貨為準。


常用搭配光纖模組

中性 SFP-10G-T RJ45 銅纜模組
中性 SFP-10G-T80 RJ45 銅纜模組
中性 SFP-10G-SR 多模光纖模組
中性 SFP-10G-LR 單模光纖模組
中性 SFP-GE-T 1G RJ45 銅纜模組
中性 SFP-GE-SX 1G 多模光纖模組
中性 SFP-GE-LX 1G 單模光纖模組



其他網路交換器規格選項

非網管 1x 10GSFP 5x 2.5G RJ45 網路交換器
非網管 1x 10GSFP 8x 2.5G RJ45 網路交換器
非網管 8x 10G RJ45 網路交換器
非網管 8x 10G SFP+ 網路交換器
Web網管 1x 10GSFP 5x 2.5G RJ45 網路交換器
Web網管 1x 10GSFP 8x 2.5G RJ45 網路交換器
Web網管 8x 10G RJ45 網路交換器
Web網管 8x 10G SFP+ 網路交換器
Web網管 2x 10GSFP 4x 10G RJ45 網路交換器
Web網管 5x 10G RJ45 網路交換器
Web網管 1x 10GSFP 7x 10G RJ45 網路交換器
Web網管 8x 10GSFP 4x 10G RJ45 網路交換器
Web網管 4x 10GSFP 8x 10G RJ45 網路交換器
L3 網管 12x 10GSFP 網路交換器



SUS-10G80 商用非網管型乙太網路交換器 8x 10GSFP



產品特色

  • Flow control method, IEEE802.3x standard for full duplex and Backpressure standard for half duplex
  • The panel indicator LEDs will monitor the working status and assist in fault analysis
  • SFP+ port supports 10G/1G
  • Supports IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.3bz, IEEE 802.3ae, IEEE 802.3x
  • Supports automatic port flipping (Auto MDI/MDIX)
  • 8 埠 10GBASE-R SFP+, 彈性配置各式 10GbE 光纖模組


硬體規格

安裝方式Desktop
功耗13.8 W
包裝重量0.86 kg
電源輸入規格DC 12V 2A
光纖埠口8 10GBASE-R SFP+ Ports
重置按鈕Long press for 6 seconds to restore factory settings
淨重0.62 kg
外觀尺寸220 x 126 x 28 mm
LED 指示PWR LED
 Green On: Powered on
 Off: Powered off
SYS LED
 Green On: System startup completed
 Flashing: System startup in progress
Port LED
 Port 1 - 8
 Blue On: 2.5G/5G/10G link connection is normal
 Green On: 10M/100M/1G connection is normal
 Off: Link blocked
 Flashing: Data transmitting
包裝內容Switch 1pcs, power adapter 1pcs, instruction manual 1pcs, certificate of qualification 1pcs

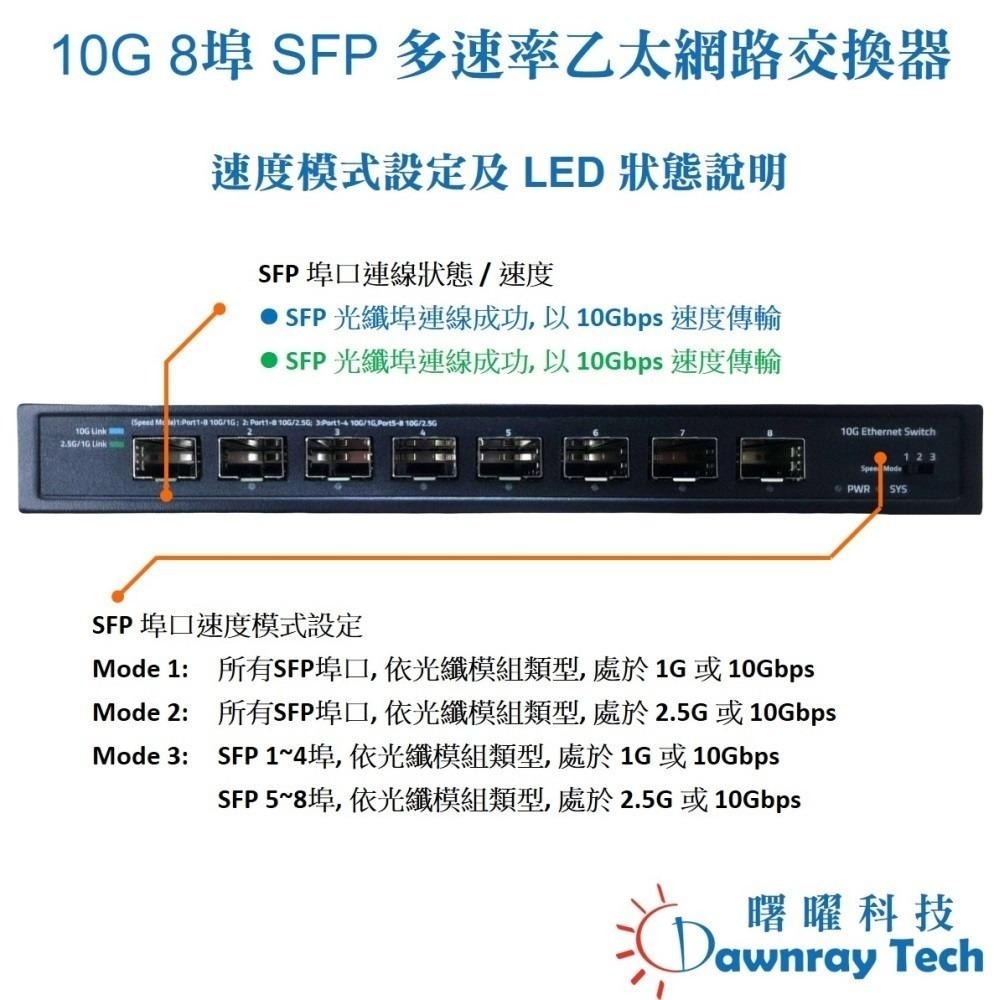

速度模式1: The speed of ports 1-8 is 10G/1G
2: The speed of ports 1-8 is 10G/2.5G
3: The speed of ports 1-4 is 10G/1G; The speed of ports 5-8 is 10G/2.5G

網路規格

最大封包10 Kbytes
封包轉發率119.04 Mpps
MAC 位址表16K
交換器結構Store-and-Forward
背板頻寬160 Gbps
封包緩衝12 Mbits

產業標準

乙太網路協議IEEE 802.3 Ethernet
IEEE 802.3z 1000BASE-X Ethernet
IEEE 802.3cb 2.5G/5GBASE-X 2.5/5G Ethernet
IEEE 802.3ae 10GBASE-R Ethernet
IEEE 802.3x Flow Control

環境規格

儲存溫度-40 to 70°C
工作溫度0 to 40°C
