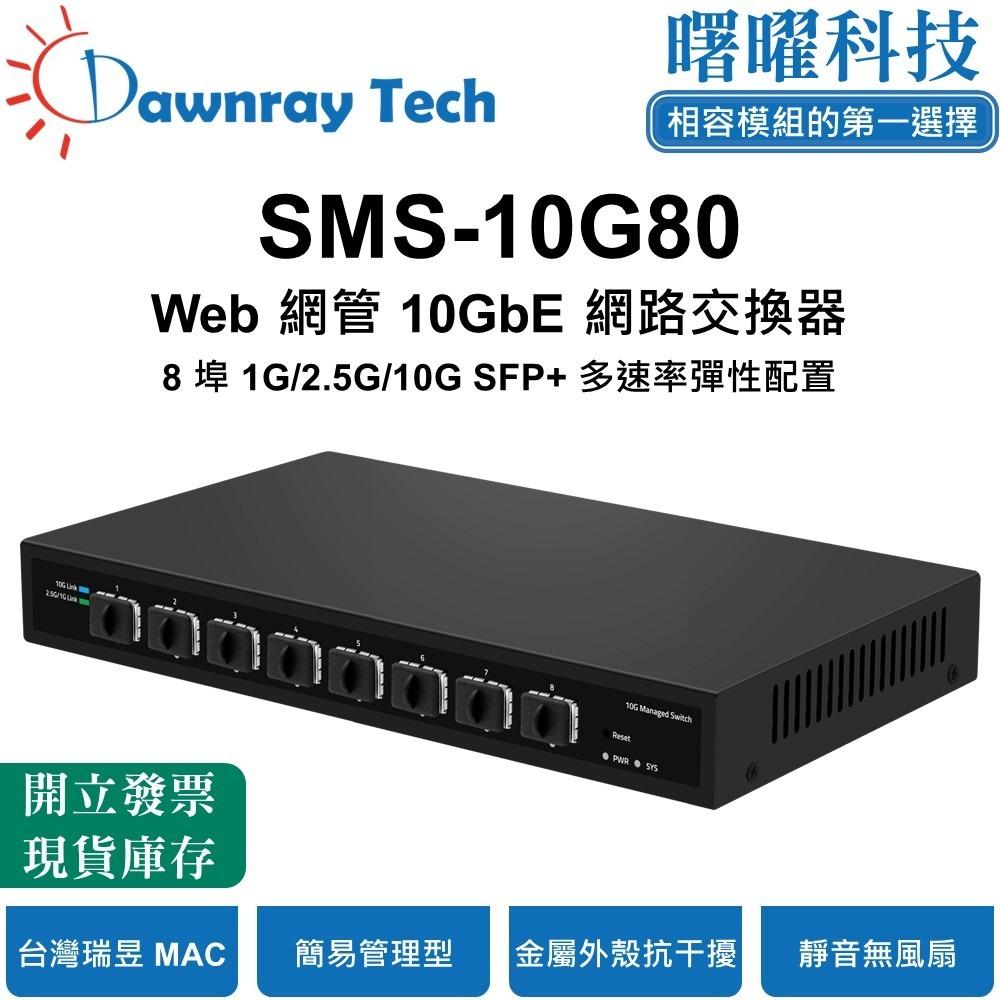

SMS-10G80 商用簡易網管型乙太網路交換器 8x 10GSFP
產品特色
- Supports IEEE 802.3, IEEE 802.3z, IEEE 802.3x, IEEE 802.3az, IEEE 802.3ae, IEEE 802.3bz
- All ports support line speed switching
- Supports web management
- Supports automatic port flipping (Auto MDI/MDIX)
- Adopting a storage and forwarding exchange mechanism
- SFP+ port supports 10G/1G
- 8 埠 10GBASE-R SFP+, 彈性配置各式 10GbE 光纖模組
- The panel indicator LEDs will monitor the working status and assist in fault analysis
- Supports QoS data priority
硬體規格
| LED 指示 | PWR LED Green On: Powered on Off: Powered off SYS LED Green On: The system is running normally Flashing: System startup in progress Port LED Port 1 - 8 Blue On: 10G Link normal Green On: 2.5G/1G Link normal Off: Link blocked Flashing: Data transmitting |
| 外觀尺寸 | 220 x 126 x 28 mm |
| 光纖埠口 | 8 10GBASE-R SFP+ Ports |
| 淨重 | 0.62 kg |
| 功耗 | 13.8 W |
| 重置按鈕 | Long press for 6 seconds to restore factory settings |
| 安裝方式 | Desktop |
| 包裝重量 | 0.86 kg |
| 包裝內容 | Switch 1pcs, power adapter 1pcs, instruction manual 1pcs, certificate of qualification 1pcs |
| 電源輸入規格 | DC 12V 2A |
網路規格
| MAC 位址表 | 16K |
| 封包轉發率 | 119.04 Mpps |
| 封包緩衝 | 12 Mbits |
| 背板頻寬 | 160 Gbps |
| VLAN 範圍 | 1-4094, maximum active VLAN is 4K |
| 最大封包 | 10 Kbytes |
| 交換器結構 | Store-and-Forward |
產業標準
| 產業認證 | CE FCC CFR47 Part 15 RoHS |
| ESD 防護 | Electrostatic ESD: Contact 6KV (Class B), Air 8KV |
| 乙太網路協議 | IEEE 802.3 Ethernet IEEE 802.3z 1000BASE-X Ethernet IEEE 802.3cb 2.5G/5GBASE-X 2.5/5G Ethernet IEEE 802.3ae 10GBASE-R Ethernet IEEE 802.3x Flow Control IEEE 802.3az Efficient and Energy saving Ethernet |
環境規格
| 工作溫度 | 0 to 40°C |
| 儲存溫度 | -40 to 70°C |
