- 網路技術標準
- IEEE 802.11a
- IEEE 802.11b
- IEEE 802.11g
- WiFi 4 (802.11n)
- WiFi 5 (802.11ac)
- WiFi 6 (802.11ax)
- IPv4
- IPv6
- 產品規格

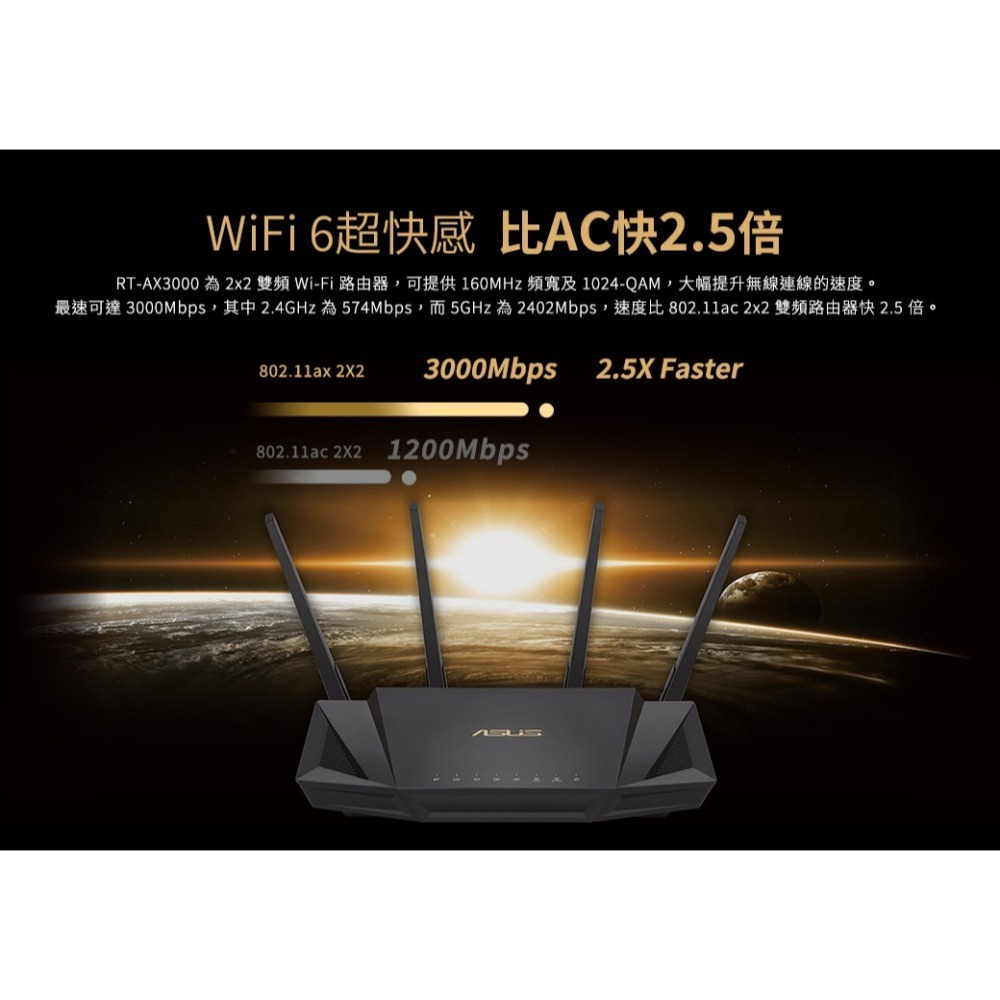

- AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps
- AX技術
- 有
- 傳輸量
- 802.11a：最高 54 Mbps
- 802.11b：最高 11 Mbps
- 802.11g：最高 54 Mbps
- 802.11n：最高 300 Mbps
- 802.11ac (1024QAM)：最高 1733 Mbps
- 802.11ax (2.4GHz)：最高 574 Mbps
- 802.11ax (5GHz)：最高 2402 Mbps
- 天線
- External antenna x 4
- 傳送 / 接收
- 2.4GHz 2x2
- 5GHz 2x2
- 記憶體
- 256 MB Flash
- 512 MB RAM
- 網速提升

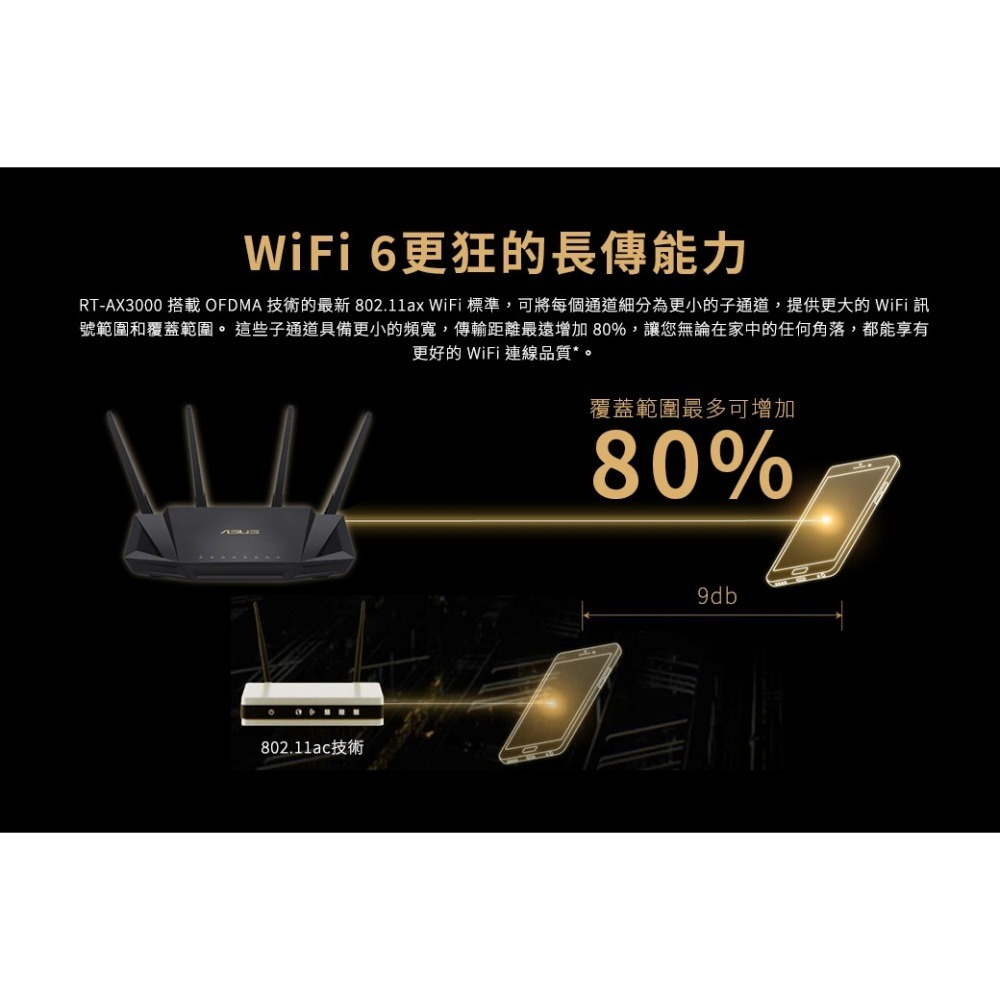

- OFDMA (Orthogonal Frequency Division Multiple Access)
- Beamforming: standard-based and universal
- 1024-QAM high data rate
- 20/40/80/160 MHz bandwidth
- 運作頻率
- 2.4G Hz / 5 GHz
- 網路埠規格
- RJ45 for Gigabits BaseT for WAN x 1, RJ45 for Gigabits BaseT for LAN x 4
- USB 3.2 Gen 1 x 1
- 按鈕
- WPS Button, Reset Button, Power Switch
- LED 指示燈
- Power x 1
- 2.4G x 1
- 5G x 1
- LAN x 4
- WAN x 1
- 電源規格
- AC Input : 110V~240V(50~60Hz)
- DC Output : 19 V with max. 1.75 A current
- DC Output : 12 V with max. 2 A current
- 包裝內容物

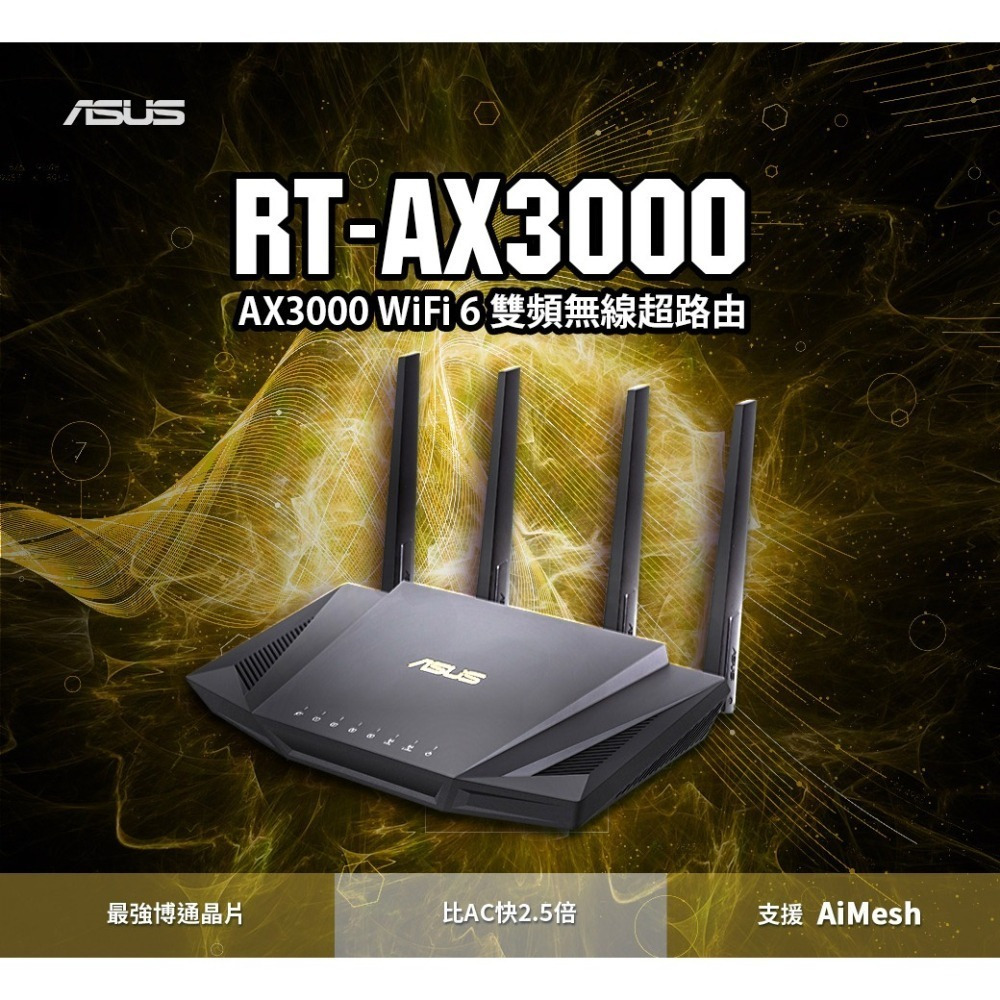

- RT-AX3000 WiFi router
- RJ-45 cable
- Power adapter
- Quick Start Guide
- Warranty card
- 產品淨重(g)
- 538 g

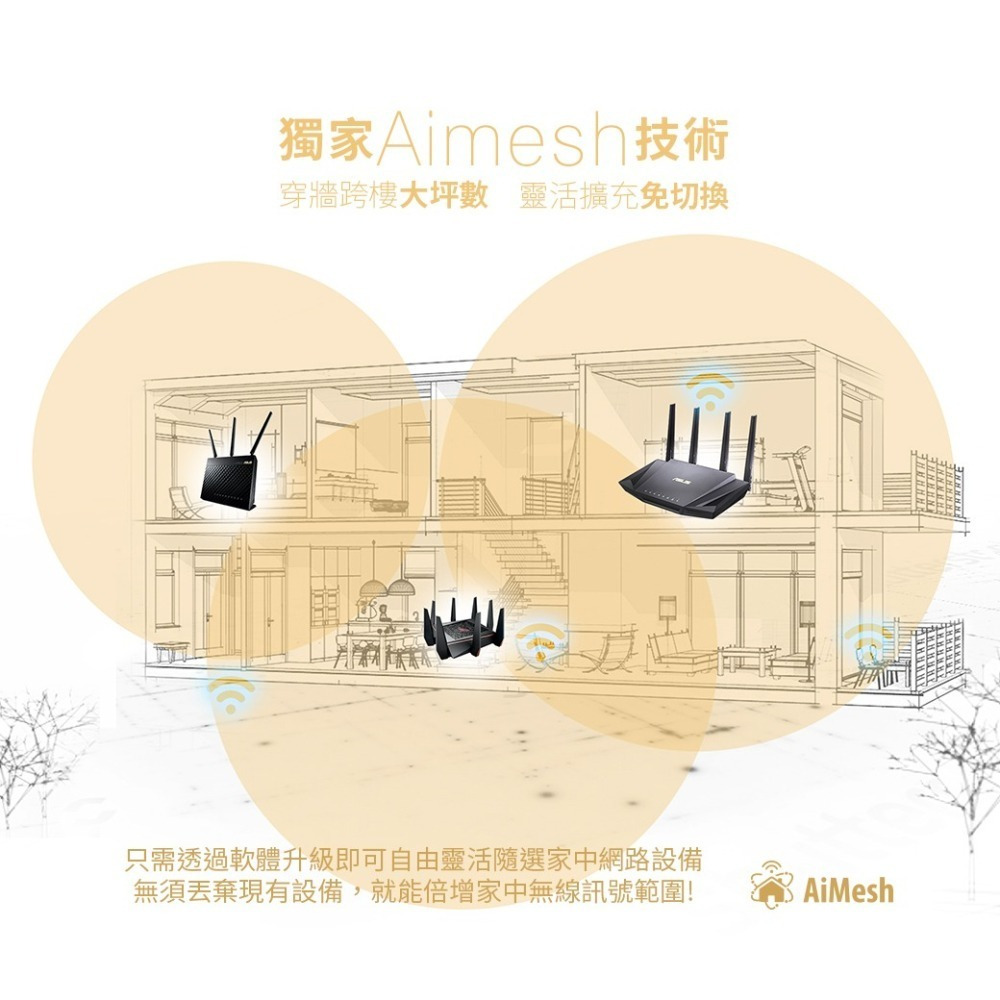

- 獨家AiMesh技術
- AiMesh
- Primary AiMesh router
- AiMesh node

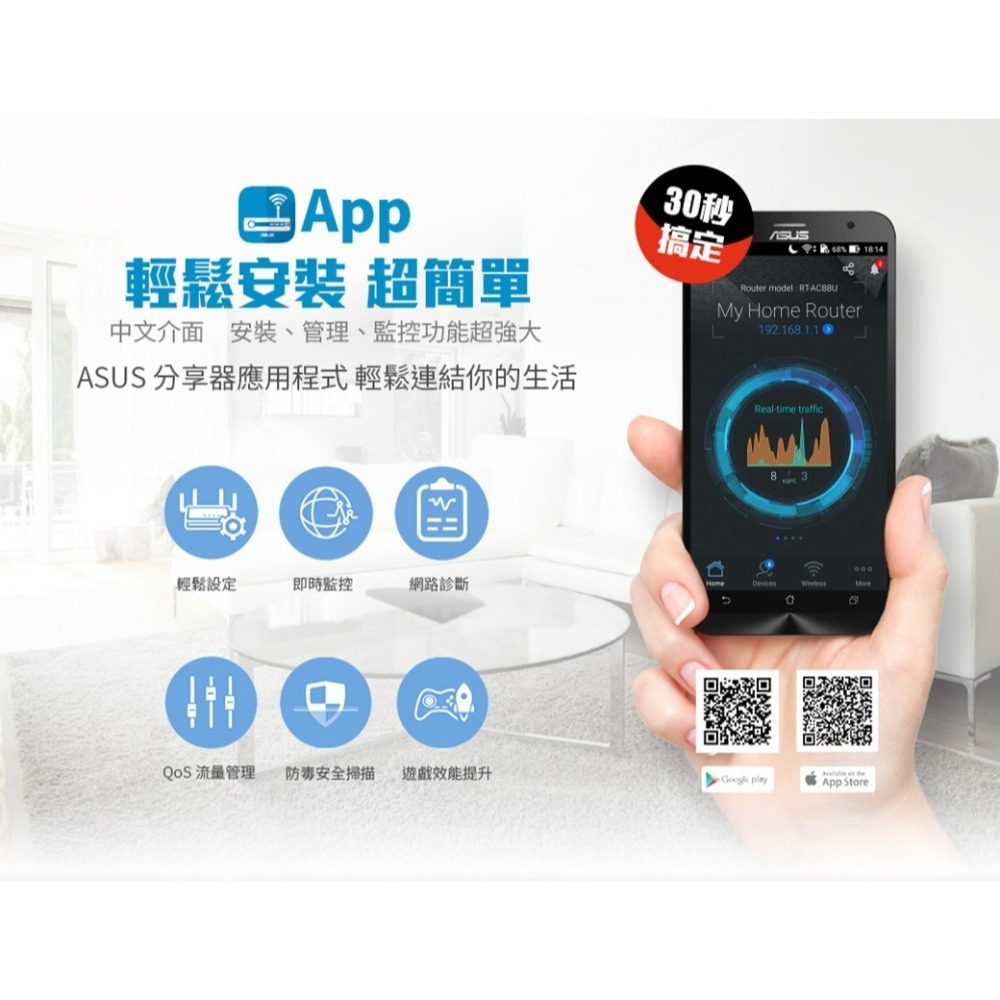

- Router APP
- 有
- Alexa
- 有
- AiProtection
- AiProtection Pro
- AiProtection
- Malicious site blocking
- Two-Way IPS
- Infected Device Prevention and Blocking
- 家長貼心管理
- Parental Control
- Parental Control Customized Internet schedule
- 網路流量控制
- Adaptive QoS
- Bandwidth Monitor
- Bandwidth limiter
- Maximum Bandwidth limiter rule : 32
- Traditional QoS
- Maximum Traditional QoS rule : 32
- Traffic Monitor
- Real-time traffic monitor
- Wired Traffic Monitor
- Wireless Traffic Monitor
- Traffic Analyzer
- Traffic analysis period : Daily, Weekly, Monthly
- Website history
- 其他無線功能
- IPv6
- Wi-Fi Encryption : WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
- UTF-8 SSID
- Guest Network
- Maximum Guest Network rule : 2.4GHz x3, 5GHz x3
- Guest Network Connection time limit
- WPS
- WiFi MAC address filter
- Maximum MAC filters : 64
- Wireless scheduler
- Airtime fairness
- RADIUS Server
- Universal beamforming
- Explicit beamforming
- WAN
- Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
- Dual WAN
- 3G/4G LTE dongle
- Android tethering
- Port forwarding
- Maximum port forwarding rule : 64
- Port triggering
- Maximum port triggering rule : 32
- DMZ
- DDNS
- NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE relay
- LAN
- DHCP Server
- IPTV
- Manually assign IP address
- Maximum manually assign IP address rule : 64
- VPN
- VPN Client L2TP
- VPN Client OVPN
- VPN Client PPTP
- VPN Server IPSec
- VPN Server OVPN
- VPN Server PPTP
- USB埠應用
- File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
- 3G/4G LTE dongle
- HDD hibernation
- Safely Remove disk
- AiCloud
- Download master
- AiDisk
- Media Server
- Time Machine
- Samba Server
- FTP Server
- Shared Folder privileges
- 管理功能
- Operating mode : Wireless router mode
- Access point mode
- Media bridge mode
- Repeater mode
- AiMesh node mode
- Operating system : ASUSWRT
- Free OS upgrade
- Firewall
- Maximum Firewall keyword filter : 64
- Maximum Firewall network service filter : 32
- Maximum Firewall URL filter : 64
- SSH
- Wake on LAN (WOL)
- Configuration backup and restore
- Diagnosis tools
- Feedback system
- System log
