Wi-Fi 6 (802.11ax)
WiFi 7 (802.11be)
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
IEEE 802.11n
IEEE 802.11ac
IPv4
IPv6
-------------------------------------------------------------------------------------------------
規格

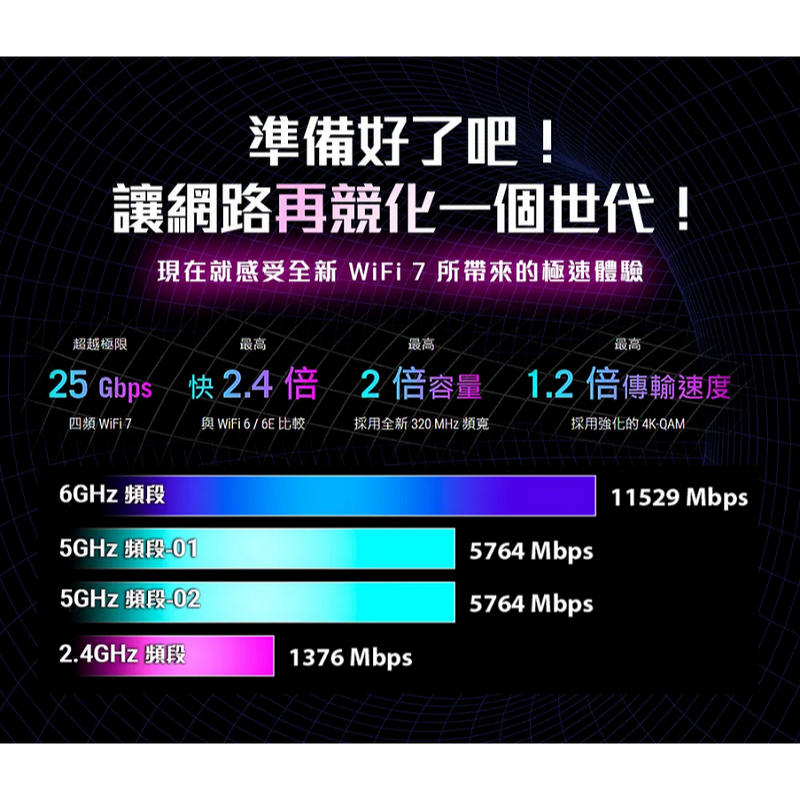

BE25000 ultimate BE performance : 1376+5764+5764+11529 Mbps
-------------------------------------------------------------------------------------------------
數據速率
2.4GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40MHz, up to 1376Mbps
5G-1Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
5G-2Hz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160MHz, up to 5764Mbp
6GHz BE: 4x4 (Tx/Rx) 4096 QAM 20/40/80/160/320MHz, up to 11529Mbp
-------------------------------------------------------------------------------------------------
天線

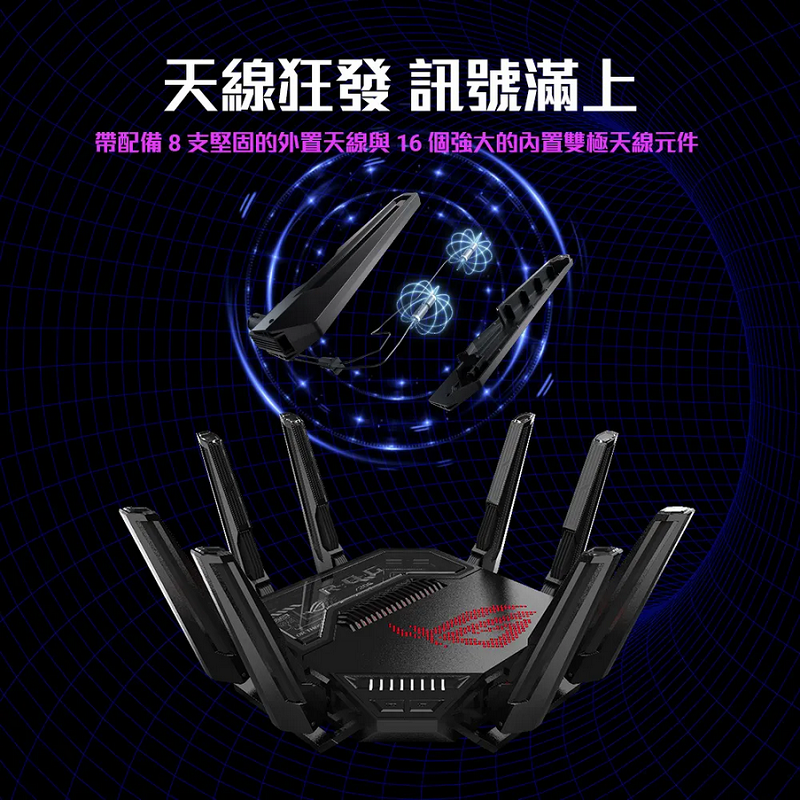

External antenna x 8
-------------------------------------------------------------------------------------------------
傳送 / 接收
2.4 GHz 4 x 4
5 GHz-1 4 x 4
5 GHz-2 4 x 4
6GHz 4x4
-------------------------------------------------------------------------------------------------
處理器
2.6 GHz quad-core processor
-------------------------------------------------------------------------------------------------
記憶體
256 MB Flashand 2 GB RAM
-------------------------------------------------------------------------------------------------
網速提升
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal

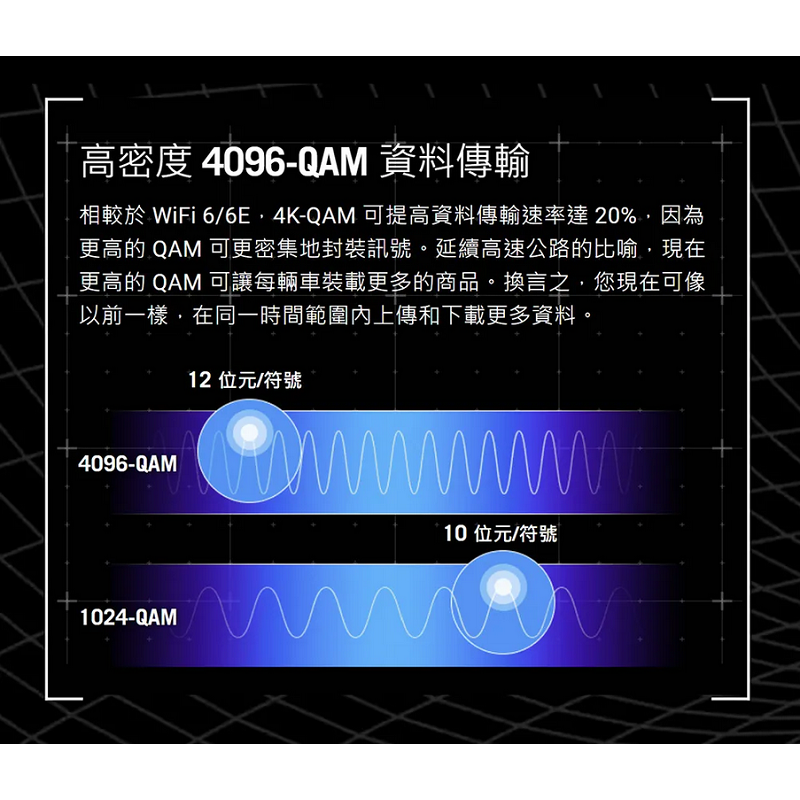

4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
-------------------------------------------------------------------------------------------------
運作頻率
2.4GHz / 5GHz / 6GHz
-------------------------------------------------------------------------------------------------
Operating Mode
Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge
-------------------------------------------------------------------------------------------------
網路埠規格
1 x 10Gbps for WAN/LAN
1 x 2.5Gbps for WAN/LAN
1 x 10Gbps for LAN
3 x 2.5Gbps for LAN
1 x RJ45 10/100/1000Mbps for LAN
1 x USB 3.2 Gen1
1 x USB 2.0
-------------------------------------------------------------------------------------------------
按鈕
WPS Button, Reset Button, Power Switch, LED control Button
-------------------------------------------------------------------------------------------------
LED 指示燈
WAN(Internet) x1
10G LAN x1
1G/2.5G LAN x1
6GHz x1
5GHz-1 x 1
5GHz-2 x 1
2.4GHz x1
Power x1
-------------------------------------------------------------------------------------------------
電源規格
AC Input : 110V~240V(50~60Hz)
DC Output : 19.5 V with max. 3.33 A current
-------------------------------------------------------------------------------------------------
包裝內容物
GT-BE25000 quad-band gaming router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
-------------------------------------------------------------------------------------------------
產品淨重(g)
2000 g
-------------------------------------------------------------------------------------------------
Product Dimensions
350.41 x 350.41 x 220.6 mm
-------------------------------------------------------------------------------------------------
獨家AiMesh技術
AiMesh
Primary AiMesh router
AiMesh node
-------------------------------------------------------------------------------------------------
遊戲加速
ROG設備優先連線功能
具OpenNAT功能
Gaming專屬連接埠
-------------------------------------------------------------------------------------------------
家長貼心管理
Parental Control家長貼心控管
家長貼心控管 - 網路使用排程
‧ Maximum Parental Control profile : 64
‧ Maximum Parental Control content filter rule : 64
-------------------------------------------------------------------------------------------------
Guest Network
訪客網路
‧ Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5
訪客網路連接限制
Guest Network Encryption : Open system, WPA/WPA2/WPA3 Personal
-------------------------------------------------------------------------------------------------
Security
WiFi Encryption : WPA/WPA2/WPA3 Personal
WPA/WPA2/WPA3 Enterprise
Open System & OWE
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
‧ Maximum Firewall Keyword Filter : 64
‧ Maximum Firewall Network Service Filter : 32
‧ Maximum Firewall URL Filter : 64
-------------------------------------------------------------------------------------------------
AiProtection
AiProtection Pro
Router Security Assessment
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
-------------------------------------------------------------------------------------------------
VPN
Instant Guard
VPN Client L2TP
VPN Client Open VPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server Open VPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
-------------------------------------------------------------------------------------------------
網路流量控制
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
--- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
‧ Traffic Analysis Period : Daily, Weekly, Monthly
Website histor
-------------------------------------------------------------------------------------------------
WAN
Internet Connection Type : Automatic IP, Static IP, PPPoE, PPTP, L2TP
Dual WAN
3G / 4G LTE Dongle
4G / 5G Auto Mobile Tethering
Port Forwarding
‧ Maximum Port Forwarding Rule : 64
Port Triggering
‧ Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP, L2TP, IPSec, RTSP, H.323, SIP Passthrough,PPPoE rela
-------------------------------------------------------------------------------------------------
LAN
DHCP Server
IPTV
LAN Link Aggregation
Manually Assign IP Address
‧ Maximum Manually Assign IP Address Rule : 128
Wake on LAN (WOL)
-------------------------------------------------------------------------------------------------
其他無線功能
MU-MIMO
UTF-8 SSID
Wi-Fi MAC address filter
‧ Maximum MAC Filters : 64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit Beamforming
-------------------------------------------------------------------------------------------------
USB埠應用
4G / 5G Auto Mobile Tethering
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove Disk
AiCloud
Download Master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder Privileges
-------------------------------------------------------------------------------------------------
User Interface
WEB: ASUSWRT
-------------------------------------------------------------------------------------------------
管理功能
Configuration Backup and Restore
Diagnosis Tools
Feedback System
System Log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
-------------------------------------------------------------------------------------------------
備註:規格僅供參考,實際規格以原廠網站為主
