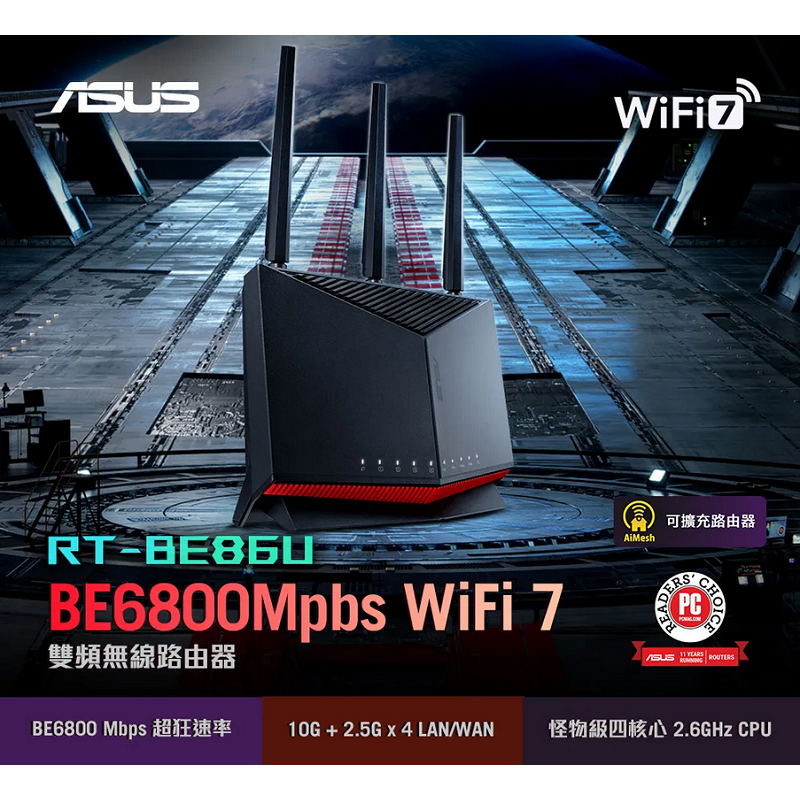

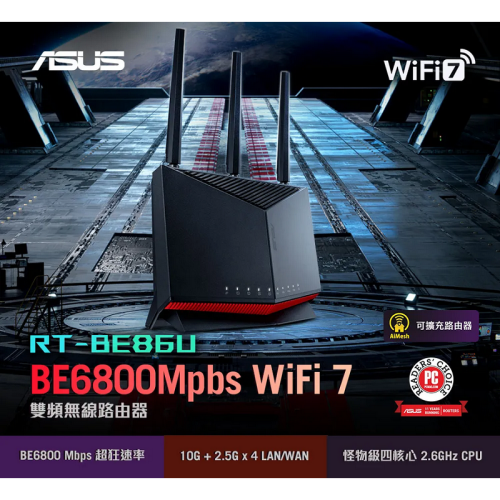

(原廠三年保) 華碩 ASUS RT-BE86U BE6800 雙頻 WiFi 7 無線路由器 AiMesh

商品編號:P3922610287252 原始貨號:P3922610287252

1.搭載新一代 WiFi 7,可為您的連網生活提供 6800 Mbps 的超快雙頻網路速度。

2.全新的 ASUSWRT 5.0 介面支援全天候點對點網路服務,讓您安心使用網路。

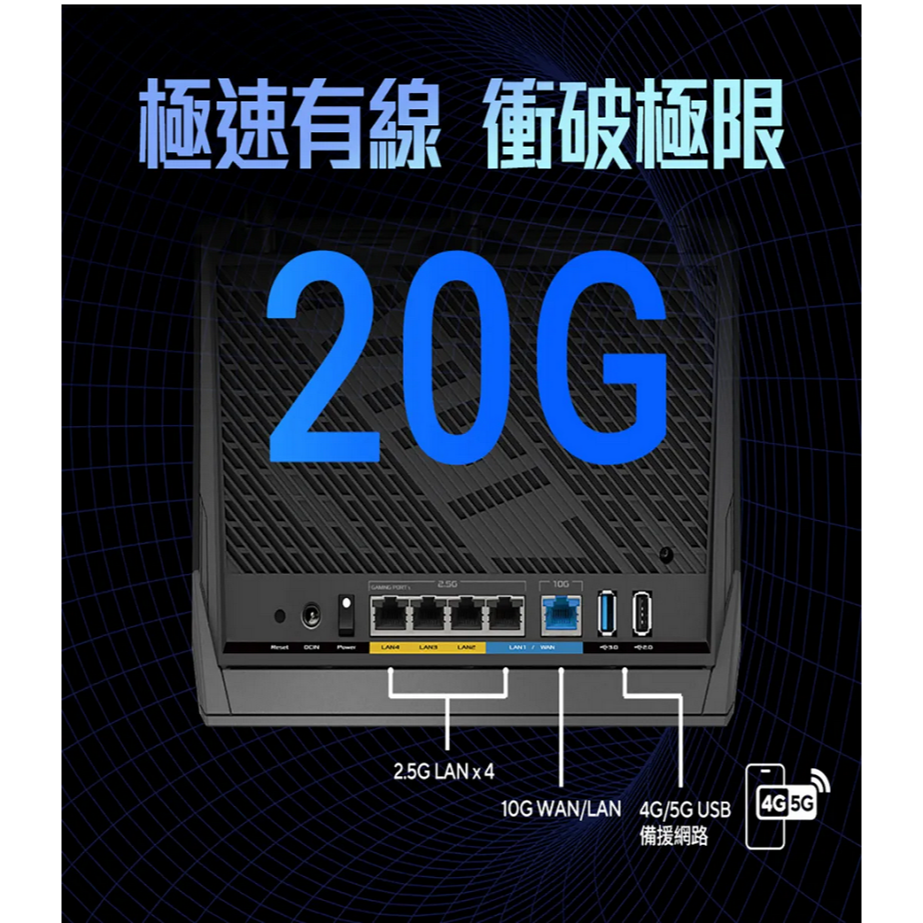

3.配備 20G 的怪物級網路總容量,並透過一個 10G WAN/LAN 連接埠和高達四個 2.5G LAN 連接埠,解鎖頂尖 10G 網路。

4.透過多 WAN 自動偵測功能、便利的 USB 行動裝置熱點分享、強大的 VLAN 控制功能,輕鬆實現進階網路配置。

5.外接天線配備高功率前端模組,可消除 WiFi 訊號死角,提供全方位的穩定覆蓋範圍。除了採用 7 串流設計,提高傳輸量及擴大覆蓋範圍,配有可拆式天線,可讓您在物理上重新調整其位置以更加滿足您的特定需求,包括克服牆壁等障礙物或其他干擾。

6.RT-BE86U 搭載強大的四核心 2.6 GHz CPU,處理能力提升高達 30%,可實現閃電般的反應速度、加速的資料傳輸速率和最佳化的遊戲體驗。

7.ASUS 網路安全性採用三層防護設計,搭配由 Trend Micro提供支援的商業級雲端資料庫,支援全天候點對點網路服務,有效維護網路安全。

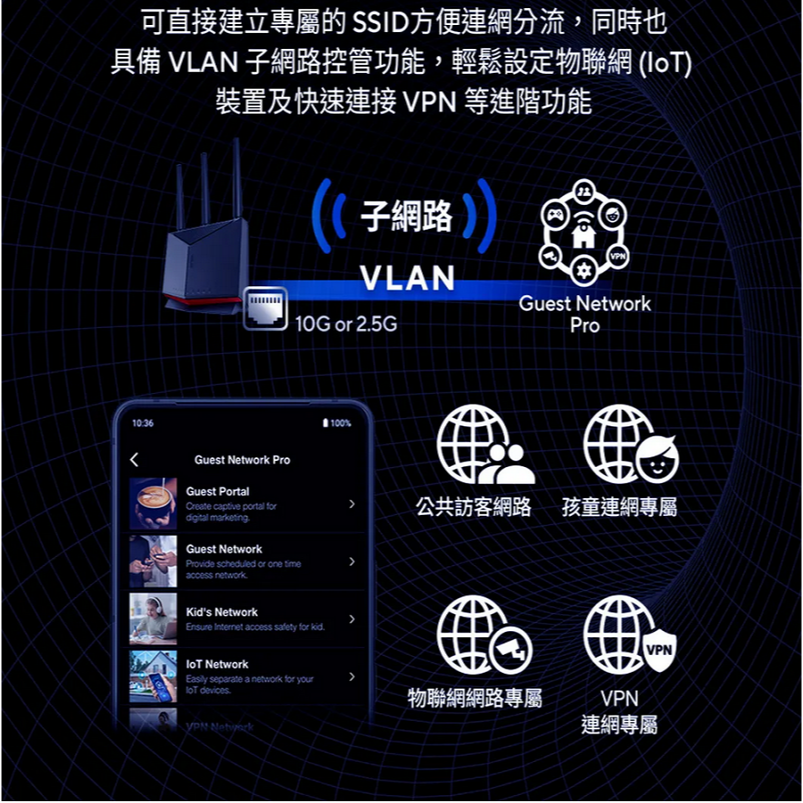

8.ASUS 訪客網路專業版 (Guest Network Pro) 可簡化建立或連接至專屬 SSID 或 VLAN 的程序,並提供輕鬆設定物聯網 (IoT) 裝置及快速連接 VPN 等進階功能。

9.盡享安全瀏覽、資料隱私、遠端存取 - 全方位 ASUS VPN 功能為您打理一切。支援多功能 VPN 通訊協定,包括最先進的 WireGuard,提供快如閃電的速度和最佳效能。

NCC認證號碼:CCAF24LP1250T8

BMSI: D33005


$ 6,588
$ 6,999
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款 / 線上刷卡 / 刷卡分期 / ATM 轉帳
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款 / 常溫7-ELEVEN店到店取貨不付款 / 宅配

商品特色

-------------------------------------------------------------------------------------------------

網路技術標準

IEEE 802.11a

IEEE 802.11b

IEEE 802.11g

WiFi 4 (802.11n)

WiFi 5 (802.11ac)

WiFi 6 (802.11ax)

WiFi 7 (802.11be)

IPv4

IPv6

-------------------------------------------------------------------------------------------------

規格

BE6800 ultimate BE performance : 1032+5764 Mbps

-------------------------------------------------------------------------------------------------

傳輸量

WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps

WiFi 7 (802.11be) (5GHz): up to 5764 Mbps

-------------------------------------------------------------------------------------------------

天線

External antenna x 3; Internal antenna x 1

-------------------------------------------------------------------------------------------------

傳送 / 接收

2.4GHz 3x3

5GHz 4x4

-------------------------------------------------------------------------------------------------

處理器

2.6 GHz quad-core processor

-------------------------------------------------------------------------------------------------

記憶體

256 MB Flashand 1 GB RAM

-------------------------------------------------------------------------------------------------

網速提升

OFDMA (Orthogonal Frequency Division Multiple Access)

Beamforming: standard-based and universal

4096-QAM high data rate

20/40/80/160 MHz bandwidth

-------------------------------------------------------------------------------------------------

運作頻率

2.4GHz / 5GHz

-------------------------------------------------------------------------------------------------

Operating Mode

Wireless Router Mode

AiMesh Node Mode

Access Point Mode

Media Bridge Mode

Repeater Mode

-------------------------------------------------------------------------------------------------

網路埠規格

 1x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN

, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1

-------------------------------------------------------------------------------------------------

按鈕

WPS Button, Reset Button, Power Button, LED on/off Button

-------------------------------------------------------------------------------------------------

LED 指示燈

WAN x1

10G Port x1

LAN x4

USB x1

2.4GHz x1

5GHz x1

Power x1

-------------------------------------------------------------------------------------------------

電源規格

AC Input : 100V~240V (50~60Hz)

DC Output : 12 V with max. 5 A current ; 19.5 V with max. 2.31 A current

-------------------------------------------------------------------------------------------------

包裝內容物

RT-BE86U WiFi router

RJ-45 cable

Power adapter

Quick Start Guide

Warranty card

-------------------------------------------------------------------------------------------------

產品淨重(g)

854 g

-------------------------------------------------------------------------------------------------

Product Dimensions

235*90*316 mm

-------------------------------------------------------------------------------------------------

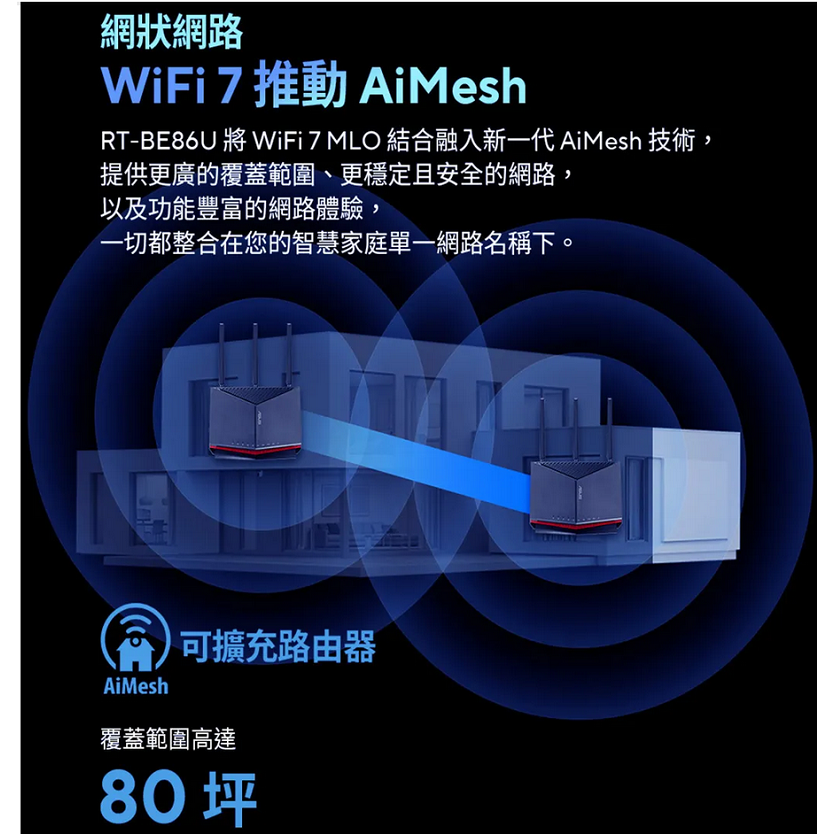

獨家AiMesh技術

AiMesh

Primary AiMesh router

AiMesh node

-------------------------------------------------------------------------------------------------

遊戲加速

Mobile Game Mode

Gear Accelerator

OpenNAT (Game Profile)

Gaming Port

-------------------------------------------------------------------------------------------------

家長貼心管理

Parental Control

Web & Apps Filters

Time Scheduling

Safe Browsing

Parental Control Customized Internet schedule

‧ Maximum Parental Control Profile : 64

‧ Maximum Parental Control Content Cilter Rule : 64

-------------------------------------------------------------------------------------------------

Guest Network

"You can create additional networks for different purposes, these networks are separate from the main network domain, to provide enhanced security, and create comprehensive network environment with customized settings."

Support Guest Network Pro

‧ Maximum Guest Network Rule : 2.4 GHz + 5 GHz : 5

Guest Network Pro Encryption : Open system, WPA/WPA2-Personal/WPA3-Personal

-------------------------------------------------------------------------------------------------

Security

AiProtection

VPN

WPA3 Personal, WPA2 Personal, WPA Personal, WPA Enterprise, WPA2 Enterprise, WPA3 Enterprise, Open System & OWE

WPS

Let's Encrypt

DNS-over-TLS

SSH

Security Scan

Firewall

‧ Maximum Firewall Keyword Filter : 64

‧ Maximum Firewall Network Service Filter : 32

‧ Maximum Firewall URL Filter : 64

-------------------------------------------------------------------------------------------------

AiProtection

AiProtection Pro

AiProtection

Malicious site blocking

Two-Way IPS

Infected Device Prevention and Blocking

-------------------------------------------------------------------------------------------------

VPN

Instant Guard

VPN Client L2TP

VPN Client OVPN

VPN Client PPTP

VPN Client WireGuard

VPN Server IPSec

VPN Server OVPN

VPN Server PPTP

VPN Server WireGuard

VPN Fusion

Support Surfshark

-------------------------------------------------------------------------------------------------

網路流量控制

Adaptive QoS

Bandwidth Monitor

Bandwidth limiter

--- Maximum Bandwidth Limiter Rule : 32

Traditional QoS

Traffic Monitor

Real-time traffic monitor

Wired Traffic Monitor

Wireless Traffic Monitor

Traffic Analyzer

‧ Traffic Analysis Period : Daily, Weekly, Monthly

Website history

-------------------------------------------------------------------------------------------------

WAN

Internet Connection Type :

‧ PPPoE

‧ PPTP

‧ L2TP

‧ Automatic IP

‧ Static IP

‧ IPSec

Dual WAN

WAN Aggregation

3G/4G LTE dongle

Port forwarding

‧ Maximum Port Forwarding Rule : 64

Port triggering

‧ Maximum Port Triggering Rule : 32

DMZ

DDNS

NAT Passthrough :

‧ PPTP Pass-Through

‧ L2TP Pass-Through

‧ IPSec Pass-Through

‧ RTSP Pass-Through

‧ H.323 Pass-Through

‧ SIP Pass-Through

‧ PPPoE Relay

-------------------------------------------------------------------------------------------------

LAN

DHCP Server

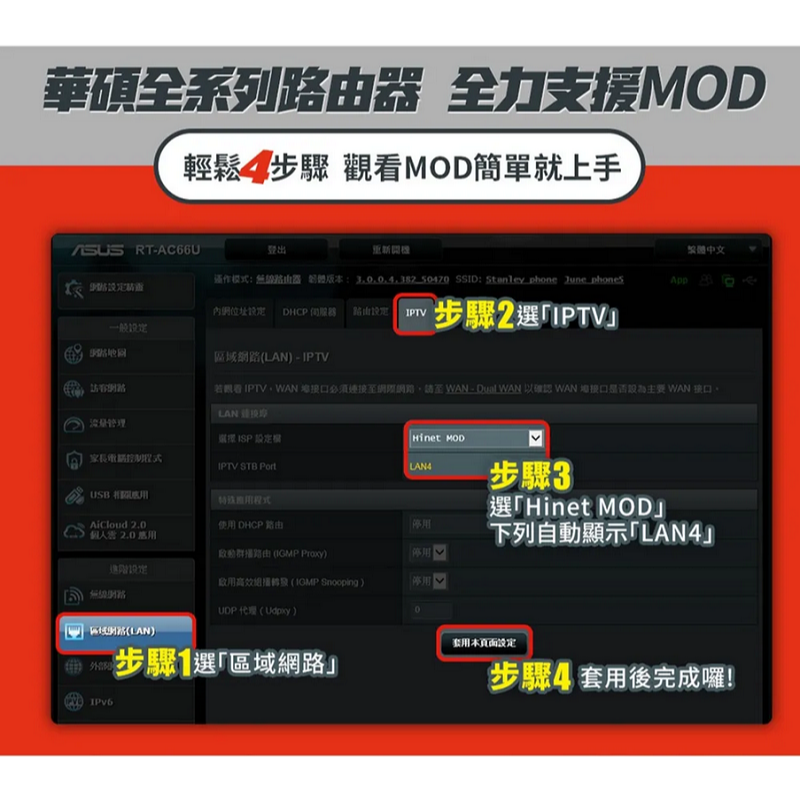

IPTV

LAN Link Aggregation

Manually assign IP address

‧ Maximum Manually Assign IP Address Rule : 128

Wake on LAN (WOL)

-------------------------------------------------------------------------------------------------

其他無線功能

UTF-8 SSID

WiFi MAC address filter

‧ Maximum MAC Filters : 64

Wireless scheduler

Airtime fairness

RADIUS Server

Universal beamforming

Explicit beamforming

-------------------------------------------------------------------------------------------------

USB埠應用

File System :

‧ HFS+

‧ NTFS

‧ vFAT

‧ ext2

‧ ext3

‧ ext4

Safely Remove disk

AiCloud

Download master

AiDisk

Media Server

Time Machine

Samba Server

FTP Server

Shared Folder privileges

-------------------------------------------------------------------------------------------------

User Interface

WEB: ASUSWRT

APP: ASUS Router APP

-------------------------------------------------------------------------------------------------

管理功能

Configuration backup and restore

Diagnosis tools

Feedback system

System log

New Device Connect Notification

Login Captcha

Connection Diagnosis

Auto Firmware Update

-------------------------------------------------------------------------------------------------

備註:規格僅供參考,實際規格以原廠網站為主
