產品規格
-------------------------------------------------------------------------------------------------
Port Attributes
5 x 2.5G ports
-------------------------------------------------------------------------------------------------
Standard
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3bz 2.5G BASE-T
IEEE802.3az EEE
IEEE802.3x Flow control
-------------------------------------------------------------------------------------------------
Color
White
-------------------------------------------------------------------------------------------------
Performance
MAC address Table: 16K
Packet buffer: 8Mbits
Jumbo Frame: 10K bytes
Forwarding Rate: 18.6Mpps (64-byte)
-------------------------------------------------------------------------------------------------

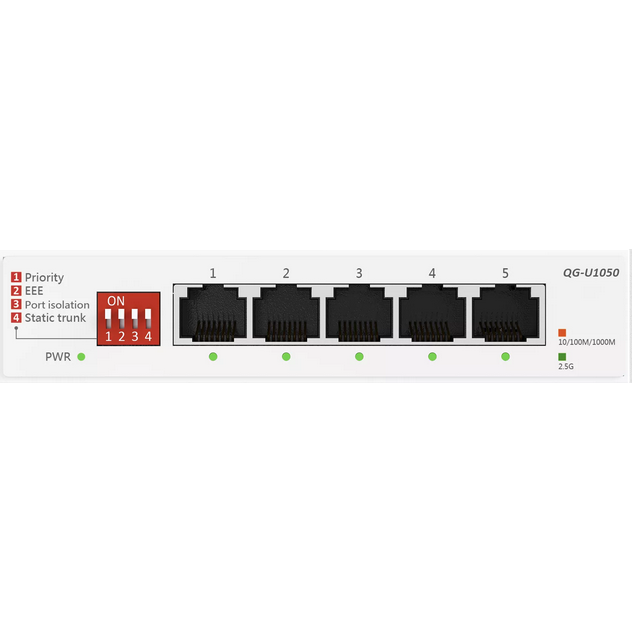

LED Indicator
Power LED
On: The switch is powered on.
Off: The switch is powered off or the power supply is abnormal.
Blinking: Loop detected.
Port LED (Link/ACT)
Off: Devices are disconnected or the link has failed.
Green On: 2.5Gbps connection
Amber On: 10/100/1000Mbps connection
Blinking: Devices are connected and data is transmitting or receiving. When a loop is detected, the port LED blinks rapidly.
-------------------------------------------------------------------------------------------------
External Power Adapter
Output: 12V/1A
-------------------------------------------------------------------------------------------------
Environmental
Operating Temperature: 0 ~ 40℃
Storage Temperature: -40 ~ 70℃
Operating Humidity: 10% ~ 90% RH (non-condensing)
Storage Humidity: 5% ~ 90% RH (non-condensing)
-------------------------------------------------------------------------------------------------
Package Content

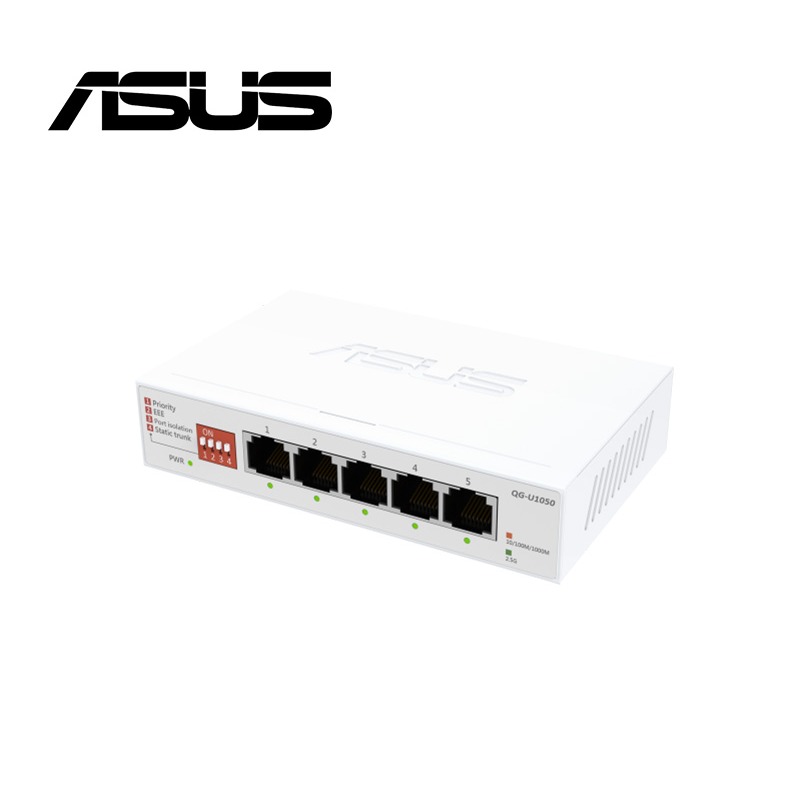

ASUS QG-U1050 Switch
Power Adapter
Quick Start Guide
Warranty Card
-------------------------------------------------------------------------------------------------
Product Weight (g)
230 g
-------------------------------------------------------------------------------------------------
Product Dimensions
121 x 75 x 26 mm
-------------------------------------------------------------------------------------------------
備註:規格僅供參考,實際規格以原廠網站為主
