產品規格
-------------------------------------------------------------------------------------------------
網路技術標準
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
-------------------------------------------------------------------------------------------------
規格
BE6500 ultimate BE performance : 688+5764 Mbps
-------------------------------------------------------------------------------------------------
傳輸量
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
-------------------------------------------------------------------------------------------------
天線
External antenna x 4
-------------------------------------------------------------------------------------------------
傳送 / 接收
2.4GHz 2x2
5GHz 4x4
-------------------------------------------------------------------------------------------------
處理器
2.0 GHz quad-core processor
-------------------------------------------------------------------------------------------------
記憶體
256 MB Flashand 1 GB RAM
-------------------------------------------------------------------------------------------------

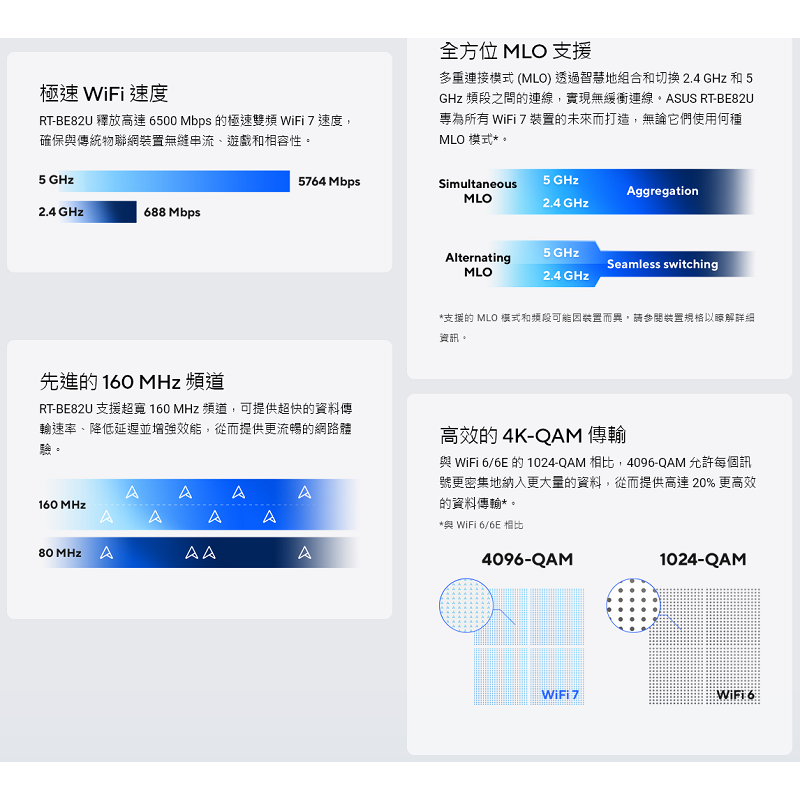

網速提升
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
-------------------------------------------------------------------------------------------------
運作頻率
2.4GHz / 5GHz
-------------------------------------------------------------------------------------------------
Operating Mode
Wireless Router Mode
Access Point Mode
Media Bridge Mode
-------------------------------------------------------------------------------------------------
網路埠規格

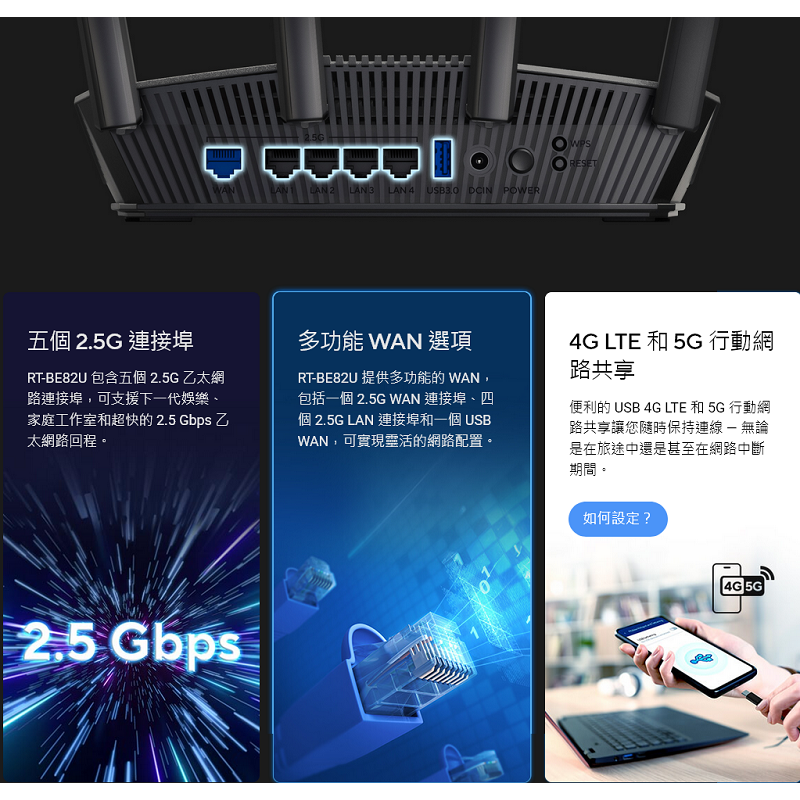

1x 2.5G for WAN,4x 2.5G for LAN,USB 3.2 Gen 1 x 1
-------------------------------------------------------------------------------------------------
按鈕
WPS Button, Reset Button, Power Button
-------------------------------------------------------------------------------------------------
LED 指示燈
LAN x1
2.4GHz x1
5GHz x1
-------------------------------------------------------------------------------------------------
電源規格
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 3 A current
-------------------------------------------------------------------------------------------------
包裝內容物
RT-BE82U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
-------------------------------------------------------------------------------------------------
產品淨重(g)
502 g
-------------------------------------------------------------------------------------------------
Product Dimensions
238 x 147 x 97 mm
-------------------------------------------------------------------------------------------------
獨家AiMesh技術
AiMesh
Primary AiMesh router
AiMesh node
-------------------------------------------------------------------------------------------------

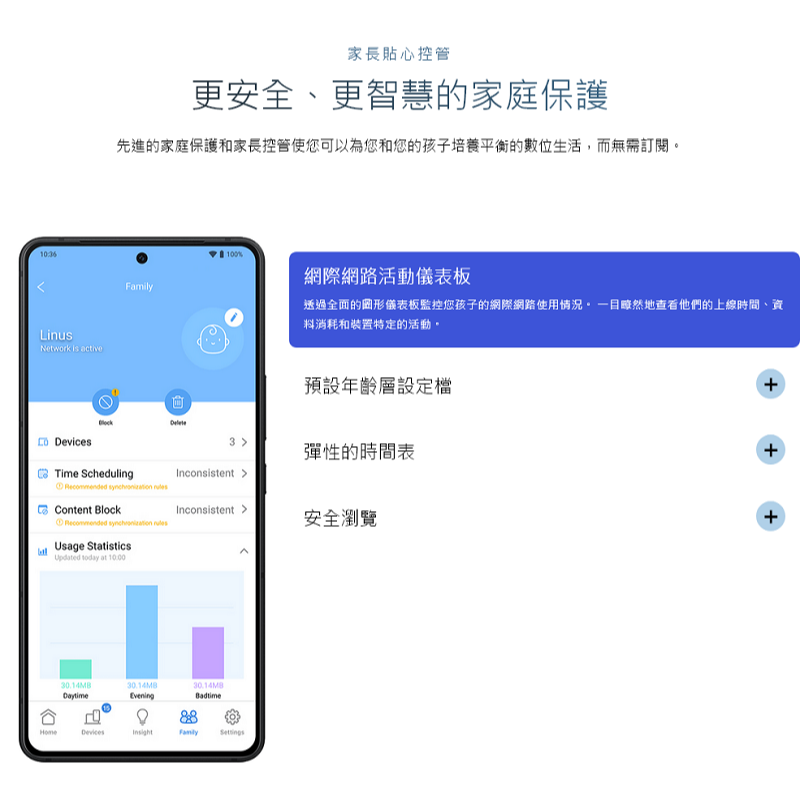

家長貼心管理
Web & Apps Filters
Time Scheduling
Safe Browsing
Parental Control Customized Internet schedule
Parental Control
-------------------------------------------------------------------------------------------------
Guest Network
Support Guest Network
Guest Network
‧ Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
-------------------------------------------------------------------------------------------------
Security
VPN
DNS-over-TLS
Security Scan
SSH
Firewall
Let's Encrypt
WPS
AiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
‧ Maximum Firewall Keyword Filter : 64
‧ Maximum Firewall Network Service Filter : 32
‧ Maximum Firewall URL Filter : 64
-------------------------------------------------------------------------------------------------
AiProtection
Infected Device Prevention and Blocking
Two-Way IPS
Malicious site blocking
-------------------------------------------------------------------------------------------------
VPN
Instant Guard
VPN Client WireGuard
VPN Server WireGuard
VPN Server PPTP
VPN Server OVPN
VPN Server IPSec
VPN Client PPTP
VPN Client OVPN
VPN Client L2TP
-------------------------------------------------------------------------------------------------
網路流量控制
Website history
Traffic Analyzer
Wireless Traffic Monitor
Wired Traffic Monitor
Real-time traffic monitor
Traffic Monitor
Traditional QoS
Bandwidth limiter
Bandwidth Monitor
Adaptive QoS
--- Maximum Bandwidth Limiter Rule : 32
--- Maximum Traditional QoS Rule : 32
‧ Traffic Analysis Period : Daily, Weekly, Monthly
-------------------------------------------------------------------------------------------------
WAN
4G / 5G Auto Mobile Tethering
DDNS
DMZ
Port triggering
Port forwarding
3G/4G LTE dongle
Dual WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
‧ Maximum Port Forwarding Rule : 64
‧ Maximum Port Triggering Rule : 32
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
-------------------------------------------------------------------------------------------------
LAN
Manually assign IP address
Wake on LAN (WOL)
IPTV
有
DHCP Server
‧ Maximum Manually Assign IP Address Rule : 64
-------------------------------------------------------------------------------------------------
其他無線功能
RADIUS Server
Explicit beamforming
Universal beamforming
Airtime fairness
Wireless scheduler
WiFi MAC address filter
UTF-8 SSID
‧ Maximum MAC Filters : 64
-------------------------------------------------------------------------------------------------
USB埠應用
4G / 5G Auto Mobile Tethering
Samba Server
Shared Folder privileges
FTP Server
Time Machine
Media Server
AiDisk
Download master
AiCloud
Safely Remove disk
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
-------------------------------------------------------------------------------------------------
User Interface
WEB: ASUSWRT
APP: ASUS Router APP
-------------------------------------------------------------------------------------------------
管理功能
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
Configuration backup and restore
Diagnosis tools
Feedback system
System log
-------------------------------------------------------------------------------------------------
備註:規格僅供參考,實際規格以原廠網站為主
