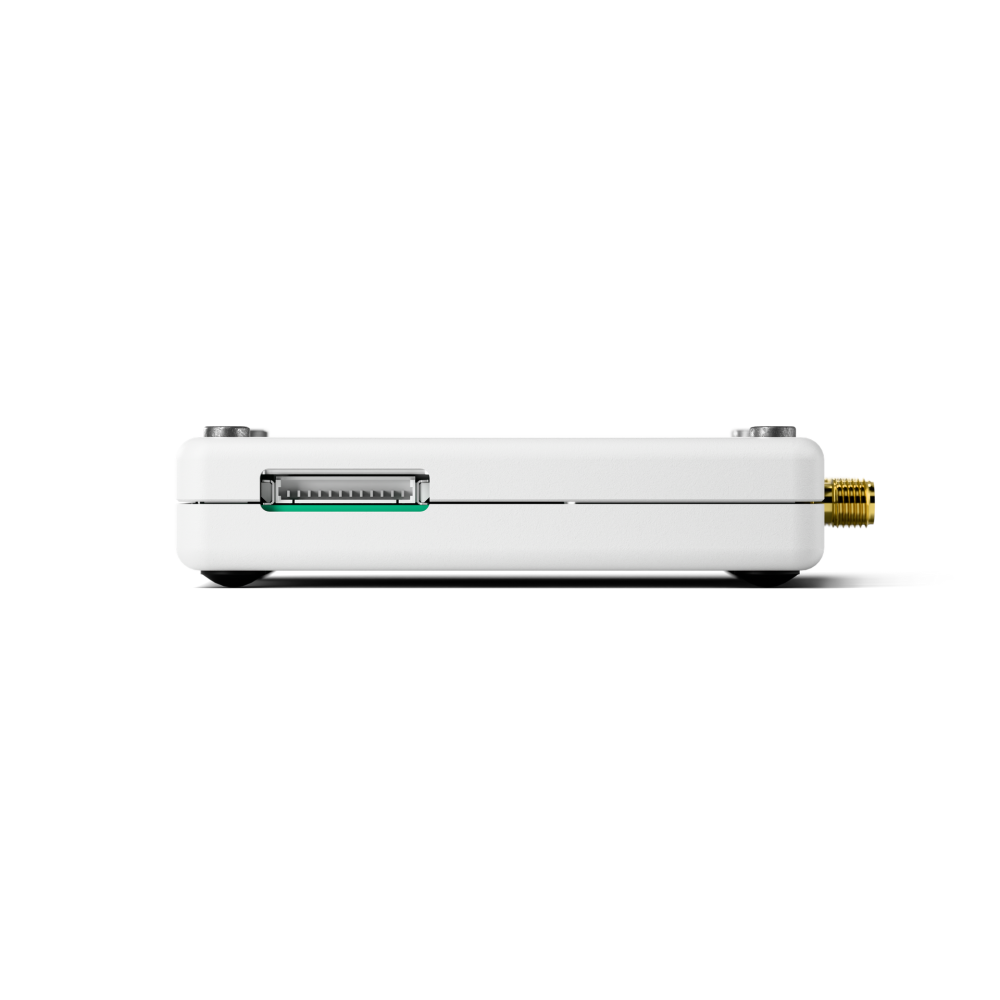

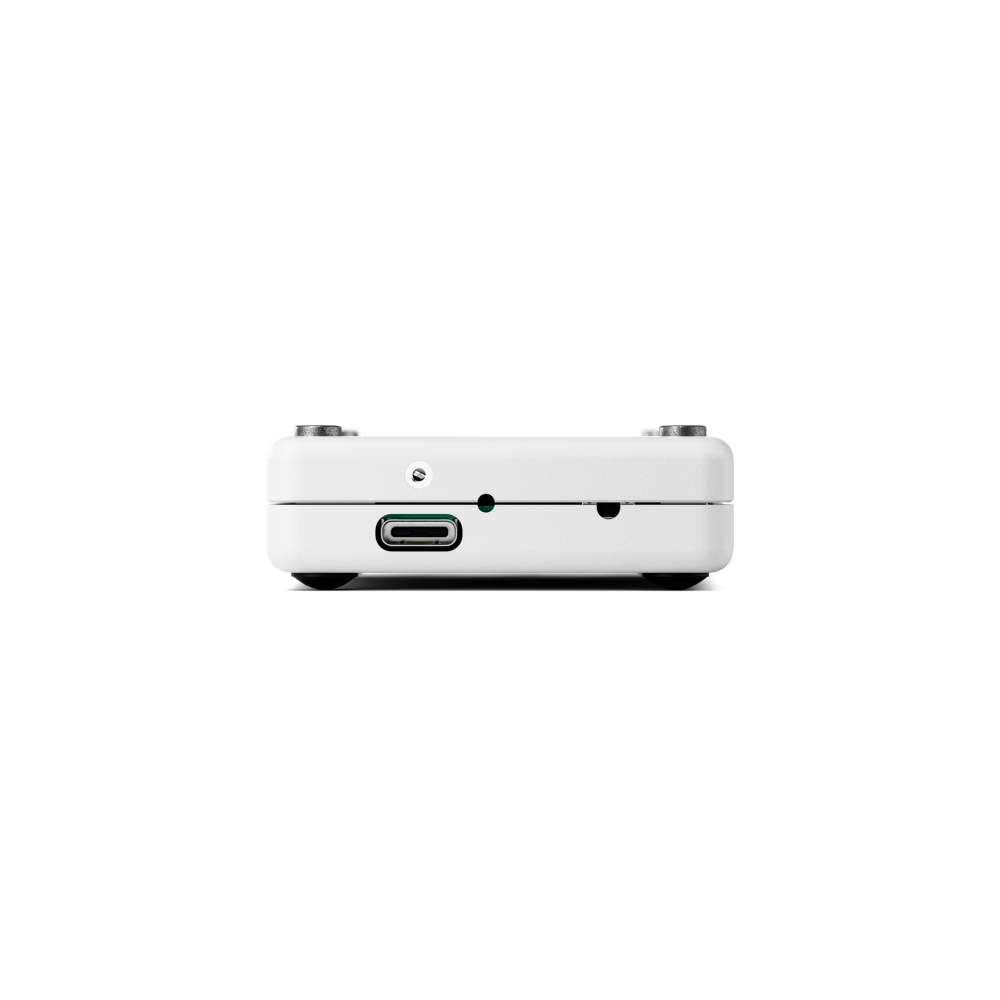

B206mini-i with enclosure

商品編號:P5124017367163 原始貨號:6002-410-046

***下單前請先與賣家LINE@確認庫存數量,謝謝***

***如需刷卡,請私訊我們另外開立賣場提供您下單,謝謝***

***發票點選「公司戶三聯式紙本發票」者,因應平台個資法規定,後台無法顯示您輸入的抬頭統編,請於下單時於備註欄填上抬頭/統編資訊,以利我司為您開立報帳發票。

注意:下單付款後/貨到付款之訂單,請點擊下方鏈接,或注意訂單詢問與答傳送訊息,填寫完整保固資料後發貨。

保固表單連結

https://docs.google.com/forms/d/e/1FAIpQLSdm5oT98upAL_pwbZTpO9MIxkmJ6G1E98DGA5-WtJKrDyV3sQ/viewform

$ 62,685
預計出貨天數15
數量
  • 付款方式:
    線上刷卡
  • 運送方式:
    宅配

商品特色

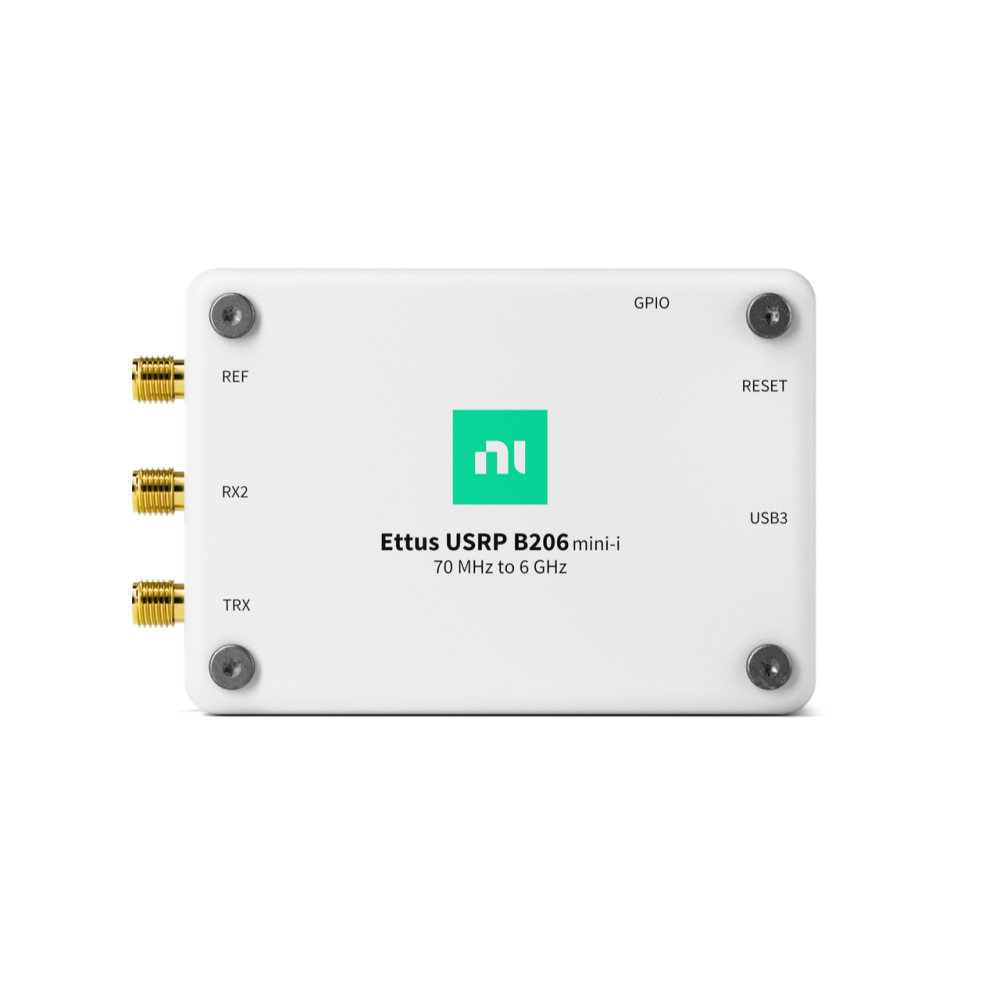

原廠名稱:NI Ettus USRP B206mini-i: 1x1, 70MHz-6GHz SDR/Cognitive Radio

SKU:6002-410-046

【Product Description】

The USRP B206mini-i is a flexible and compact platform that is ideal for both hobbyist and OEM applications. It is designed by NI Ettus USRP and provides a wide frequency range (70 MHz to 6 GHz) and a user-programmable, industrial-grade AMD Spartan-6 XC6SLX150 FPGA. The similar NI Ettus USRP B200mini is limited to a narrower operating temperature range and utilizes a smaller FPGA.

The RF front end uses the Analog Devices AD9364 RFIC transceiver with 56 MHz of instantaneous bandwidth. The board is bus-powered by a high-speed USB 3.0 connection for streaming data to the host computer. The USRP B206mini-i also includes connectors for GPIO, JTAG, and synchronization with a 10 MHz clock reference or PPS time reference input signal.

Experimentation with Low-cost SDR

Experiment with the USRP B206mini-i across a wide range of applications including: FM and TV broadcast, cellular, GPS, WiFi, ISM, and more. Users can immediately begin prototyping in GNU Radio and participate in the open-source SDR community. Full support by the USRP Hardware Driver™ (UHD) software allows seamless code reuse from existing designs, compatibility with open-source applications like HDSDR and OpenBTS, and an upgrade path to industry-ready USRP systems to meet application requirements.

關於 DIGILENT│

DIGILENT 為 NI (National Instruments)的子公司,自2000年成立以來持續為工程師、研究人員、科學家和學生提供成本最佳化的產品、工具和應用訊息。基於 FPGA 和 SoC 的創新軟硬體系統,提供優惠且靈活的解決方案。 具有競爭力的售價、便於攜帶的產品與充足的應用文件,提供初學者最佳的可用性。 Digilent 總部位於華盛頓州普爾曼,在三大洲設有辦事處、研發和製造機構,以及廣泛的全球經銷網路,能快速且高效率提供您所需的產品。

關於和澄科技│

為DIGILENT台灣合法授權代理商,位於新竹市,代理/銷售 DIGILENT 原廠商品,並提供技術支援與售後服務。

商品購買說明│

1.您於和澄科技購買之商品均為美國官方正品,享有售後服務與技術支援服務。

2.您的訂單金額為含稅價格。發票將附於商品包裹中寄送,若需開立三聯式發票,請於結帳頁面"留言"處將備註發票資訊(發票抬頭、統編),若未特別填寫則開立二聯式發票。

3.因公司報帳需求,可配合將運費開立於商品發票中,請於下單後出貨前先行告知。

4.本商品接單後,約需7-10工作日進行訂購與備貨,貨到後會盡快發出。

5.因賣場有商品字數限制,完整注意事項請網路搜尋「和澄科技」參考詳細閱讀後再進行蝦皮下單。

6.因售價受原廠調整變動影響,或其他不可抗力之事由,和澄科技保有取消訂單之權利。


相關訂購及商品事宜,有任何疑問,請不吝聯繫。

電話│03-5790380 (09:00~16:30)

或可於聊聊/私訊提出。
