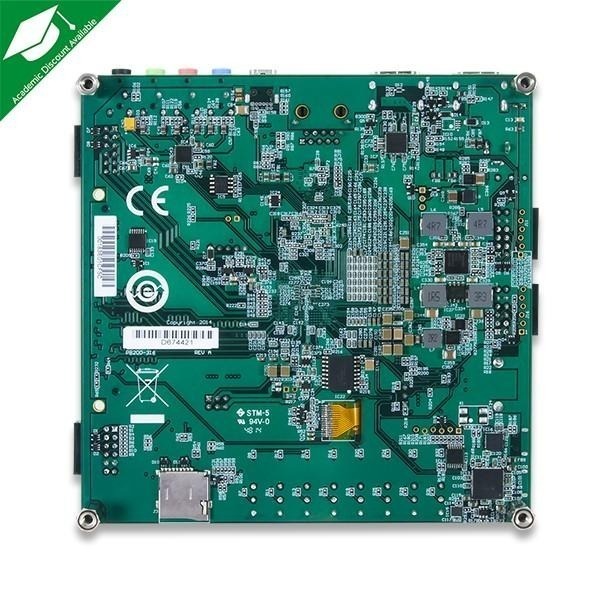

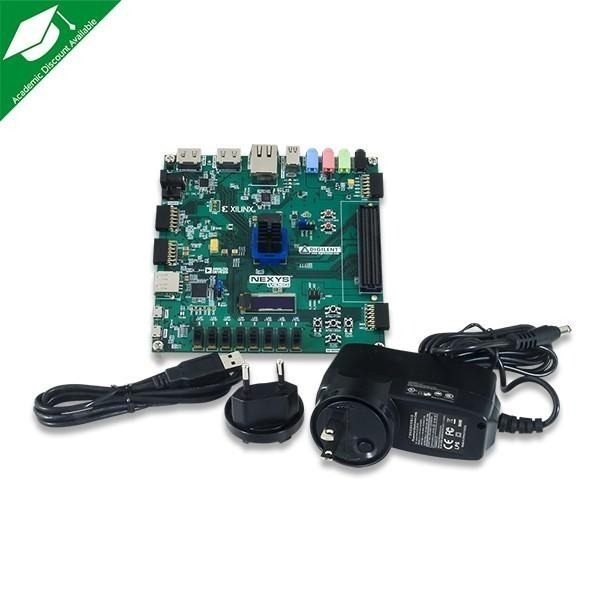

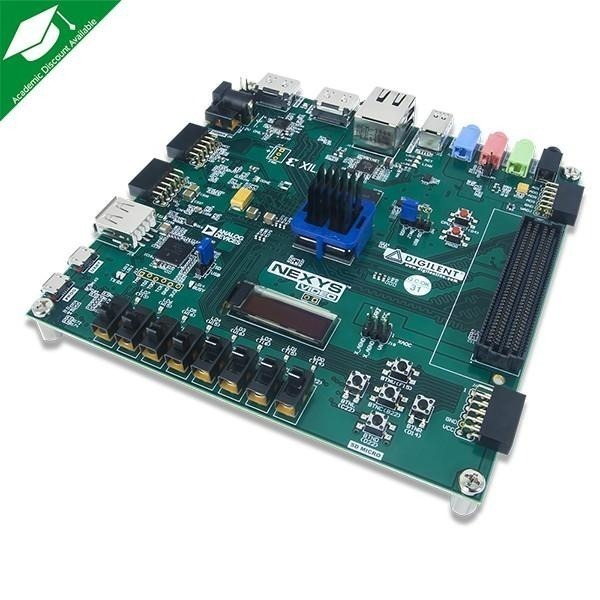

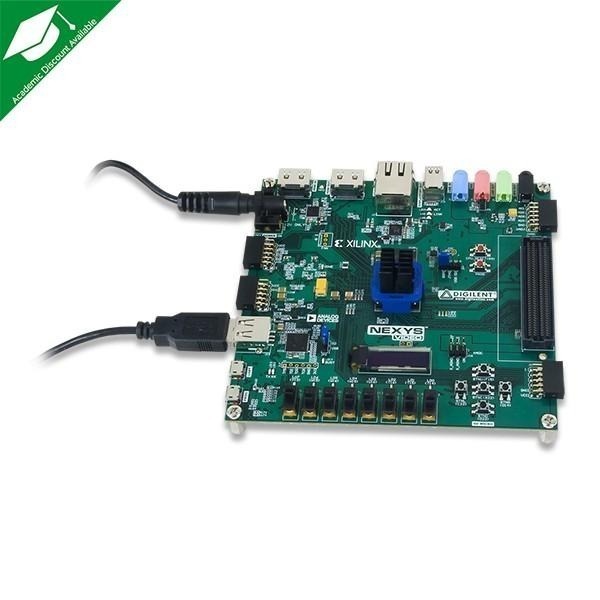

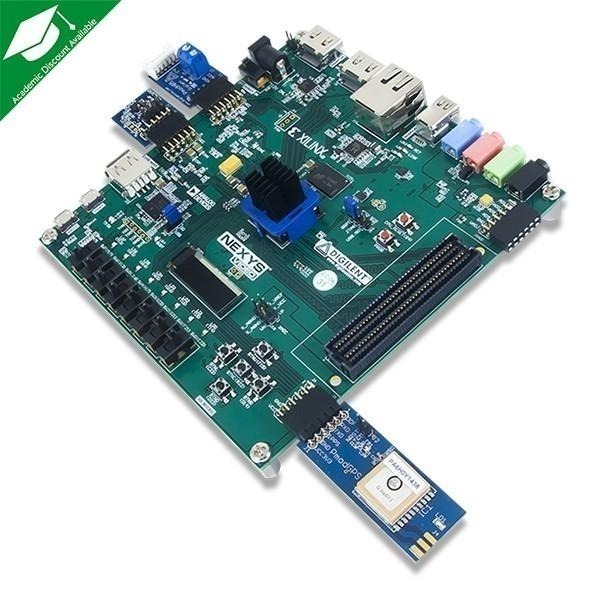

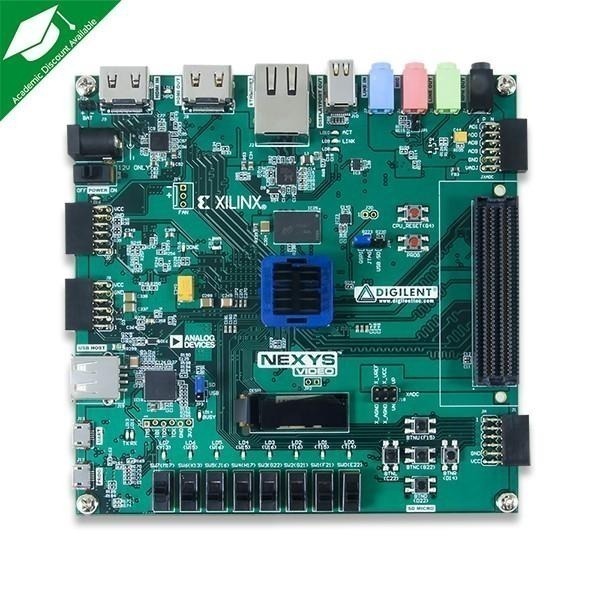

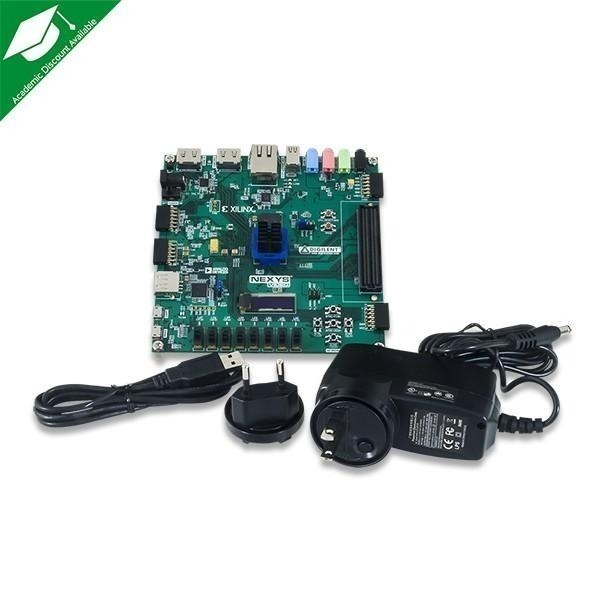

原廠名稱:Nexys Video Artix-7 FPGA- Trainer Board for Multimedia Applications
SKU: 410-316
Product Description
The Nexys Video (previously announced as the Atlys 2), is the latest addition to our Nexys line of FPGA boards, and was designed with audio/video enthusiasts in mind. The Nexys Video features several components that make it ideal for developing audio/video applications. The Artix®-7 XC7A200T FPGA is the most powerful chip from the Xilinx® Artix-7 family. A Mini DisplayPort source provides the board with a uni-directional, high-bandwidth, low-latency audio/video channel. Designed with high bandwidth external memories, three high-speed digital video ports, and a 24-bit audio codec, the Nexys Video is a potent platform for A/V development. Features: Features the Xilinx Artix-7 FPGA (XC7A200T-1SBG484C) 33,650 logic slices, each with four 6-input LUTs and 8 flip-flops 13 Mbits of fast block RAM (3x more than the Nexys 4 DDR) 10 clock management tiles, each with phase-locked loop (PLL) 740 DSP slices Internal clock speeds exceeding 450MHz On-chip analog-to-digital converter (XADC) Up to 3.75Gbps GTP transceivers Programmable over JTAG, Quad-SPI Flash, microSD, and USB flash drive 512MB 800MHz DDR3 32MB Quad-SPI flash microSD card slot for nonvolatile storage (card not included) Dedicated onboard USB port for JTAG programming and data transfers Powered from any 12V source (36W wall supply included) HDMI sink and HDMI source Mini DisplayPort source 240bit Audio codec w/ four 3.5mm jacks 10/100/1000 Ethernet PHY with included unique MAC address User EEPROM USB-UART bridge Digilent parallel transfer interface (DTPI) for high-speed data transfers over USB Digilent serial peripheral interface (DSPI) for medium-speed data transfers over USB Onboard user interfaces: 128x32 monochrome OLED display, 5 user push buttons, 8 user switches, 8 user LEDs USB HID host for mice and keyboards Fully-populated 160-pin FMC LPC connector Four Pmod ports, Pmod for XADC signals What's Included: Nexys Video Artix-7 FPGA Custom Digilent cardboard packing USB A to micro-B programming cable and one 12V, 3A wall power supply with US and EU adapters - UK plug adapter not included.
關於 DIGILENT│
DIGILENT 為 NI (National Instruments)的子公司,自2000年成立以來持續為工程師、研究人員、科學家和學生提供成本最佳化的產品、工具和應用訊息。基於 FPGA 和 SoC 的創新軟硬體系統,提供優惠且靈活的解決方案。 具有競爭力的售價、便於攜帶的產品與充足的應用文件,提供初學者最佳的可用性。 Digilent 總部位於華盛頓州普爾曼,在三大洲設有辦事處、研發和製造機構,以及廣泛的全球經銷網路,能快速且高效率提供您所需的產品。
關於和澄科技│

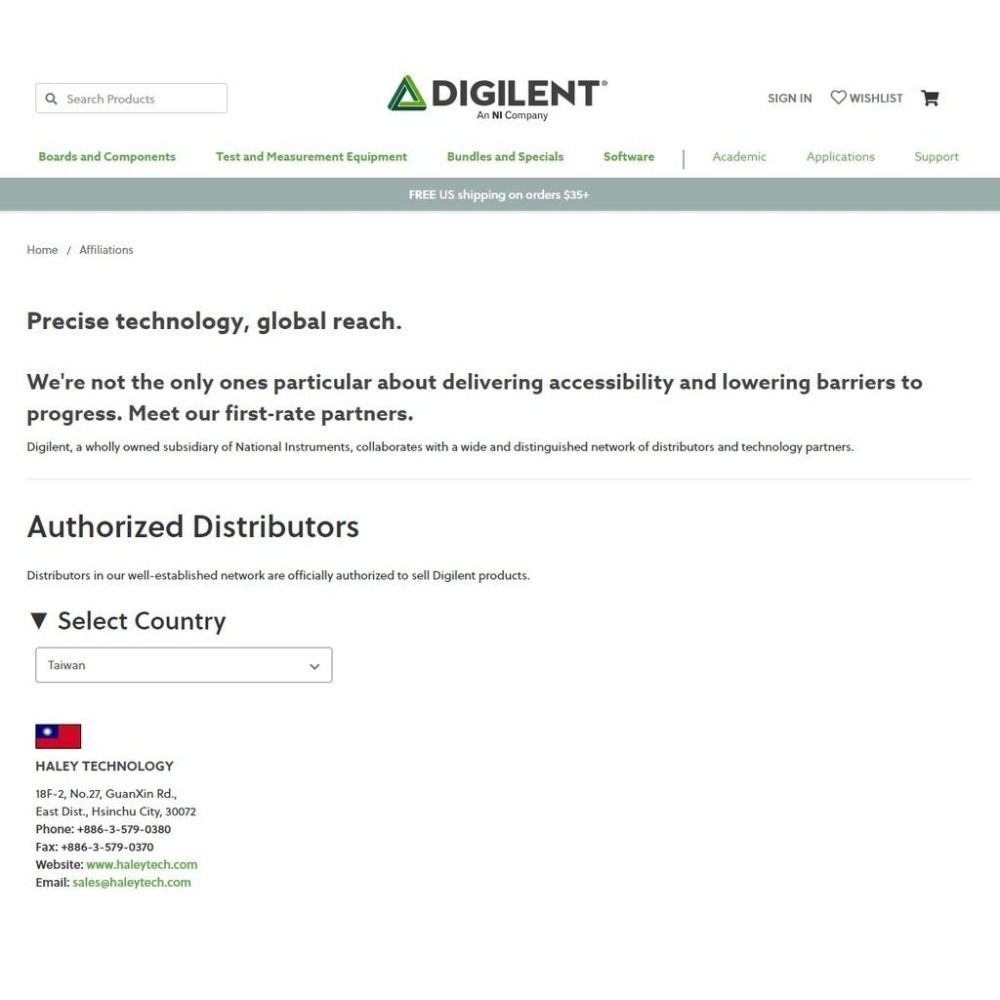

為DIGILENT台灣合法授權代理商,位於新竹市,代理/銷售 DIGILENT 原廠商品,並提供技術支援與售後服務。
