Name: Zmod Scope 1410 │雙通道 14位元示波器模組-SYZYGY 介面│ 美國原廠授權代理 可開發票報帳
Brand: 和澄科技 Haley Technology｜DIGILENT Taiwan
SKU: 410-396
Price: 9146 TWD

原廠商品名：Zmod Scope 1410: 2-channel 14-bit Oscilloscope Module

SKU:

Zmod Scope 1410-40：410-396-5

Zmod Scope 1410-105：410-396

Zmod Scope 1410-125：410-396-6

Product Description

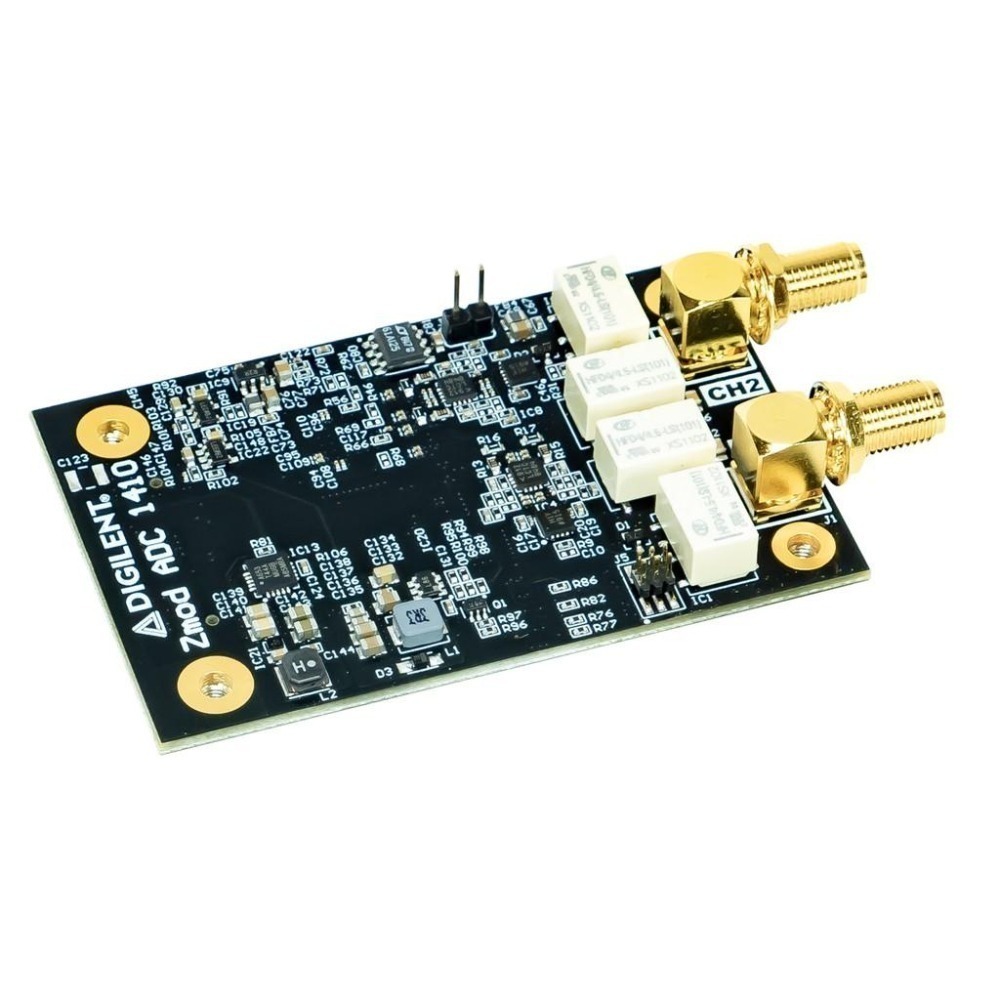

The Zmod ADC is one of Digilent＇s first SYZYGY-compliant expansion modules. The SYZYGY standard offers a much higher speed/bandwidth digital interface than Pmods, but at a much smaller and lower-cost form-factor than FMC, enabling the user to configure an FPGA development board with the right I/O for their application. Driven by the SYZYGY carrier, the Zmod ADC can simultaneously acquire two ±25V signals with 14 bits of resolution at a sample rate up to 100MS/s. Analog inputs can be connected to a circuit using SMA cables. When coupled to a base board using SYZYGY expansion, like the Eclypse Z7 or Genesys ZU, the combination will serve as a powerful prototyping platform for instrumentation, high-speed control, and SDR products. By utilizing these expansion capabilities, users can spend more time on the analytical and system-level aspects of the solution rather than having to focus on the component-level interactions of the devices. Features: Channels: 2 Channel type: single-ended Resolution: 14-bit Input range: ±1V (High Gain) or ±25V (Low Gain) Absolute Resolution 0.13mV (High Gain) or 3.21mV (Low Gain) Sample rate (real time): 100MS/s Input impedance: 1MΩ||18pF Analog bandwidth: 70 MHz+ @ 3dB, 30 MHz @ 0.5dB, 20 MHZ @ 0.1dB Input protected to: ±50V
