Name: Zmod AWG 1411：支援 SYZYGY 介面標準的雙通道 AWG 模組 │ DIGILENT 美國原廠授權代理
Brand: 和澄科技 Haley Technology｜DIGILENT Taiwan
SKU: 410-397
Price: 3636 TWD

原廠品名：Zmod AWG 1411: 2-channel 14-bit Arbitrary Waveform Generator (AWG) Module

SKU: 410-397

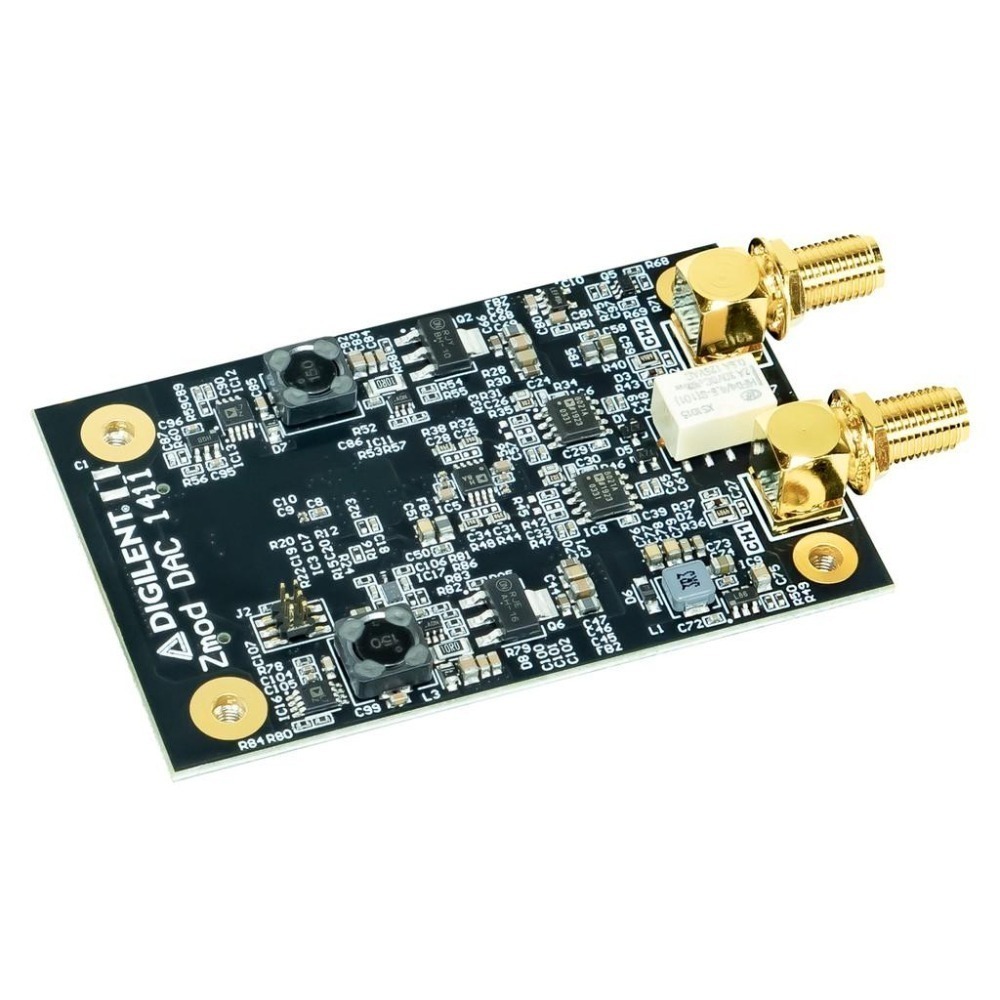

The Zmod DAC is one of Digilent＇s first SYZYGY-compliant expansion modules. The SYZYGY standard offers a much higher speed/bandwidth digital interface than Pmods, but at a much smaller and lower-cost form-factor than FMC, enabling the user to configure an FPGA development board with the right I/O for their application. Driven by the SYZYGY carrier, the Zmod DAC can simultaneously generate two ±5V signals with 14 bits of resolution at a sample rate up to 100MS/s. The analog outputs can be connected to a circuit using SMA cables. When coupled to a base board using SYZYGY expansion, like the Eclypse Z7 or Genesys ZU, the combination will serve as a powerful prototyping platform for instrumentation, high-speed control, and SDR products. By utilizing these expansion capabilities, users can spend more time on the analytical and system-level aspects of the solution rather than having to focus on the component-level interactions of the devices. Features: Channels: 2 Channel type: single-ended Resolution: 14-bit Absolute Resolution (amplitude ≤1.25V): 167μV Absolute Resolution (amplitude >1.25V): 665μV Output impedance: 50Ω Sample rate (real time): 100MS/s. AC amplitude (max): ±5 V. Analog bandwidth: 40 MHz @ 3dB, 20 MHz @ 0.5dB, 14 MHz @ 0.1dB Slew rate (2V step): 180V/μs
