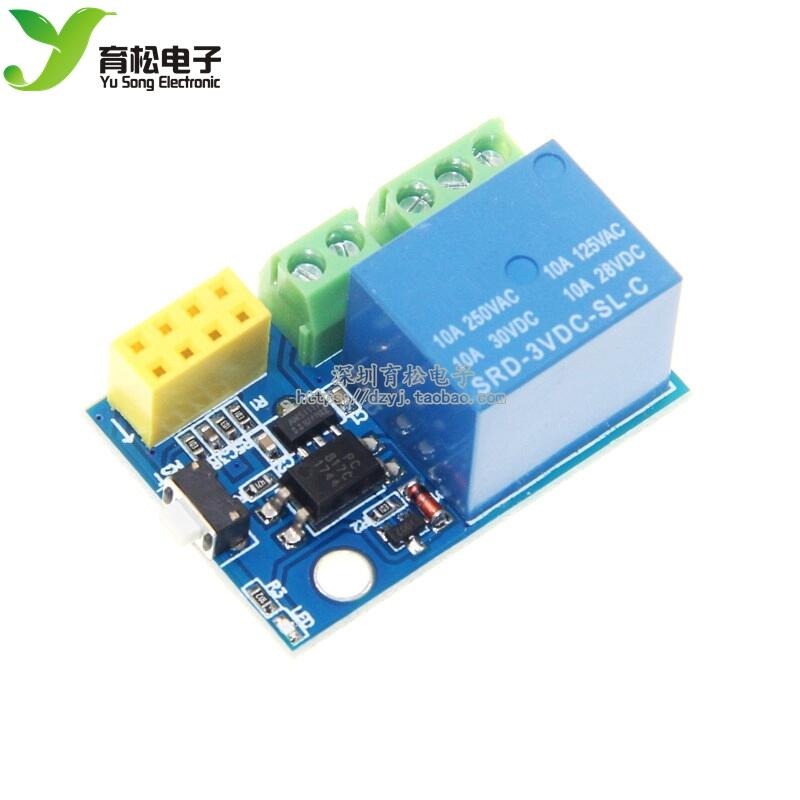

315687→8670 現貨【no】ESP8266 ESP-01S 模組 繼電器 WIFI 智慧插座 U34 W8.1

商品編號:P8763412566365 原始貨號:P8763412566365
$ 44
預計出貨天數1
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

此商品原則上在台灣倉庫有現貨庫存,除非同時有我們其他賣場的其他買家早於您下標此商品,則商品以先下標者優先出貨

配套的模組單獨購買;/item.htm?spm=a1z10.3-c-s.w4002-14787471870.19.74ca6865LnKk3D&id=560359232453

資料下載  資料下載:安卓APP 及LUA 源碼:


https://pan.baidu.com/s/1smdH58L?qq-pf-to=pcqq.c2c

版本區別:新版大小跟舊版本完全一樣,其中

1.加粗了走線,可以通過更大的電流。

2.支援ESP-01(舊版本不支援)

3.加入了光耦,大大提高了模組性能

4.低電平控制(舊版本高電平控制)

5.寬電壓輸入,支援DC 5-12V(舊版本值支援5V)

本智慧繼電器模組由IOTMCU工作室獨立設計開發生產,基於ESP-01/01S WIFI 模組設計,可用於DIY 自己的智慧開關,通過手機APP遠端 控制,提供APP和LUA 根源程式。即拿即用,簡單方便。

資料下載:安卓APP 及LUA 源碼:

https://pan.baidu.com/s/1pLwkH3X

 特點:

*模組工作電壓:DC 5V-12V

*繼電器負載能力:10A 250VAC  10A 125VAC   10A  30VDC  10A 28VDC

1.  Description

This ESP-01/01S Relay based on AI-Thinker ESP-01/01S WIFI module. It is designed for smart home, Internet of thing and others DIY project. With this smart relay, you will easy to DIY your smart switch to control any device by your phone anywhere. We support the APP and LUA source code.

In the version, we use the GPIO0 of ESP-01 OR ESP-01S to control the Relay by Low level.

2.  Parameter

*Working voltage: DC5V-12V

*Working current: ≥250mA

*Communication: ESP-01 or ESP-01S WIFI module

*Transmission distance: the maximum transmission distance of 400m (open environment, mobile phone equipped with WIFI module)

*Load: 10A/250VAC 10A/30VDC, the relay pulls 100,000 times

*GPIO0 of ESP-01/01S Control the Relay (Low level active)

*Product size: 37 * 25mm

3.  Usage

1)    Hardware connection

Just plug the ESP-01/01S to the 2*4 pin header after download the code to ESP-01/01S. Show as below:

2)    Power supply

Connect a DC 5V-12V power to the GND and VCC.

3)    Open your phone WLAN then connect the WiFi ESP8266-XXXX, Power word:12345678

4)    Open the ESP8266 Controller.app ( Installed it in your android phone before)

5)    Set IP Address: 192.168.1.1 than you can control your device via the wifi relay module:
