此商品原則上在台灣倉庫有現貨庫存,除非同時有我們其他賣場的其他買家早於您下標此商品,則商品以先下標者優先出貨
-

-
- 產品資訊

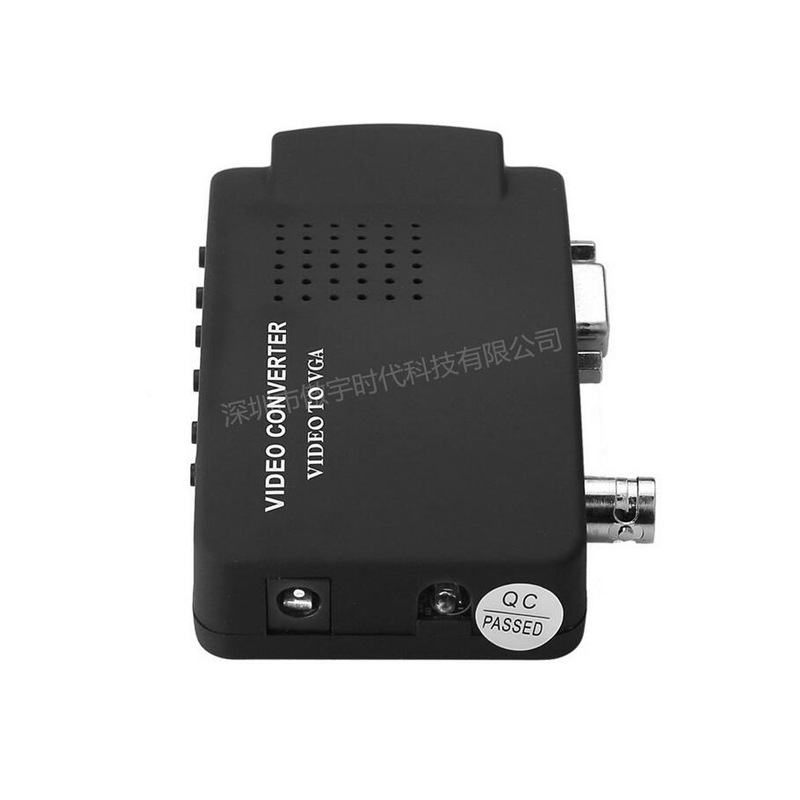

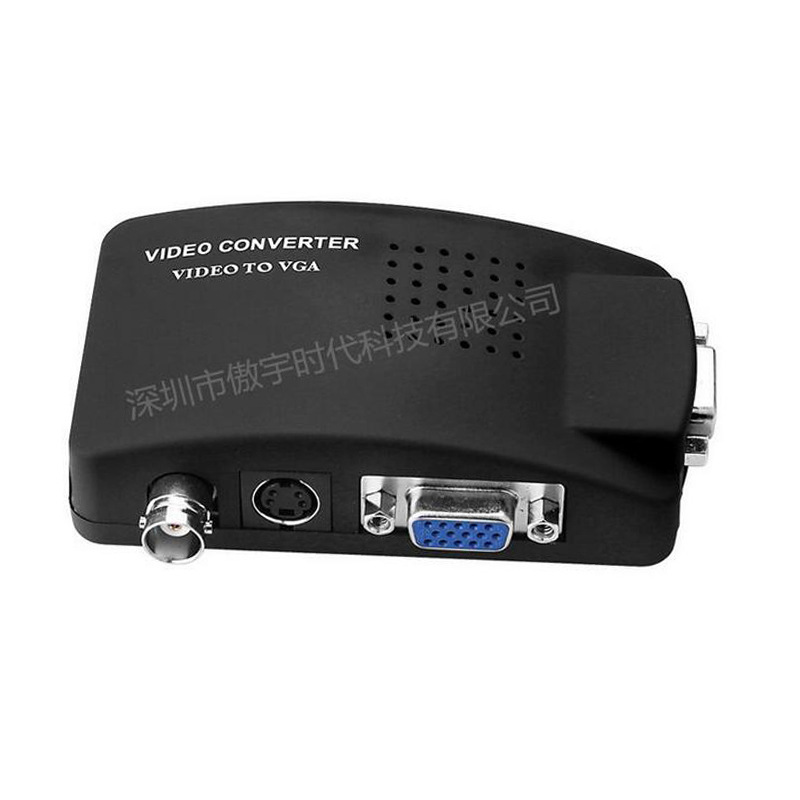

- 商品名稱:BNC轉VGA轉換器
- 商品型號:AY-BNC
- 商品顏色:黑色
- 商品尺寸:110X56X36mm
- 商品重量:380KG
-
產品簡介:BNC轉VGA是一款針對安防、醫療、家庭用戶設計的無損視頻轉換器,它可以將視頻信號使用 先進的數位圖像處理技術轉換成為各種解析度的VGA信號,從800X600到1920X1200的各種VGA解析度輸出,以達到實現顯示器點對點的顯示效果,從而展現 畫面。
該產品廣泛用於DVR後端監視器、視頻教學設備、地鐵工程、工業等,取代傳統的CRT監視器,體積小、畫質清晰、即插即用、簡單方便。
產品簡介:
1:產品功能
輸入介面:1xAV(BNC), 1xS-Video, 1xVGA
輸出介面:1xVGA
2:輸出解析度
800X600@60Hz,800X600@75Hz,1024X768@60Hz,1280X1024@60Hz,1440X900@60Hz,1680X1050@60Hz,1920X1080@60Hz,1920X1200@601920X1200@60Hz
3:輸入信號格式
AV和S-Video輸入:自動識別PAL、NTSC
VGA輸入:BYPASS

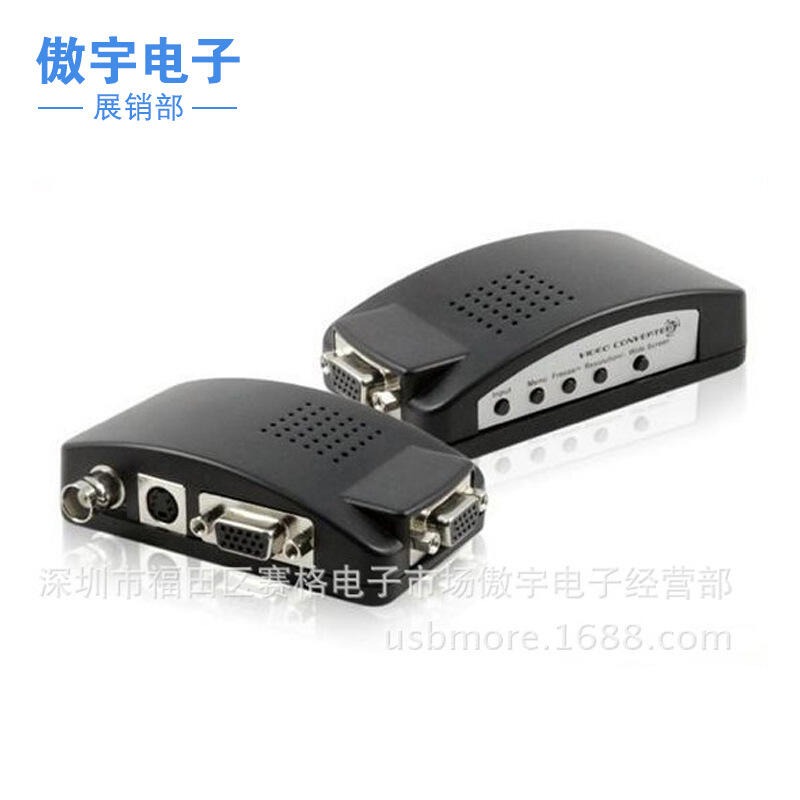

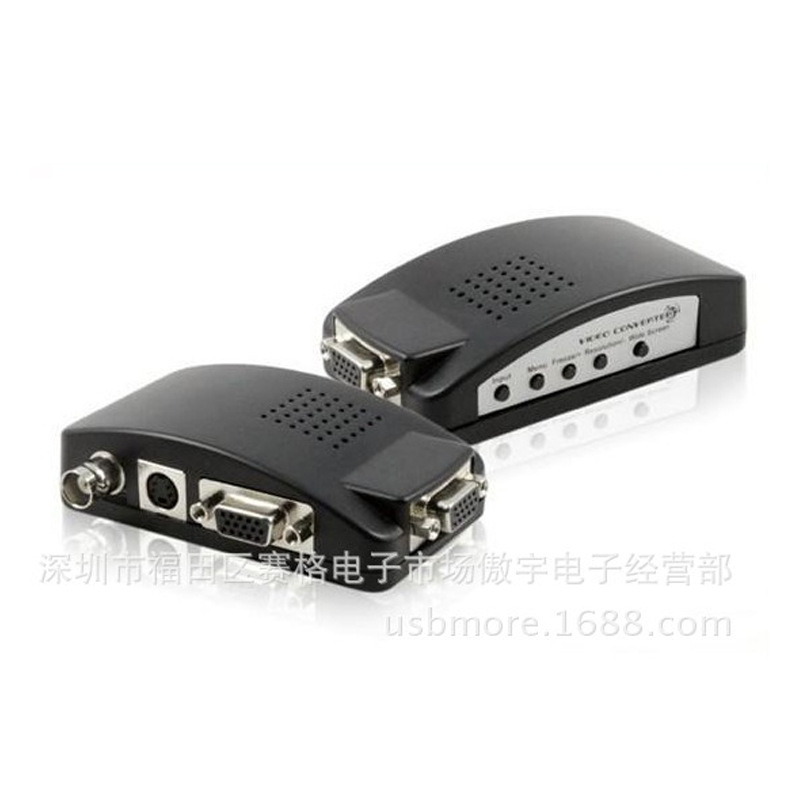

4:使用操作介紹
|
名 稱 |
說 明 |
|
(1)Input |
視頻輸入選擇:迴圈切換AV(CVBS)>>SV(S_VIDEO)>>VGA>>AV(CVBS) 按住Input鍵後接通電源上電,重定系統,恢復出廠設置。 |
|
(2)Menu |
菜單鍵:迴圈切換調整功能表,包括:亮度,對比度,清晰度,色飽和度,色調,HP(水準位置),VP(垂直位置)
|
|
(3) Freeze/+
(4)Resolution/- |
-當螢幕上分別出現:亮度,對比度,色飽和度,清晰度,色調,行位置,場位置調整提示時: “Freeze/+”的作用為“+”的功能,比如亮度增加,行位置右移等功能。 “Resolution/-”的作用為“-”的功能,比如亮度減少,行位置左移等功能。 -在螢幕上無功能表顯示時: “Freeze/+”的作用為“Freeze”的功能,按下後畫面凍結或解除凍結操作 “Resolution/-”的作用為“Resolution”,即按下後會依次選擇不同的輸出解析度: 800X600@60HZ、800X600@75HZ、1024X768@60HZ、1280X1024@60HZ、1440X900@60HZ、1680X1050@60HZ、1920X1080@60HZ、1920X1200@60HZ 備註: 按壓Resolution/-鍵,解析度從800X600-1920X1200迴圈切換。 A.如果因為誤操作將解析度設置過高而導致您的顯示器無法正常顯示時,請繼續按此鍵以回到較低的解析度 B.請斷電後,按住Input鍵後,再接通電源上電,重定系統,恢復出廠設置。 |
產品特點:
1:輸入支援PAL、NTSC、SECAM全制式
2:可實現從 800X600到1920X1200 VGA輸出解析度的切換
3:亮度、對比度、清晰度、色度、色調、水準位置、垂直位置等可調
4:點陣圖OSD顯示
5:支援凍結功能
6:數位化梳狀濾波器,實現亮色 分離
7:3D運動補償
8:標準化信號輸出設計,無失真還原自然視界
9:工業級產品設計,24小時不間斷工作,穩定可靠
10:體積小,便於放置(size:110X56X36mm)
11:DC 5V供電

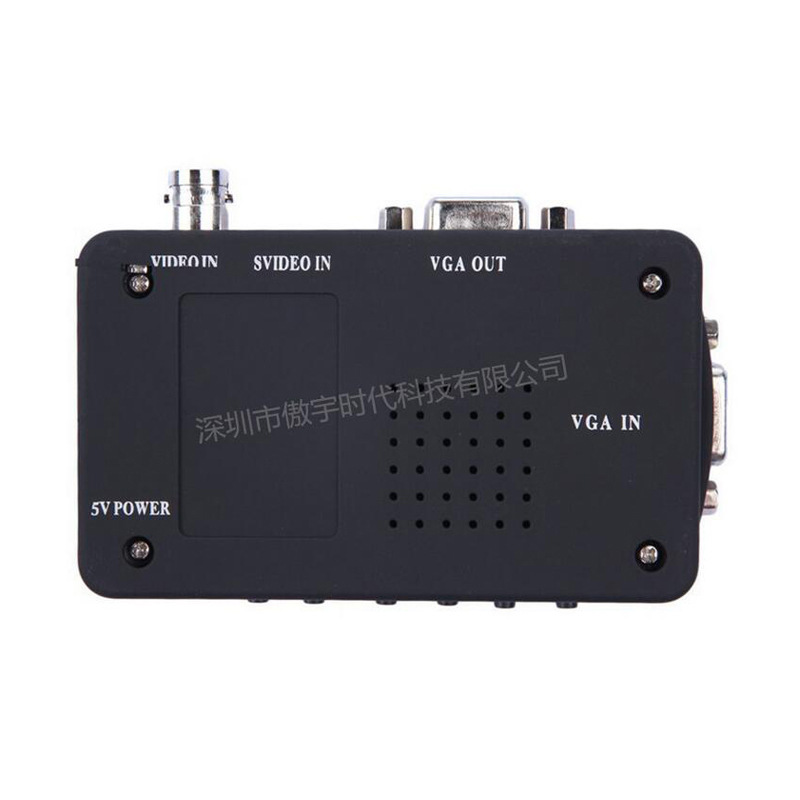

介面說明:
|
名 稱 |
說 明 |
|
VGA Out |
VGA輸出接電腦顯示器 |
|
AV(CVBS) In |
接視頻源(如DVD、攝像頭等) |
|
S-VIDEO In |
接S端子信號源、錄影機、DVD機等 |
|
VGA In |
接電腦主機顯卡VGA輸出 |
|
DC 5V |
接5V/1A電源適配器 |
|
LED |
電源指示燈 |
二.附件說明:
|
配件 |
數量 |
備註 |
|
HDV200-B |
1PCS |
|
|
DC5V/1A |
1PCS |
|
|
用戶手冊 |
1PCS |
|
|
包裝 |
1PCS |
三.技術參數
|
大傳輸速率 |
5.1Gbps |
|
大工作電流 |
300mA |
|
電源適配器規格 |
AC(50/60Hz)100V~240V輸入,DC5V/1A輸出 |
|
工作溫度 |
-40~+80’C |
|
工作濕度 |
5~90%RH |
|
外觀尺寸(長*寬*高) |
110X56X36mm |
|
產品淨重 |
0.18KG |
|
重量(毛重) |
0.38KG |
|
彩盒尺寸 |
210*150*55mm |
Features:
-Supports Composite VIDEO(BNC)), S-VIDEO, RGB. -Inputs: 1 x Composite Video, 1 x S-video, 1 x VGA; 1xBNC; -0utput:1 X VGA; -Switch between 3 inputs to be output to the single VGA; -Both PAL / NTSC are supported; -Optional Resolution: 800x600@60HZ, 800x600@75HZ, 1024x768@60HZ, 1280x1024@60HZ, Lightness, hue, contrast, saturation, color, etc. adjustable via button and auto-store when power off; -External Power from 5V@500mA.
-Pure hardware design, just Plug & Play No software or driver requirement -Motion adaptive noise reduction The Video Deinterlacing Processor automatically detects and can respond to noise
thresholds and still images. -Provides 3D motion adaptive de-interlacing with diagonal detection. -Performs high quality line doubling and high-accuracy motion estimation.
-Performs pixel- based motion estimation using two-field buffers
|
Item |
Spec. |
| (1)VGA Out | To connect VGA display (Computer monitor or LCD) |
| (2)Video In | To connect Composite Video devices (eg:DVR, CDD Camera, etc) |
| (3)S-Video In | To connect S-video devices |
| (4)VGA In | To connect PC host |
| (5)DC 5V | To connect power supply |
| (6)LED Indication | Shows working staus. |
Input:* 15-pin VGA analog RGB signal * S-video (S-VHS)*1 * Composite (RCA)*1
* BNC*1Output:*VGA bypuss * Multiple inputprequencies * 1024*768 60Hz * 1024*768 75Hz * 1280*1024 85HzSystem requirements:

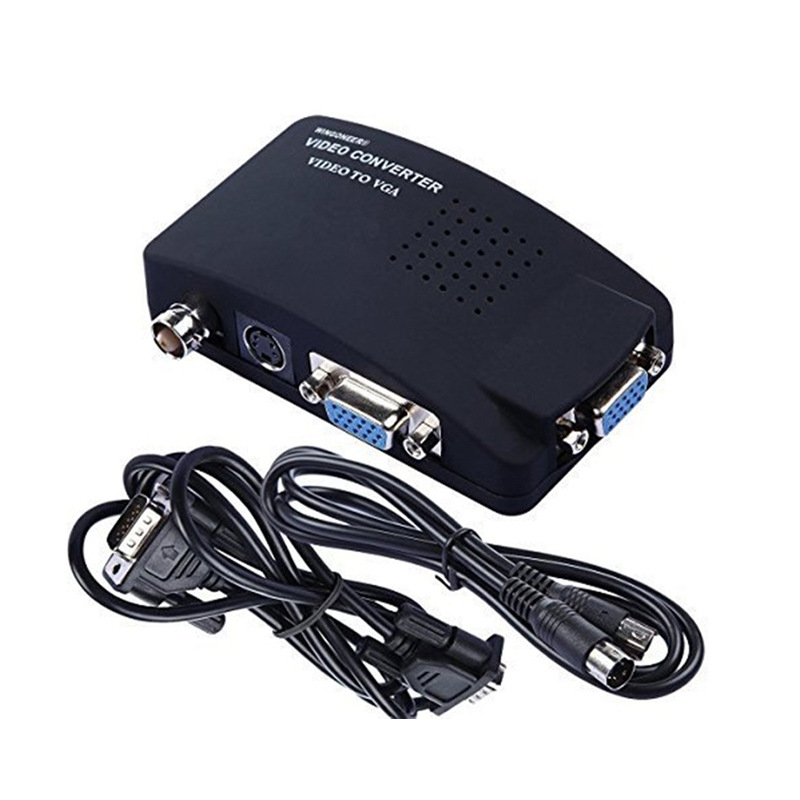

VESA compatible VGA monitor Video output device (e.g: VCR, DVD, V8, LD player, TV game machine and etc.)Package Contents:* Power adapter (Switching) * BNC Cable
* AV Cable * VGA cable( 15 pin) * BNC to VGA Video Converter BOX
|
DESCRIPTION:
YY-ATV02 is a BNC to VGA video converter for High Resolutcin(up TO 1280X1024) Video Picture sharing.The DEINTERLACE can provide high quality picture and give sharp,stable image output to VGA inpurt device.It is easy to install and operate,instantly switch the source between Video,S-Video and PC with a single button and turn your monitor in to a high resolution picture output.
RCA Composite Video and S-video to VGA converter allows your DVD, STB, game tube, to be displayed on standard computer monitor or LCD.
Features: -Supports Composite VIDEO(BNC)), S-VIDEO, RGB. -Inputs: 1 x Composite Video, 1 x S-video, 1 x VGA; 1xBNC; -0utput:1 X VGA; -Switch between 3 inputs to be output to the single VGA; -Both PAL / NTSC are supported; -Optional Resolution: 800x600@60HZ, 800x600@75HZ, 1024x768@60HZ, 1280x1024@60HZ, Lightness, hue, contrast, saturation, color, etc. adjustable via button and auto-store when power off; -External Power from 5V@500mA. -Pure hardware design, just Plug & Play No software or driver requirement -Motion adaptive noise reduction The Video Deinterlacing Processor automatically detects and can respond to noise thresholds and still images. -Provides 3D motion adaptive de-interlacing with diagonal detection. -Performs high quality line doubling and high-accuracy motion estimation. -Performs pixel- based motion estimation using two-field buffers
Input:* 15-pin VGA analog RGB signal * S-video (S-VHS)*1 * Composite (RCA)*1 * BNC*1Output:*VGA bypuss * Multiple inputprequencies * 1024*768 60Hz * 1024*768 75Hz * 1280*1024 85HzSystem requirements:
VESA compatible VGA monitor Video output device (e.g: VCR, DVD, V8, LD player, TV game machine and etc.) * AV Cable * VGA cable( 15 pin) * BNC to VGA Video Converter BOX |





-
-
-
-
。
