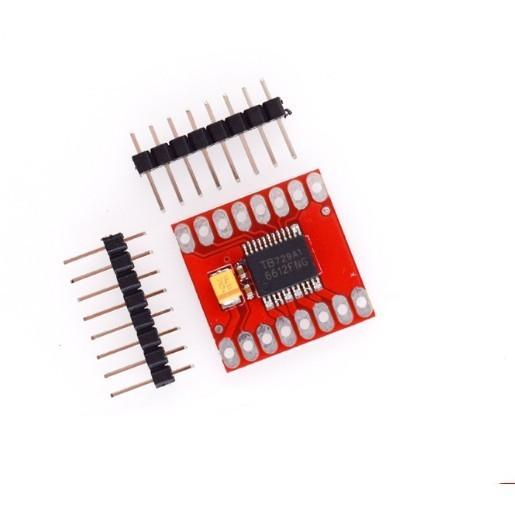

►625◄TB6612FNG 馬達驅動板模組小體積高性能L298N自平衡小車3PI配套

商品編號:P7349910549733 原始貨號:625
$ 50
預計出貨天數2
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

該模組相對于傳統的L298N效率上提高很多,體積上也大幅度減少,在額定範圍內,晶片基本不發熱,當然也就顯得更加嬌貴,所以我們建議有一定動手能力的朋友使用,接線的時候務必細心細心再細心,注意正負極性。 TB6612的的用法: TB6612是雙驅動,也就是可以驅動兩個電機 下面分別是控制兩個電機的IO口 STBY口接單片機的IO口清零電機全部停止,置1通過AIN1 AIN2,BIN1,BIN2 來控制正反轉 VM 接12V以內電源 VCC 接5V電源 GND 接電源負極 驅動1路 PWMA 接單片機的PWM口 真值表: AIN1 0 0 1 AIN2 0 1 0 停止 正傳 反轉 AO1 AO2 接電機1的兩個腳 驅動2路 PWMB 接單片機的PWM口 真值表: BIN1 0 0 1 BIN2 0 1 0 停止 正傳 反轉 BO1 BO2 接電機2的兩個腳 Description: The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak). Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop. The two motor outputs (A and B) can be separately controlled, the speed of each motor is controlled via a PWM input signal with a frequency up to 100kHz. The STBY pin should be pulled high to take the motor out of standby mode.CJMCU. Logic supply voltage (VCC) can be in the range of 2.7-5.5VDC, while the motor supply (VM) is limited to a maximum voltage of 15VDC. The output current is rated up to 1.2A per channel (or up to 3.2A for a short, single pulse). Board comes with all components installed as shown. Decoupling capacitors are included on both supply lines. All pins of the TB6612FNG are broken out to two 0.1" pitch headers; the pins are arranged such that input pins are on one side and output pins are on the other. Features: Power supply voltage: VM=15V max, VCC=2.7-5.5V Output current: Iout=1.2A(average) / 3.2A (peak) Standby control to save power CW/CCW/short brake/stop motor control modes Built-in thermal shutdown circuit and low voltage detecting circuit All pins of the TB6612FNG broken out to 0.1" spaced pins Filtering capacitors on both supply lines
