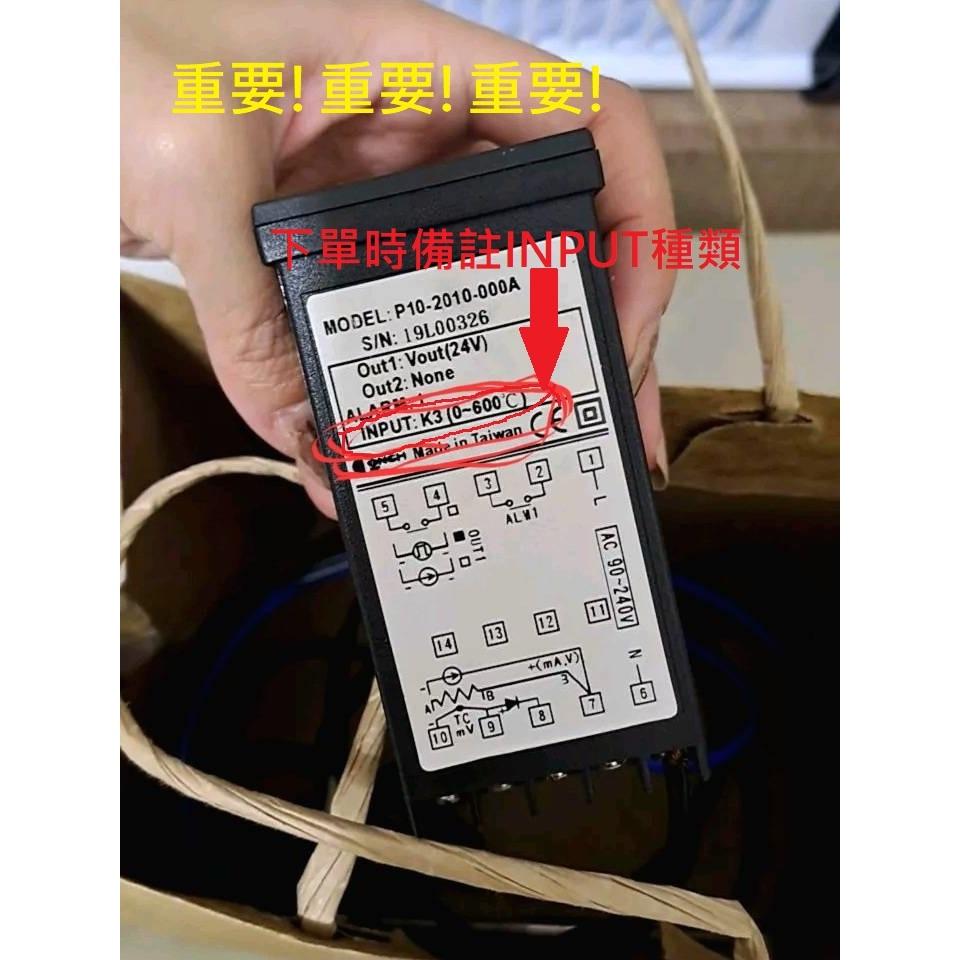

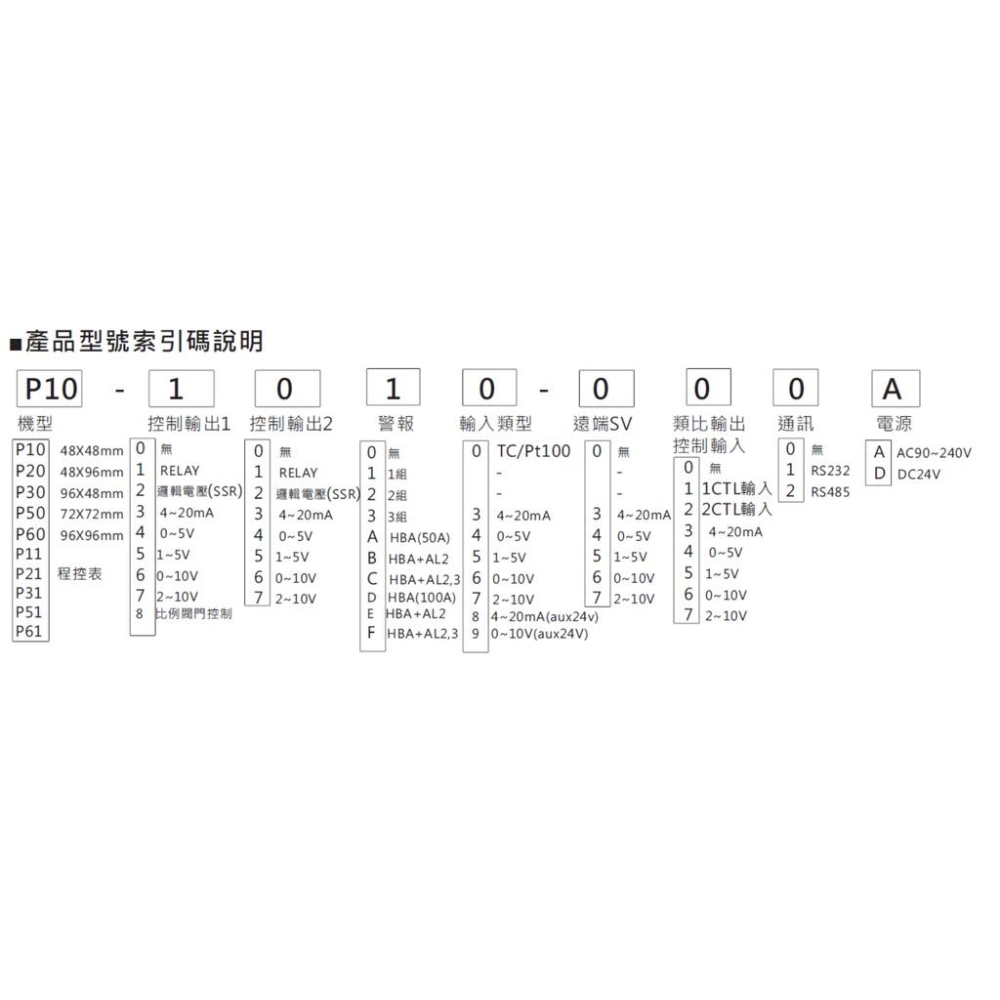

下單前請先聊聊, 備註請填寫完整型號規格(如下表),
例:一組SSR輸出兩組警報+再傳送0-5v/輸入1-5v 則完整型號為 >>>> P20-2025-040A 訂購超過5pcs另有折扣,請聊聊與小編聯絡,謝謝!
#免運優惠
• 16bit微電腦運算核心PID + SELF TUNING

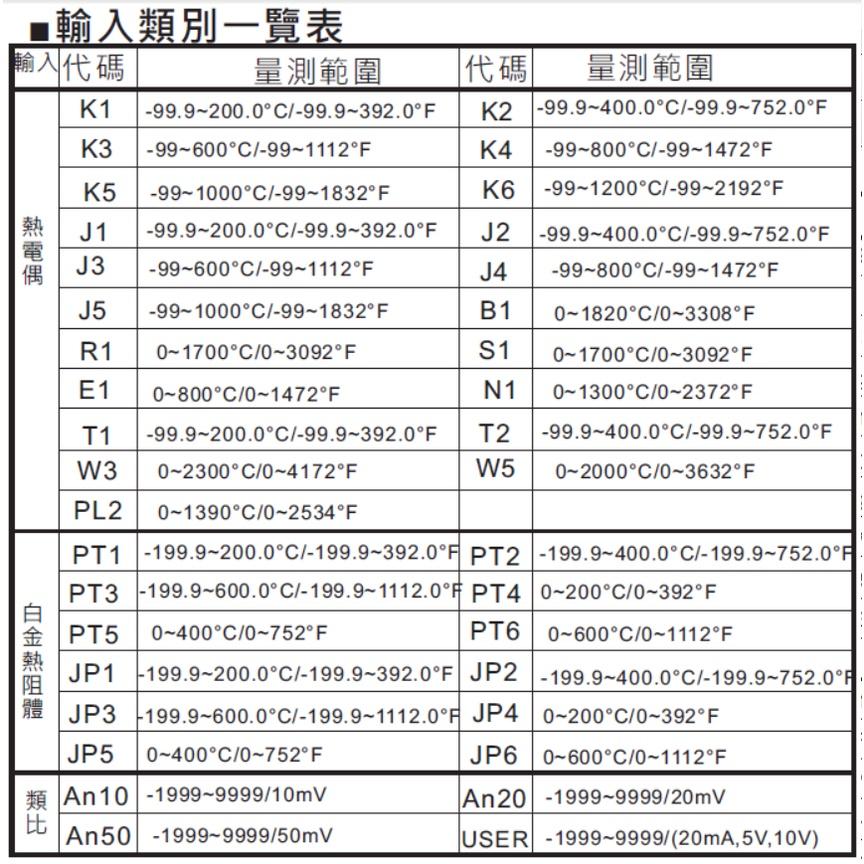

• 輸入訊號多樣選擇(熱偶、白金阻體、類比訊號…)
• 主控輸出可選則RELAY、脈衝電壓、線性類比訊號
• 可驅動各類的接觸器、SSR、SCR、馬達閥門等
• 可設定逆向/正相控制(加熱或冷卻過程)
• 雙輸出機型可作加熱/冷卻雙向PID控制
• SV目標值可利用類比訊號輸入達成遠端設定功能(RSV)
• 26種警報模式選擇可附加斷線檢知警報(HBA)功能
• 再傳送功能可將PV值或控制輸出量轉成類比訊號輸出
• 具備手動輸出模式
• 串列通訊支援ModBus 的RTU和ASCII格式,最高速率可達38400 bit/s
• 程序控制提供16組溫度段數自由規劃執行區間及重複次數
• 16 bit microcomputer computing core PID + SELF TUNING
• Various input signals (thermocouple, platinum resistor, analog signal...)
• Optional main control output: relay, pulse voltage, linear analog signal
• Can drive various contactors, SSR, SCR and motor valves etc
• Programmable reverse/normal phase control (heating or cooling process)
• Dual output models can be used for heating/cooling bidirectional PID control
• SV target value can achieve remote setting function (RSV) by analog signal input
• 26 types of alarm modes selection can be added with disconnection detection alarm (HBA) function
• Retransmission function can convert PV value or control output into analog signal output
• With manual output mode
• Serial communication supports ModBus' RTU and ASCII formats, the maximum rate can reach to 38400 bit/s
• Program control provides 16 sets number of temperature segments, can freely planning execution intervals and repetition times
#溫度控制器 #溫控器 #PID #CONCH #P60
