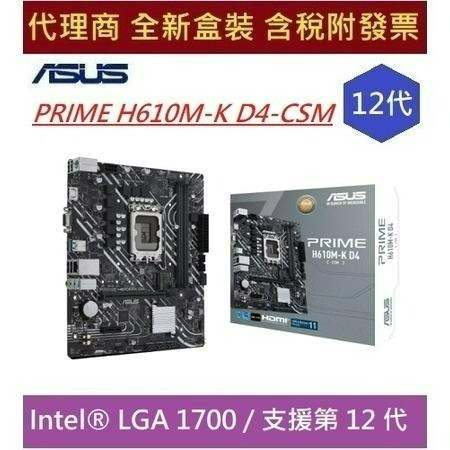

全新 含發票 華碩 PRIME H610M-K D4-CSM H610 COM接頭 支援第12代 CPU 主機板

***中華郵政 & 賣家宅配運費,適用於台灣本島島內運費,其餘地區請先聊聊,了解運費收費後更新運費再下單,

＂ 非台灣本島 ＂ 請勿直接點選 ＂ 中華郵政 ＂ 或 ＂ 賣家宅配 ＂ 下單,非常感謝***

CPU

Intel® Socket LGA1700 for 12th Gen Intel® Core™, Pentium® Gold and Celeron® Processors*

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

Chipset : Intel® H610 Chipset

Memory

2 x DIMM, Max. 64GB, DDR4 3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

Graphics

1 x D-Sub port

1 x HDMI® port**

Expansion Slots

Intel® 12th Gen Processors

1 x PCIe 4.0 x16 slot

Intel® H610 Chipset

1 x PCIe 3.0 x1 slot

Storage

Total supports 1 x M.2 slot and 4 x SATA 6Gb/s ports

Intel® H610 Chipset

M.2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)

4 x SATA 6Gb/s ports

Ethernet : 1 x Realtek 1Gb Ethernet

USB

Rear USB (Total 6 ports)

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

Front USB (Total 4 ports)

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Back Panel I/O Ports

2 x USB 3.2 Gen 1 ports (2 x Type-A)

4 x USB 2.0 ports (4 x Type-A)

1 x D-Sub port

1 x HDMI® port

1 x Realtek 1Gb Ethernet port

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port

Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header

1 x 4-pin Chassis Fan header..

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

1 x M.2 slot (Key M)

4 x SATA 6Gb/s ports

USB

1 x USB 3.2 Gen 1 header supports additional 2 USB 3.2 Gen 1 ports

1 x USB 2.0 header supports additional 2 USB 2.0 ports

Miscellaneous

1 x RGB header

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x S/PDIF Out header

1 x Speaker header

1 x SPI TPM header (14-1pin)

1 x 10-1 pin System Panel header

BIOS : 128 Mb Flash ROM, UEFI AMI BIOS

..

Manageability : WOL by PME, PXE

Accessories : Cables..

2 x SATA 6Gb/s cables

Miscellaneous

1 x I/O Shield

1 x M.2 ANCHOR

Installation Media

1 x Support DVD

Documentation

1 x ACC Express Activation Key Card

1 x User Guide

Operating System : Windows® 11 64-bit, Windows® 10 64-bit

Form Factor

mATX Form Factor

9.2 inch x 8.0 inch ( 23.4 cm x 20.3 cm )

**退貨注意事項**

1.本商品之鑑賞期非試用期，本商品一經拆封原廠包裝後，即視同您同意購買並支付全額貨款！

2.本商品為特殊性質商品，若欲退貨，請務必確認商品為完整原廠包裝未經拆封和使用。

3.退貨時請您務必確定商品必須為新品狀態，須為原廠完整包裝 ( 包含主體，配件，內外包裝，隨機文件，贈品，發票單據等)

**本商品於您退貨後會先送交工程人員檢測，若測試為 新品故障 會協助您退貨。
