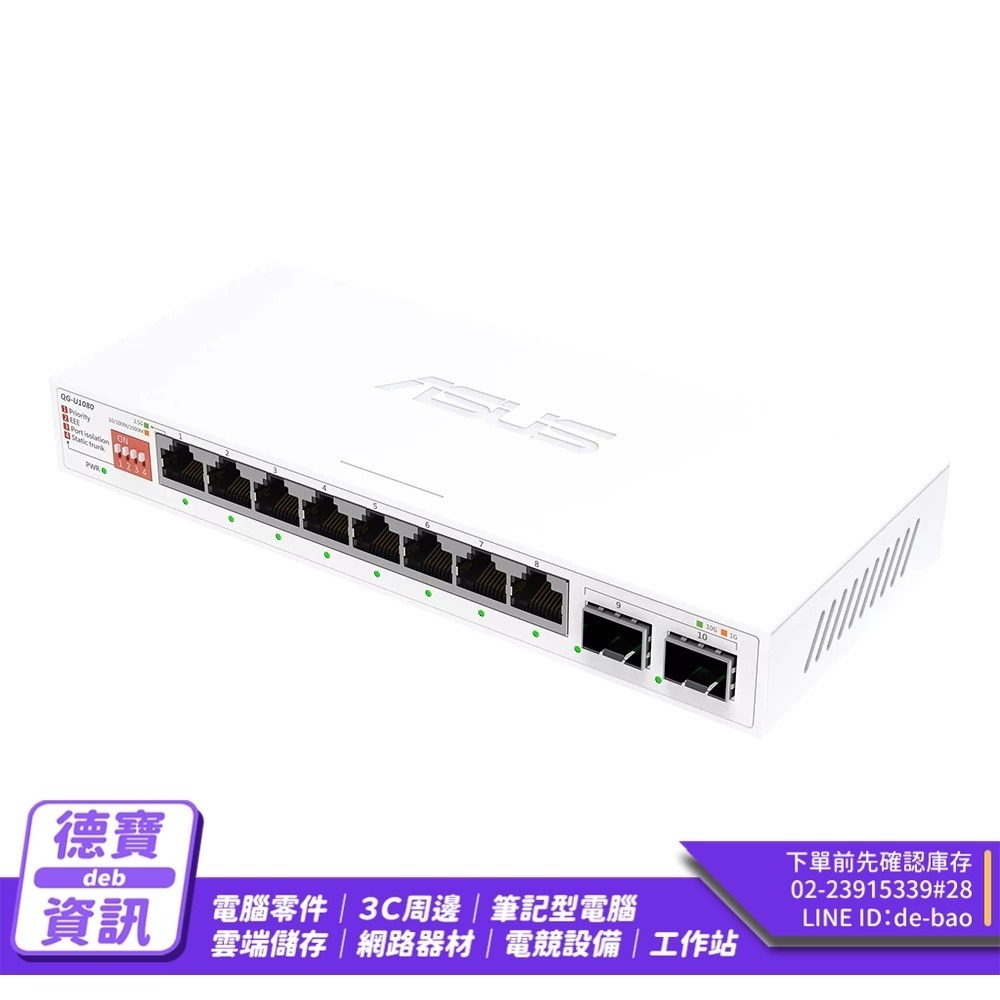

ASUS 華碩 QG-U1080 8埠2.5G + 2埠 SFP+(10G) 無網管交換器 交換器 網路交換器 光華

商品編號:P4277112070298 原始貨號:P4277112070298

產品型號:QG-U1080

$ 3,699
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款 / 線上刷卡 / 刷卡分期 / 超商代碼繳費 / ATM 轉帳
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款 / 常溫7-ELEVEN店到店取貨不付款 / 宅配

商品特色

✅產品保固:三年保固

✅產品特色

升級版 2.5G 連接埠與 10G SFP+ – 使用標準 CAT5e 網路線即可無縫升級至 2.5G,享受更高速的網路效能。

支援四種智慧功能 – 流量優先、EEE 節能、連接埠隔離與靜態鏈路聚合。一機滿足您保護及優化家庭或商用網路的所有需求。

隨插即用,設定毫不費力 – 建立網路從未如此簡單!只需連接您的裝置即可開始使用 — 無需任何複雜設定。

彈性的網路擴充 – 您可以連接各種相容於 2.5G/10G 的裝置,包括 NAS、無線基地台 (AP)、電競電腦及 4K 影音串流設備,實現更全面的網路佈局。

✅產品規格

型號

QG-U1080

Port Attributes

8 x 2.5G RJ45 ports

2 x 10G SFP+ ports

Standard

IEEE802.3u 100BASE-TX

IEEE802.3ab 1000BASE-T

IEEE802.3bz 2.5G BASE-T

IEEE 802.3-2012, IEEE 10GBASE-KR (10.3125 Gbps)

IEEE802.3az EEE

IEEE802.3x Flow control

Color

White

Performance

MAC address Table: 16K

Packet buffer: 8Mbits

Jumbo Frame: 10K bytes

Forwarding Rate: 59.52Mpps (64-byte)

LED Indicator

Power LED

Off: The switch is powered off or fails.

Green On: The switch is powered on.

Blinking: Loop detected.

Port 1-8 LED

Off: Devices are disconnected or the link has failed.

Green On: 2.5Gbps connection

Amber On: 10/100/1000Mbps connection

Blinking: Devices are connected and data is transmitting or receiving.

Blinking rapidly: Loop detected.

SFP+ Port 9-10 LED

Off: Devices are disconnected or the link has failed.

Green On: 10Gbps connection

Amber On: 1Gbps connection

Blinking: Devices are connected and data is transmitting or receiving.

Blinking rapidly: Loop detected.

Power Supply

External Power Adapter

Output: 12V/1A

Environmental

Operating Temperature: 0 ~ 40℃

Storage Temperature: -40 ~ 70℃

Operating Humidity: 10% ~ 90% RH (non-condensing)

Storage Humidity: 5% ~ 90% RH (non-condensing)

Package Content

ASUS QG-U1080 Switch

Power Adapter

Quick Start Guide

Warranty Card

Product Weight (g)

420 g

Product Dimensions

193 x 84.1 x 26 mm
