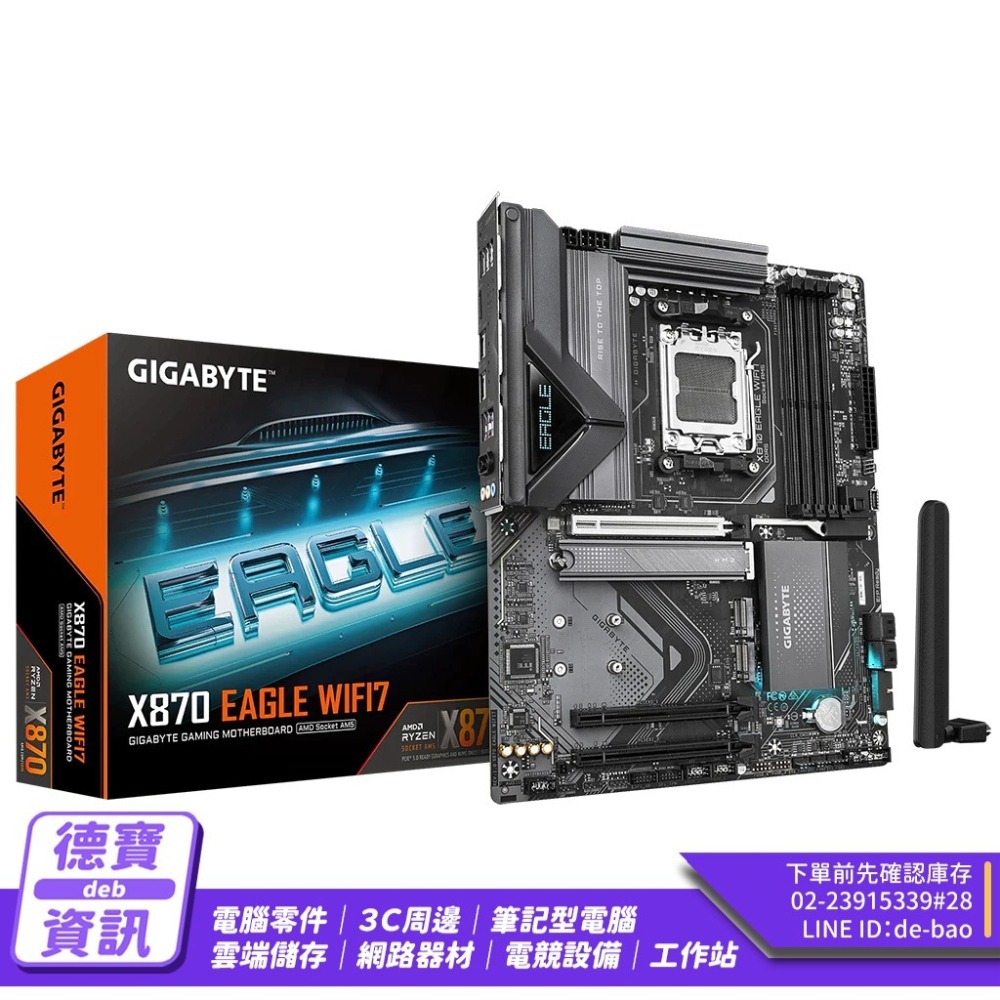

Gigabyte 技嘉 X870 EAGLE WIFI7－ATX 主機板 AM5／DDR5／WI-FI 7/122924

✅產品特色

AMD Socket AM5腳座設計 : 支援 AMD Ryzen™ 9000 / 8000 / 7000 系列處理器

數位並聯式 14+2+2相電源解決方案

雙通道DDR5：4組記憶體插槽，支援AMD EXPO™ 記憶體模組

WIFI EZ-Plug : 快速簡便的Wi-Fi天線安裝設計

EZ-Latch Plus：快拆裝設計的PCIe及M.2插槽

EZ-Latch Click：免鎖螺絲設計的M.2散熱器

全新友善使用者界面 : BIOS多元主題畫面、一體式水冷風扇控制和Q-Flash 自動掃描

超高速儲存：3個 M.2 插槽，包括 1個 PCIe 5.0 x4 介面

高效的整體散熱效能：VRM Thermal Armor Advanced & M.2 Thermal Guard

迅速的網路連線 : 2.5GbE LAN & Wi-Fi 7 搭配超高增益天線

擴展的連接性：Dual USB4 Type-C with DP-Alt, HDMI

✅產品規格

CPU支援

AMD Socket AM5, AMD Ryzen™ 9000 Series Processors/AMD Ryzen™ 8000 Series Processors/AMD Ryzen™ 7000 Series Processors

晶片組

AMD X870

記憶體支援

4 x DDR5 DIMM sockets supporting up to 256 GB (64 GB single DIMM capacity) of system memory

音效介面

Realtek® Audio CODEC

High Definition Audio

2/4/5.1/7.1-channel

網路介面

Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)

無線模組

MediaTek Wi-Fi 7 MT7925

- 802.11a, b, g, n, ac, ax, be, supporting 2.4/5/6 GHz carrier frequency bands

- BLUETOOTH 5.4

- Support for 11be 160MHz wireless standard

PCIe介面

1 x PCI Express x16 slot (PCIEX16), integrated in the CPU:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x16 mode

晶片組:

- 2 x PCI Express x16 slots, supporting PCIe 3.0 and running at x1 (PCIEX1_1/2)

儲存介面

1 x M.2 connector (M2A_CPU), CPU, supporting Socket 3, M key, type 25110/22110/2580/2280 SSDs:

AMD Ryzen™ 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs

1 x M.2 connector (M2C_SB), 晶片組, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x2 SSDs

1 x M.2 connector (M2B_SB), 晶片組, supporting Socket 3, M key, type 25110/22110/2580/2280 PCIe 4.0 x4/x2 SSDs

4 x SATA 6Gb/s connectors

IO背板

1 x Q-Flash Plus button

2 x antenna connectors (2T2R)

1 x HDMI port*

2 x USB4® USB Type-C® ports (DisplayPort*)

1 x USB 3.2 Gen 2 Type-A port (red)

3 x USB 3.2 Gen 1 ports

4 x USB 2.0/1.1 ports

1 x RJ-45 port

3 x audio jacks

主機板尺寸

ATX Form Factor; 30.5cm x 24.4cmA
