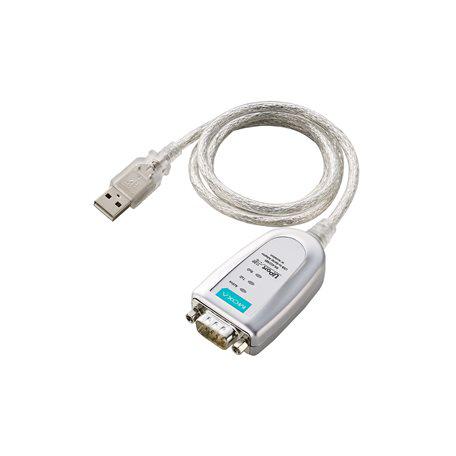

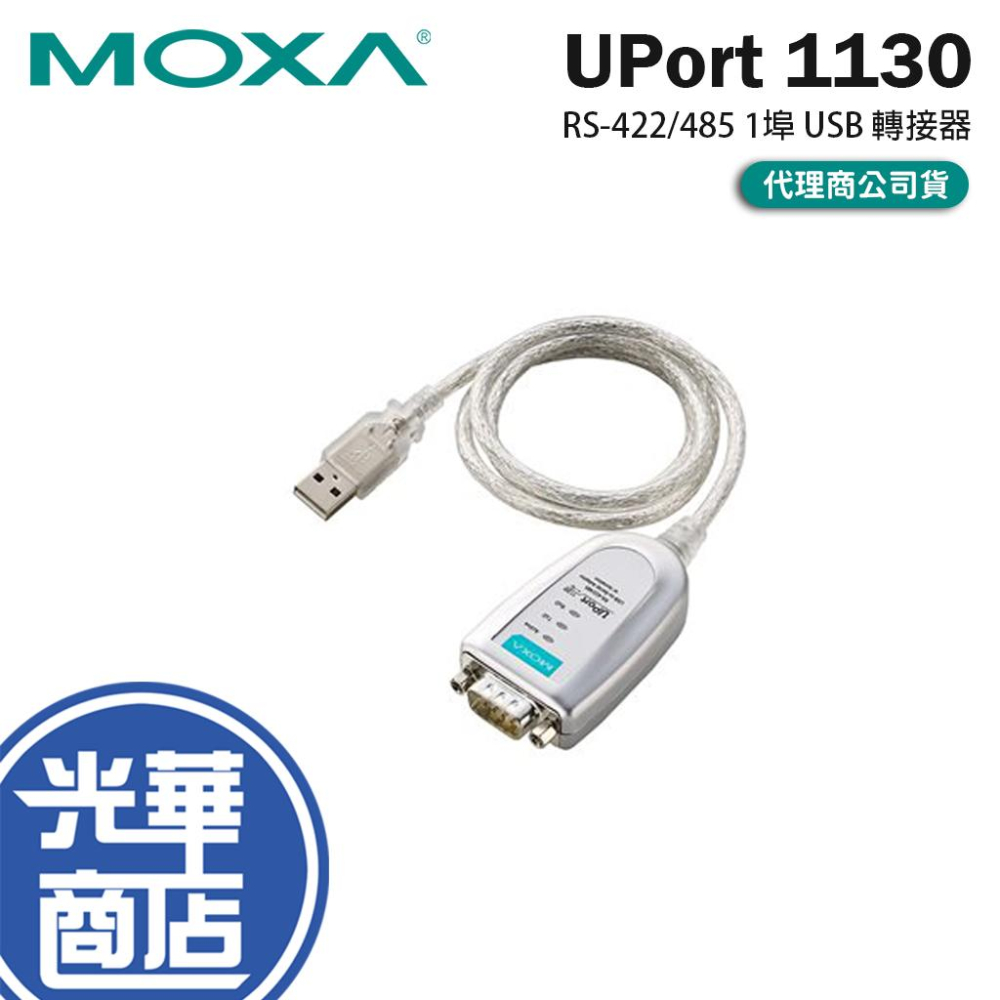

✅產品型號:UPort 1130
✅產品保固:五年保固
✅產品特色
高速資料傳輸,最高傳輸速率可達 921.6 kbps
提供 Windows、macOS、Linux 和 WinCE驅動程式
Mini-DB9 母接頭轉接線端子模組,簡化接線工作
LED 指示燈可指示 USB 與 TxD/RxD 活動傳輸
2 kV 光電隔離保護(「-I」型號適用)
✅產品規格
USB Interface
Speed
12 Mbps
USB Connector
USB Type A
USB Standards
USB 1.0/1.1 compliant, USB 2.0 compatible
Serial Interface
No. of Ports
1
Connector
DB9 male
Baudrate
50 bps to 921.6 kbps
Data Bits
5, 6, 7, 8
Stop Bits
1, 1.5, 2
Parity
None, Even, Odd, Space, Mark
Flow Control
None, RTS/CTS, XON/XOFF
Isolation
UPort 1130I/1150I: 2kV
Serial Standards
RS-422/485
Serial Signals
RS-232
TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422
Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w
Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w
Data+, Data-, GND
Power Parameters
Input Voltage
5 VDC
Input Current
60 mA
Physical Characteristics
Housing
ABS + Polycarbonate
Dimensions
37.5 x 20.5 x 60 mm (1.48 x 0.81 x 2.36 in)
Weight
200 g (0.44 lb)
Environmental Limits
Operating Temperature
0 to 55°C (32 to 131°F)
Storage Temperature (package included)
-20 to 70°C (-4 to 158°F)
Ambient Relative Humidity
5 to 95% (non-condensing)
Standards and Certifications
EMC
EN 55032/24
EMI
CISPR 32, FCC Part 15B Class 1
EMS
IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV
IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m
IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV
IEC 61000-4-5 Surge: Power: 2 kV
IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m
IEC 61000-4-8 PFMF
Declaration
Green Product
RoHS, CRoHS, WEEE
MTBF
Time
1,949,025 hrs
Standards
MIL-HDBK-217F
Telcordia (Bellcore), GB
