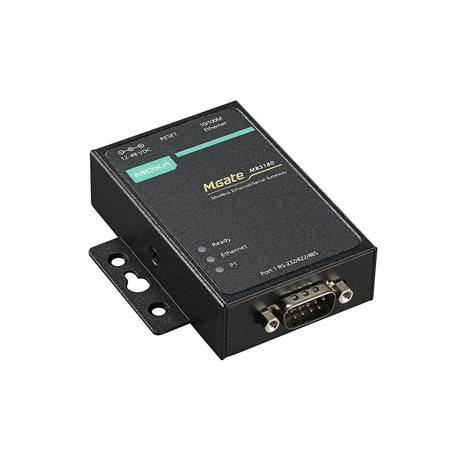

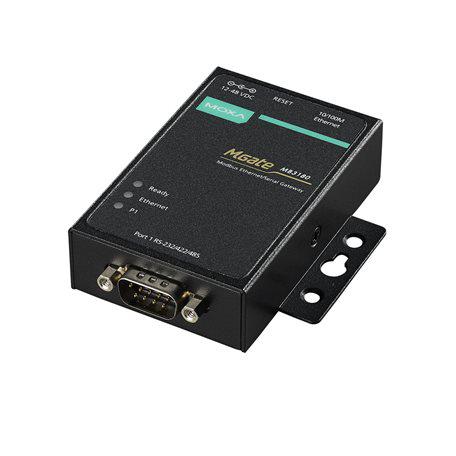

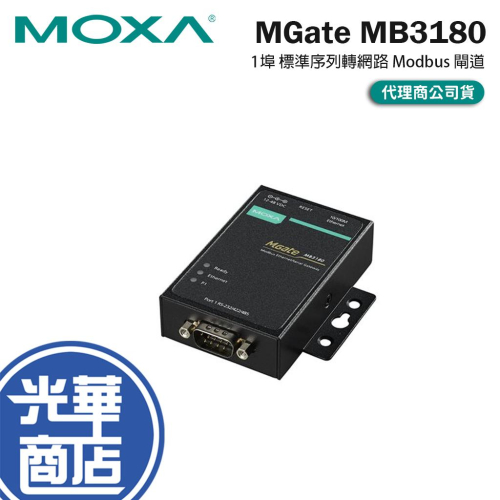

MOXA MGate MB3180 1埠標準序列轉乙太網路 Modbus 閘道 TCP 閘道器 轉接器 光華

商品編號:P4185012173832 原始貨號:BDXI9YG-2HSEOAKR_26OK_UC67012
$ 7,700
預計出貨天數2
數量
  • 付款方式:
    超商取貨付款 / 線上刷卡 / 刷卡分期 / 超商代碼繳費 / ATM 轉帳
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款 / 常溫7-ELEVEN店到店取貨不付款 / 宅配

商品特色

⭐️本店可以快速出貨⭐️

👍🏻商品皆為最新版本

🌈光華實體店面 購買有保障

點選❤️喜歡我們商品 加入購物車


---------------本賣場全部商品含稅開發票---------------


✅產品型號:MGate MB3180


✅產品保固:五年保固


✅產品特色


支援自動裝置路由,輕鬆配置

支援 TCP 連接埠或 IP 位址的路由,靈活部署

Modbus TCP 和 Modbus RTU/ASCII 協定之間進行轉換

1 個乙太網路連接埠和 1、2 或 4 個 RS-232/422/485 連接埠

16 個同步 TCP 主站,每個主站最多同時 32 個請求

硬體輕鬆設定和配置


✅產品規格


Ethernet Interface

10/100BaseT(X) Ports (RJ45 connector)

Auto MDI/MDI-X connection

Magnetic Isolation Protection

1.5 kV (built-in)

Ethernet Software Features

Industrial Protocols

Modbus TCP Client (Master), Modbus TCP Server (Slave)

Configuration Options

Web Console (HTTP), Device Search Utility (DSU), MGate Manager, MCC Tool, Telnet Console

Management

ARP, DHCP Client, DNS, HTTP, SNMPv1/v2c/v3, TCP/IP, Telnet, UDP

MIB

RFC1213, RFC1317

Serial Interface

No. of Ports

1

Connector

DB9 male

Serial Standards

RS-232/422/485 (software selectable)

Baudrate

50 bps to 921.6 kbps

Data Bits

7, 8

Parity

None, Even, Odd, Space, Mark

Stop Bits

1, 2

Flow Control

DTR/DSR, RTS Toggle (RS-232 only), RTS/CTS

RS-485 Data Direction Control

ADDC® (automatic data direction control)

Pull High/Low Resistor for RS-485

1 kilo-ohm, 150 kilo-ohms

Terminator for RS-485

None

Serial Signals

RS-232

TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND

RS-422

Tx+, Tx-, Rx+, Rx-, GND

RS-485-2w

Data+, Data-, GND

RS-485-4w

Tx+, Tx-, Rx+, Rx-, GND

Serial Software Features

Industrial Protocols

Modbus RTU/ASCII Master, Modbus RTU/ASCII Slave

Modbus (Transparent)

Max. No. of Client Connections

16

Max. No. of Server Connections

32

Power Parameters

Input Voltage

12 to 48 VDC

Input Current

200 mA @ 12 VDC

Power Connector

Power jack

Physical Characteristics

Housing

Metal

IP Rating

IP30

Dimensions (with ears)

22 x 75 x 80 mm (0.87 x 2.95 x 3.15 in)

Dimensions (without ears)

22 x 52 x 80 mm (0.87 x 2.05 x 3.15 in)

Weight

340 g (0.75 lb)

Environmental Limits

Operating Temperature

0 to 60°C (32 to 140°F)

Storage Temperature (package included)

-40 to 85°C (-40 to 185°F)

Ambient Relative Humidity

5 to 95% (non-condensing)

Standards and Certifications

EMI

CISPR 32, FCC Part 15B Class A

EMC

EN 55032/24

EMS

IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV

IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m

IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV

IEC 61000-4-5 Surge: Power: 1 kV

IEC 61000-4-6 CS: 3 V

IEC 61000-4-8 PFMF

IEC 61000-4-11 DIPs

Safety

EN 60950-1, UL 60950-1

MTBF

Time

908,440 hrs

Standards

Telcordia SR332
