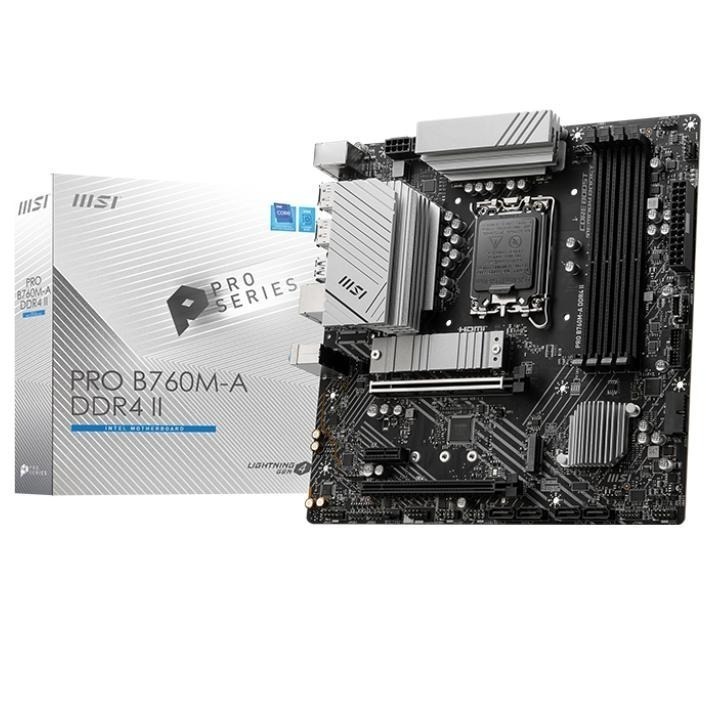

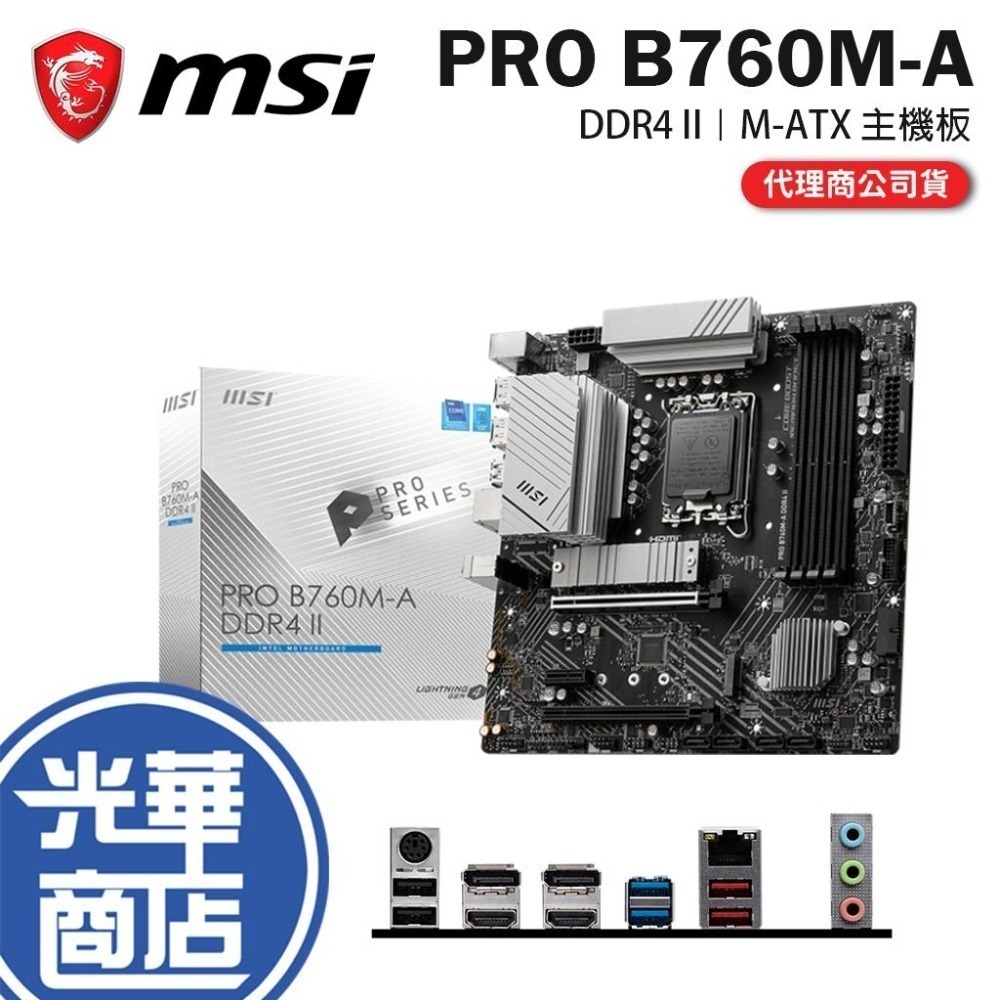

✅產品型號 PRO B760M-A DDR4 II
✅產品保固:原廠三年

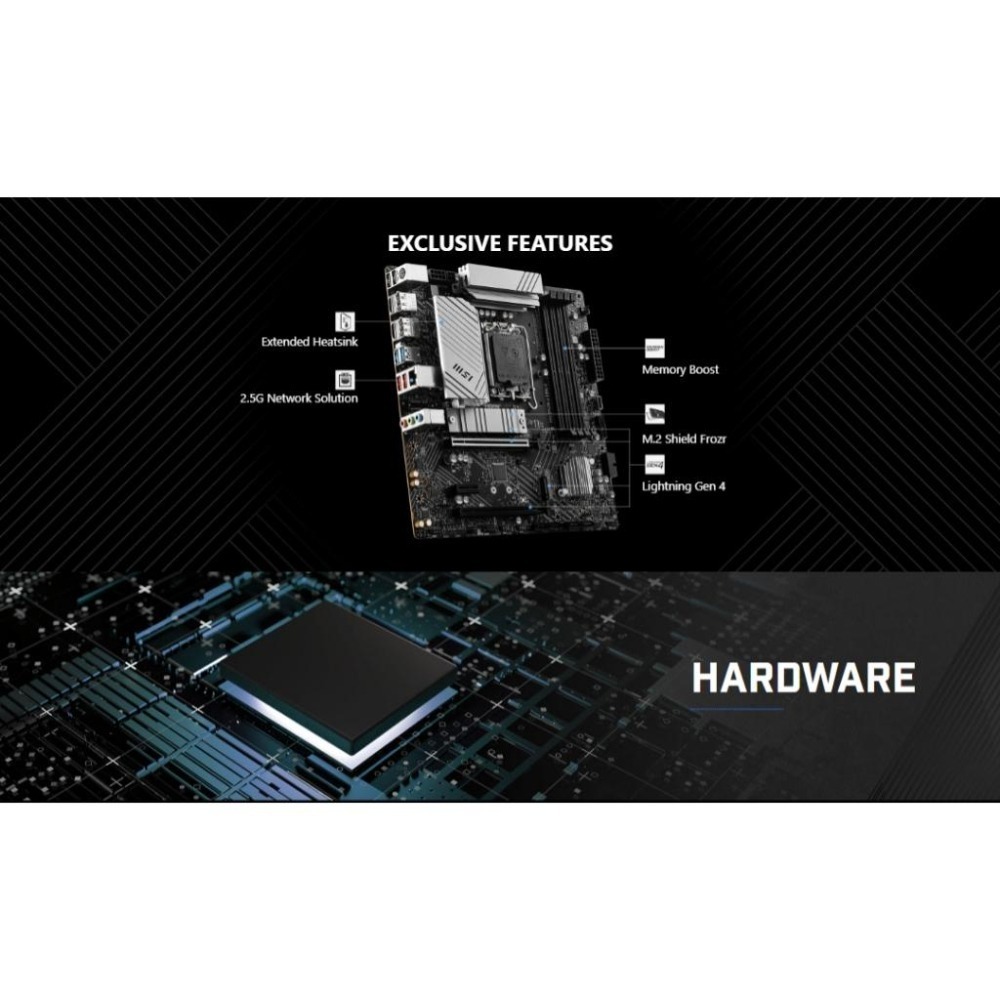

✅產品特色
支援LGA 1700插槽的Intel® Core ™第14代、第13代和第12代處理器、Intel® Pentium® Gold 、Celeron®處理器和Intel Processor 300(T )
支援DDR4內存,雙通道DDR4 5333+MHz(超頻)
增強型電源設計:12+1 Duet Rail 電源系統,附 P-PAK、8 針 + 4 針 CPU 電源連接器、Core Boost、Memory Boost

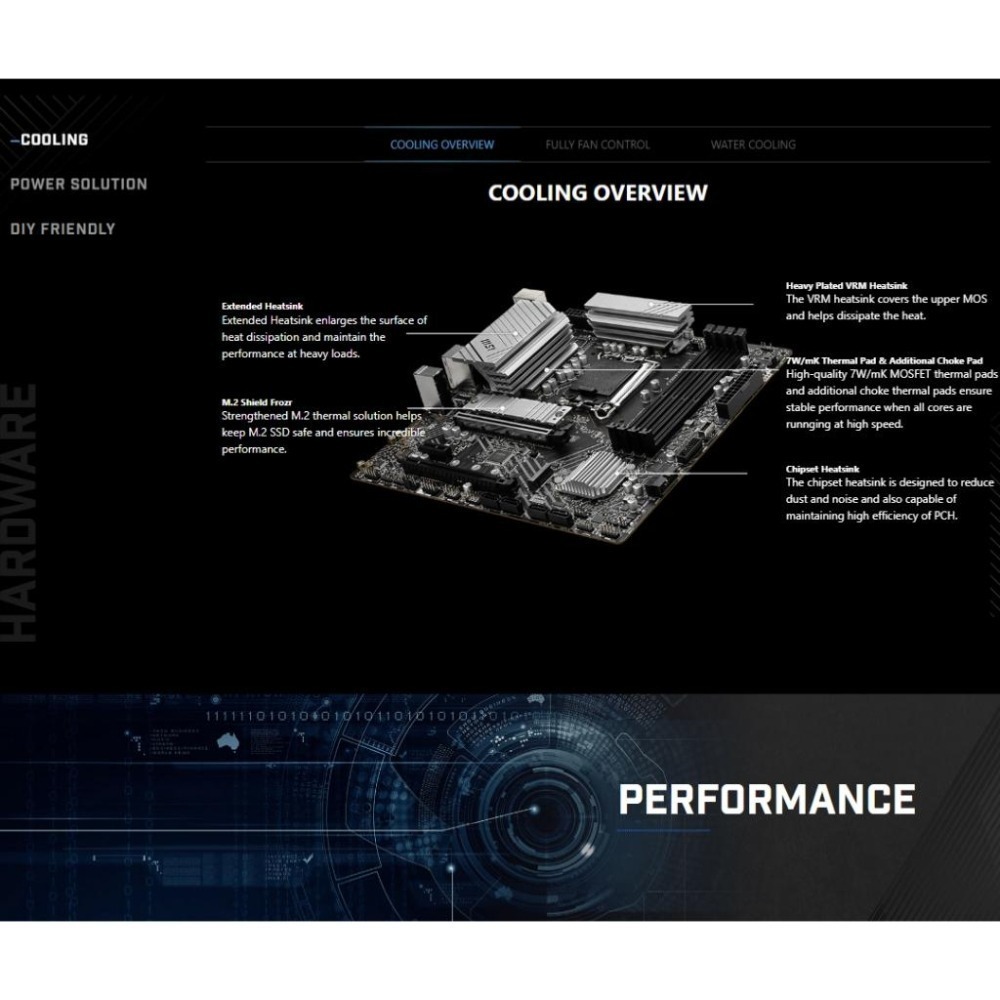

高級散熱解決方案:擴展散熱器、額定功率為 7W/mK 的 MOSFET 散熱墊、附加扼流圈散熱墊和 M.2 Shield Frozr 專為高效能係統和不間斷遊戲體驗而打造
高品質PCB:2盎司加厚銅製成的6層PCB
快如閃電的遊戲體驗:PCIe 4.0 插槽、Lightning Gen 4 x4 M.2
英特爾 Turbo USB 3.2 Gen 2:由英特爾 USB 3.2 Gen2 控制器提供支持,Turbo USB 可確保不間斷連接,具有更高的穩定性和最快的 USB 速度
2.5G LAN:針對專業和多媒體用途的升級網路解決方案。提供安全、穩定、快速的網路連接
音訊增強:以工作室級音質獎勵您的耳朵,帶來最身臨其境的遊戲體驗
✅產品規格
CHIPSET INTEL B760
CPU Support Intel® Core™ 14th, 13th and 12th Gen Processors, Intel® Pentium® Gold, Celeron® Processor and Intel Processor 300(T)
LGA 1700
MEMORY 4x DDR4, Maximum Memory Capacity 128GB
Memory Support 5333(OC)/ 5200(OC)/ 5066(OC)/ 5000(OC)/ 4800(OC)/ 4600(OC)/ 4400(OC)/ 4266(OC)/ 4200(OC)/ 4000(OC)/ 3800(OC)/ 3733(OC)/ 3600(OC)/ 3466(OC)/ 3400(OC)/ 3333(OC)/ 3200(JEDEC)/ 2933(JEDEC)/ 2666(JEDEC)/ 2400(JEDEC)/ 2133(JEDEC)
Max. overclocking frequency:
• 1DPC 1R Max speed up to 5333+ MHz
• 1DPC 2R Max speed up to 4800+ MHz
• 2DPC 1R Max speed up to 4400+ MHz
• 2DPC 2R Max speed up to 4000+ MHz
Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports Intel® Extreme Memory Profile (XMP)
ONBOARD GRAPHICS 2x HDMI™
Support HDMI™ 2.1, maximum resolution of 4K 60Hz*
2x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
SLOT 2x PCI-E x16 slot
1x PCI-E x1 slot
PCI_E1 Gen PCIe 4.0 supports up to x16 (From CPU)
PCI_E2 Gen PCIe 3.0 supports up to x1 (From Chipset)
PCI_E3 Gen PCIe 4.0 supports up to x4 (From Chipset)
STORAGE 2x M.2
M.2_1 Source (From CPU) supports up to PCIe 4.0 x4 , supports 2280/2260/2242 devices
M.2_2 Source (From Chipset) supports up to PCIe 4.0 x4 / SATA mode, supports 2280/2260/2242 devices
4x SATA 6G
* SATA8 will be unavailable when installing M.2 SATA SSD in the M2_2 slot.
RAID Supports RAID 0, RAID 1, RAID 5 and RAID 10 for SATA storage devices

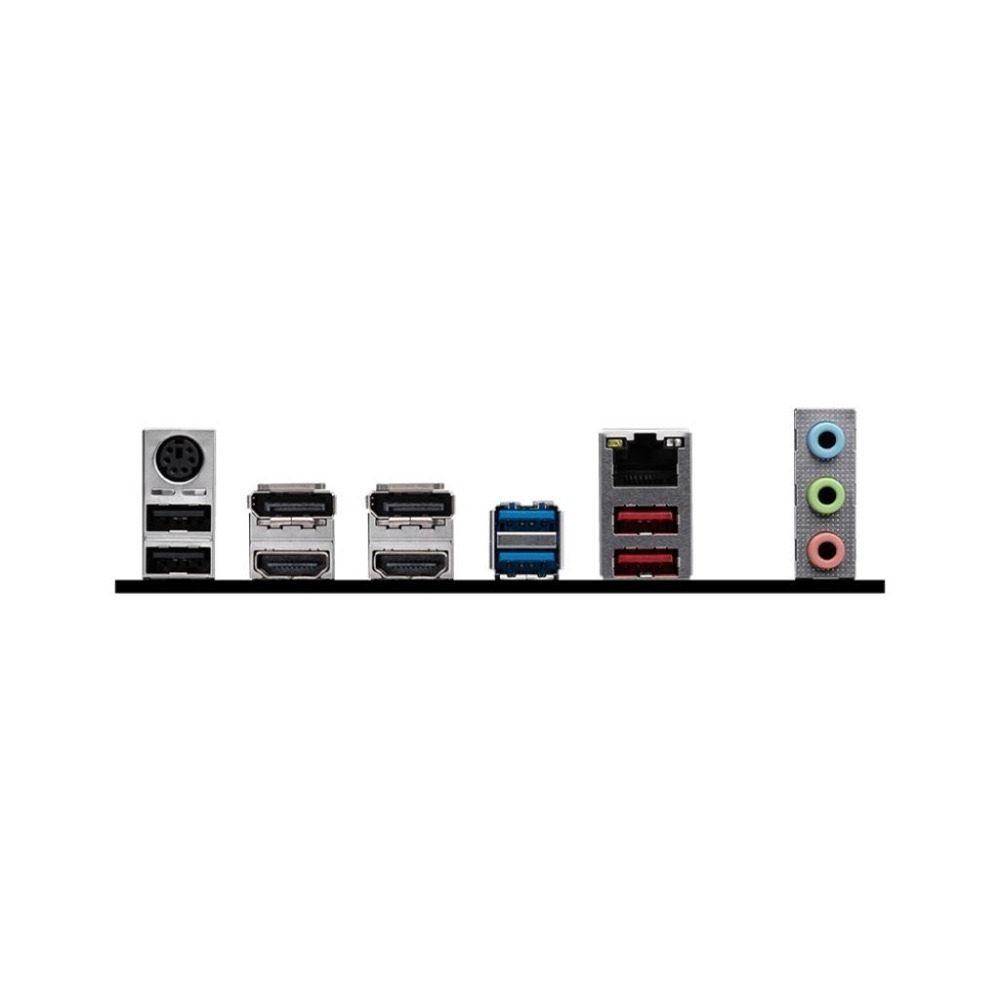

USB 2x USB 2.0 (Rear)
4x USB 2.0 (Front)
2x USB 3.2 Gen1 Type A (Rear)
4x USB 3.2 Gen1 Type A (Front)
1x USB 3.2 Gen1 Type C (Front)
2x USB 3.2 Gen2 Type A (Rear)
LAN Realtek® RTL8125BG 2.5G LAN
AUDIO Realtek® ALC897 Codec
7.1-Channel High Definition Audio
INTERNAL IO 1x Power Connector(ATX_PWR)
2x Power Connector(CPU_PWR)
1x CPU Fan
1x Pump Fan
2x System Fan
2x Front Panel (JFP)
1x Chassis Intrusion (JCI)
1x Front Audio (JAUD)
1x Com Port (JCOM)
2x Addressable V2 RGB LED connector (JARGB_V2)
2x RGB LED connector(JRGB)
1x TPM pin header(Support TPM 2.0)
4x USB 2.0 ports
4x USB 3.2 Gen1 Type A ports
1x USB 3.2 Gen1 Type C ports
LED FEATURE 4x EZ Debug LED
