型號
TUF Gaming BE3600 (TUF-BE3600)
-------------------------------------------------------------------------------------------------
網路技術標準
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
-------------------------------------------------------------------------------------------------
產品規格
BE3600 ultimate BE performance : 688+2882 Mbps
-------------------------------------------------------------------------------------------------
傳輸量
802.11a:最高 54 Mbps
802.11b:最高 11 Mbps
802.11g:最高 54 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
-------------------------------------------------------------------------------------------------
天線
External antenna x 4
-------------------------------------------------------------------------------------------------
傳送 / 接收
2.4GHz 2x2
5GHz 2x2
-------------------------------------------------------------------------------------------------
處理器
2.0 GHz quad-core processor
-------------------------------------------------------------------------------------------------
記憶體
256 MB Flash
1 GB RAM
-------------------------------------------------------------------------------------------------
網速提升
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal

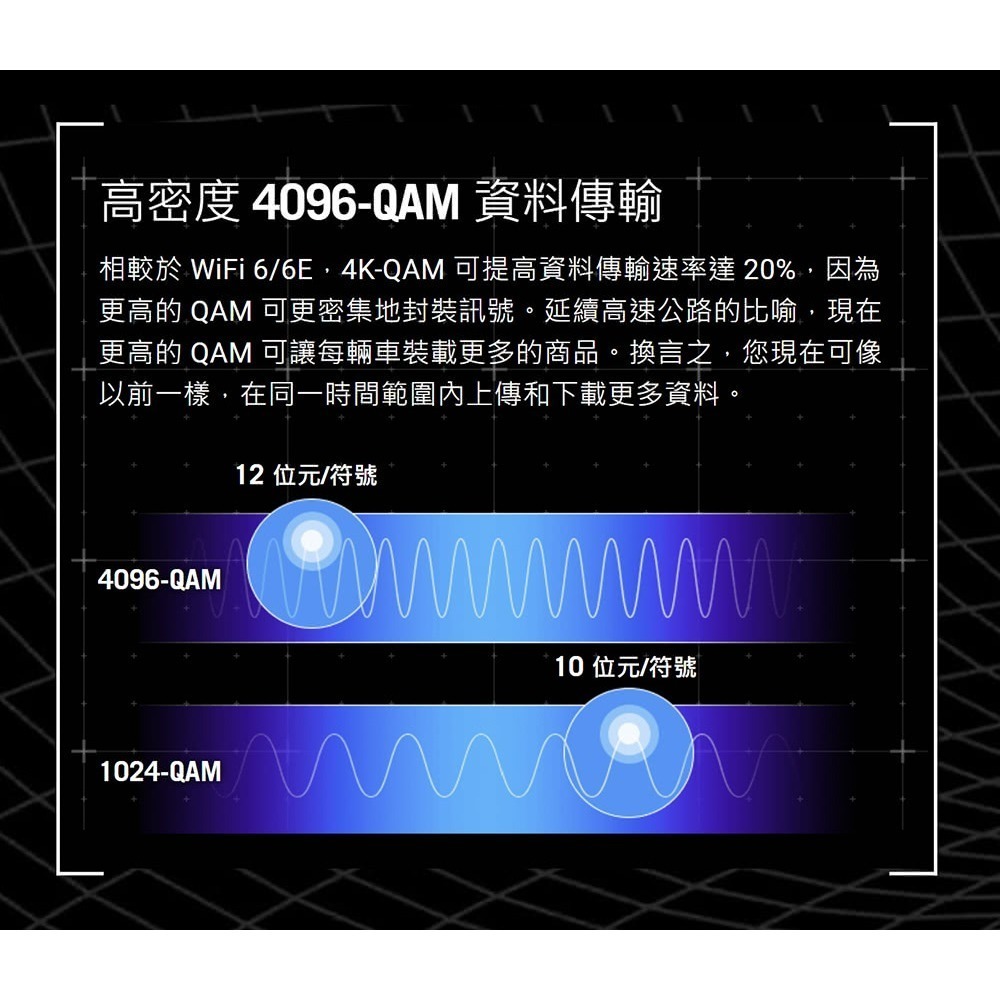

4096-QAM high data rate
20/40/80/160 MHz bandwidth
-------------------------------------------------------------------------------------------------
運作頻率
2.4GHz / 5GHz
2.4 GHz
5 GHz
-------------------------------------------------------------------------------------------------
Operating Mode
Wireless router mode
Access point mode
Media bridge mode
-------------------------------------------------------------------------------------------------
網路埠規格
RJ45 for 2.5 Gigabits BaseT for WAN x 1,
RJ45 for Gigabits BaseT for LAN x 4,
USB 3.2 Gen 1 x 1
-------------------------------------------------------------------------------------------------
按鈕
WPS Button, Reset Button, Power Button
-------------------------------------------------------------------------------------------------
LED 指示燈
Power x 1
WAN x 1
LAN x 1
2.4GHz WiFi x 1
5GHz WiFi x 1
-------------------------------------------------------------------------------------------------
電源規格
AC Input : 100V~240V (50~60Hz)
DC Output : 12 V with max. 2 A current
-------------------------------------------------------------------------------------------------
包裝內容物
TUF Gaming BE3600 Dual Band WiFi 7 router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
-------------------------------------------------------------------------------------------------
產品淨重(g)
561g
-------------------------------------------------------------------------------------------------
Product Dimensions
274 x 168 x 205 mm
-------------------------------------------------------------------------------------------------

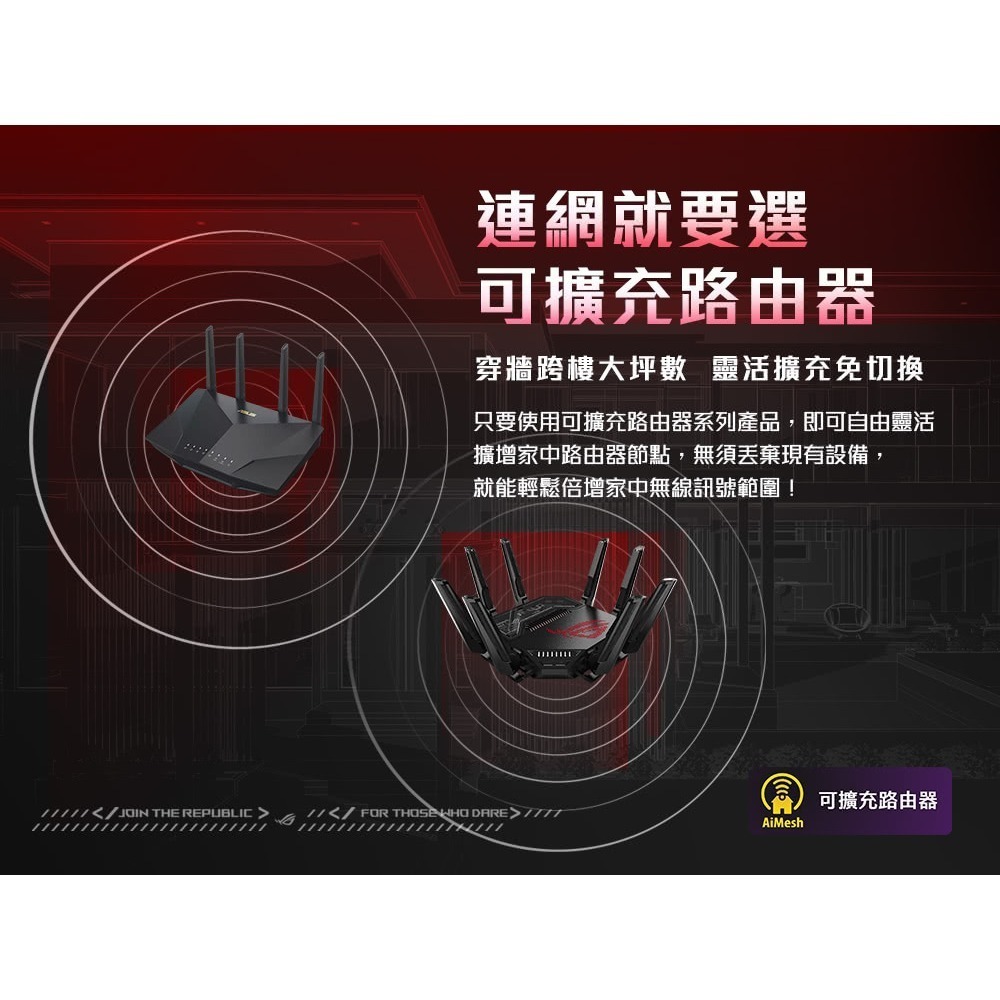

獨家AiMesh技術
AiMesh
Primary AiMesh router
AiMesh node
-------------------------------------------------------------------------------------------------
遊戲加速
有
Mobile Game Mode
-------------------------------------------------------------------------------------------------
家長貼心管理
Parental Control
Safe Browsing
Parental Control Customized Internet schedule
-------------------------------------------------------------------------------------------------
Guest Network
Guest Network
‧ Maximum Guest Network Rule : 2.4GHz x3, 5GHz x3
-------------------------------------------------------------------------------------------------
Security
AiProtection
WPS support, WPA/WPA2/WPA3-Personal, WPA/WPA2-Enterprise
WPS
Let's Encrypt
DNS-over-TLS
SSH
Security Scan
Firewall
‧ Maximum Firewall Keyword Filter : 64
‧ Maximum Firewall Network Service Filter : 32
‧ Maximum Firewall URL Filter : 64
-------------------------------------------------------------------------------------------------

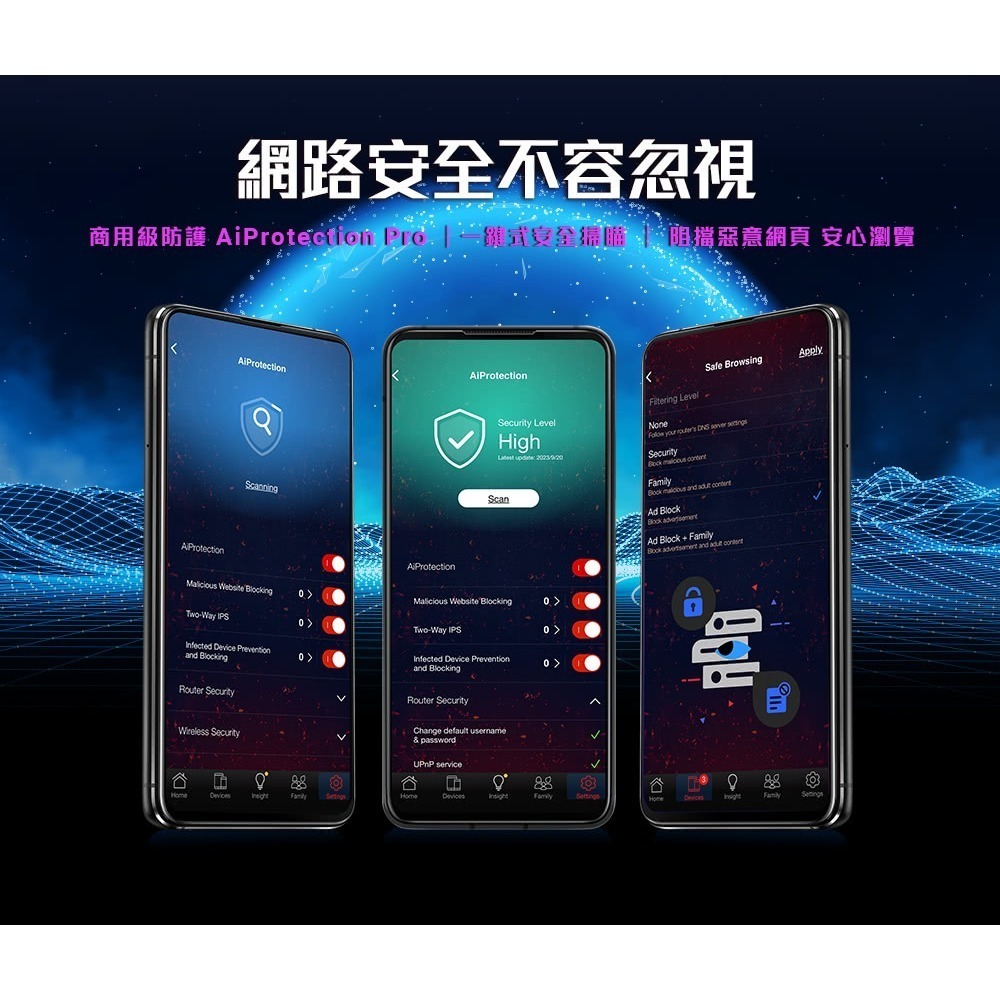

AiProtection
Malicious site blocking
Two-Way IPS
Infected Device Prevention and Blocking
-------------------------------------------------------------------------------------------------
VPN
VPN Client L2TP
VPN Client OVPN
VPN Client PPTP
VPN Client WireGuard
VPN Server IPSec
VPN Server OVPN
VPN Server PPTP
VPN Server WireGuard
VPN Fusion
-------------------------------------------------------------------------------------------------
網路流量控制
Adaptive QoS
Bandwidth Monitor
Bandwidth limiter
--- Maximum Bandwidth Limiter Rule : 32
Traditional QoS
--- Maximum Traditional QoS Rule : 32
Traffic Monitor
Real-time traffic monitor
Wired Traffic Monitor
Wireless Traffic Monitor
Traffic Analyzer
‧ Traffic Analysis Period : Daily, Weekly, Monthly
Website history
-------------------------------------------------------------------------------------------------
WAN
Internet connection Type : PPPoE, PPTP, L2TP, Automatic IP, Static IP
WAN Aggregation
3G/4G LTE dongle
Port forwarding
‧ Maximum Port Forwarding Rule : 64
Port triggering
‧ Maximum Port Triggering Rule : 32
DMZ
DDNS
NAT Passthrough : PPTP Pass-Through, L2TP Pass-Through, IPSec Pass-Through, RTSP Pass-Through, H.323 Pass-Through, SIP Pass-Through, PPPoE relay
-------------------------------------------------------------------------------------------------
LAN
DHCP Server
有
IPTV
LAN Link Aggregation
Manually assign IP address
‧ Maximum Manually Assign IP Address Rule : 64
Wake on LAN (WOL)
-------------------------------------------------------------------------------------------------
其他無線功能
UTF-8 SSID
WiFi MAC address filter
‧ Maximum MAC Filters : 64
Wireless scheduler
Airtime fairness
RADIUS Server
Universal beamforming
Explicit beamforming
-------------------------------------------------------------------------------------------------
USB埠應用
File System : HFS+, NTFS, vFAT, ext2, ext3, ext4
Safely Remove disk
AiCloud
Download master
AiDisk
Media Server
Time Machine
Samba Server
FTP Server
Shared Folder privileges
-------------------------------------------------------------------------------------------------
管理功能
Configuration backup and restore
Diagnosis tools
Feedback system
System log
New Device Connect Notification
Login Captcha
Connection Diagnosis
Auto Firmware Update
-------------------------------------------------------------------------------------------------
備註:規格僅供參考,實際規格以原廠網站為主
