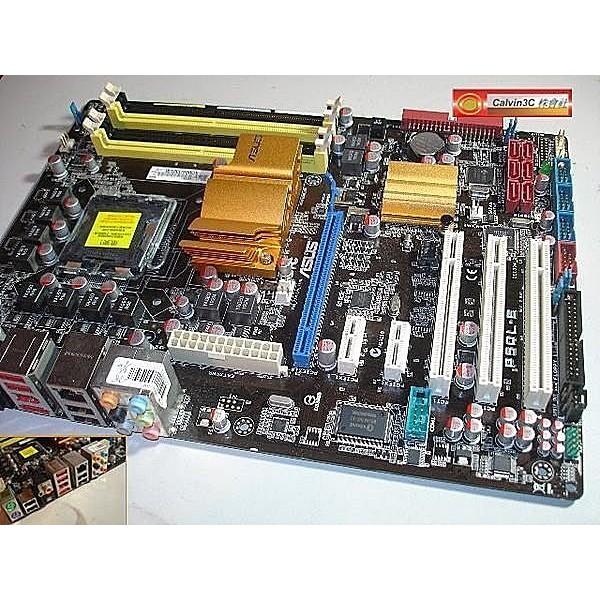

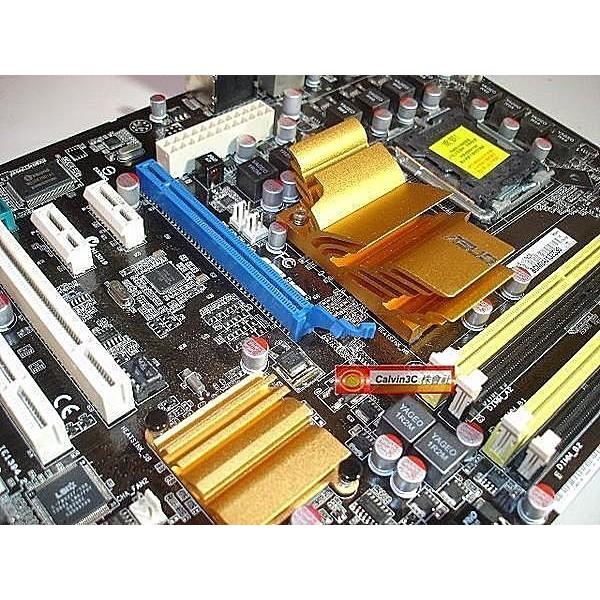

華碩ASUS P5QL-E 775腳位 Intel P43晶片 4組DDR2 6組SATA EPU 8相電源 全固態電容

商品編號:P0883605916506 原始貨號:P0883605916506
$ 1,488
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

華碩 P5QL-EP43系列主機板 採用Intel P43 chipset ASUS 第3代8相式電源設計 華碩EPU-6引擎 華碩ExpressGate 商品規格: CPU Intel Socket 775 Core2 Quad/Core2 Extreme/Core2 Duo/Pentium Extreme/Pentium D/Pentium 4 Processors Intel Core2 Extreme/Core2 Quad/Core2 Duo/Pentium® dual-core/Celeron dual-core/Celeron Processors Compatible with Intel 05B/05A/06 processors Supports Intel 45nm Multi-Core CPU Chipset Intel P43 ICH10R Intel Fast Memory Access Technology Front Side Bus 1600*/1333/1066/800 MHz *Overclock speed Memory 4 x DIMM, Max. 16 GB, DDR2 1066/800/667 Non-ECC,Un-buffered Memory Dual Channel memory architecture *Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts). **When installing total memory of 4GB capacity or more, Windows 32-bit operation system may only recognize less than 3GB. Hence, a total installed memory of less than 3GB is recommended. Expansion Slots 1 x PCIe 2.0 x16 slots, support ATI CrossFireX™ technology at x8 link (PCIe x16_1 blue, PCIe x16_2 black*) 2 x PCIe x1 ( the PCIEx1_1 (black) is compatible with audio slot) 3 x PCI Storage Southbridge 6 xSATA 3 Gb/s ports Intel Matrix Storage Technology Support RAID 0,1,5,10 PCIe Storage Controller 1 x UltraDMA 133/100/66 for up to 2 PATA devices 1 x eSATA 3 Gb/s LAN PCIe Gigabit LAN controller featuring AI NET2 Marvell 88E8056/88E8001® Gigabit LAN controller featuring AI NET2,Teaming and Redundant Audio SupremeFX II Audio Card Realtek ALC1200 8 -Channel High-Definition Audio CODEC - Support Jack-Detection, Multi-streaming, and Front Panel Jack-Retasking - Coaxial/Optical S/PDIF_out ports at back I/O - ASUS Noise-Filtering IEEE 1394 LSI L-FW3227 1394a controller supports supports 2 x 1394a ports (one at midboard; one at back panel) USB 12 USB 2.0 ports (6 ports at mid-board, 6 ports at back panel) Back Panel I/O Ports 1 x PS/2 Keyboard (Purple) 1 x PS/2 mouse port (Green) 1 x S/PDIF Out (Coaxial+Optical) 1 x IEEE1394a 1 x RJ45 port 1 x eSATA 6 x USB 2.0/1.1 8-channel Audio I/O Internal I/O Connectors 3 x USB connectors support additional 6 USB ports 1 x COM connector 6 x SATA connectors 1 x CPU Fan connector 2 x Chassis Fan connector 1 x Power Fan connector 1 x IEEE1394a connector 1 x S/PDIF Out Header Chassis Intrusion connector CD audio in 24-pin ATX Power connector 1 x 8 pin ATX 12V Power connector System Panel(Q-Connector) Form Factor ATX Form Factor 12 inch x 8.8 inch ( 30.5 cm x 22.4 cm ) ※以上規格資料若有任何錯誤,以原廠所公佈資料為準。 ****************************************************************************************** 庫存良品,含後擋板、驅動光碟、排線組,要買要快喔~~!! 現貨中,限時搶購,要買要快~! 775系列之高階主機板,採用Intel P43晶片組,效能極其強大,EPU省電設計,八相電源設計,便宜賣,一片直購價,需要的話請直接下標,我將幫您結標,謝謝。 庫存良品。 賣場保固7天。 新竹科學園區、新竹師院、新竹火車站,可面交。
