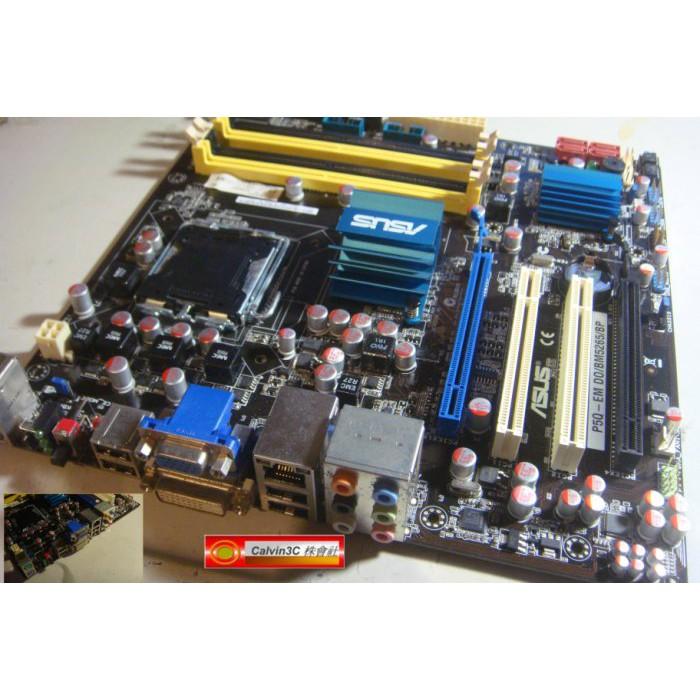

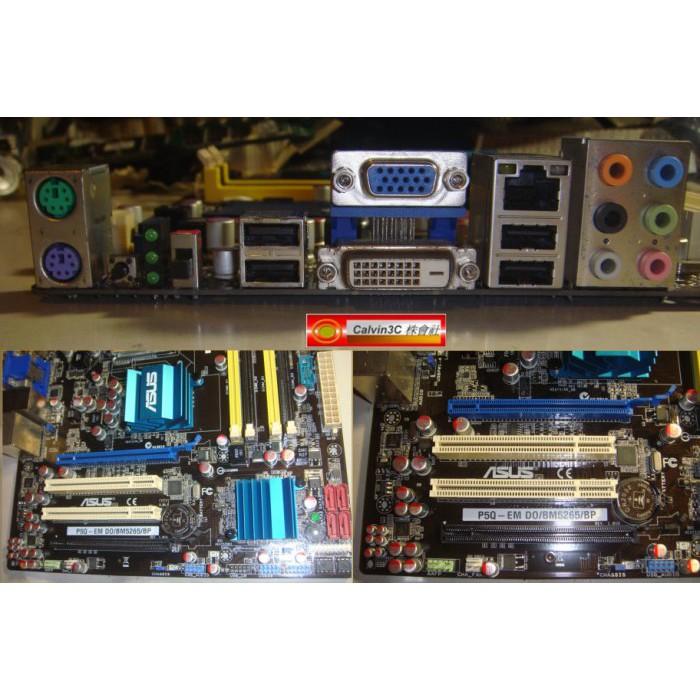

華碩 ASUS P5Q-EM DO/BM5265 775腳位 內建顯示 英特爾 Q45晶片 4組DDR2 4組SATA

P5Q-EM DO/BM5265 節能的家庭劇院享樂方案 Intel LGA775 平台 Intel® Q45/ ICH10R 晶片組 ASUS EPU-4 引擎 ASUS Express Gate 多組VGA 輸出: 支援DVI/RGB 視覺與聽覺的High Definition體驗 100% 日製固態電容，VRM高達 5000 小時 商品規格： CPU Intel® Socket 775 Core™2 Quad/Core™2 Extreme/Core™2 Duo/Pentium® dual-core/Celeron® dual-core/Celeron® Processors Compatible with Intel® 05B/05A/06 processors Support Intel next generation 45nm Multi-Core CPU *Refer to www.asus.com for Intel CPU support list Chipset Intel® Q45 / ICH10DO support Intel Active Management Technology Front Side Bus 1333/1066/800 MHz Memory 4 x DIMM, Max. 16 GB, DDR2 800/667 Non-ECC,Un-buffered Memory Dual Channel memory architecture Please check the latest Memory QVL at www.asus.com Expansion Slots 1 x PCIe x16 2 x PCIe x1 1 x PCI VGA Integrated Intel 4500 Max. UMA Memory Size: 1894 MB* *Only support when installed 1G memory D-SUB Max. resolution : 2048 X 1536@75Hz DVI Max. resolution : 1920 X 1080@60Hz *HDMI Max. resolution : 1920 X 1080@60H *HDMI ADD2 card is purchased separately! Storage Southbridge 4 xSATA 3 Gb/s ports Support RAID 0,1,0+1,5 Marvell 88SE6102 PATA controller 1 xUltraDMA 133/100/66 for up to 2 PATA devices LAN Intel 882567LM PCIe Gigabit LAN controller Audio Realtek® ALC1200 8 -Channel High-Definition Audio CODEC - Support Jack-detection, Enumeration, Multi-streaming IEEE 1394 LSI®L-FW3227 1394 controller supports 2 x 1394a ports (one at midboard; one at back panel) USB 12 USB 2.0 ports (8 ports at mid-board, 4ports at back panel) Back Panel I/O Ports 1 x PS/2 Keyboard 1 x PS/2 Mouse 1 x VGA port 1 x DVI 1 x IEEE1394a 1 x RJ45 port 4 x USB 2.0/1.1 1 x ME Switch 8-channel Audio I/O Internal I/O Connectors 4 x USB connectors support additional 8 USB ports 1 x Floppy disk drive connector 1 x IDE connector 6 x SATA connectors 1 x CPU Fan connector 1 x Chassis Fan connector 1 x Power Fan connector 1 x IEEE1394a connector Front panel audio connector 1 x S/PDIF Out Header Chassis Intrusion connector CD audio in 24-pin ATX Power connector 1 x 4-pin ATX 12V Power connector Form Factor uATX Form Factor 9.6 inch x 9.6 inch ( 24.4 cm x 24.4 cm ) －－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－－- 庫存良品，含相關配件、驅動光碟、說明書檔、全新排線組，要買要快喔~~!! 現貨多組，限時搶購，要買要快~! 775系列之頂級主機板，採用Intel Q45 晶片組，支援四核心CPU，全固態電容，最佳的耐用性、高效能，一片直購價，需要的話請直接下標，我將幫您結標，謝謝。 庫存良品。 賣場保固7天。 新竹科學園區、新竹NOVA、新竹教育大學、新竹火車站，可面交。 資料來源：華碩官方網站
