商品特色

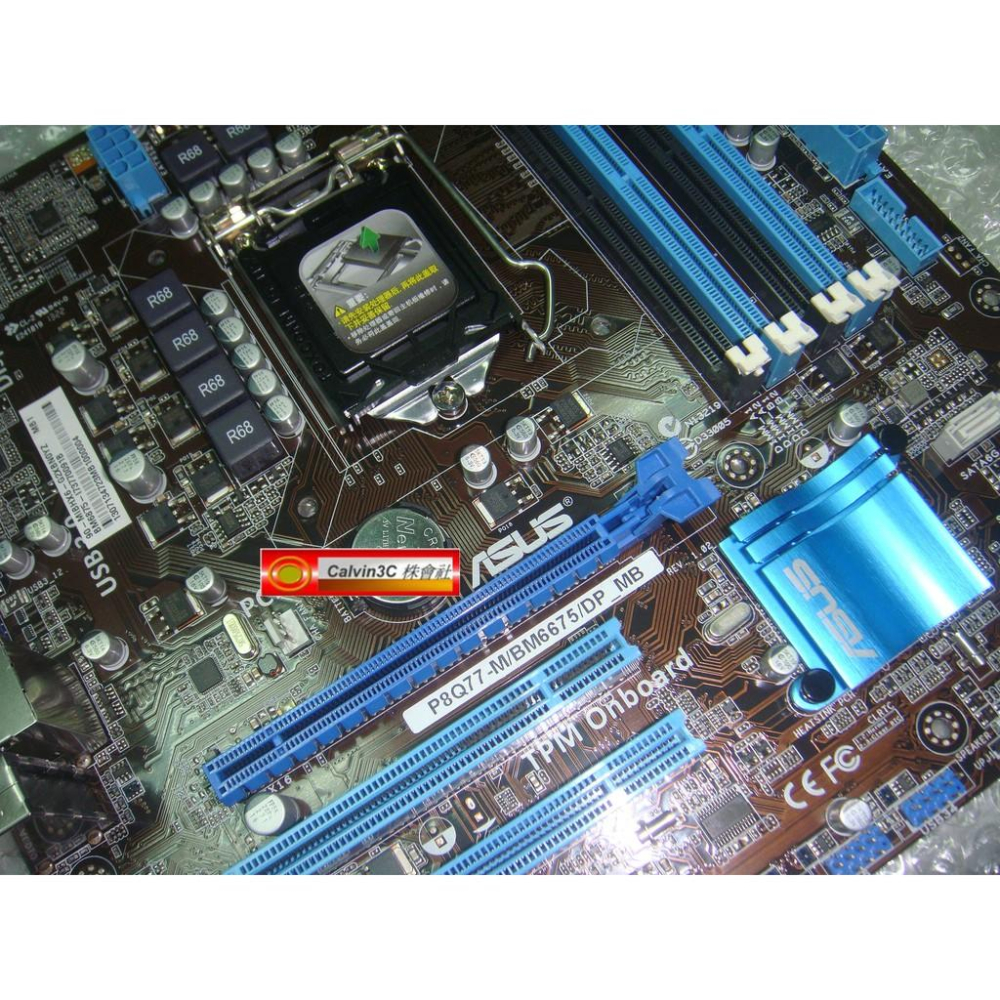

P8Q77-M
Ultimate Intel® vPro Business Solution with USB3.0 Speed Boost on Q77 Platform
TPM IC Onboard - Protect Your Important Data
USB 3.0 Boost - Faster USB 3.0 Transmission
ASUS DIGI+ VRM -Extreme system stability and greater power efficiency
GPU Boost - Go to the Limit with iGPU Level Up!
Windows 10 Ready – Assured Compatibility
商品規格:
作業系統
Windows 7 Professional
Windows 7 Home Premium
此版本包含所有的產品更新 (SP1)
CPU
3rd Generation Intel® Core™ i3/i5/i7 Processor
Socket LGA 1155
Support CPU up to 95W
晶片組
Intel® Q77
RAID 支援
Support RAID 0/1/5/10
顯示晶片
Intel® HD Integrated Graphics 4000
Intel® HD Integrated Graphics 2500
Intel® HD Integrated Graphics 3000
Intel® HD Integrated Graphics 2000
Discrete graphics card
記憶體
Up to 32 GB
雙通道 DDR3
1600/1333MHz *1
4 x DIMM
擴充槽
2 x PCI
1 x PCI-e x 4
1 x PCI-e x 16
SATA
2 x SATA3
4 x SATA2
資料儲存應用
Up to 2TB (7200RPM) Hard Drive
磁碟機插槽
2 x 5.25" (ODD)
2 x 3.5" (HDD/Internal)
2 x 3.5" (Card Reader/Internal)
區域網路
Intel® 82579V
1 x GB LAN
Support Wake On Lan function
音效
VIA VT1708S
High Definition 6 Channel Audio
前面板輸出端子
2 x USB 2.0
2 x USB 3.0
1 x Headphone
1 x Microphone
1 x Card Reader(選購)
後面板輸出端子
2 x USB 3.1 Gen 1
2 x USB 2.0
2 x PS/2
1 x VGA(D-Sub)
1 x DVI-D
2 x Display Port
1 x COM Port (Serial Port)
1 x Parallel Port
1 x RJ45 LAN
1 x 6 Channel Audio 3 Ports
Form Factor
uATX Form Factor
9.6 inch x 9 inch ( 24.4 cm x 22.87 cm )
----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------
此非全新品,為庫存良品,含相關配件、後擋板、驅動光碟、全新排線組喔~!! 要買要快喔~~!!
現貨中,限時搶購,要買要快~!
1155腳位系列之高效能高階主機板,內建顯示,原生USB3.0,SATA3與SATA2,支援4組DDR3記憶體,三合一板子適合裝機,一片直購價,需要的話請直接下標,立即結標,謝謝。
新竹科學園區、NOVA、新竹師院、新竹火車站,可面交。
賣場保固7天。
以上資料來源:ASUS官方網站
