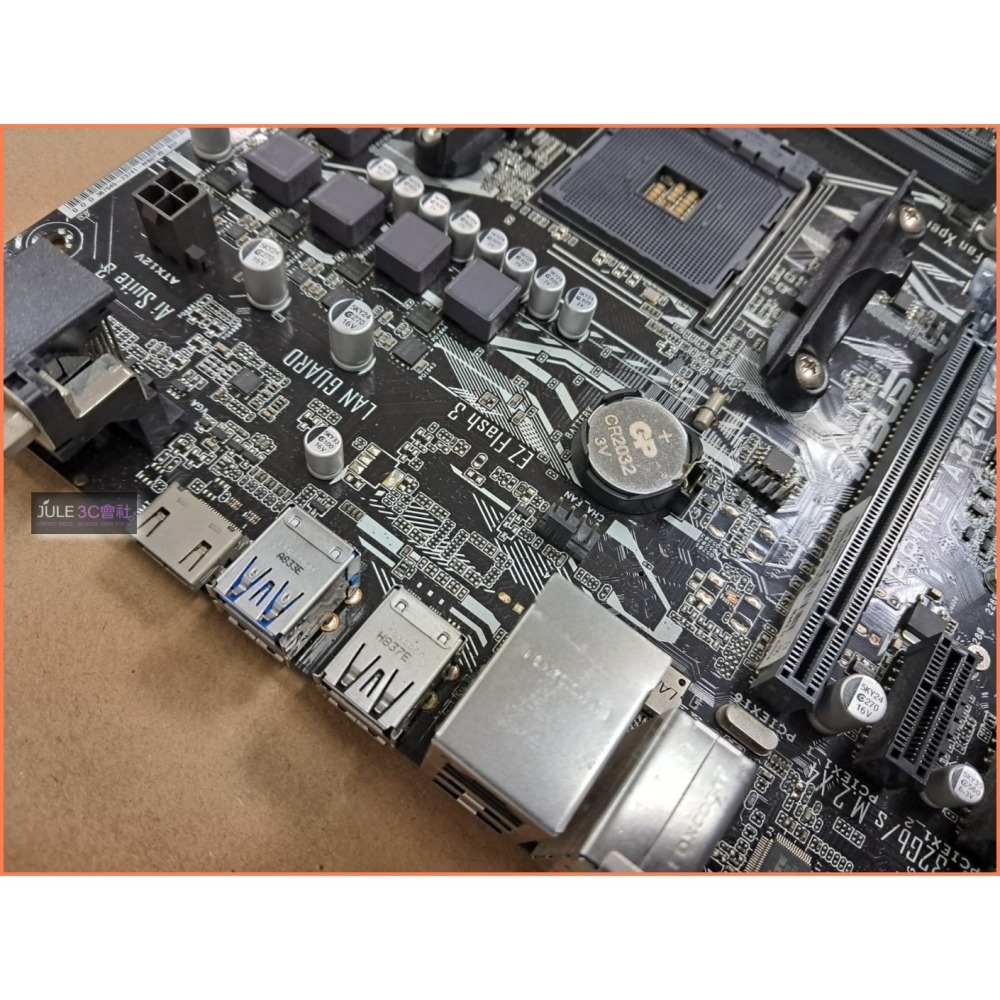

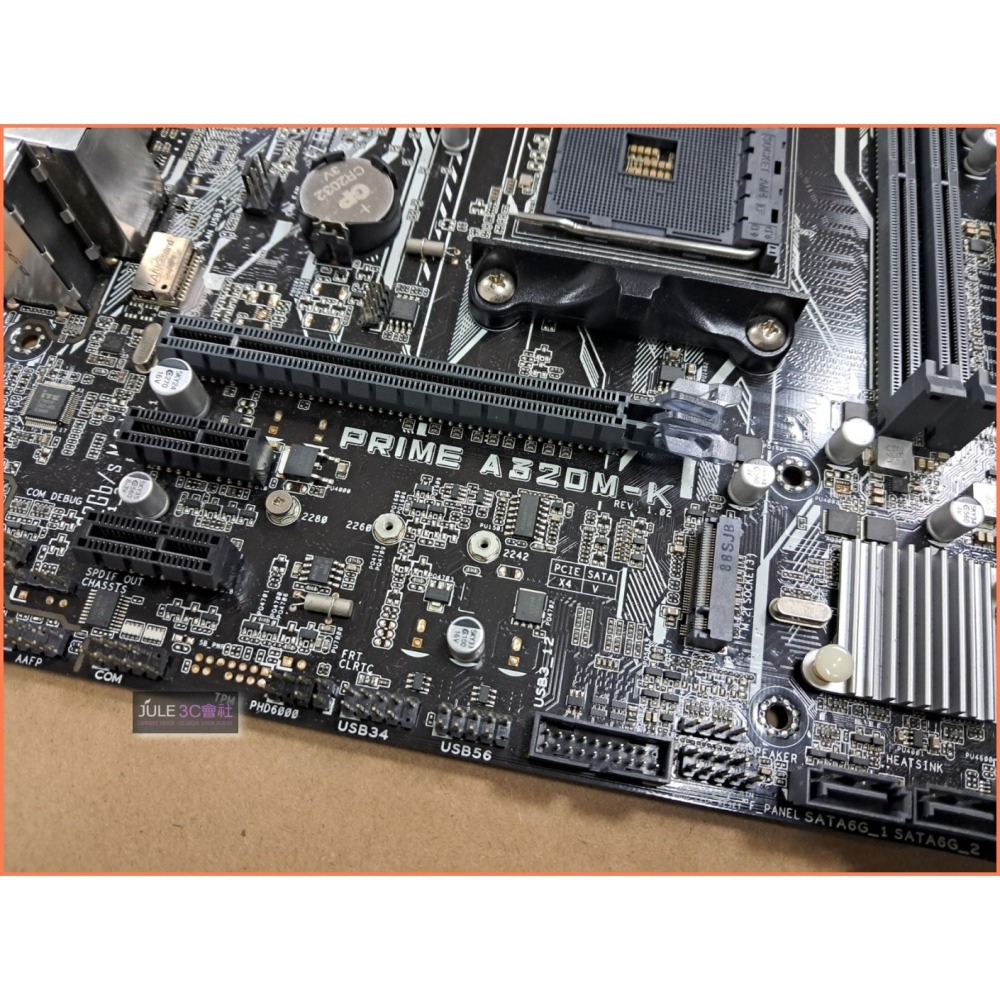

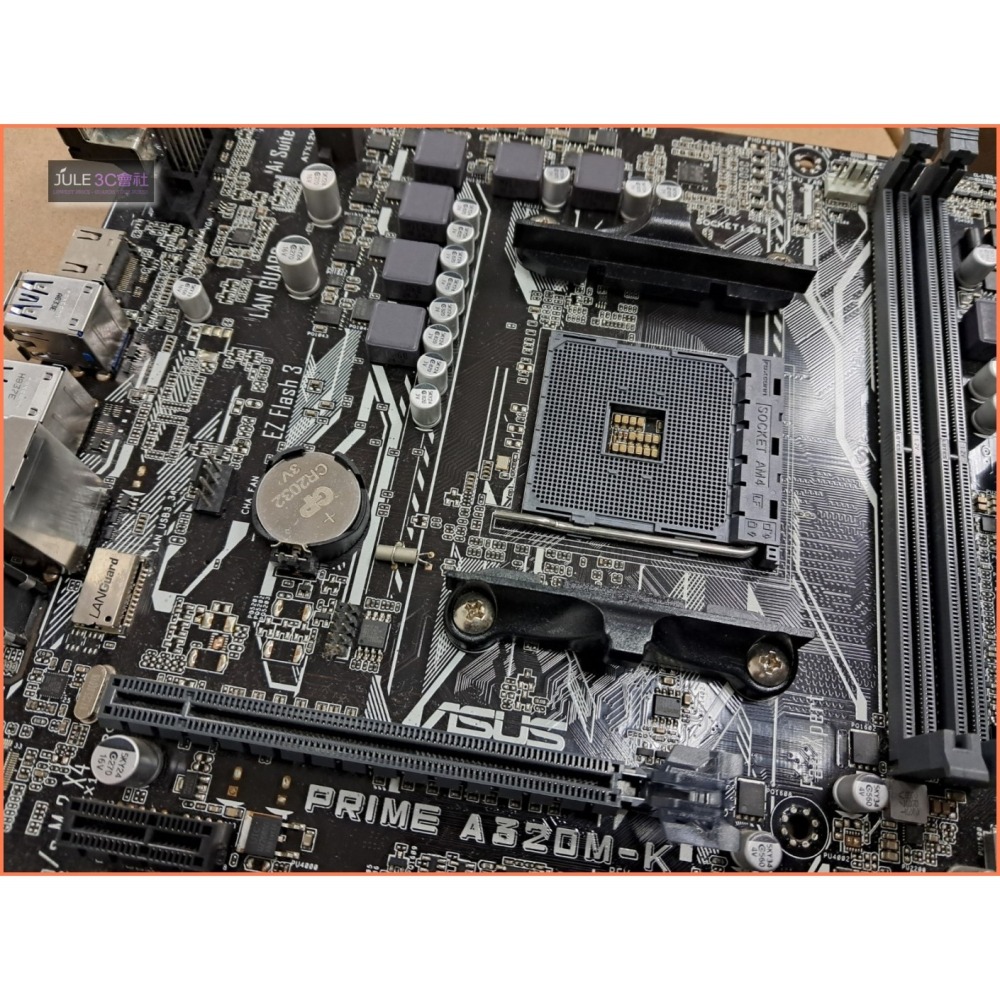

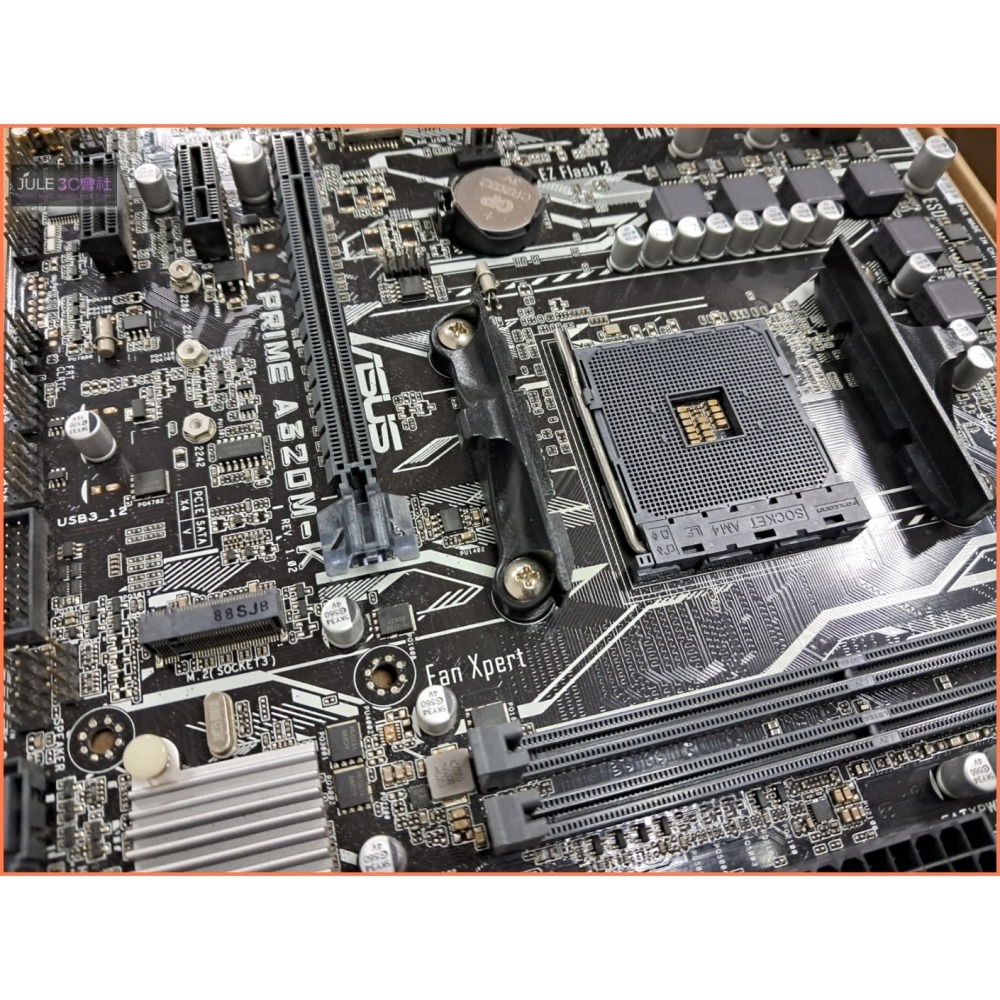

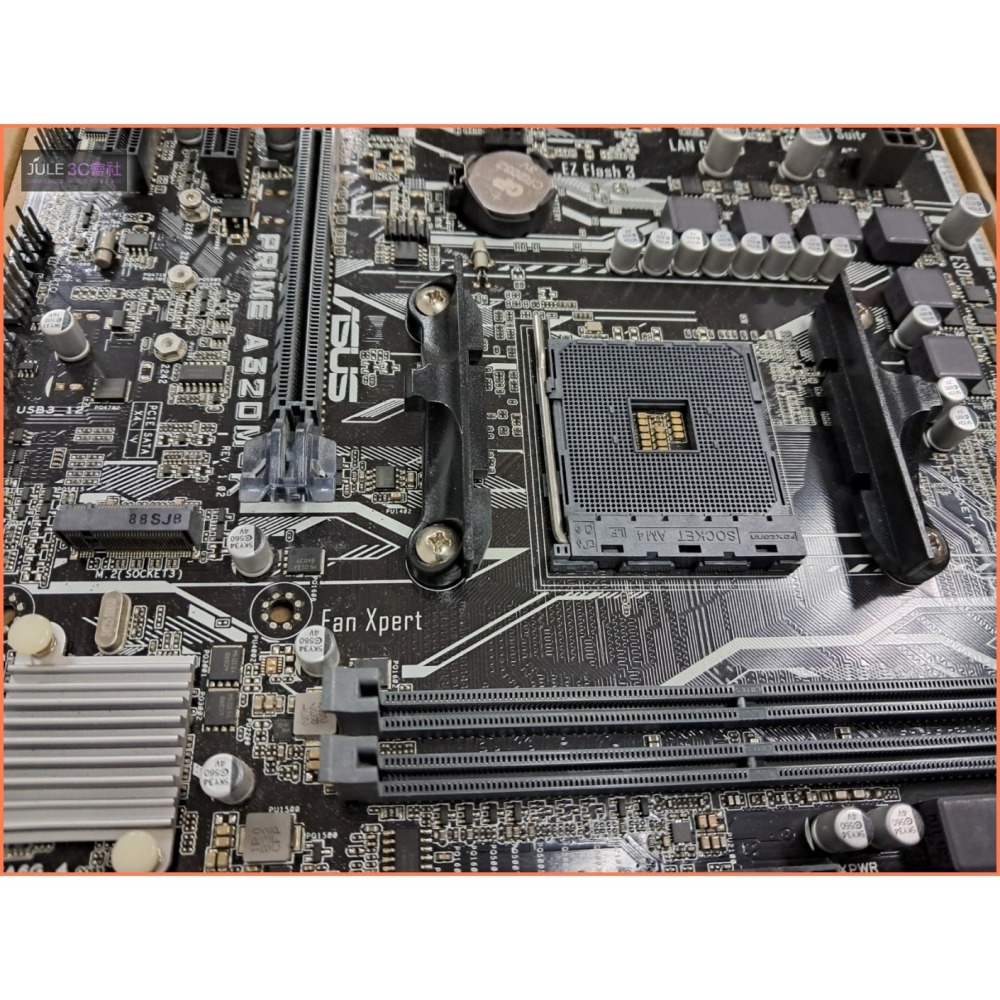

JULE 3C會社-華碩 PRIME A320M-K A320/D4/全系列Ryzen/軍規/良品/AM4 主機板

AMD AM4 Socket for 3rd/2nd/1st Gen AMD Ryzen™/2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/Athlon™ with Radeon™ Vega Graphics/7th Generation A-series/Athlon X4 處理器

*有關支援的 CPU 型號資訊，請參閱    內容。

AMD A320

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics Processors
2 x DIMM, 最高可支援到64GB, DDR4 3200(O.C.)/3000(O.C.)/2933(O.C.)/2800(O.C.)/2666/2400/2133 MHz 無緩衝區 記憶體
AMD 7th Generation A-Series/Athlon X4 Processors
2 x DIMM, Max. 32GB, DDR4 2400/2133 MHz 無緩衝區 Memory
雙通道 記憶體架構
*是否支援 Hyper DIMM 需視個別 CPU 的實體特性而定。
ECC Memory (ECC mode) support varies by CPU.
*有關記憶體合格廠商清單（QVL）的相關資訊，請參閱 或本使用手冊。

Integrated Graphics in the 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /Athlon™ with Radeon™ Vega Graphics /7th Generation A-Series APU
支援多 VGA 輸出 : HDMI/RGB 連接埠
- 支援 RGB 最大解析度 1920  x 1200  @ 60  Hz
- Supports HDMI 1.4b with max. resolution 4096  x 2160  @ 24  Hz / 2560  x 1600  @ 60  Hz
最大共享記憶體 2048  MB

3rd/2nd/1st Gen AMD Ryzen™ Processors
1 x PCIe 3.0/2.0 x16 (x16 mode)
2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics /7th Generation A-series/Athlon X4 Processors
1 x PCIe 3.0/2.0 x16 (x8 mode)
AMD Athlon™ with Radeon™ Vega Graphics Processors
1 x PCIe 3.0/2.0 x16 (x4 mode)
AMD A320 chipset
2 x PCIe 2.0 x1

AMD A320 chipset :
4 x SATA 6Gb/s埠, 灰色,
支援Raid 0, 1, 10
3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
AMD Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-Series/ Athlon™ X4 Processors :
1 x M.2 Socket 3, with M key, type 2242/2260/2280 storage devices support (SATA mode)

Realtek® RTL8111H, 1 x Gigabit 區域網路控制器

Realtek ALC887/897 8 通道 高 音效 CODEC

3rd/2nd/1st Gen AMD Ryzen™/ 2nd and 1st Gen AMD Ryzen™ with Radeon™ Vega Graphics/ Athlon™ with Radeon™ Vega Graphics/ 7th Generation A-series/ Athlon X4 Processors :
4 x USB 3.1 Gen 1 連接埠 (4 位於背板, 藍色)
AMD A320 chipset :
2 x USB 3.0 連接埠 (2 位於主機板中)
AMD A320 chipset :
6 x USB 2.0 連接埠 (2 位於背板, , 4 位於主機板中)

ASUS 5X Protection III :
- ASUS SafeSlot Core: Fortified PCIe Slot prevents damage
- ASUS LANGuard: Protects against LAN surges, lightning strikes and static-electricity discharges!
- ASUS Overvoltage Protection: World-class circuit-protecting power design
- ASUS Stainless-Steel Back I/O: 3X corrosion-resistance for greater durability!
- ASUS DIGI+ VRM: 6  Phase digital power design
華碩獨家功能 :
- AI Suite 3
- Ai Charger
華碩靜音散熱解決方案 :
- 風格獨特的無風扇設計 - 散熱解決方案
- 華碩 Fan Xpert
華碩 EZ DIY :
- 華碩 CrashFree BIOS 3
- 華碩 EZ Flash 3
- 多國語言 BIOS
- ASUS UEFI BIOS EZ Mode
華碩 Q-Design :
- 華碩 Q-Slot
- 華碩 Q-DIMM

Windows® 10

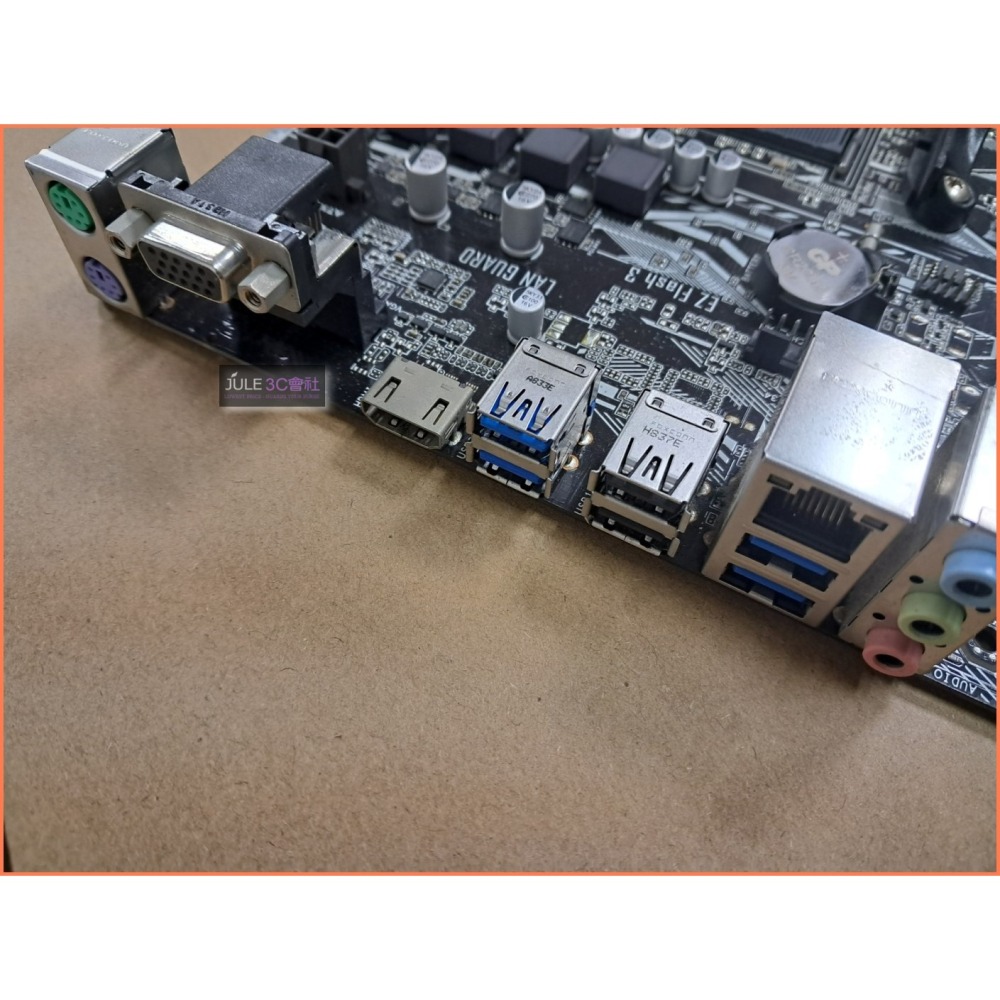

1 x PS/2 鍵盤(紫)
1 x PS/2 滑鼠(綠)
1 x D-Sub
1 x HDMI
1 x LAN (RJ45) 連接埠
4 x USB 3.2 Gen 1 (藍色)
2 x USB 2.0
3 x 音訊插孔

1 x CPU 風扇接頭 (1 x 4 -pin)
1 x 機殼風扇接頭 (1 x 4 -pin)
1 x USB 3.0 接頭支援額外的 2 USB 3.0 連接埠 (19-pin)
2 x USB 2.0 接頭支援額外的 4 USB 2.0 連接埠
1 x M.2 Socket 3 with M key, type 2242/2260/2280 storage devices support (SATA & PCIE 3.0 x 4 mode)
1 x COM 接頭連接埠
4 x SATA 6Gb/s 接頭
1 x S/PDIF 輸出接頭
1 x 24-pin EATX 電源接頭
1 x 4-pin ATX 12V 電源接頭
1 x 前面板音訊接頭 (AAFP)
1 x 系統面板
1 x Clear CMOS 跳線
1 x Speaker connector

使用者手冊
I/O 擋板
2 x Serial ATA 6.0Gb/s 纜線
1 x M.2 螺絲包
1 x Supporting DVD

128 Mb Flash ROM, UEFI AMI BIOS, PnP,WfM2.0, SM BIOS 3.0, ACPI 6.1, Multi-language BIOS, ASUS EZ Flash 3, ASUS CrashFree BIOS 3, My Favorites, Last Modified log, F12 PrintScreen, ASUS DRAM SPD (Serial Presence Detect) memory information, F6 Qfan Control

Windows® 10 64-bit
Windows® 7 64-bit *1

mATX 主機板尺寸
8.9  吋 x 8.7  吋 ( 22.6  公分 x 22.1  公分 )
