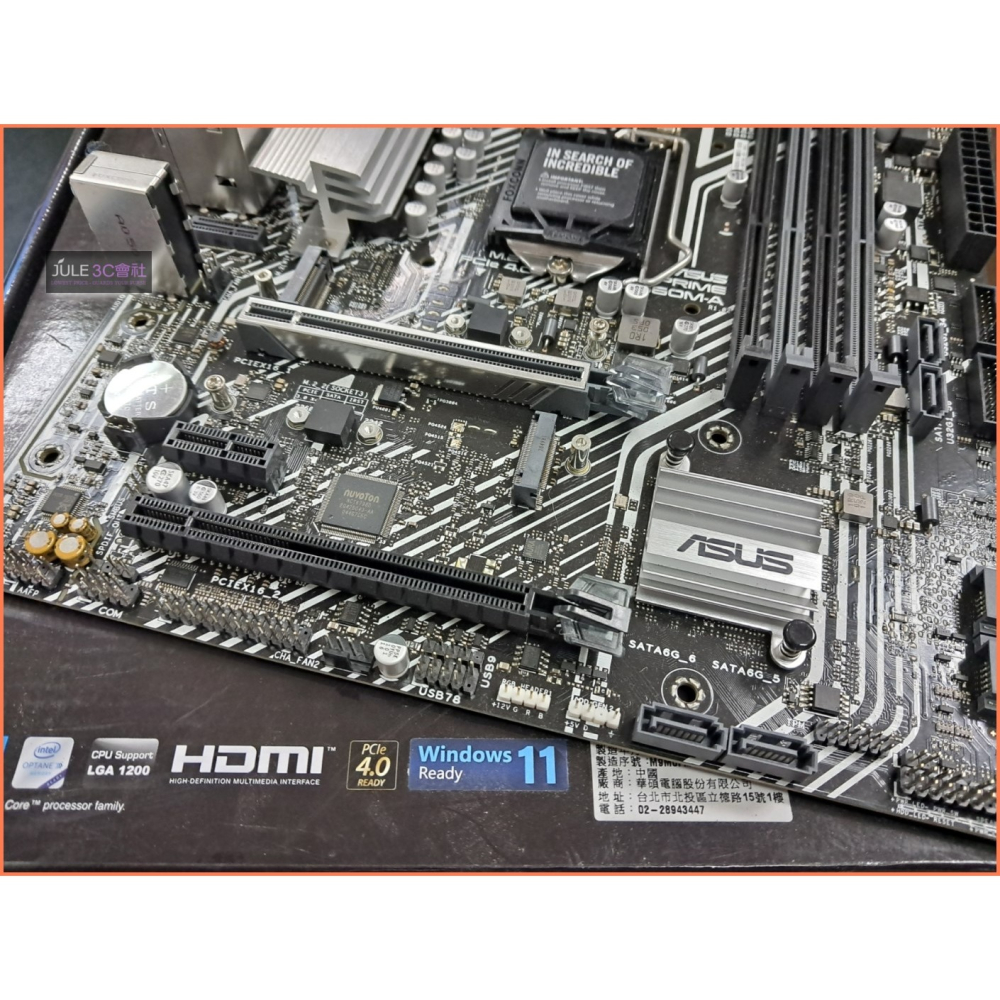

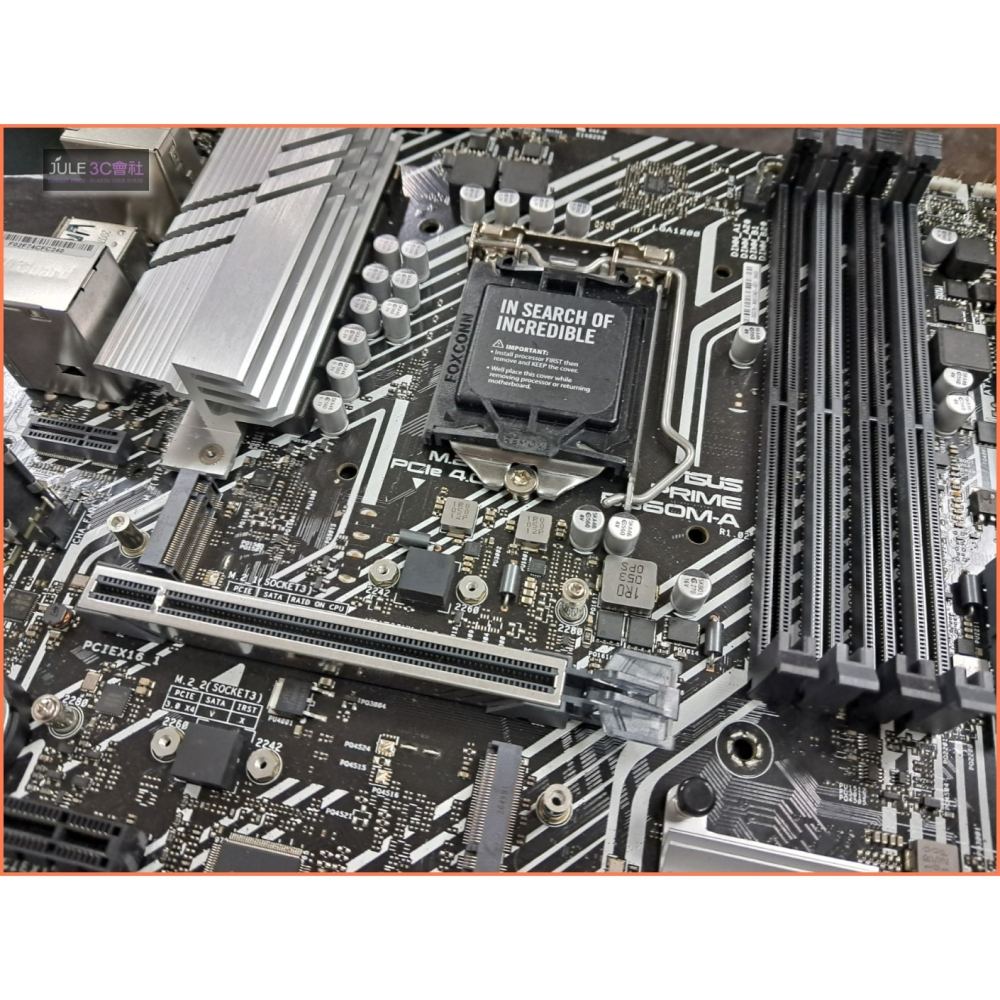

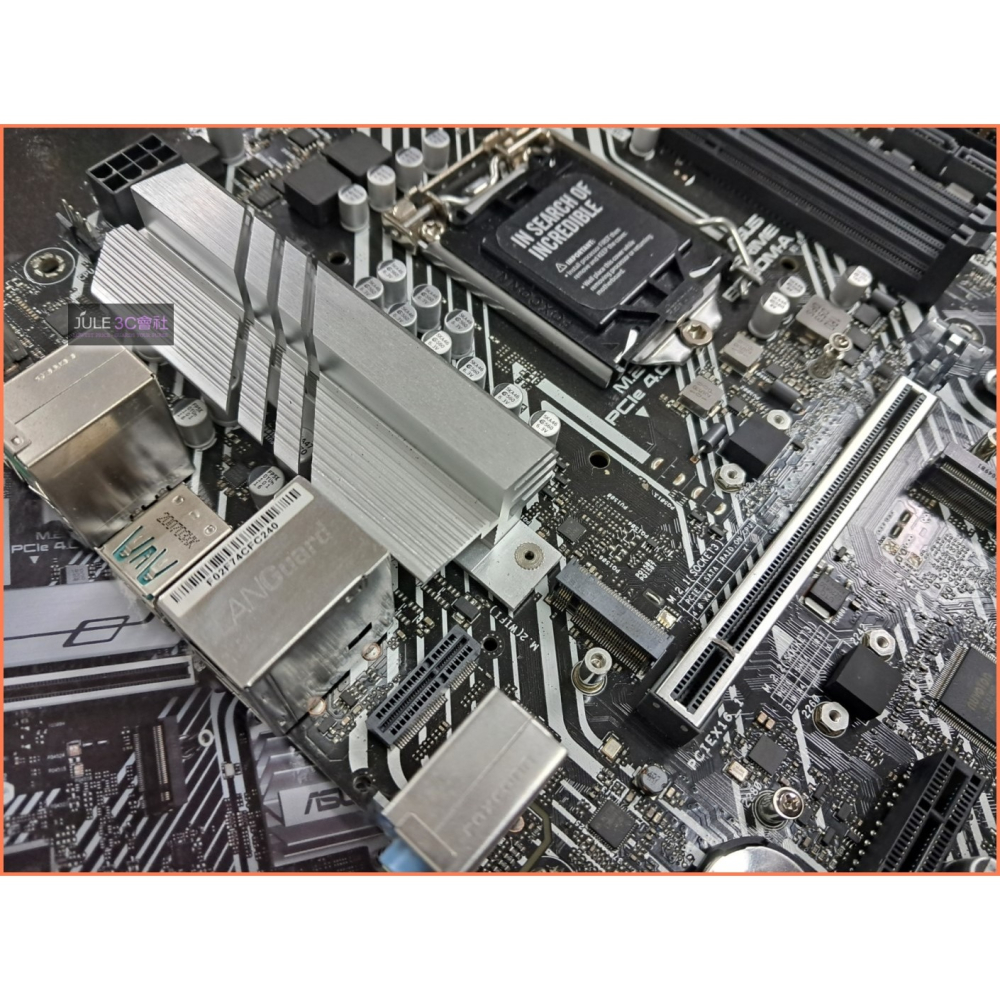

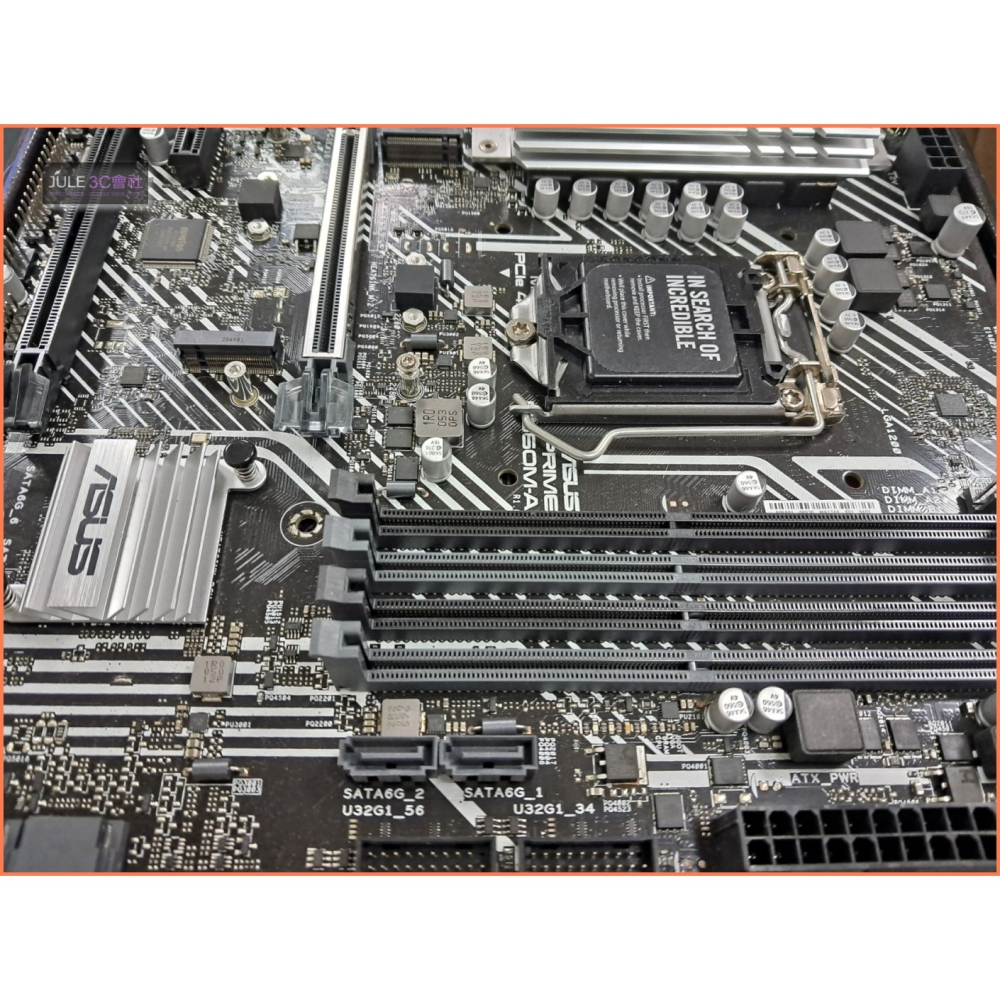

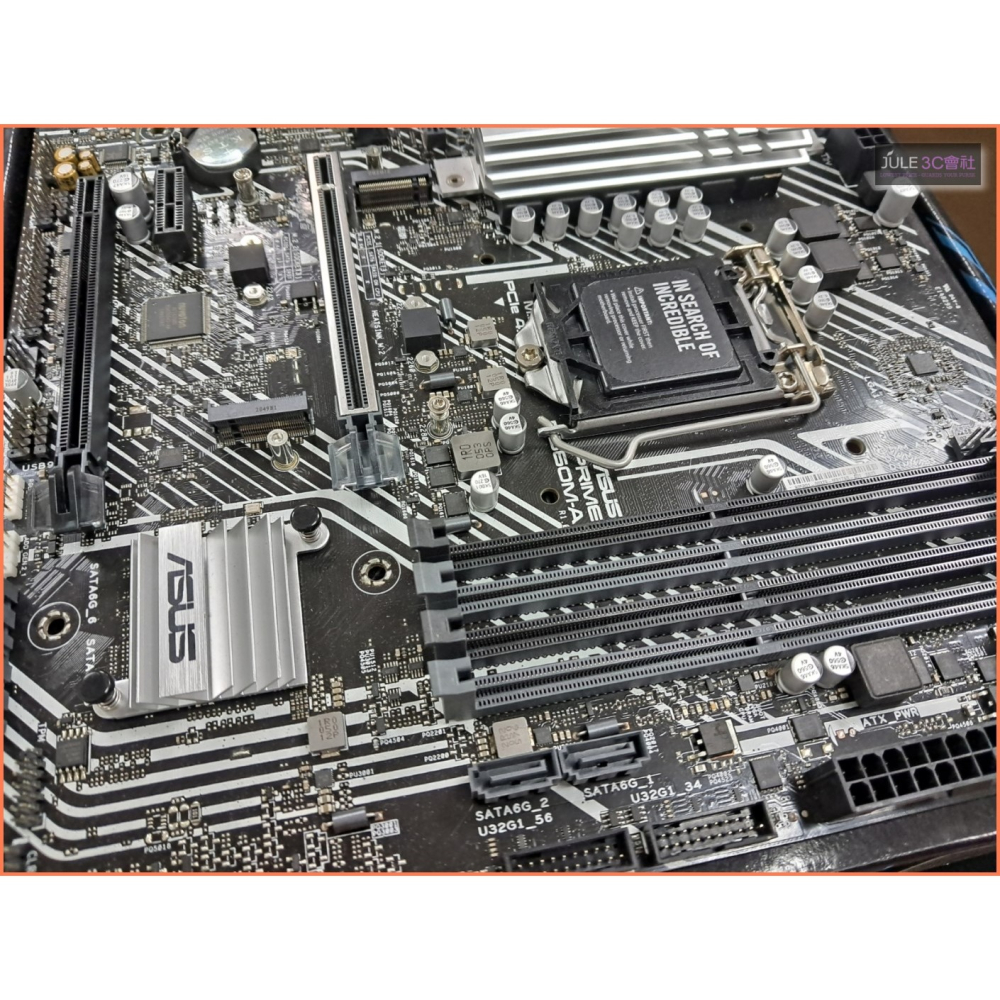

JULE 3C會社-華碩 PRIME B560M-A B560/D4/雙M2/庫存保內/MATX/1200 主機板

商品編號:P0857709270385 原始貨號:P0857709270385
$ 2,188
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

PRIME B560M-A

Intel® B560 (LGA 1200)、PCIe 4.0、雙 M.2 插槽、8 個功率級、Intel® 1 Gb 乙太網路、DisplayPort、雙 HDMI、後方 USB 3.2 Gen 2 Type-C®、V-M.2 Key E 插槽適用於 Wi-Fi、Aura Sync、可定址 RGB、mATX 主機板

Intel® LGA 1200插槽:支援第 11 代 Intel® Core™ 處理器

增強型電源解決方案:8 個 DrMOS 功率級、合金電感及耐用電容器,可供應穩定的電源

全方位散熱:更強大的 VRM 散熱器、彈性 M.2 散熱器、PCH 散熱器、混合風扇接頭及 Fan Xpert 2+

記憶體超頻:支援記憶體超頻最高至 5000 MHz

ASUS Optimem II:精心佈線以大幅減少串擾、保留訊號完整性以提升記憶體穩定性

超快連線:PCIe 4.0、Intel® 1 Gb 乙太網路、後方 USB 3.2 Gen 2 (Type-A &Type-C®) 及 V-M.2 Key E 插槽適用於 Wi-Fi

Prime

華碩 Prime 系列主機板經過精心設計,可完全發揮第 10、11 代 Intel® Core™ 處理器的潛能。Prime B560M-A 具備強大的供電設計、全面的散熱解決方案和智慧調校選項,以直覺式的軟體和韌體功能,為日常使用者和 DIY 電腦組裝玩家提供各種效能調整選項。ASUS Prime B560M-A 非常適合想要打造時尚且具有未來風格的電腦玩家,因為它具有黑白雙色表面處理,以及虹彩金屬銘牌和 PCB 外蓋。

型號
PRIME B560M-A
CPU
Intel® Socket LGA1200 for 11th Gen Intel® Core™ Processors & 10th Gen Intel® Core™, Pentium® Gold and Celeron® Processors

Supports Intel® 14 nm CPU

Supports Intel® Turbo Boost Technology 2.0 and Intel® Turbo Boost Max Technology 3.0**

* Refer to for CPU support list.

** Intel® Turbo Boost Max Technology 3.0 support depends on the CPU types.

Chipset
B560
Memory

DDR4 5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4000(OC)/3733(OC)/3600(OC)/3466(OC)/3333(OC)/3200/2933/2800/2666/2400/2133 MHz Non-ECC, Un-buffered Memory*

Dual Channel Memory Architecture

Supports Intel® Extreme Memory Profile (XMP)

OptiMem II

* 10th Gen Intel® Core™ i7/i9 processors support 2933/2800/2666/2400/2133 natively, others will run at the maximum transfer rate of DDR4 2666MHz.

* 11th Gen Intel® processors support 3200/2933/2800/2666/2400/2133 natively.

* Refer to for the Memory QVL (Qualified Vendors Lists), and memory frequency support depends on the CPU types.

Graphics

* Graphics specifications may vary between CPU types.

** Intel® 11th & 10th Gen processors support DisplayPort 1.4 with max. resolution of 4096 x 2304 @60Hz. Please refer to www.intel.com for any updates.

*** Only Intel® 11th Gen processors support HDMI™ 2.0 with max. resolution of 4K@60Hz, others will only support HDMI™ 1.4 with max. resolution of 4K@30Hz .Please refer to www.intel.com for any updates.

Expansion Slots

Intel® 11th &10th Gen Processors

1 x PCIe 4.0/3.0 x16 slot(s)*

- Intel® 11th Gen processors support PCIe 4.0 x16

- Intel®10th Gen processors support PCIe 3.0 x16

Intel® B560 Chipset

1 x PCIe 3.0 x16 slot (supports x4 mode)*

1 x PCIe 3.0 x1 slots

* Enable RST PCIe Storage Remapping for PCH attached PCIe slots to activate Intel® Optane Memory.

Storage
Supports 2 x M.2 slots and 6 x SATA 6Gb/s ports

Intel®11th Gen Processors

M.2_1 slot (Key M), type 2242/2260/2280

- Only Intel® 11th Gen processors support PCIe 4.0 x4 mode, this slot will be disabled for other CPUs

Intel® B560 Chipset

M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 3.0 x4 & SATA modes)*

6 x SATA 6Gb/s ports

* M.2_2 slot shares bandwidth with SATA_2.When M.2_2 slot is operating in SATA mode, SATA_2 will be disabled.

Ethernet
1 x Intel® 1Gb Ethernet
ASUS LANGuard
USB
Rear USB:Total 6 ports

2 x USB 3.2 Gen 2 port(s) (1 x Type-A + 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)


Front USB:Total 7 ports

2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen 1 ports

1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports

Audio

- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking

- Supports up to 24-Bit/192 kHz playback"

Audio Features

- Audio Shielding

- Premium Japanese audio capacitors

- Dedicated audio PCB layers

** A chassis with an HD audio module in the front panel is required to support 7.1 Surround Sound audio output.

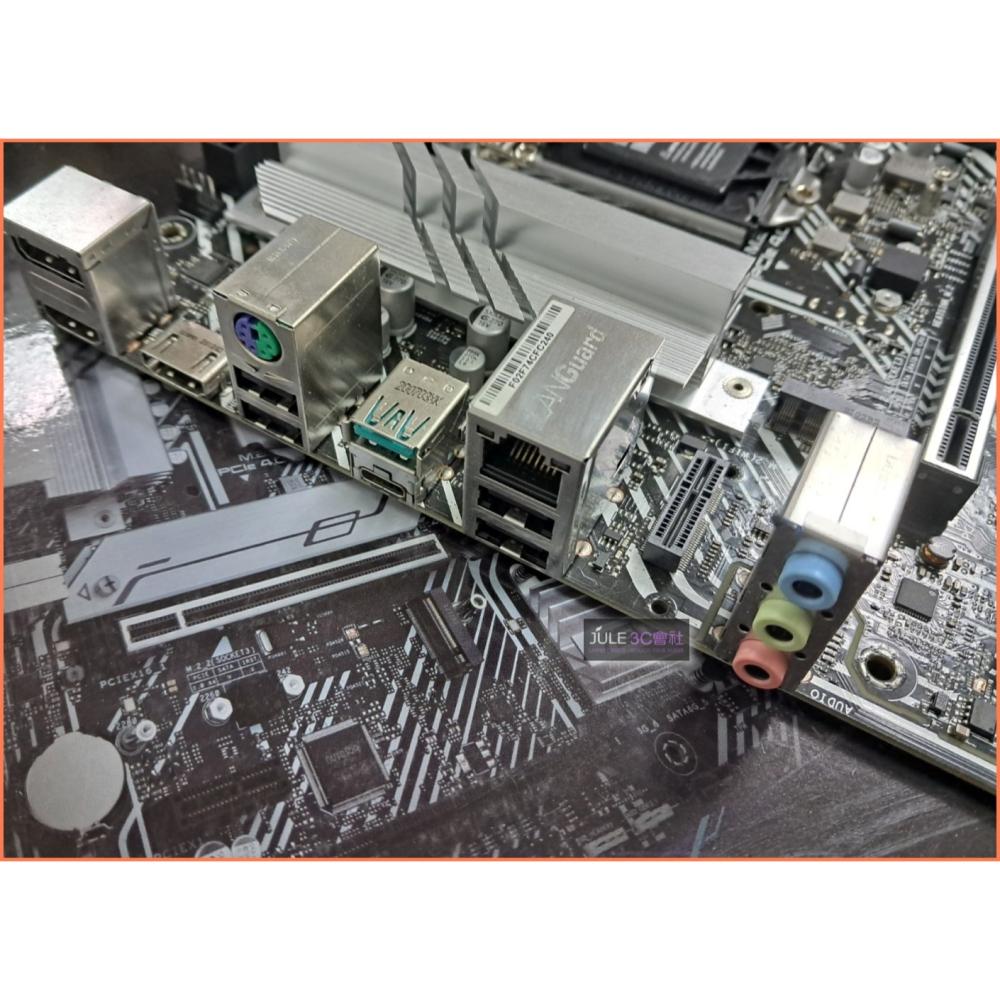

Back Panel I/O Ports

2 x USB 3.2 Gen 2 port(s) (1 x Type-A, 1 x USB Type-C®)

4 x USB 2.0 port(s) (4 x Type-A)

1 x DisplayPort

2 x HDMI™ port

1 x Intel® I219-V 1Gb Ethernet port

1 x V-M.2 slot (Key E)

3 x Audio jacks

1 x PS/2 Keyboard/Mouse combo port
Internal I/O Connectors

Fan and Cooling related

1 x 4-pin CPU Fan header(s)

1 x 4-pin CPU OPT Fan header(s)

2 x 4-pin Chassis Fan header(s)

Power related

1 x 24-pin Main Power connector

1 x 8-pin +12V Power connector

Storage related

2 x M.2 slots (Key M)

6 x SATA 6Gb/s ports

USB

2 x USB 3.2 Gen 1 header(s) support(s) additional 4 USB 3.2 Gen1 ports

1 x USB 2.0 header(s) support(s) additional 2 USB 2.0 ports

1 x USB 2.0 header(s) support(s) additional 1 USB 2.0 ports

Miscellaneous

2 x AURA Addressable Gen 2 header(s)

2 x AURA RGB header(s)

1 x Clear CMOS header

1 x COM Port header

1 x Front Panel Audio header (AAFP)

1 x LPT header

1 x S/PDIF Out header

1 x SPI TPM header (14-1pin)

1 x 20-3 pin System Panel header with Chassis intrude function

Special Features

ASUS 5X PROTECTION III

- DIGI+ VRM

- Enhanced DRAM Overcurrent Protection

- ESD Guards

- LANGuard

- Overvoltage Protection

- SafeSlot Core+

- Stainless-Steel Back I/O

ASUS Q-Design

- Q-DIMM

- Q-LED (CPU [red], DRAM [yellow], VGA [white], Boot Device [yellow green])

- Q-Slot

ASUS Thermal Solution

- Flexible M.2 heatsink

- VRM heatsink design

AURA Sync

- AURA RGB header(s)

- Addressable Gen 2 RGB header(s)

JULE 3C會社-華碩 PRIME B560M-A B560/D4/雙M2/庫存保內/MATX/1200 主機板

華碩ASUS B560M PRIME系列 優質高規晶片組

支援1200腳位CPU 及 DDR4 記憶體

(支援10代 及11代系列CPU)

內建 網路顯示音效 雙M.2 雙HDMI

保內庫存良品 限時下殺

附檔板 排線

下標即結標

如對規格或相容性有疑問可以先詢問
