[物聯汪汪] 含稅附發票~ BeagleV - Ahead - RISC-V 處理器 IP, 4 TOPS AI 加速

商品編號:P0510714896165 原始貨號:P0510714896165

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 7,200
$ 7,630
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商  [ https://www.seeedstudio.com/BeagleV-Ahead-p-5738.html ]  料號:102991698


PRODUCT DETAILS

BeagleV® is an advanced single-board computer with a powerful RISC-V processor IP, AI acceleration, hybrid network connection, and a wide range of interfaces. It supports multiple operating systems and is ideal for both complex AI systems and simple embedded projects.

Feature

  • Open-source and Advanced RISC-V Single Board Computer: Powered by TH1520 RISC-V quad-core Xuantie C910 processor IP operating at up to 1.85GHz
  • Significant AI Acceleration: Offer 4 TOPS NPU @ INT8 1GHz computing power, support Tensor Flow, ONNX, Caffe framework
  • Hybrid Network Connection: Integrate with 2.4G Wi-Fi & Bluetooth 5.2 wireless connection and provide 1 Gigabit Ethernet network interface
  • Rich Extensions and Interfaces: Equip mikroBUS™ uniform connection, provide 2x CSI, 1x HDMI, 1x DSI media ports, 2x 46pin BeagleBone® Header, 1x microSD, and 1x microUSB 3.0
  • Multiple OS Support: Support Yocto, and Linux distribution such as Ubuntu and Fedora (in development)

Description

BeagleV® - Ahead is the state-of-the-art single-board computer, powered by the advanced TH1520 RISC-V quad-core Xuantie C910 processor IP, capable of operating at up to 1.85GHz. This board is designed for high-performance computing and offers significant AI acceleration with its 4 TOPS NPU @ INT8 1GHz computing power. It supports popular AI frameworks such as TensorFlow, ONNX, and Caffe.

The board is equipped with a hybrid network connection, integrating 2.4G Wi-Fi and Bluetooth 5.2 wireless technology, and also providing a 1 Gigabit Ethernet network interface. It can offer mobility and flexibility of the scene, while also providing stability and security scenarios.

It includes a mikroBUS™ uniform connection interface, enabling instant connection of 1000+ click boards to the main development board. It also contains rich extensions and interfaces, where there are 2x CSI, 1x HDMI, 1x DSI multimedia ports, 2x 46pin BeagleBone® Header, 1x microSD, and 1x microUSB 3.0, this board offers a wide range of possibilities for various projects.

The board supports multiple operating systems, including Yocto and Linux distributions such as Ubuntu and Fedora (the latter is currently in development), making it an ideal choice for developers and enthusiasts alike. Whether you're building a complex AI system or a simple embedded project, this single-board computer has the power and versatility to meet your needs.

Hardware Overview




Specification

Feature

Description

Processor

T-Head TH1520 (quad-core Xuantie C910 processor)

PMIC

DA9063

Memory

4GB LPDDR4

Storage

16GB eMMC

WiFi/BlueTooth

· PHY: AP6203BM

· Antennas: 2.4GHz & 5GHz

Ethernet

· PHY: Realtek RTL8211F-VD-CG Gigabit Ethernet phy

· Connector: integrated magnetics RJ-45

microUSB 3.0

· Connectivity: USB OTG, Flash support

· Power: Input: 5V @ , Output: 5V @

HDMI

· Transmitter: TH1520 Video out system

· Connector: Mini HDMI

Other connectors

· microSD

· mikroBUS connector (I2C/UART/SPI/MCAN/MCASP/PWM/GPIO)

· CSI connector compatible with BeagleBone® AI-64, Raspberry Pi Zero / CM4 (22-pin)

· DSI connector

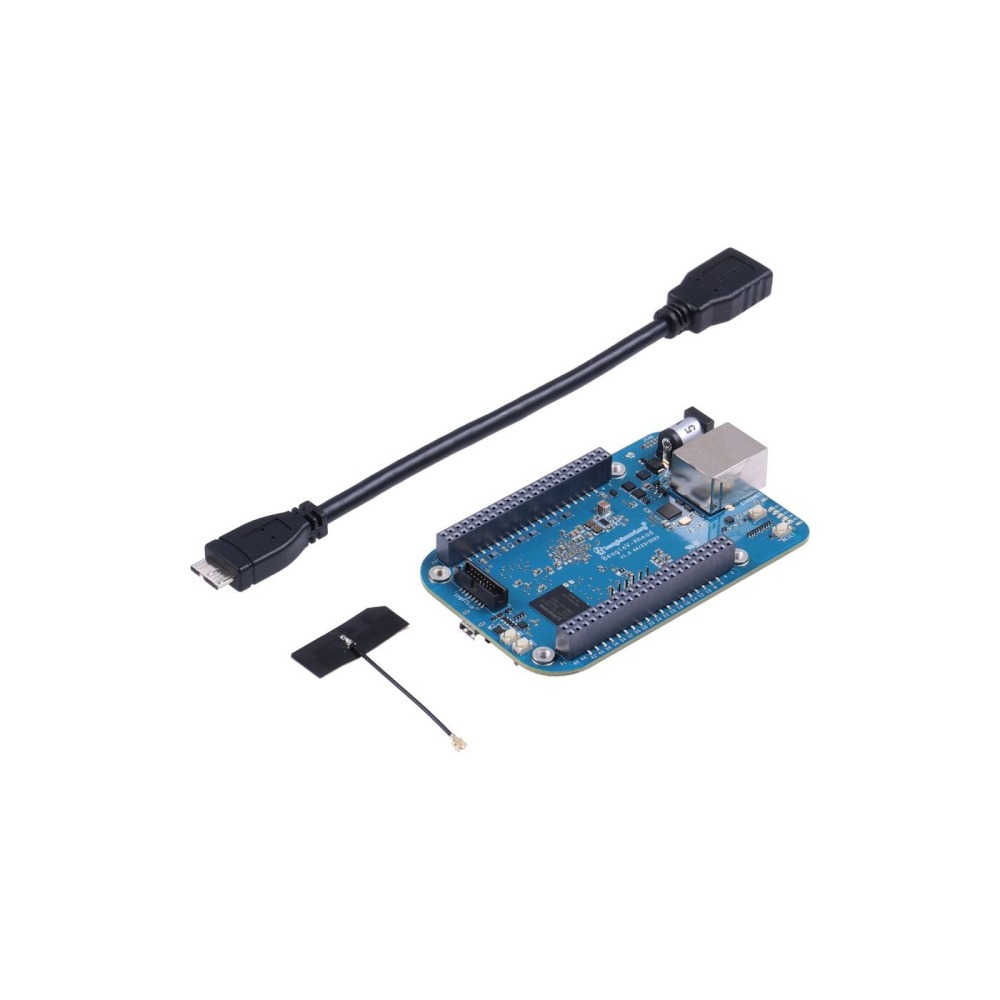

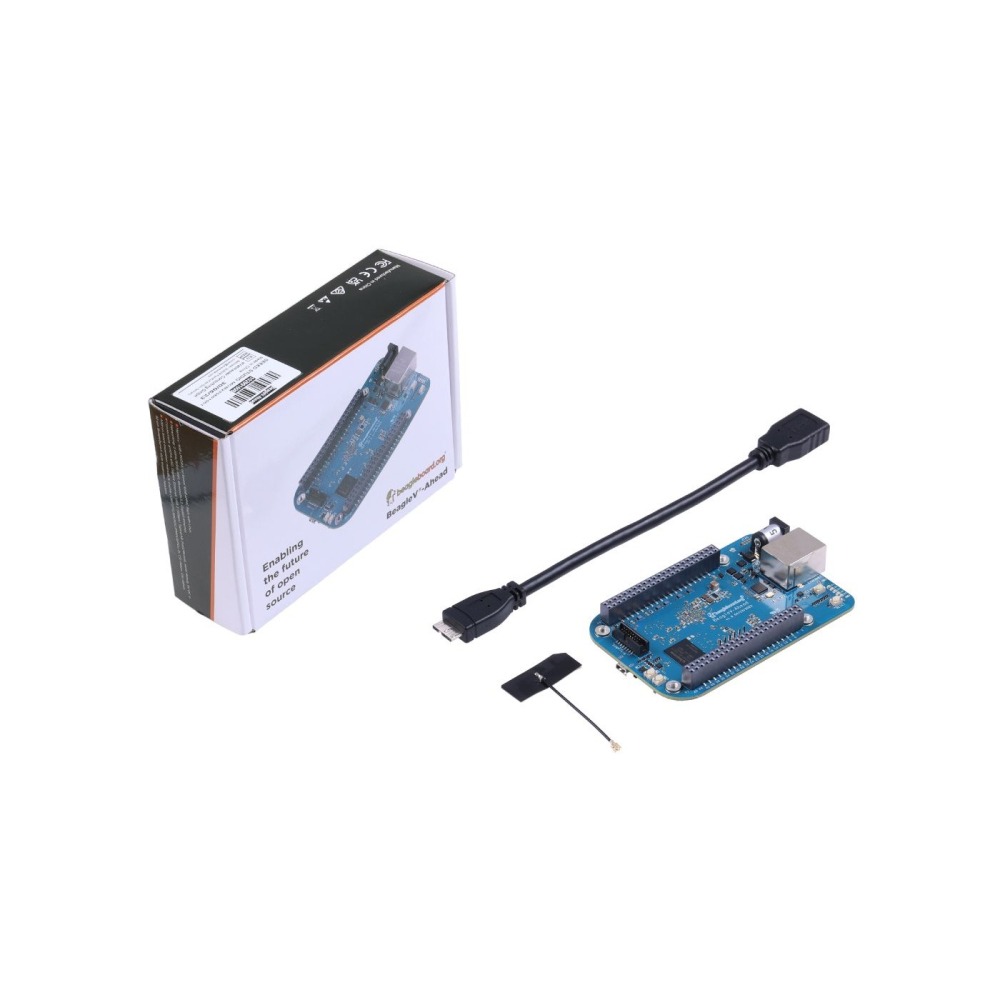

Part List

BeagleV®-Ahead board

x1

One (1) 2.4GHz/5GHz antenna

x1

MicroUSB OTG cable

x1

Quick-start card

x1





ECCN/HTS

HSCODE8471504090
USHSCODE8543708800
UPC
EUHSCODE8471707000
COOCHINA
CE1
FCC1
REACH1
RoHS1
UK DoC1
UKCA1


LEARN AND DOCUMENTS

Documentations

BeagleV® - Ahead Documents [ https://docs.beagleboard.org/latest/boards/beaglev/ahead/index.html ]

BeagleV® - Ahead_Datasheet-by_Seeed-Studio [ https://files.seeedstudio.com/wiki/BeagleV-Ahead/BeagleV-Ahead_Datasheet-by_Seeed-Studio.pdf ]
