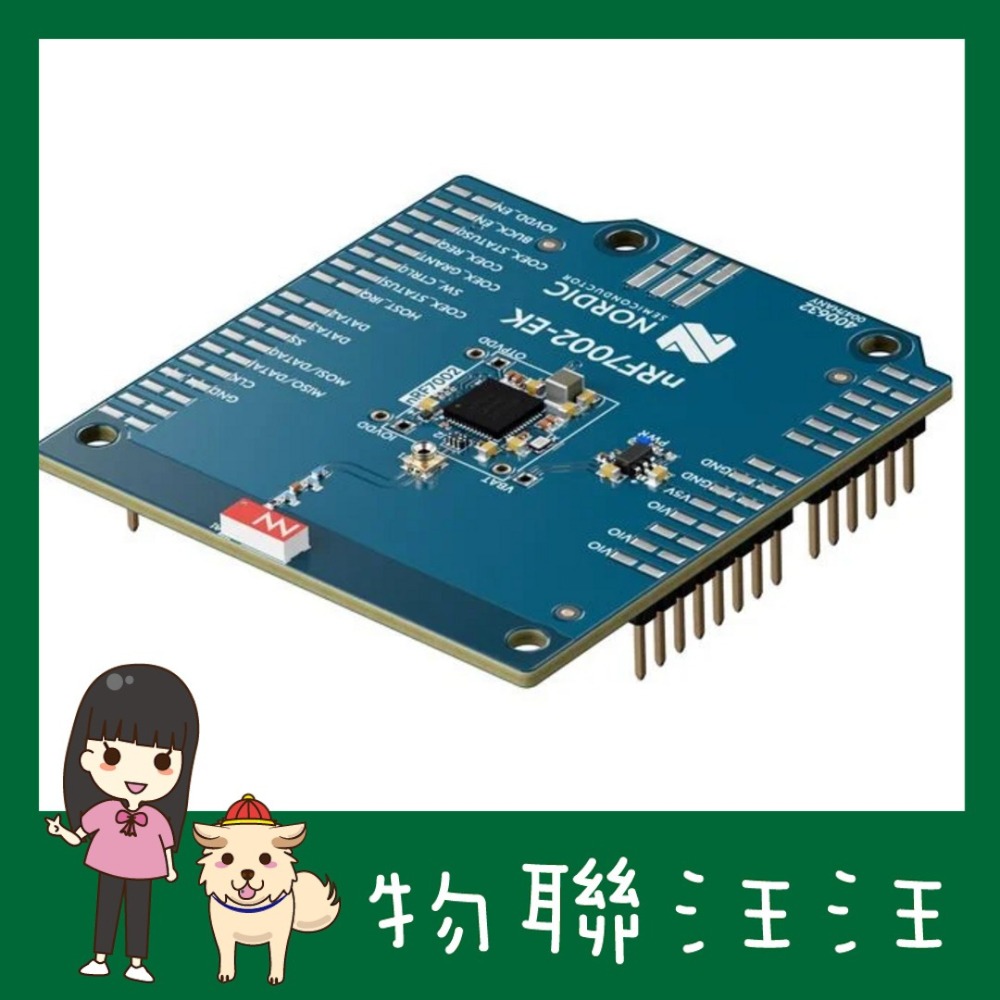

[物聯汪汪] 含稅附發票~ Nordic 原廠 NRF7002-EK 開發板

商品編號:P0510714655599 原始貨號:P0510714655599

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 980
$ 1,040
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 [ https://www.nordicsemi.com/Products/Development-hardware/nRF7002-EK ]  料號:NRF7002-EK

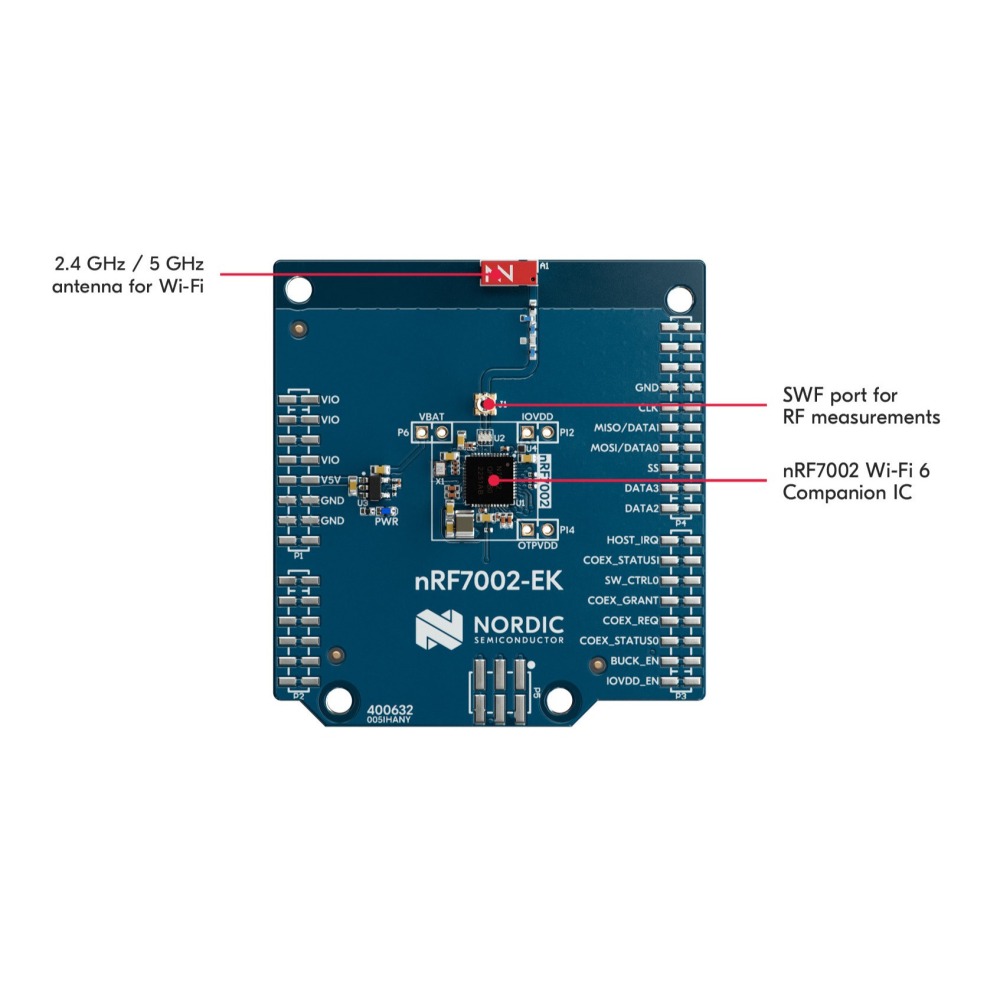

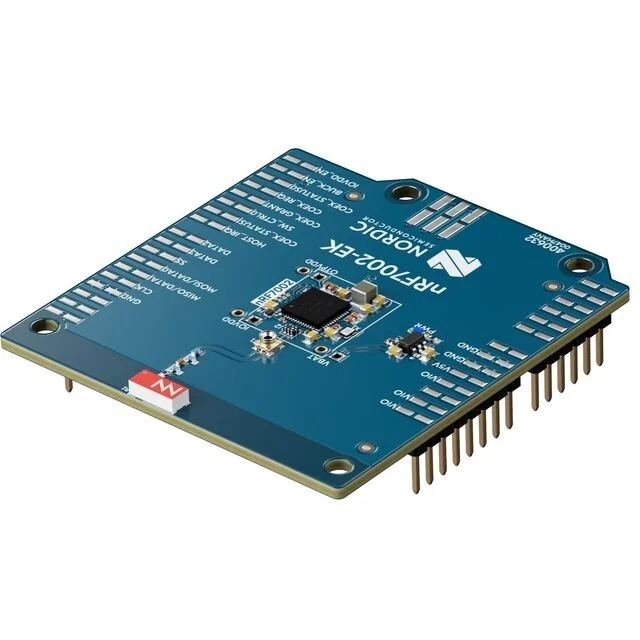

The nRF7002 EK is a versatile evaluation kit in the form of an Arduino shield. This kit is designed to complement our nRF52840 DK [ https://www.nordicsemi.com/Products/Development-hardware/nRF52840-DK ] , nRF5340 DK [ https://www.nordicsemi.com/Products/Development-hardware/nRF5340-DK ] , nRF9160 DK [ https://www.nordicsemi.com/Products/Development-hardware/nRF9160-DK ]  and nRF9151 DK, [ https://www.nordicsemi.com/Products/Development-hardware/nRF9151-DK ]  providing an easy way to evaluate and harness the power of the nRF70 Series of Wi-Fi companion ICs.

Equipped with the nRF7002 companion IC [ https://www.nordicsemi.com/Products/nRF7002 ] , the nRF7002 EK unlocks low-power Wi-Fi 6 capabilities for your host device. Seamlessly connect to Wi-Fi networks and leverage Wi-Fi-based locationing, enabling advanced features such as SSID sniffing of local Wi-Fi hubs. The nRF7002 is specifically designed to integrate with Nordic's nRF52 and nRF53 Series multiprotocol SoCs [ https://www.nordicsemi.com/Products/nRF5340 ] , as well as the nRF91 Series cellular IoT SiP [ https://www.nordicsemi.com/404?item=web%3a%7bACC0D00C-A626-43D8-9B99-4F617FA0AED1%7d%40en ] . It can also be used alongside non-Nordic host devices.

To communicate with the host processor, the nRF7002 EK supports SPI or QSPI interfaces. The unique wireless coexistence support on the nRF70 Series ensures that protocols such as Bluetooth Low Energy, Thread, or Zigbee can seamlessly co-exist with Wi-Fi The nRF7002 is fully integrated into Nordic's nRF Connect SDK, making development simple. While the nRF7002 DK is a complete development kit, the nRF7002 EK is an evaluation companion, requiring a host development Kit to unleash its full potential. By connecting the nRF7002 EK to an nRF52840 DK you can evaluate the cost-effective combination of nRF52840 and nRF7002.

The combination of nRF9151 DK and the nRF7002 EK enables developers to combine the capabilities of cellular IoT and Wi-Fi. The nRF7002 EK can also be used to emulate the nRF7001  [ https://www.nordicsemi.com/Products/nRF7001 ] and nRF7000  [ https://www.nordicsemi.com/Products/nRF7000 ] ICs. A combination of an nRF91 Series cellular SiP and an nRF7000 IC has GNSS, cell-based locationing, and SSID-based Wi-Fi locationing capabilities. This enables the best possible location results in most conditions.
