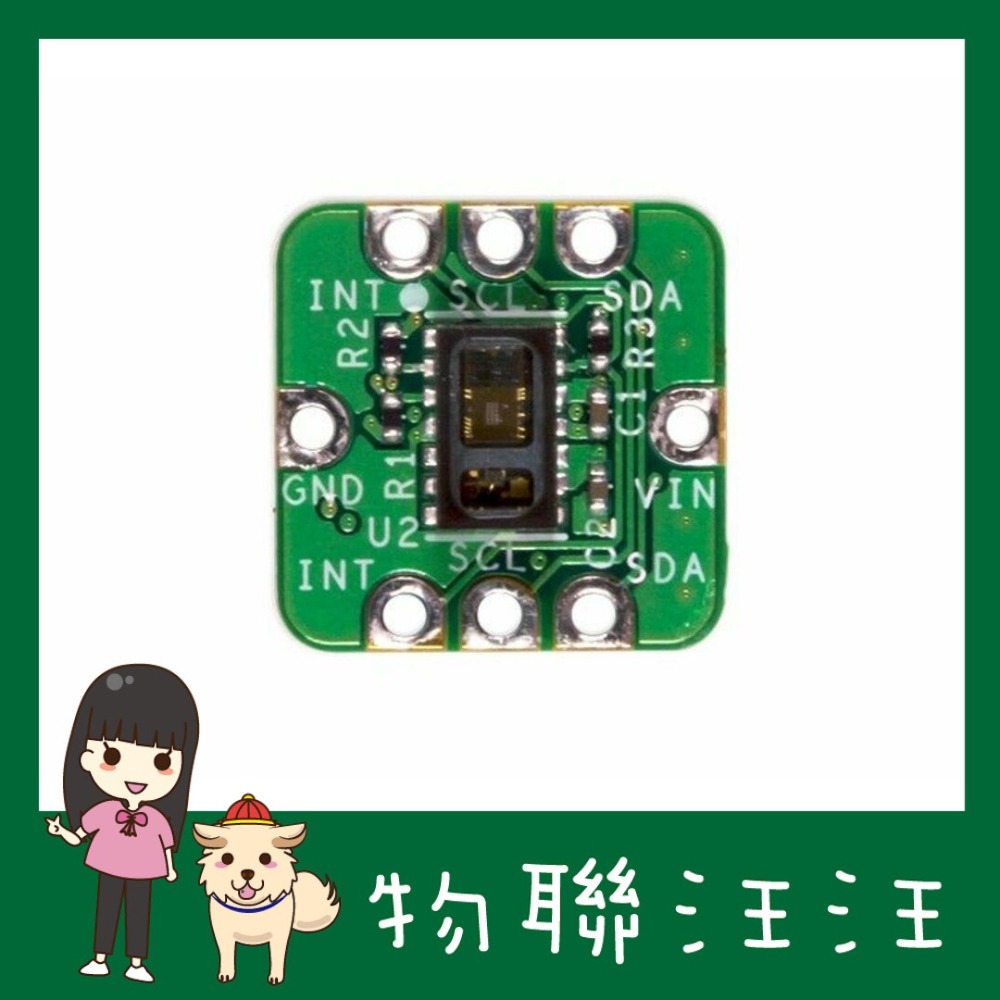

[物聯汪汪] 含稅附發票~ MAXREFDES117# 脈搏血氧和心率感測器適穿戴式設備

商品編號:P0510714225052 原始貨號:P0510714225052

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 1,000
$ 1,060
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商  [ https://www.seeedstudio.com/MAXREFDES117-HEART-RATE-AND-PULSE-OXIMETRY-MONITOR-p-2762.html ]  料號:MAXREFDES117#


Description

This is a low-power, optical heart-rate sensor complete with integrated red and IR LEDs, and a power supply. It utilizes the heart-rate/SpO2 sensor (MAX30102) which is perfect for wearable projects and may be placed on a finger or earlobe to accurately detect heart rate.

Features

  • Robust Performance: Heart-Rate Monitor and Pulse Oximeter Biosensor in LED Reflective Solution with -40°C to +85°C Operating Temperature Range
  • Highly integrated: A 60mm x100mm x7.7mm small-design sensor with integrated red and IR LEDs, and a power supply.

  • Non-chest-based heart-rate/SpO2 detection: Can be placed on a finger or earlobe to accurately detect heart rate.

  • Ultra-low power consumption: The entire design typically operates at less than 5.5mW

  • High compatibility: Firmware is available for both Arduino and mbed platforms, enabling users to develop with virtually any platform

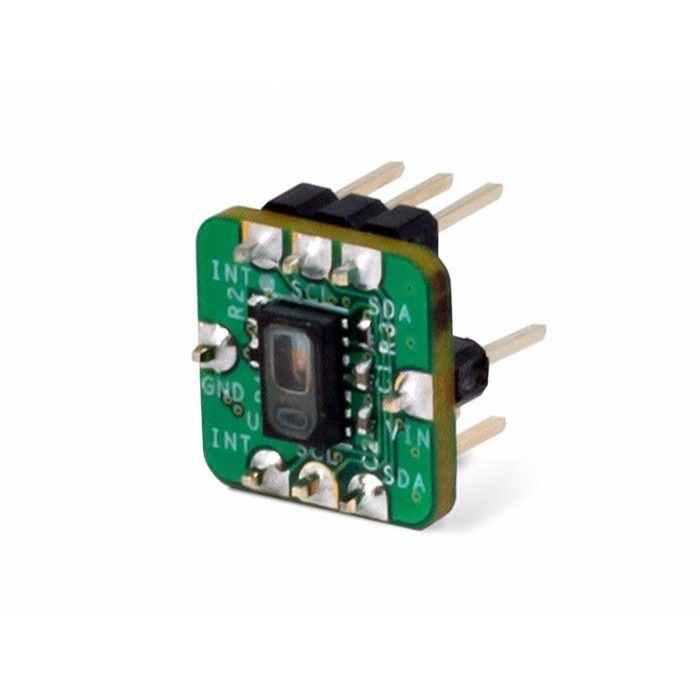

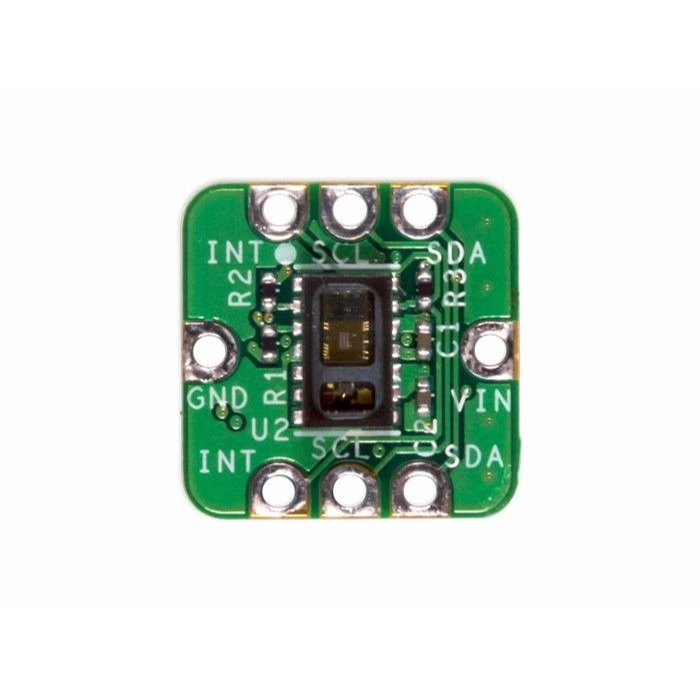

This high-sensitivity pulse oximeter and heart-rate sensor deliver the promise of wearable devices to all developers. It features the MAX30102 with integrated red and IR LEDs for heart rate and SpO2 detection. This configuration ideally detects heart rate and pulse ox on a person’s fingertip, earlobe, or other fleshy extremities. The small board size of 12.7mm x 12.7mm (0.5in x 0.5in) is ideal for wearable applications and may be stitched into the fabric for immediate prototyping. Firmware is available for both Arduino and mbed platforms, enabling users to develop with virtually any platform. The user needs to provide a 2V to 5.5V supply at the power input, perfect for virtually any battery or Arduino and mbed form-factor board.

This design utilizes the heart-rate/SpO2 sensor (MAX30102), an efficient, low-power step-down converter (MAX1921), and an accurate level translator (MAX14595) and the entire design typically operates at less than 5.5mW.

The board features 8 sewing tap pads for attachment and a quick electrical connection to a development platform.

About Maxim Integrated. At Maxim, we invent highly integrated solutions that make technology seamless. We channel our collective expertise to stretch the limits of technology, understand your needs, and help you get to market faster.

As with all Maxim reference designs, the BOM, schematics, layout files, and Gerber files are all available from the Design Resources tab.

Application

  • Wearables Devices

  • Heart-rate monitor

  • Pulse oximeter

  • Fitness Assistant Devices

  • Smartphones

  • Tablets



Reference Design Block Diagram

Required Equipment

  • Windows PC with a USB port

  • MAXREFDES117# boar

  • 5 cables that can be used to connect the MAXREFDES117# with the controller board

  • One of the supported mbed or Arduino controller boards listed above

  • One USB cable that is compatible with the selected controller board

Download, read, and carefully follow each step in the appropriate MAXREFDES117# quick Start Guide [ https://www.maximintegrated.com/en/design/reference-design-center/system-board/6300.html/tb_tab2 ] :





Part List

Pulse Oximeter and Heart-Rate Sensor1
