[物聯汪汪] 含稅附發票~原廠 Raspberry Pi 樹莓派官方 7" Display 10指電容式觸控顯示器

商品編號:P0510714153486 原始貨號:P0510714153486

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 2,500
$ 2,650
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.seeedstudio.com/Raspberry-Pi-7-inch-Touchscreen-Display-p-604.html [ https://www.seeedstudio.com/Raspberry-Pi-7-inch-Touchscreen-Display-p-604.html ]  料號:RASPBERRYPI-DISPLAY


溫馨提示

***請注意: 此款螢幕僅限Pi 4 之前版本使用, Pi 5 不適用喔!


PRODUCT DETAILS

The 7" Touchscreen Monitor for Raspberry Pi gives users the ability to create all-in-one, integrated projects such as tablets, infotainment systems and embedded projects. The 800 x 480 display connects via an adapter board which handles power and signal conversion. Only two connections to the Pi are required; power from the Pi’s GPIO port and a ribbon cable that connects to the DSI port present on all Raspberry Pi's. Touchscreen drivers with support for 10-finger touch and an on-screen keyboard will be integrated into the latest Raspbian OS for full functionality without a physical keyboard or mouse.

Features

  • 7" Touchscreen Display.

  • Screen Dimensions: 194mm x 110mm x 20mm (including standoffs)

  • Viewable screen size: 155mm x 86mm

  • Screen Resolution 800 x 480 pixels

  • 10 finger capacitive touch.

  • Connects to the Raspberry Pi board using a ribbon cable connected to the DSI port.

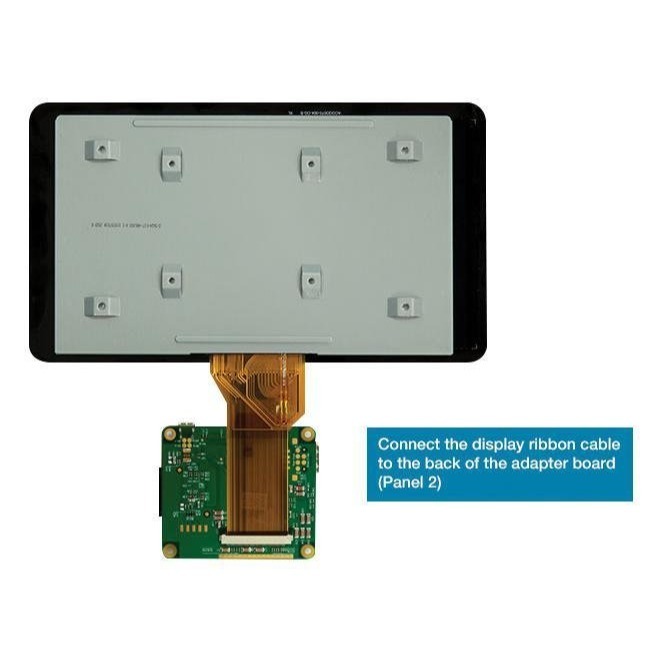

  • Adapter board is used to power the display and convert the parallel signals from the display to the serial (DSI) port on the Raspberry Pi.

Compatible with

  • Raspberry Pi 3 Model B [ https://www.seeedstudio.com/Raspberry-Pi-3-Model-B-p-2625.html ]

  • Raspberry Pi 2 Model B [ https://www.seeedstudio.com/Raspberry-Pi-2-Model-B-w%26amp%3B-ARMv7-Quad-Core-1GB-RAM-p-2289.html ]

  • Raspberry Pi Model B+ [ https://www.seeedstudio.com/Raspberry-Pi-Model-B%2B-p-1943.html ] Raspberry Pi Model A+ [ https://www.seeedstudio.com/Raspberry-PI-Model---A%2B-256M-p-2168.html ]

  • Raspberry Pi 4 Computer Model B 4GB [ https://www.seeedstudio.com/Raspberry-Pi-4-Computer-Model-B-4GB-p-4077.html ]

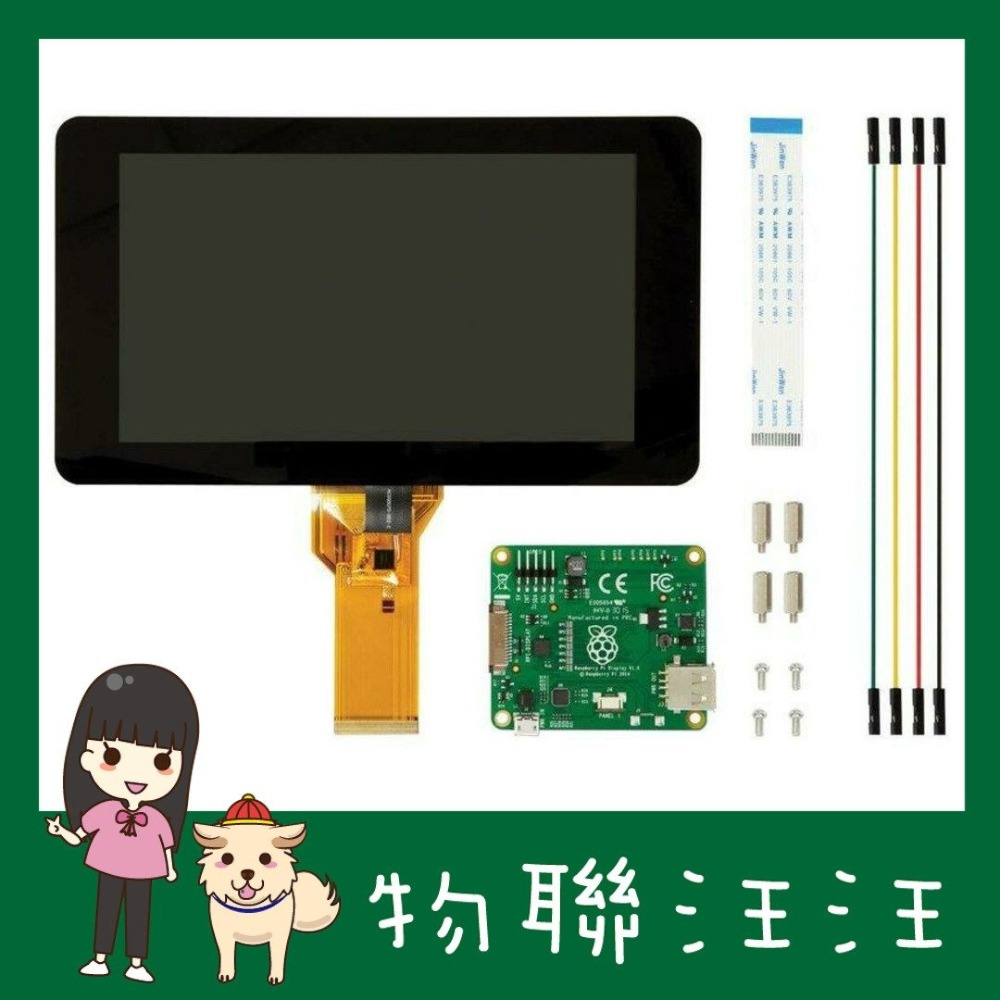

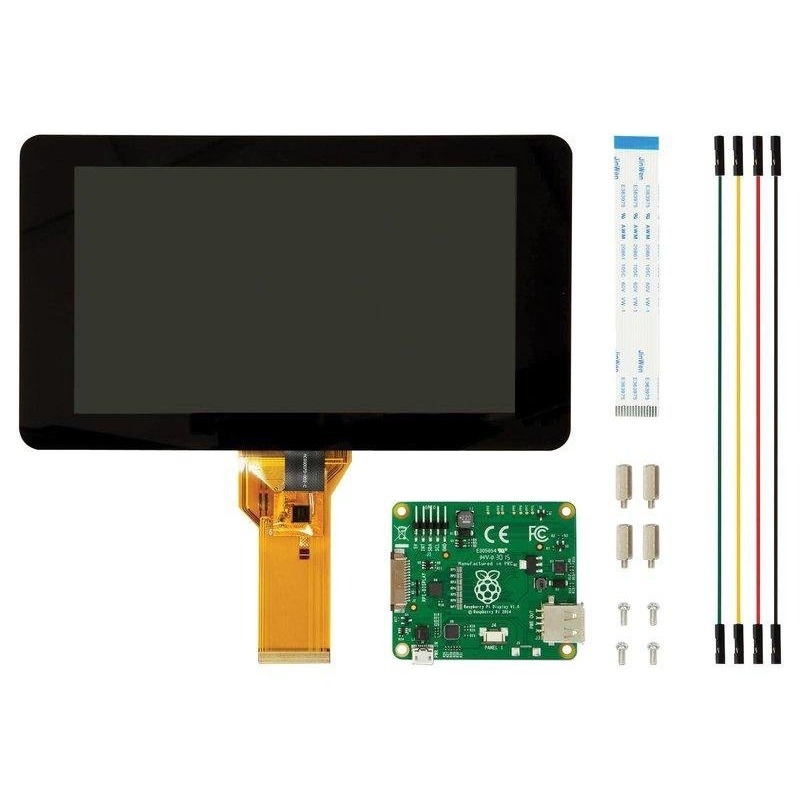

Part List

  • 1x 7" Touchscreen Display

  • 1x Adapter Board

  • 1x DSI Ribbon cable

  • 4x stand-offs and screws (used to mount the adapter board and Raspberry Pi board to the back of the display

  • 4x jumper wires (used to connect the power from the Adapter Board and the GPIO pins on the Pi so the 2Amp power is shared across both units)
