[物聯汪汪] 附發票~ DCMI OV9655 STM32F4DIS-CAM相機適STM32 Discovery Kit

商品編號:P0510713605112 原始貨號:P0510713605112

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 1,400
$ 1,485
預計出貨天數3天
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 http://www.farnell.com/datasheets/1785264.pdf [ http://www.farnell.com/datasheets/1785264.pdf ]  料號:STM32F4DIS-CAM


溫馨提示

採用 OV9655 鏡頭模組,可適用於眾多 STM32 Discovery 系列開發板,至於確切支援適用與否,請自行詳閱該開發板的 User Manual,並仔細比對軟排線連接訊號。

因原廠資料散落各處,我司整理存放於 STM32F4DIS-CAM [ https://docs.makehub.tw/stm32f4dis-cam/ ]  ,請自行參閱。



Overview

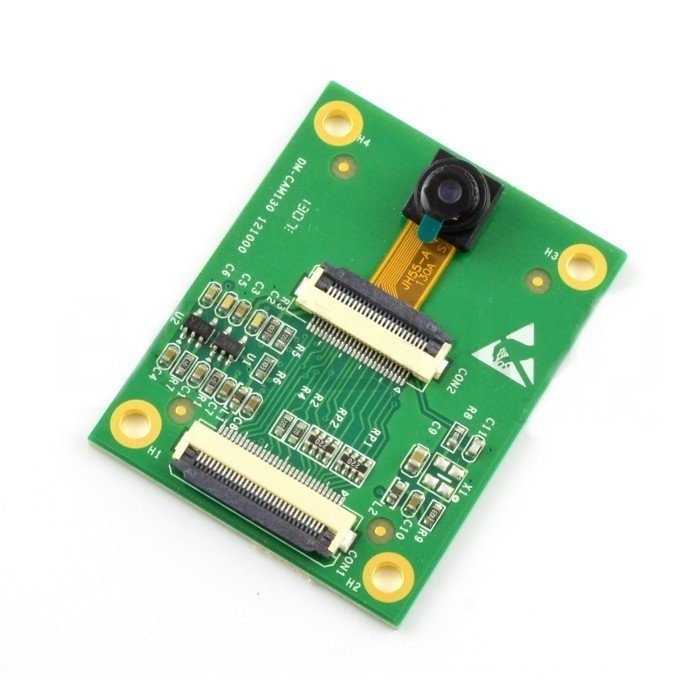

Digital Camera Module [STM32F4DIS-CAM] - designed by Embest, can be used on STM32F4DIS-BB evaluation board. This module contains an OV9655, which is a 1.3megapixel CMOS SXGA image sensor.

This module supports image preview, photo taking and photo storage. It is suitable for applications such as Portable Digital Terminal, Gaming and Home Automation.

Key Applications: Portable Digital Terminal, Gaming and Home Automation

[ ]

Features

  • Dimension: 47.8mm*37.6mm*6mm
  • Signal System: CMOS 1.3 Mega Pixel
  • Resolution: Up to 1280*1024
  • Interface: 30-pin FPC connector
  • Power Supply: From board
  • Operating Temp: -10°C ~ 70°C
  • Support Photo Taking
  • Frame Rate: 15fps for SXG, 30fps for VGA, CIF
[ ]

Ships With

  • 1 x Digital Camera Module - STM32F4DIS-CAM
[ ]
