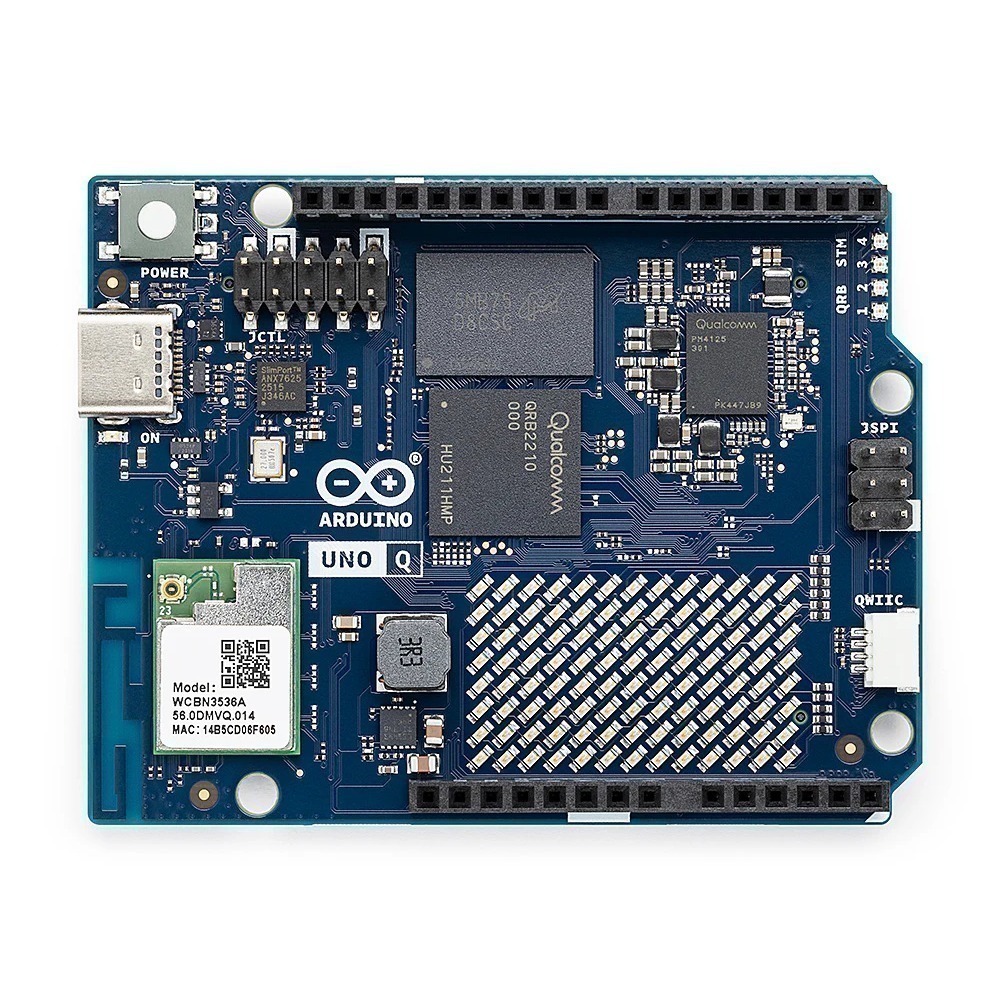

Arduino UNO Q’s hybrid design makes it the perfect dual-brain platform for your next innovation. It combines a Linux® Debian-capable Qualcomm® Dragonwing™ QRB2210 microprocessor with a real-time STM32U585 microcontroller (MCU). It’s Arduino, it’s a computer, it’s anything you want to build.
It’s the go-to tool to prototype your next robotics or IoT project, thanks to:
- All-in-one toolbox: Arduino UNO Q combines the powerful Qualcomm® Dragonwing™ QRB2210 microprocessor (MPU) with a real-time STM32U585 microcontroller (MCU) – no matter what you’re building, it’s your new go-to tool!
- AI in a blink: unlock AI-powered vision and sound solutions that react to their environment.
- Arduino support and developer tools including libraries, sketches, and projects developed for the UNO ecosystem by millions of users.
- Compatible with the Arduino UNO ecosystem: UNO Q works with a wide range of Arduino hardware, from classic UNO shields to new carriers, and includes a Qwiic connector for Modulino® nodes and third-party modules.
- Streamlined software experience: in addition to Arduino IDE and Arduino Cloud, you can jumpstart development with plenty of pre-built examples and AI models available through Arduino App Lab.
- Seamless, unified development: build classic Arduino Sketches, code in Python® thanks to the pre-installed Linux® Debian OS, or mix the two from a single interface – it’s easy, with Arduino App Lab.

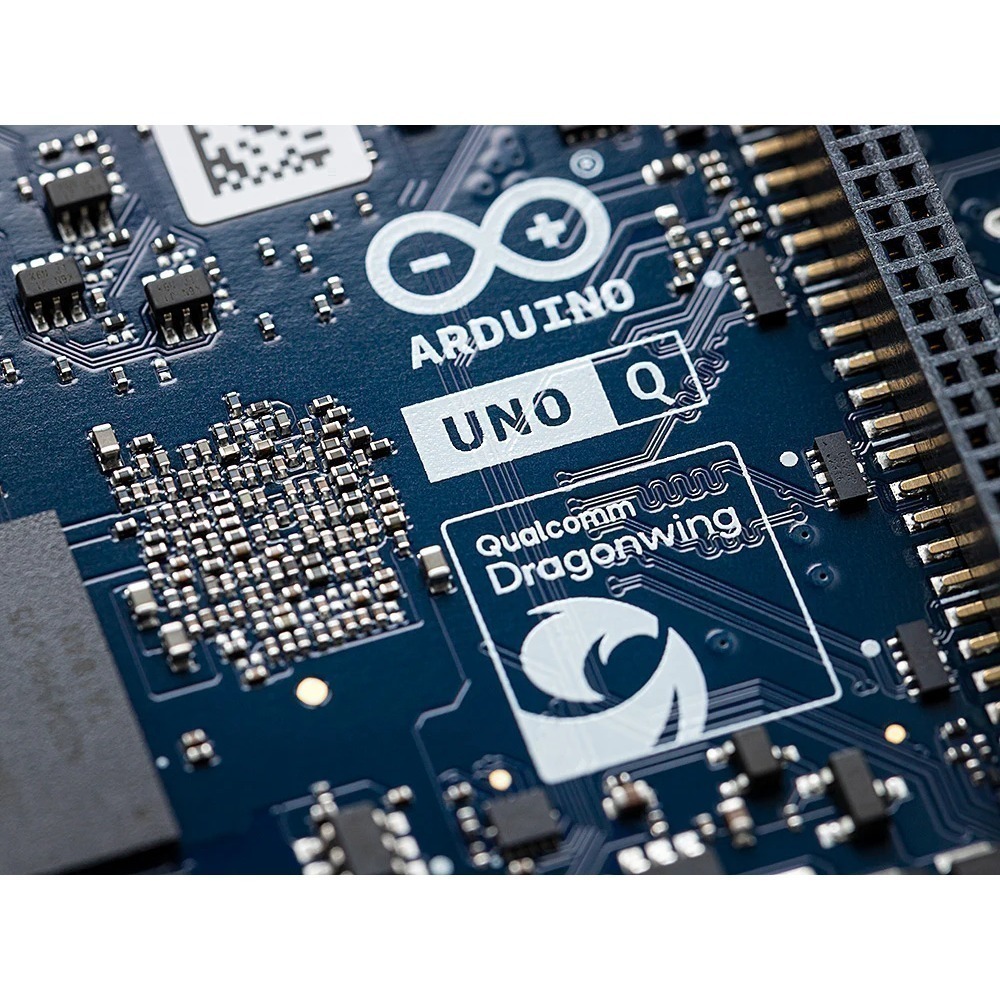

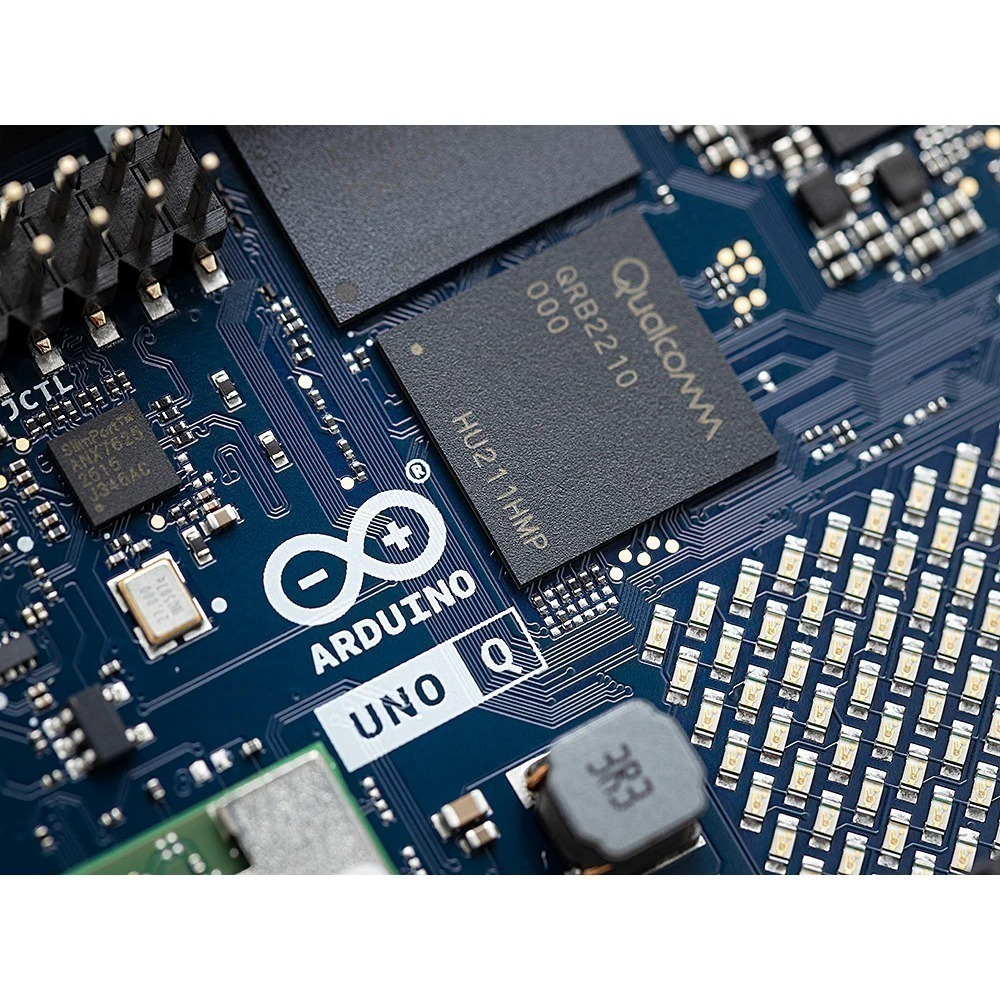

Powered by Qualcomm Dragonwing QRB2210
Your UNO Q is a compact, cost-effective platform with advanced features like machine vision – thanks to the integrated AI and GPU acceleration, quad-core 2.0 GHz CPU, Adreno GPU, 2x ISP, and support for camera, display, and audio provided by the Dragonwing QRB2210.
Advanced features
- Microprocessor: Qualcomm® Dragonwing™ QRB2210
- Microcontroller: Real-time, low-power STM32U585 MCU
- RAM: 2GB LPDDR4
- Storage: 16 GB eMMC built-in (no SD card required)
- Connectivity: Dual-band Wi-Fi® 5 (2.4/5 GHz), Bluetooth® 5.1
- High-speed headers: Power advanced peripherals – vision, audio, display
- Classic UNO headers: Mount shields to add capabilities
- LED matrix: 8 x 13 LED matrix for visual creation and feedback

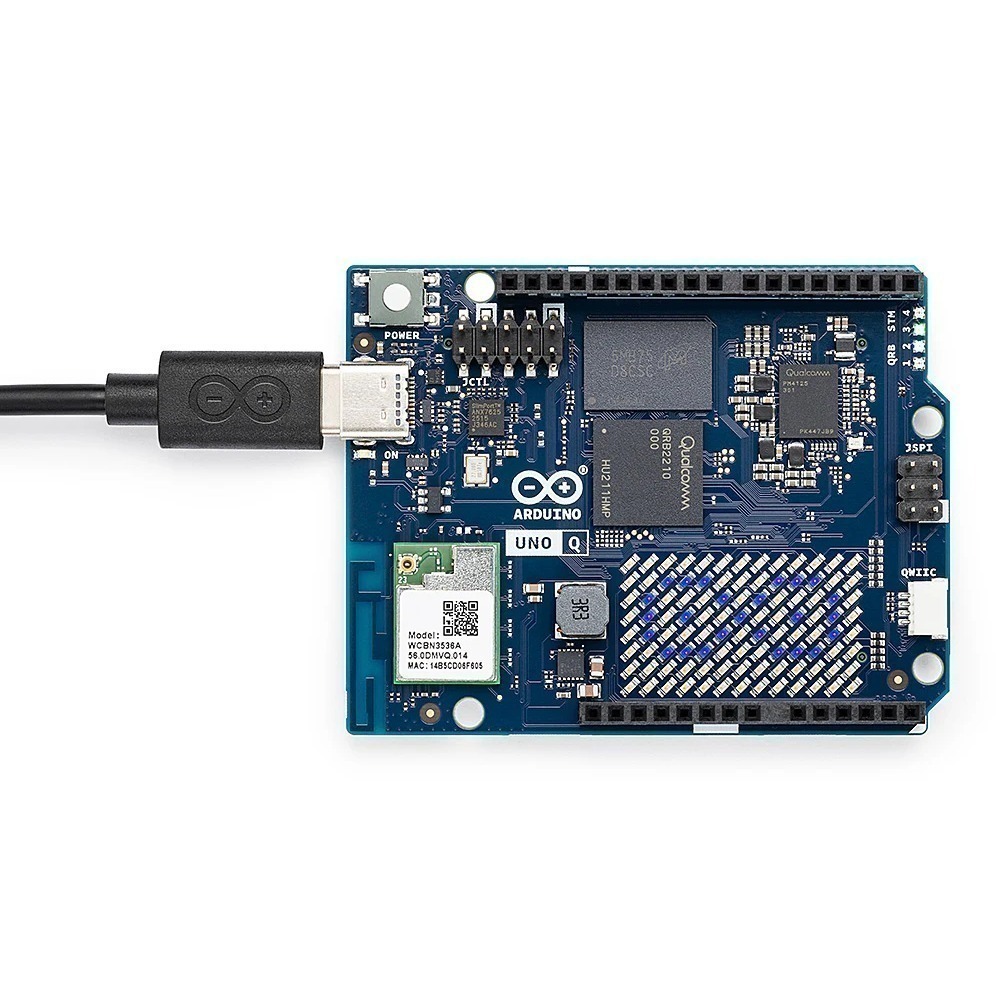

- USB-C connector: Power delivery, video output, or connect keyboard, mouse, USB microphones or USB cameras via dongle
- Qwiic connector: Expand easily with Modulino® nodes – no soldering required
UNO Q empowers innovators to turn ideas into real-world solutions. Whether you’re experimenting with IoT, learning robotics, or diving into AI, your next idea starts with Q.
Tech specs
| Microprocessor (MPU) | Qualcomm Dragonwing™ QRB2210: Quad-core Arm® Cortex®-A53 @ 2.0 GHz Adreno GPU 3D graphics accelerator 2x ISP (13 MP + 13 MP or 25 MP) @ 30 fps |
| Microcontroller (MCU) | STM32U585 Arm® Cortex®-M33 up to 160 MHz 2 MB flash memory 786 KB SRAM |
| RAM | 2GB LPDDR4 |
| Power Supply | From USB-C connector 5 V max at 3 A Input Voltage (VIN): 7-24 V |
| Storage | 16GB eMMC |
| USB | 1× USB-C port with host/device role switching, power role switch and video output |
| Connectivity | Wi-Fi® 5 2.4/5GHz with onboard antenna Bluetooth® 5.1 with onboard antenna |
| Interfaces | I2C/I3C SPI PWM CAN UART PSSI GPIO JTAG ADC |
| Video | Video output support via USB-C MIPI DSI pins on JMEDIA header |
| Extra | 4× RGB user-controllable LEDs 8x13 Blue LED Matrix 1x Qwiic connector voltage 3V3, I2C 1x User push-button JCTL: MPU Remote Debug connector |
| Audio | Microphone IN / Headphone OUT / Line OUT on JMISC |

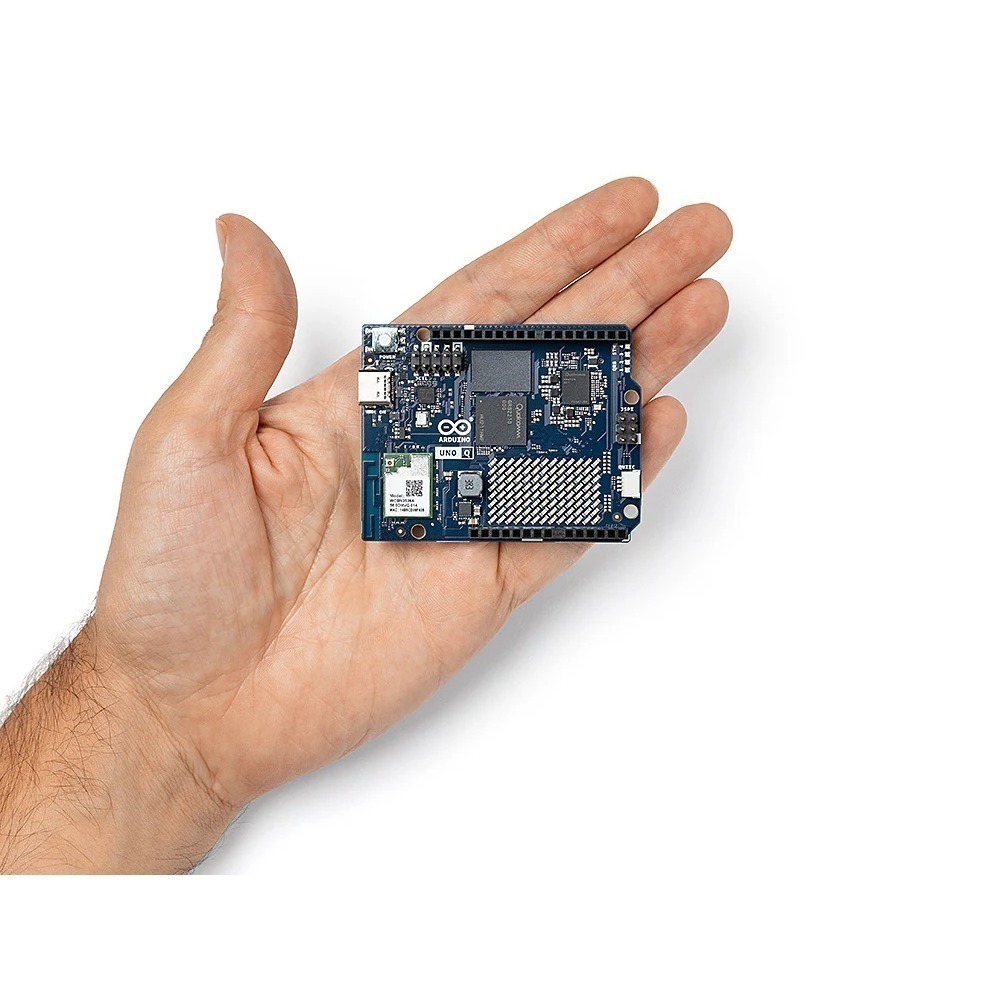

| Dimensions | 68.85 mm x 53.34 mm (UNO form factor) |
| MPU Operating System | Linux Debian OS with upstream support |
| Real-time Operating System | Arduino Core on Zephyr OS |
| Containerization | Docker and Docker Compose support |
| Support Operating Systems for Arduino App Lab | Windows: Windows 10 or later (64-bit) macOS: macOS 11 or later (64-bit) Linux: Ubuntu 22.04 or later, and Debian Trixie (64-bit) |
Documentation
DATASHEET IN .PDF [ https://docs.arduino.cc/resources/datasheets/ABX00162-ABX00173-datasheet.pdf ]
