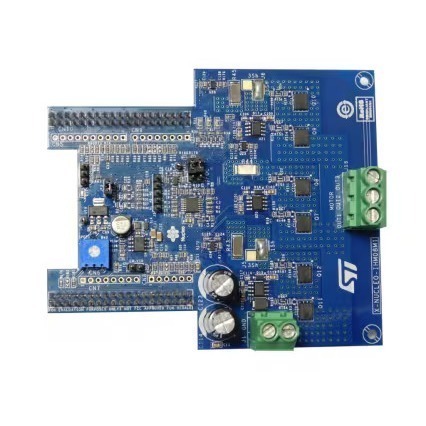

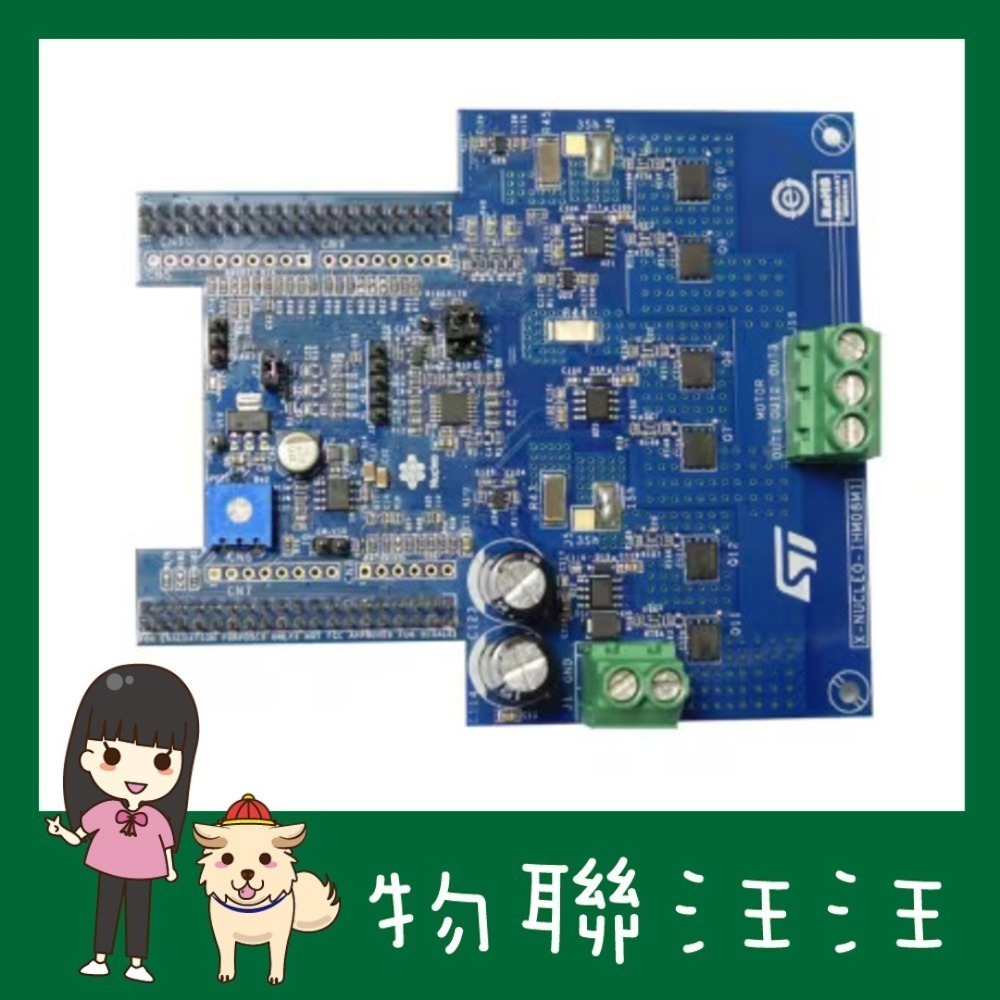

[物聯汪汪] 附發票~ X-NUCLEO-IHM08M1基於 STL220N6F7 的低壓 BLDC 馬達驅動器擴充板

商品編號:P0510712263002 原始貨號:P0510712263002

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 2,100
$ 2,180
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.st.com/en/ecosystems/x-nucleo-ihm08m1.html [ https://www.st.com/en/ecosystems/x-nucleo-ihm08m1.html ]  料號:X-NUCLEO-IHM08M1


Description

The X-NUCLEO-IHM08M1 is a three-phase brushless DC motor driver expansion board based on the STL220N6F7 STripFET™ F7 Power MOSFET for STM32 Nucleo. It provides an affordable and easy-to-use solution for driving three-phase brushless DC motors as part of our STM32 Nucleo project. The X-NUCLEO-IHM08M1 is compatible with the ST morpho connector and supports the addition of other boards which can be connected with a single STM32 Nucleo board. The user can also mount the Arduino™ UNO R3 connector. The IC driver used on this expansion board is the L6398 single-chip half bridge gate driver for the N-channel power MOSFET. The L6398 gate driver plus STL220N6F7 Power MOSFET combination forms the high current power platform for the BLDC motor and the digital section based on the STM32 Nucleo board offers 6-step or FOC algorithm control solutions, which you can select in the firmware.

All features

  • 3-phase driver board for BLDC/PMSM motors
  • Nominal operating voltage range from 10 V to 48 V DC
  • 15 ARMS output current
  • Operating frequency selectable by firmware
  • Overcurrent detection and protection (30 Apeak)
  • Thermal monitoring and overheating protection
  • Compatible with STM32 Nucleo boards
  • Equipped with ST morpho connectors
  • 3-Shunt and 1-Shunt configurable jumpers for motor current sensing
  • Hall/Encoder motor sensor connector and circuit
  • Debug connector for DAC, GPIOs, etc.
  • Potentiometer available for speed regulation
  • User LED
  • RoHS compliant
