Description

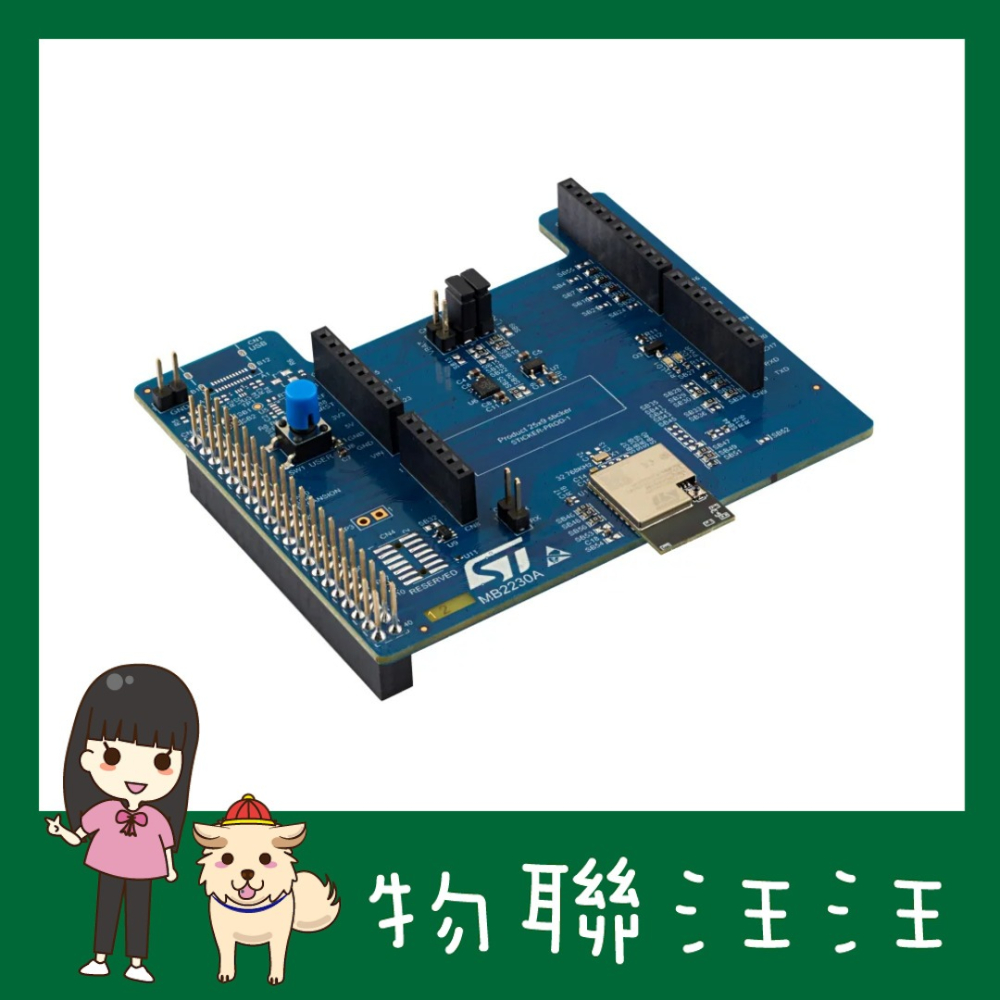

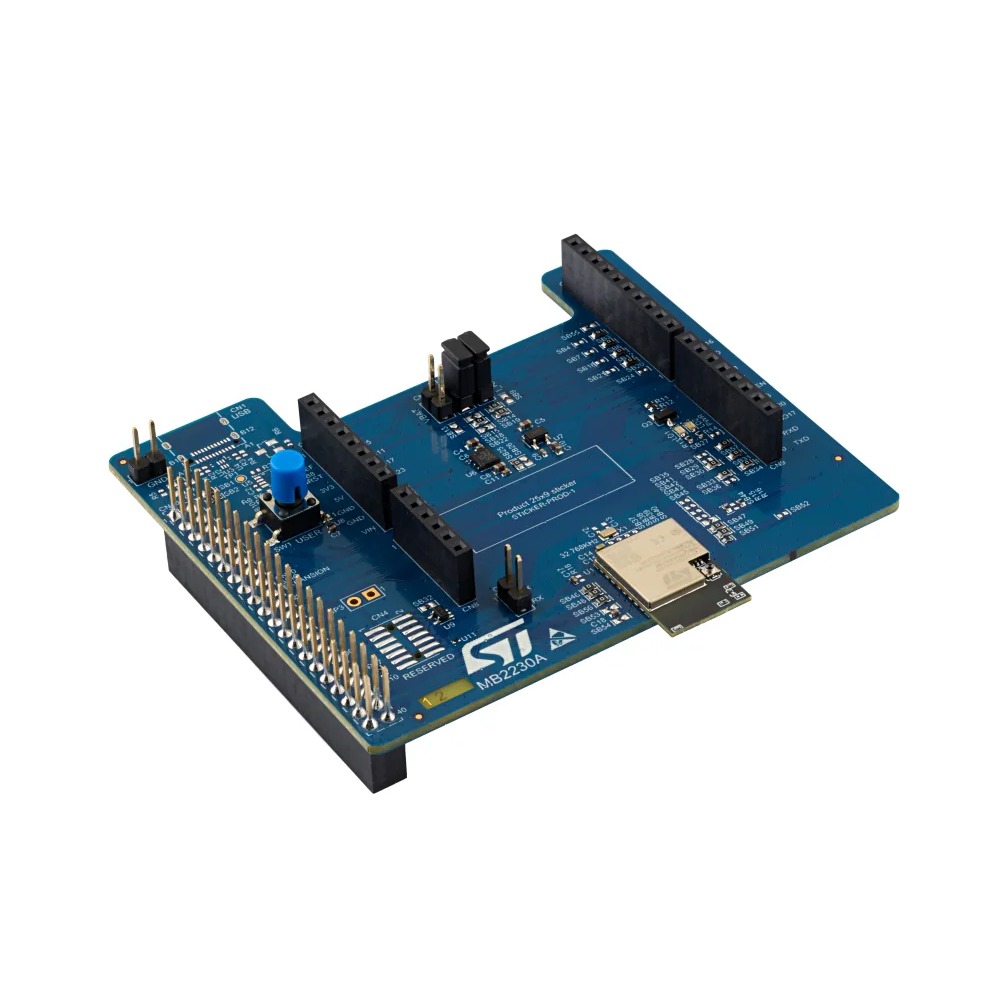

The X-NUCLEO-67W61M1 expansion board provides an affordable and flexible way for users to try out new concepts and build prototypes with the ST67W series ST67W611M1 coprocessor module.
Interfacing with the host is possible through SPI via the ARDUINO® Uno V3 or expansion connectors. This expansion board is stackable on Nucleo-64, Nucleo-144, and Discovery boards. The main hosts are the STM32U5, STM32H5, STM32H7, and STM32N6 product families.
Powered by all-in-one 2.4 GHz Wi‑Fi® 6/Bluetooth® combo SoC, the ST67W611M1 LGA module is purposely designed to pack the processing capabilities, Wi‑Fi®/Bluetooth® combo connectivity, and on-module memory into a single 32-pin LGA form factor.
For more details on the ST67W611M1 coprocessor module, refer to its datasheet at www.st.com.
All features
- ST67W611M1 module, 32‑pin, 4‑side LGA 1.27‑mm pitch (12.28 x 17.28 x 2.2 mm) package featuring:
- 2.4 GHz Wi‑Fi®/Bluetooth® combo all‑in‑one SoC
- Wi‑Fi® 6, coprocessor IEEE 802.11 b/g/n/ax
- Single-band 2.4 GHz
- Low-power Wi‑Fi® with various sleep modes
- PCB antenna and antenna connector
- User LED
- User push button
- Board connectors:
- ARDUINO® Uno V3
- Raspberry Pi® 40-pin GPIO header
- Scalable solution, capable of cascading multiple boards for larger systems
- Free comprehensive development firmware library and examples, compatible with the X-CUBE-ST67W61 expansion software package for STM32Cube
