詳盡技術資料請見原廠或供應商 https://www.ti.com/tool/LP-MSPM0G3519 [ https://www.ti.com/tool/LP-MSPM0G3519 ] 料號:LP-MSPM0G3519
Description & features

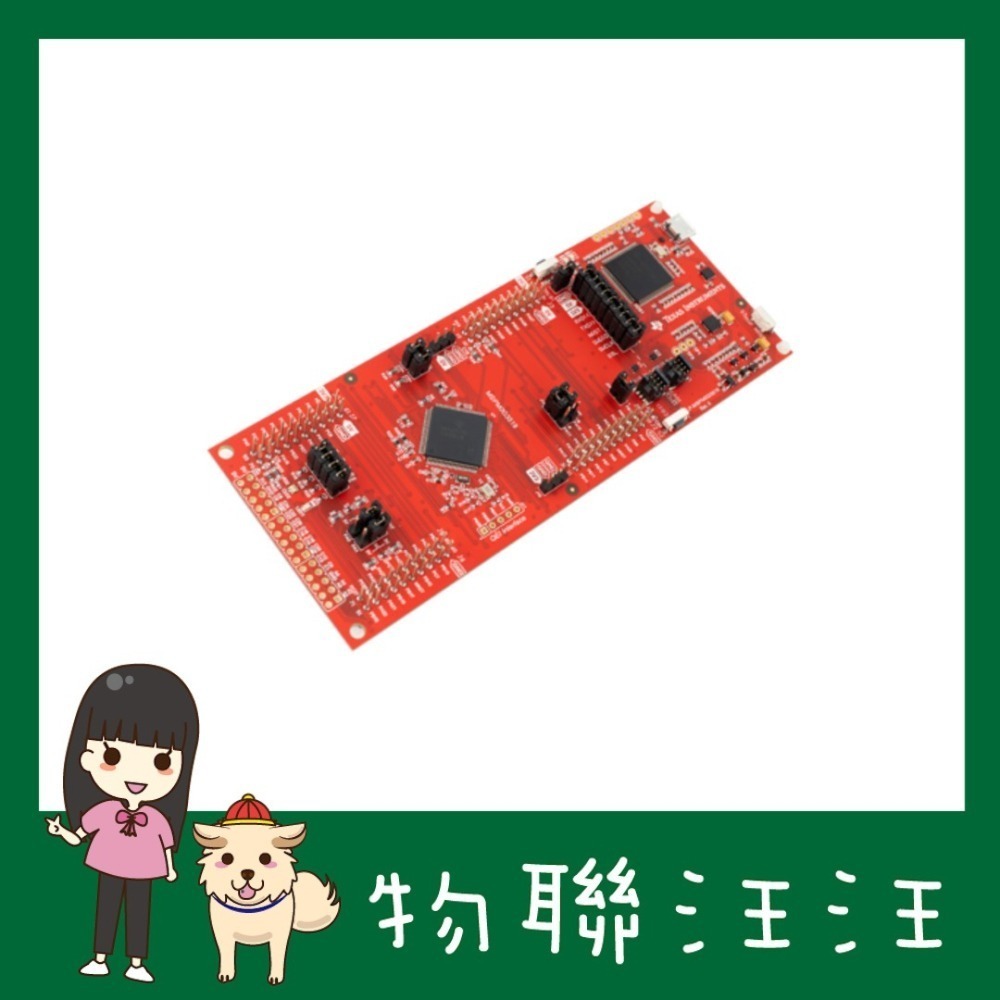

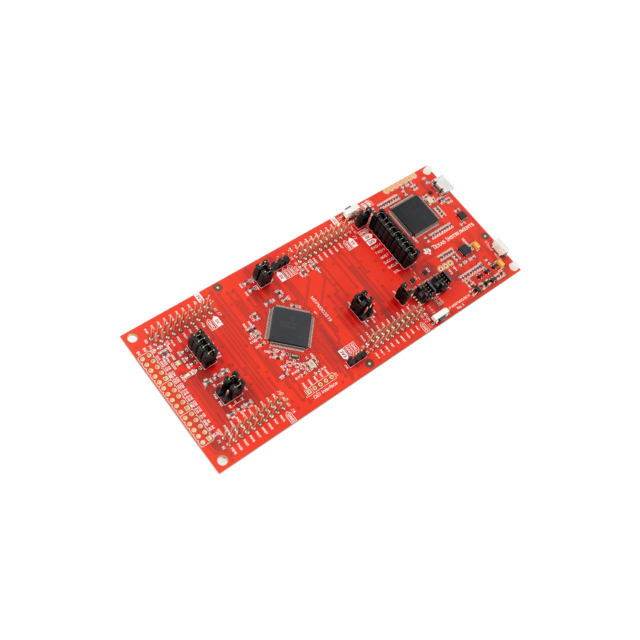

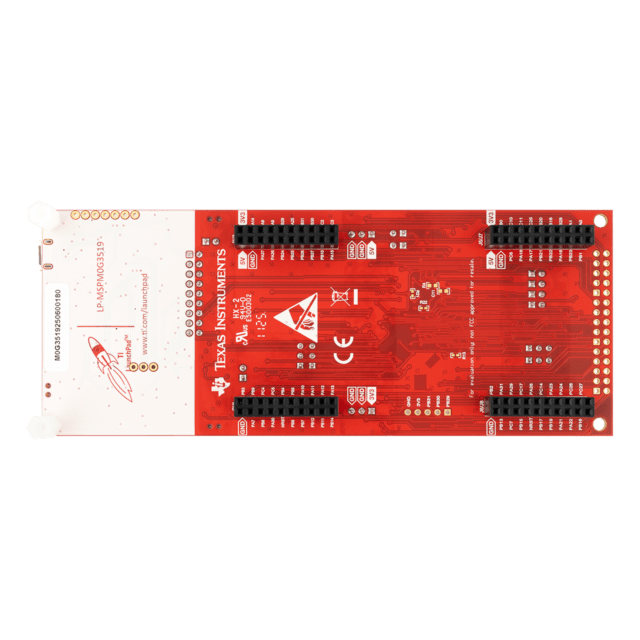

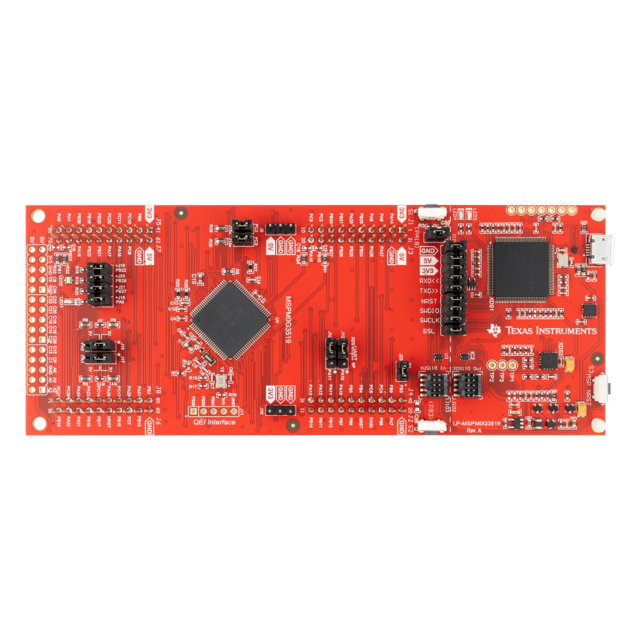

The LP-MSPM0G3519 LaunchPad™ development kit is an easy-to-use evaluation module (EVM) based on the MSPM0G3519. It contains everything needed to start developing on the MSPM0G3519 M0+ MCU platform, including on-board debug probe for programming, debugging and energy measurements. The board includes three buttons, two LEDs (one is an RGB LED) and 80+ pins. Improve analog results with ADC and DAC low-pass filter placeholders placed in optimal positions and external reference options available on the back of the launchpad.
Features
- Onboard XDS110 debug probe
- Backchannel UART through USB to PC
- USB-powered
- 80-pin BoosterPack™ headers
- Hardware user interfaces – Two buttons, 1 RGB LED, and 1 RED LED
- External clock crystals
Supported products
Arm Cortex-M0+ MCUs
MSPM0G1518 [ https://www.ti.com/product/MSPM0G1518 ] — 80 MHz ARM® Cortex®-M0+ MCU with dual-bank 256kB flash, 128kB SRAM, 2xADC, DAC, 3xCOMP MSPM0G1519 [ https://www.ti.com/product/MSPM0G1519 ] — 80 MHz ARM® Cortex®-M0+ MCU with dual-bank 512kB flash, 128kB SRAM, 2xADC, DAC, 3xCOMP MSPM0G3518 [ https://www.ti.com/product/MSPM0G3518 ] — 80MHz ARM® Cortex®-M0+ MCU with dual-bank 256kB flash, 128kB SRAM, 2xCAN-FD, 2xADC, DAC, COMP MSPM0G3518-Q1 [ https://www.ti.com/product/MSPM0G3518-Q1 ] — Automotive 80MHz ARM® Cortex®-M0+ MCU with 256kB flash, 128kB SRAM, 2 CAN, 2 ADC, DAC, COMP MSPM0G3519 [ https://www.ti.com/product/MSPM0G3519 ] — 80 MHz ARM® Cortex®-M0+ MCU with dual-bank 512kB flash, 128kB SRAM, 2xCAN-FD, 2xADC, DAC, COMP MSPM0G3519-Q1 [ https://www.ti.com/product/MSPM0G3519-Q1 ] —Automotive 80MHz ARM® Cortex®-M0+ MCU with 512kB flash, 128kB SRAM, 2 CAN, 2 ADC, DAC, COMP
