詳盡技術資料請見原廠或供應商 https://www.ti.com/tool/LAUNCHXL-F28P65X [ https://www.ti.com/tool/LAUNCHXL-F28P65X ] 料號:LAUNCHXL-F28P65X
Description & features

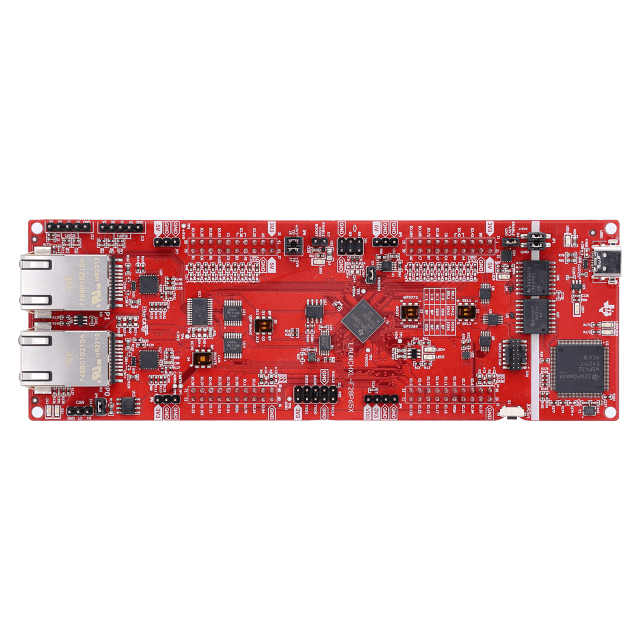

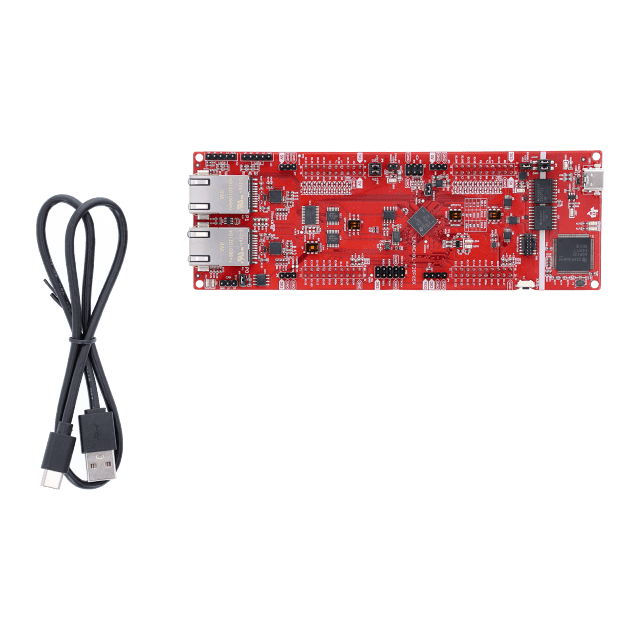

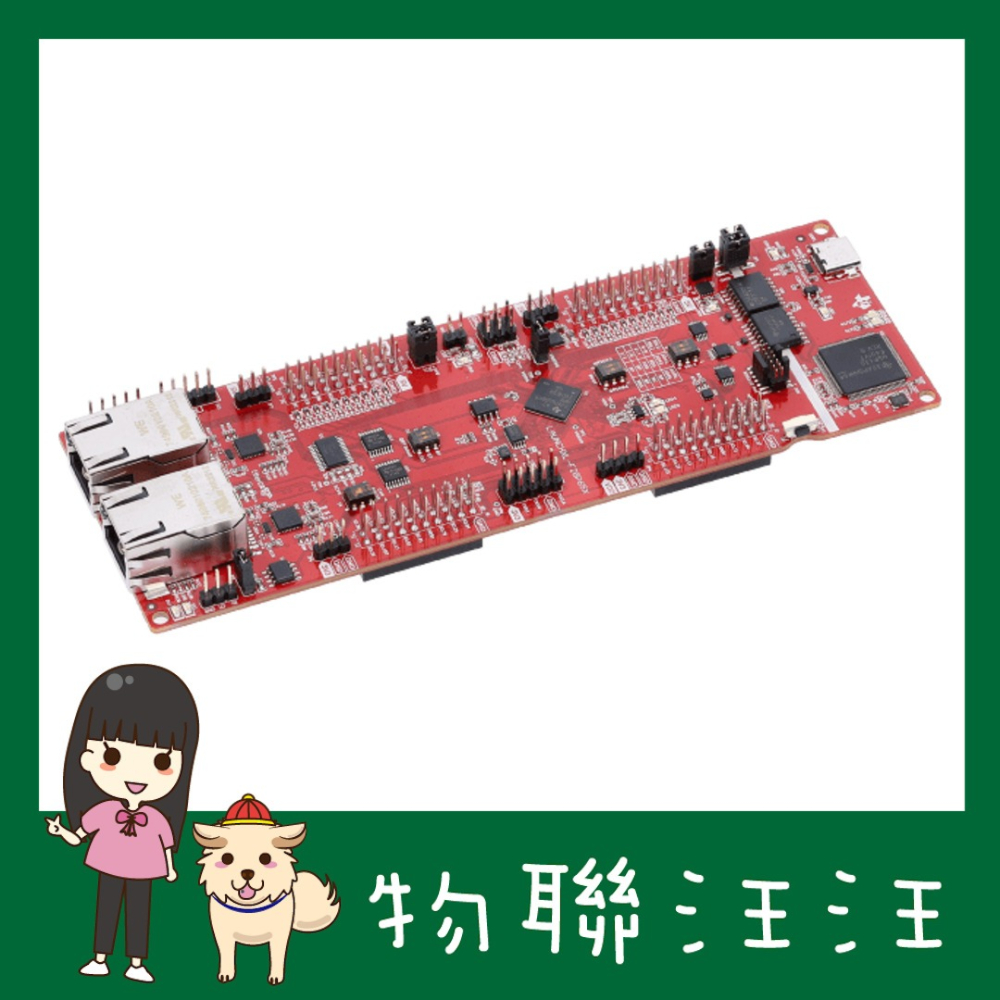

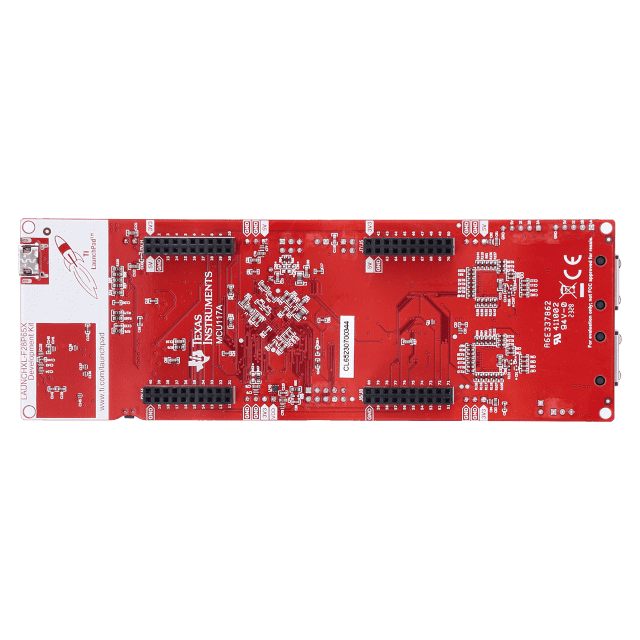

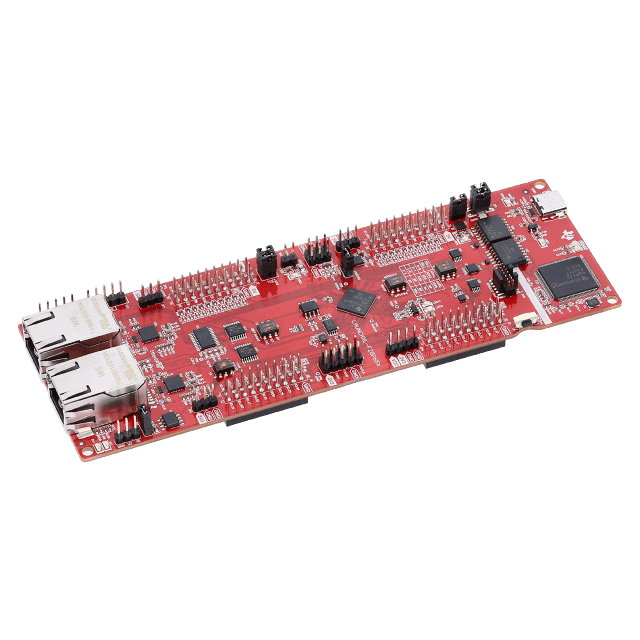

LAUNCHXL-F28P65X is a low-cost development board for TI C2000™ real-time microcontrollers series of F28P65x devices. Ideal for initial evaluation and prototyping, it provides a standardized and easy to use platform to develop your next application. This extended version LaunchPad™ developement kit offers extra pins for development and supports the connection of two BoosterPack™ plug-in modules. As part of the vast TI MCU LaunchPad ecosystem, it is also cross-compatible with a broad range of plug-in modules.
Features
Hardware Features
- TMS320F28P650DK9: 200 MHz dual C28x CPU with FPU and TMU, 200 MHz dual CLA, 1.28 MB Flash, 3x 16-bit or 12-bit ADCs, 36x PWM channels, CAN (DCAN), 6x encoder modules (eQEP), UART, and more
- On-board XDS110 debug probe for real-time debug and flash programming
- 80-pin LaunchPad leveraging the BoosterPack ecosystem
- Power domain isolation for real-time debug and flash programming
- On-board CAN transceiver and connector
- EtherCAT PHYs and RJ45 connectors
- Two encoder interface (eQEP) connectors
Supported products
C2000 real-time microcontrollers
TMS320F28P650DH [ https://www.ti.com/product/TMS320F28P650DH ] — C2000 32-bit MCU, 600 MIPS, 2xC28x + 1xCLA CPU, FPU64, 768kB flash, 16-b ADCTMS320F28P650DK [ https://www.ti.com/product/TMS320F28P650DK ] — C2000™ 32-bit MCU, 2x C28x+CLA CPU, Lock Step, 1.28-MB flash, 16-b ADC, HRPWM, EtherCAT, CAN-FD, AESTMS320F28P650SH [ https://www.ti.com/product/TMS320F28P650SH ] — C2000 32-bit MCU, 400 MIPS, 1xC28x + 1xCLA CPU, FPU64, 768kB flash, 16-b ADCTMS320F28P650SK [ https://www.ti.com/product/TMS320F28P650SK ] — C2000 32-bit MCU, 400 MIPS, 1xC28x + 1xCLA CPU, FPU64, 1.28-MB flash, 16-b ADC, EthercatTMS320F28P659DH-Q1 [ https://www.ti.com/product/TMS320F28P659DH-Q1 ] — Automotive C2000 32-bit MCU, 600 MIPS, 2xC28x + 1xCLA + Lockstep, FPU64, 768kB flash, 16-b ADCTMS320F28P659DK-Q1 [ https://www.ti.com/product/TMS320F28P659DK-Q1 ] — C2000™ 32-bit MCU, 2x C28x+CLA CPU, Lock Step, 1.28-MB flash, 16-b ADC, HRPWM, CAN-FD, AESTMS320F28P659SH-Q1 [ https://www.ti.com/product/TMS320F28P659SH-Q1 ] — Automotive C2000 32-bit MCU, 400 MIPS, 1xC28x + 1xCLA , FPU64, 768kB flash, 16-b ADC
