[物聯汪汪] 含稅附發票~B-L475E-IOT01A1 915MHz BLE,NFC,SubGHz,Wi-Fi 0 直

商品編號:P0510711948274 原始貨號:P0510711948274

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 3,300
$ 3,500
預計出貨天數3天
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.st.com/en/evaluation-tools/b-l475e-iot01a.html [ https://www.st.com/en/evaluation-tools/b-l475e-iot01a.html ]  料號:B-L475E-IOT01A1


Description

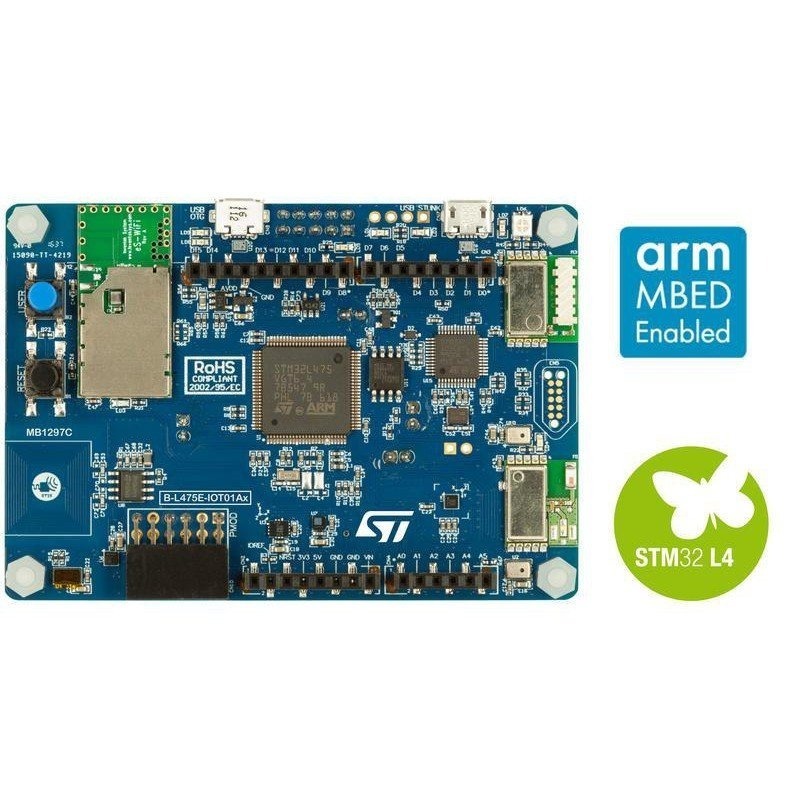

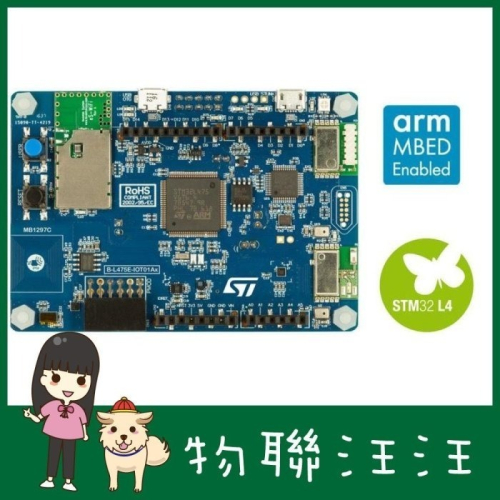

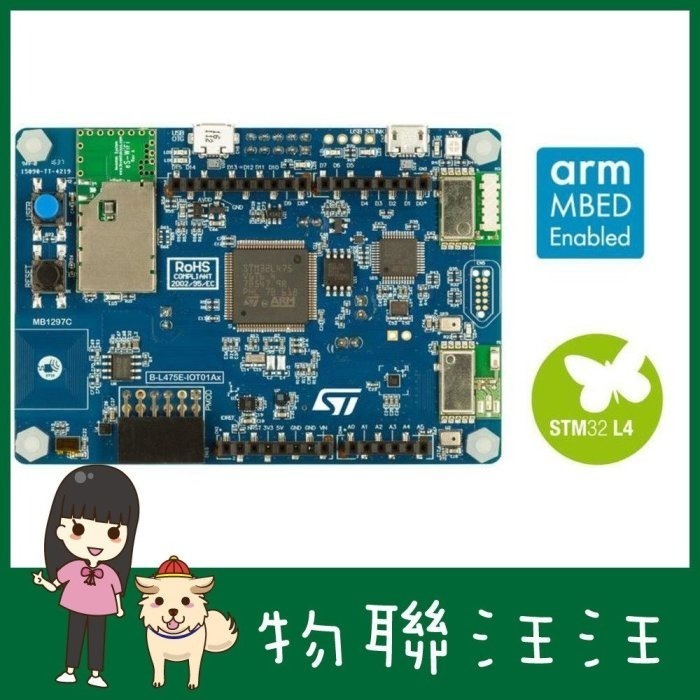

The B-L475E-IOT01A Discovery kit for IoT node allows users to develop applications with direct connection to cloud servers. The Discovery kit enables a wide diversity of applications by exploiting low-power communication, multiway sensing and Arm® Cortex® -M4 core-based STM32L4 Series features.
The support for Arduino Uno V3 and PMOD connectivity provides unlimited expansion capabilities with a large choice of specialized add-on boards.



All features

  • Ultra-low-power STM32L4 Series MCUs based on Arm® Cortex®-M4 core with 1 Mbyte of Flash memory and 128 Kbytes of SRAM, in LQFP100 package
  • 64-Mbit Quad-SPI (Macronix) Flash memory
  • Bluetooth® V4.1 module (SPBTLE-RF)
  • Sub-GHz (868 MHz or 915 MHz) low-power-programmable RF module (SPSGRF-868 or SPSGRF-915)
  • 802.11 b/g/n compliant Wi-Fi® module from Inventek Systems (ISM43362-M3G-L44)
  • Dynamic NFC tag based on M24SR with its printed NFC antenna
  • 2 digital omnidirectional microphones (MP34DT01)
  • Capacitive digital sensor for relative humidity and temperature (HTS221)
  • High-performance 3-axis magnetometer (LIS3MDL)
  • 3D accelerometer and 3D gyroscope (LSM6DSL)
  • 260-1260 hPa absolute digital output barometer (LPS22HB)
  • Time-of-Flight and gesture-detection sensor (VL53L0X)
  • 2 push-buttons (user and reset)
  • USB OTG FS with Micro-AB connector
  • Expansion connectors:
    • Arduino™ Uno V3
    • PMOD
  • Flexible power-supply options:
    • ST LINK USB VBUS or external sources
  • On-board ST-LINK/V2-1 debugger/programmer with USB re-enumeration capability: mass storage, Virtual COM port and debug port
  • Comprehensive free software HAL library including a variety of examples, as part of the STM32Cube MCU Package
  • Support of a wide choice of Integrated Development Environments (IDEs) including IAR™, Keil®, GCC-based IDEs, Arm® Mbed Enabled™
  • Arm® Mbed™ online (see http://mbed.org)
