javascript:saveProd(1);about:blank#blocked詳盡技術資料請見原廠或供應商 https://i2cdriver.com/mini.html [ https://i2cdriver.com/mini.html ] 料號:i2cmini

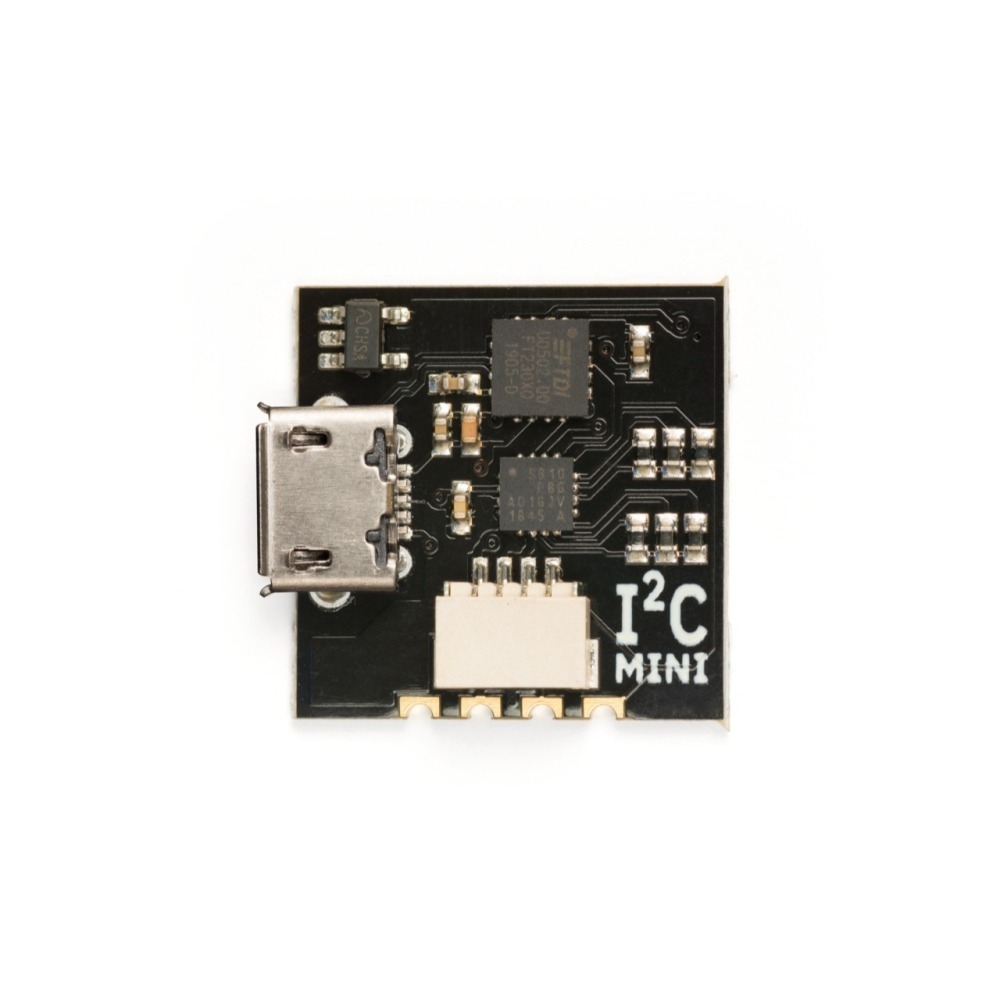

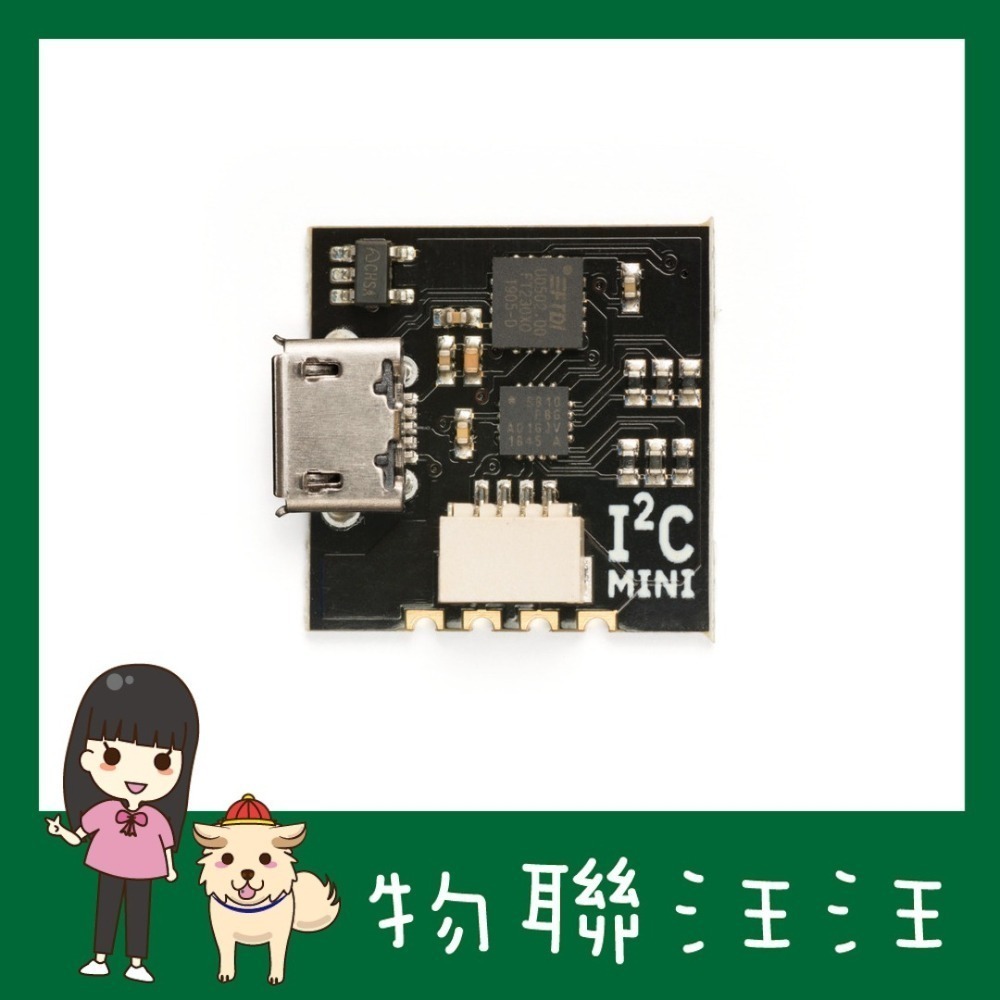

鼎鼎大名的 Gameduino 神人級獨立開發商開源大作 I2C Driver,群眾募資近 6 萬美金,超標 16 倍! 而此為 I2C Driver 簡化版本,移除 LCD,適於簡單功能驗證。
開發人員需要的實戰功能應有盡有,足以解決任何 I2C 疑難雜症!
- 快速傳輸:持續 I²C 傳輸,頻率為 400 至 100 kHz
- I²C 上拉電阻:可程式 I²C 上拉電阻,具有自動調節功能
- 雙 I²C 連接埠:一組 .1 英吋接頭、一個標準 Qwiic 插座
- 跳線:內含高品質彩色 100mm Quicc 跳線
- 3.3 V 輸出:輸出電平為 3.3 V,皆可承受 5 V
- 支援所有 I²C 功能:7 位和 10 位 I²C 尋址、時脈延長、匯流排仲裁
- 堅固的組件:使用 FTDI USB 串列轉接器和 Silicon Labs 車用級 EFM8 控制器
- 使用情況報告:報告所有流量的正常運作時間、溫度和運行 CRC
- 開放硬體:設計、韌體和所有工具均受 BSD 許可
- 彈性控制:為 Windows、Mac 和 Linux 提供 GUI、命令列、C/C++ 和 Python 2/3 主機軟體
規格
- 最大輸出電流:高達 270 mA
- 設備電流:最高5 mA

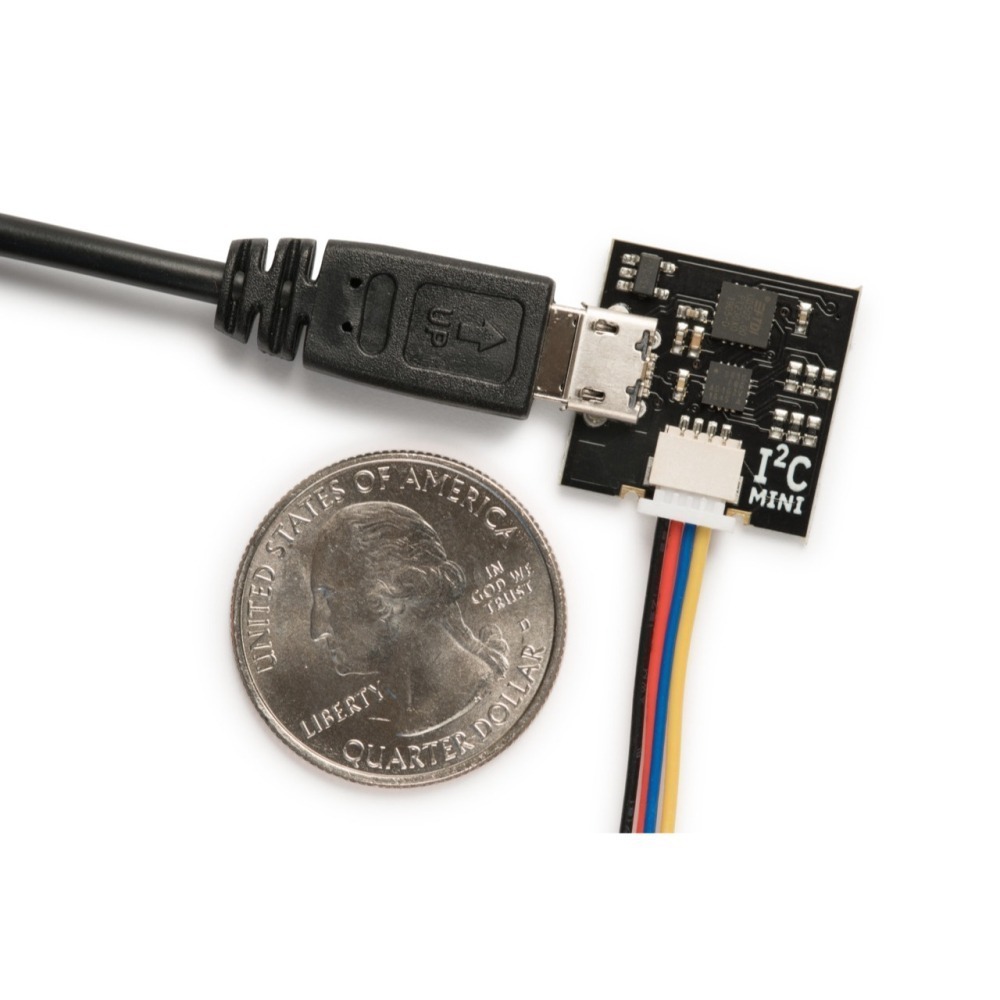

- 尺寸:18 毫米 x 18 毫米 x 2 毫米
- 電腦介面:USB 2.0,micro USB 連接器
最棒的是:原廠提供中、英文使用手冊 PDF,新手亦可輕鬆入門毫無障礙!
- Fast transfer: sustained I²C transfers at 400 and 100 kHz
- I²C pullups: programmable I²C pullup resistors, with automatic tuning
- Dual I²C ports: one .1" header set, one standard Qwiic socket
- Jumper: high-quality color coded 100mm Quicc jumper included
- 3.3 V output: output levels are 3.3 V, all are 5 V tolerant
- Supports all I²C features: 7- and 10-bit I²C addressing, clock stretching, bus arbitration
- Sturdy componentry: uses an FTDI USB serial adapter, and Silicon Labs automotive-grade EFM8 controller
- Usage reporting: reports uptime, temperature, and running CRC of all traffic
- Open hardware: the design, firmware and all tools are under BSD license
- Flexible control: GUI, command-line, C/C++, and Python 2/3 host software provided for Windows, Mac, and Linux
Specifications
- Maximum power out current: up to 270 mA
- Device current: up to 5 mA
- Dimensions: 18 mm x 18 mm x 2 mm
- Computer interface: USB 2.0, micro USB connector
