詳盡技術資料請見原廠或供應商 https://www.st.com/en/evaluation-tools/steval-robkit1.html [ https://www.st.com/en/evaluation-tools/steval-robkit1.html ] 料號:STEVAL-ROBKIT1
主要優點
1. ST 為機器人提供
利用整合 AI 演算法的專用開源韌體和客製化行動應用程序,增強有關 ST 機器人應用產品的了解
2. 自主導航
機器人套件附帶固件,其中包括用於智慧自主導航的演算法,例如邊緣和懸崖檢測。
3. 全套機器人套件
功能齊全的套件,可立即投入使用,包括馬達、車輪、攝影機、馬達控制板和具有擴展功能的主處理器板。
Description

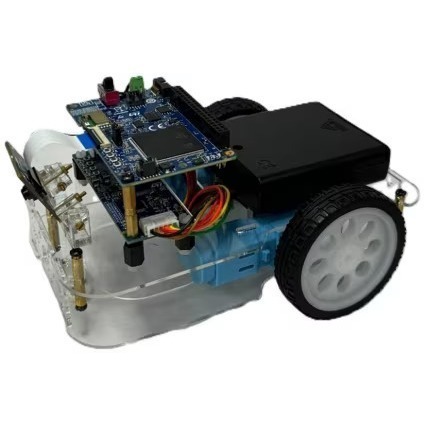

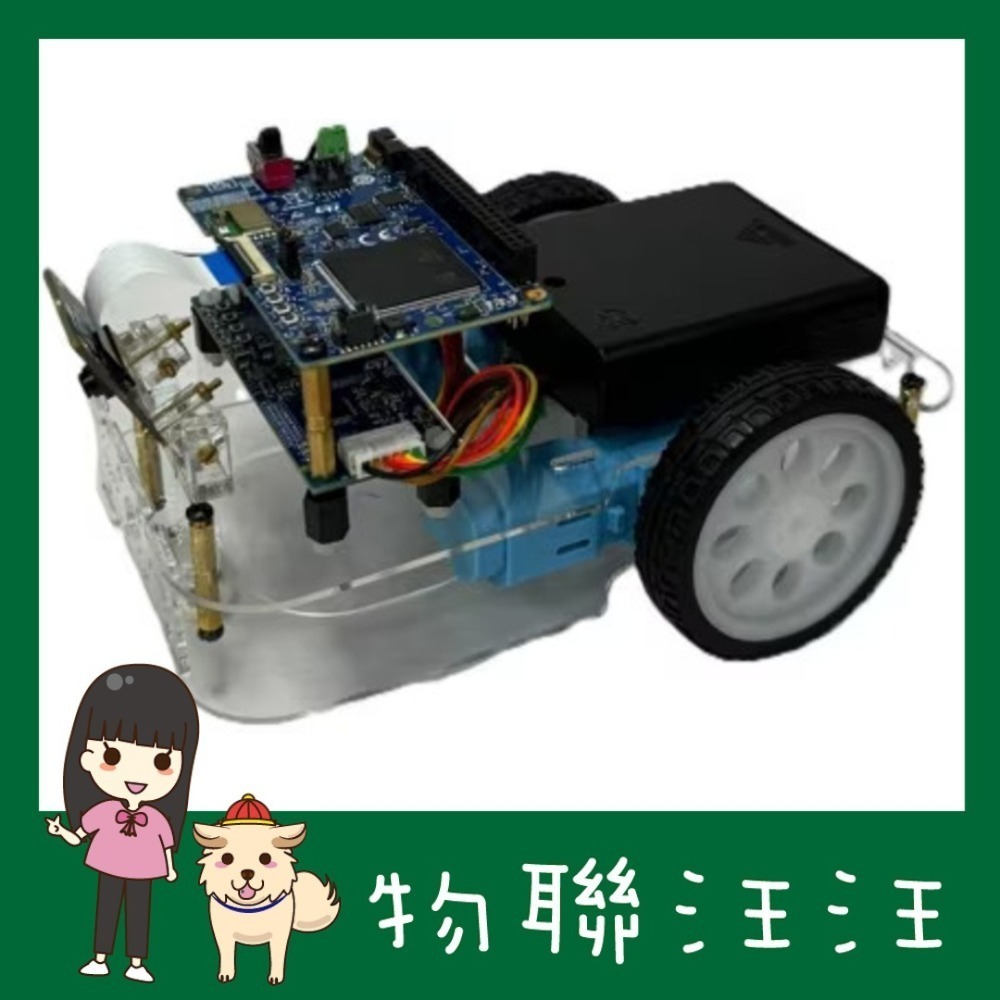

STEVAL-ROBKIT1 is a comprehensive robotics evaluation kit designed as a platform for the development of robotic technology and its applications.
The kit has a modular design, which consists of three boards: main board, motor control board, and imaging board.
The main board is powered by an STM32H725 MCU, which integrates various functionalities and controls the motor board and the imaging board.
The motor board is based on a STM32G071 microcontroller, dedicated for motor control and actuation using motor drivers to regulate the speed and direction of the robot's movements.
The imaging board is equipped with a Time-of-Flight (ToF) sensor and a camera module enabling it to perceive and interact with its surroundings intelligently.
Inertial measurement unit (IMU) and magnetometer enriches the board's capabilities by providing precise orientation and motion sensing, crucial for navigation and stability in dynamic environments.
Bluetooth® Low Energy (BLE) module facilitates seamless wireless communication, enabling the control using a mobile interface.
A dedicated firmware allows the robot to move autonomously and users to run different AI algorithms.
All features
- Modular design for different Robotics applications
- Based on High-Performance STM32H7 MCU
- DC Motor + STM32G0 Controller for navigation
- TOF sensor for Obstacle, Cliff detection
- Monochrome Camera
- On board external Flash and PSRAM memories
- Mobile App to control using phone
- 6-axis IMU sensor for Odometer
- Magnetometer for position accuracy
- Audio signal sensing using Low-distortion digital microphone
- Sound indication using Buzzer
- BLE Connectivity using certified BlueNRG-M2SA module
- LEDs & Keys for User interface
- 40 pin Raspberry Pi compatible GPIO Connector
