[物聯汪汪]~ReSpeaker XMOS XVF-3000 USB 四麥克風陣列 v2.0 遠距離指向性去環境噪音迴音

商品編號:P0510711600329 原始貨號:P0510711600329

本賣場商品一律含稅開發票,需要統編者請下單後備註公司名及統編即可! 本店近新店捷運總站,歡迎大家來店自取,需要自取的請留言聯絡!

$ 2,400
$ 2,600
預計出貨天數3
數量
  • 付款方式:
    超商取貨付款
  • 運送方式:
    常溫7-ELEVEN店到店取貨付款

商品特色

詳盡技術資料請見原廠或供應商 https://www.seeedstudio.com/ReSpeaker-Mic-Array-v2-0.html [ https://www.seeedstudio.com/ReSpeaker-Mic-Array-v2-0.html ]  料號:107990053


溫馨提示

  • 高敏感度、抗環境干擾的遠距離收音麥克風陣列,USB 隨插即用。
  • 特別適合人工智慧語音辨識所需要的純淨音質。

PRODUCT DETAILS

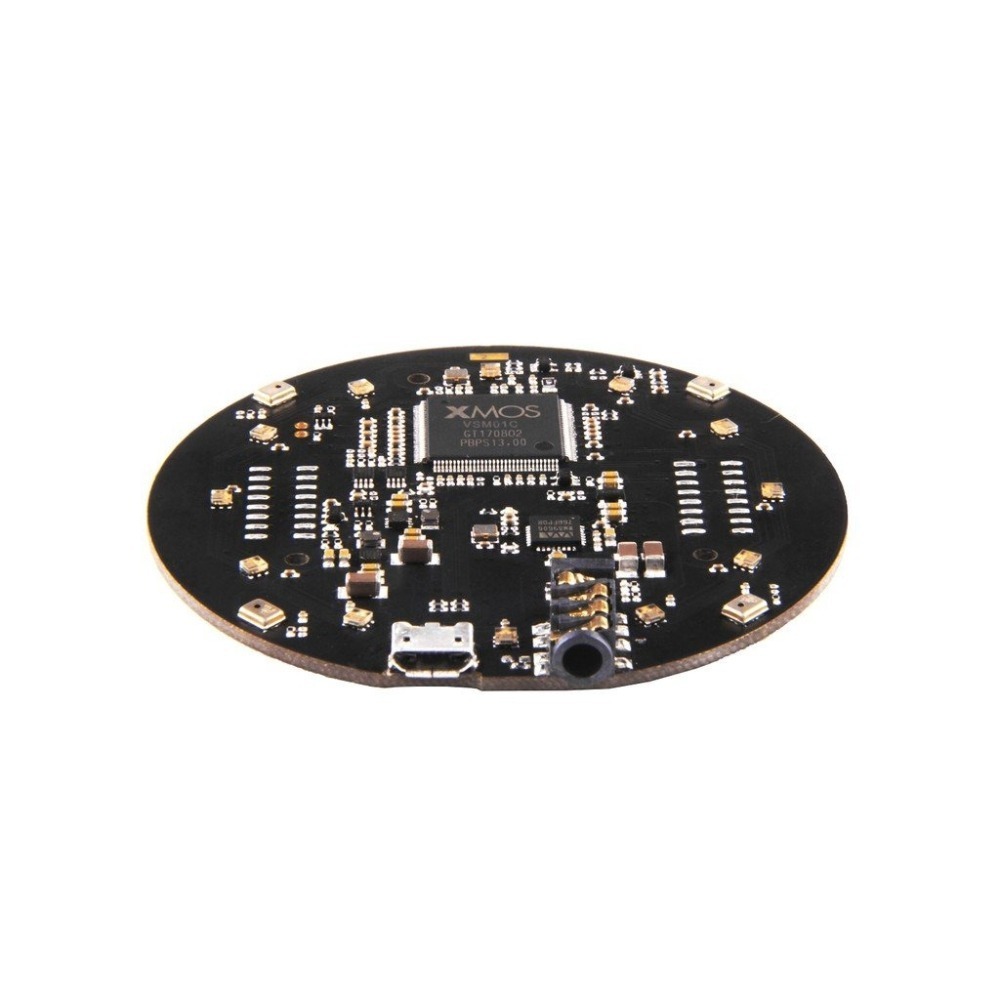

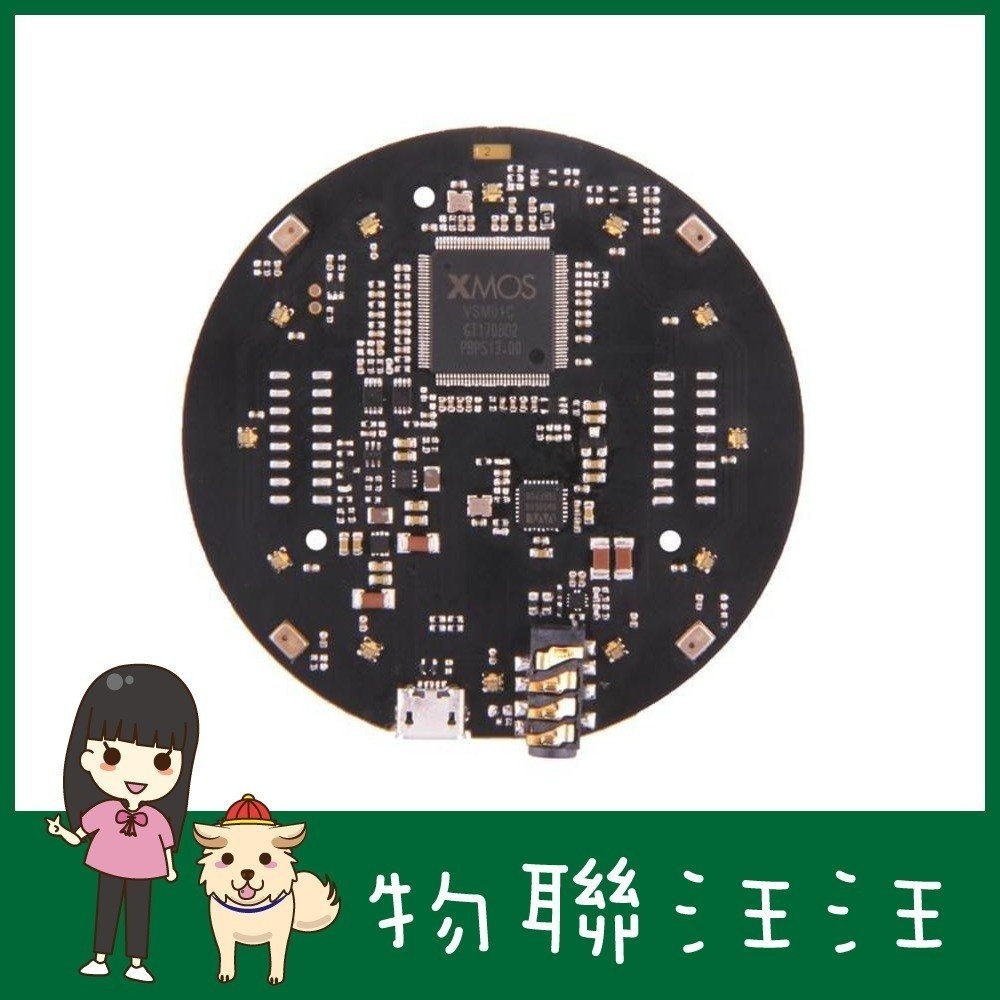

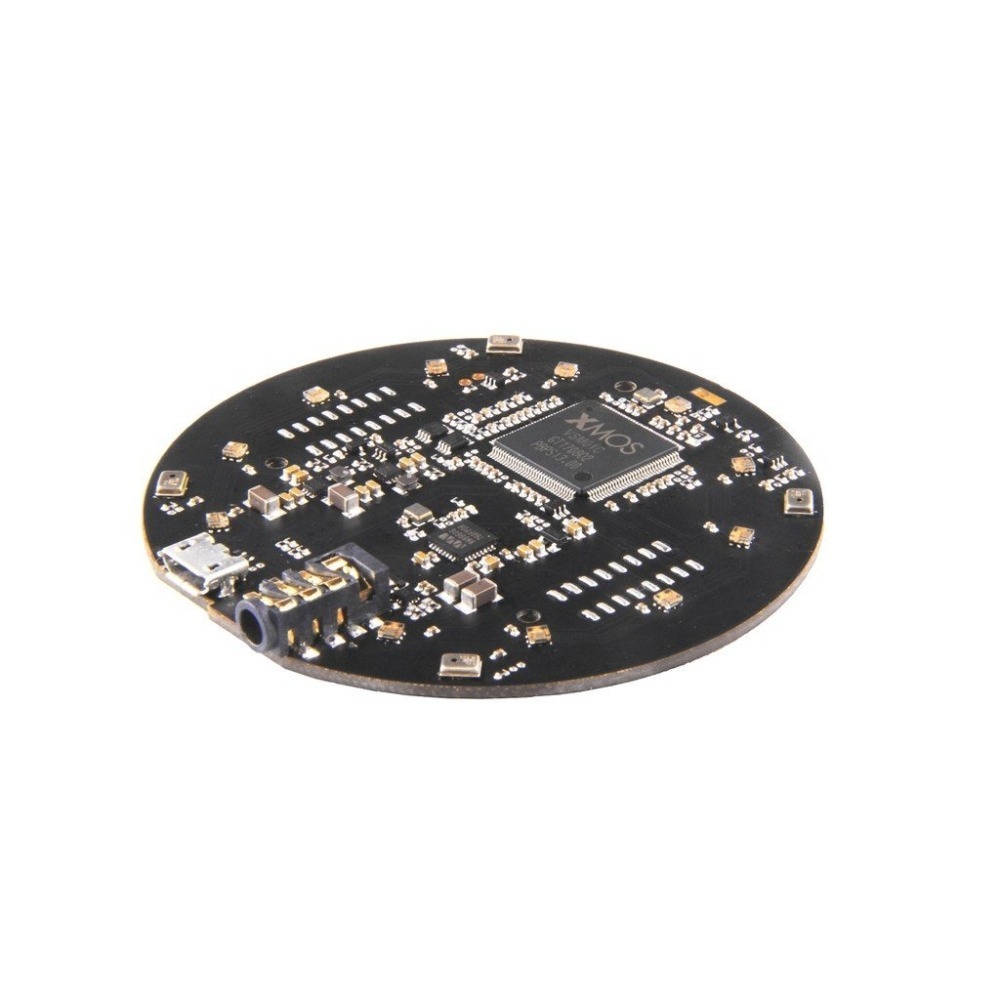

The ReSpeaker Mic Array v2.0 is a hardware-based solution for creating or adding voice-interface to your projects. The board is a far-field microphone array device capable of detecting voices up to 5m away even with the presence of background noise. The onboard hardware-enabled algorithms are powered by the XMOS XVF-3000.



Several improvements have been made since the original ReSpeaker Mic Array v1.0 [ https://www.seeedstudio.com/ReSpeaker-Mic-Array-Far-field-w%2F-7-PDM-Microphones---p-2719.html ] . The first thing you may notice is the reduction of microphones. With the improved performance of the XMOS XVF-3000, including the improved full duplex AEC, we’ve been able to deliver increased performance with fewer microphones, and thus a lower cost.



We’ll be offering our customization services for this device in the future. Contact [email protected] [ https://mailto:iot@seeed.cc ] to learn more.




Pick Up Voices From Far Away

  • Far-field voice capture enables you to capture and understand requests from up to 5m away







Focus On The Right Voice

  • DoA allows the device to know the direction of a source

  • BF allows the device to focus only on sounds that come from the target direction

  • Ignore background noise and chatter through NS







Improved Voice Audio Quality

  • Reduces environmental voice echo with de-reverberation

  • Remove current audio output with AEC



If you think this sounds good, great! But let us prove it. One of our engineers recorded himself speaking over music being played. Hear for yourself how it really sounds with our full-duplex AEC demo below.


This is the raw data captured from the environment. There is no editing on this channel. Our engineer played some music from the device and spoke at the same time.

Channel 1 Audio:



This is the music that the device was playing at the time.

Channel 5 Audio:



This is the end result after processing. The music was almost completely removed resulting in a high quality voice input.

Channel 0 Audio:



When it comes to development we believe you should have as many options as possible. The ReSpeaker Mic Array v2.0 is able to work with most modern Linux, macOS, and Windows systems*.

*We do recommend Linux for firmware updates.

We are working hard to ensure the setup is simple. The documentation on our wiki [ https://wiki.seeedstudio.com/ReSpeaker_Mic_Array_v2.0/ ] will help you get up and running quickly, and should unknown issues pop up our tech support team is ready to help. You can ask questions in our ReSpeaker forum [ https://forum.seeedstudio.com/viewforum.php?f=87&sid=59eb85400233fef1d200136d58c3085f ] , which is checked daily. You can also check out the GitHub for more support.

• XVF-3000 from XMOS

• 4 High Performance Digital Microphones

• Supports Far-field Voice Capture

• Speech Algorithms On-Chip

• 12 Programmable RGB LED Indicators

• Microphones: MEMS MSM261D4030H1CPM

• Sensitivity: -26 dBFS (Omnidirectional)

• Acoustic Overload Point: 120 dBSPL

• SNR: 63 dB

• Power Supply: 5V DC from Micro USB or Expansion Header

• Dimensions: 70mm (Diameter)

• 3.5mm Audio Jack Output Socket





Applications





• USB Voice Capture

• Smart Speaker

• Intelligent Voice Assistant Systems

• Voice Recorders

• Voice Conferencing System

• Meeting Communicating Equipment

• Voice Interacting Robot

• Car Voice Assistant

• Other Voice Interface Scenarios


ReSpeaker Mic Array v2.0 - DOA & AEC Test






Technical details

Dimensions70mm x70mm x13.3mm
WeightG.W 70g
BatteryExclude

Part List

ReSpeaker Mic Array v2.01

ECCN/HTS

HSCODE8518900090
USHSCODE8517180050
UPC841454120278
EUHSCODE8517180000
COOCHINA
EU DoC1
RoHS1
UK DoC1


LEARN AND DOCUMENTS

Documentations

Resource

  • ReSpeaker MicArray v2.0 Schematic [ https://files.seeedstudio.com/products/107990053/ReSpeakerMicArrayv2.0.1Schematic.zip ]
  • ReSpeaker MicArray v2.0 Product Brief [ https://github.com/SeeedDocument/ReSpeaker_Mic_Array_V2/raw/master/res/ReSpeaker%20MicArray%20v2.0%20Product%20Brief.pdf ]
  • ReSpeaker MicArray v2.0 3D Model [ https://github.com/SeeedDocument/ReSpeaker_Mic_Array_V2/raw/master/res/RESPEAKER%20MIC%20v2.0.pdf ]
  • ReSpeaker MicArray v2.0 3D Model [ https://github.com/SeeedDocument/ReSpeaker_Mic_Array_V2/raw/master/res/Respeaker%20Microphone%20Array%20v2.0_20180316.skp.zip ]
  • ReSpeaker MicArray v2.0 3D Model [ https://github.com/SeeedDocument/ReSpeaker_Mic_Array_V2/raw/master/res/RESPEAKER%20MIC-3D%20v2.0.stp.zip ]
  • XVF3000 Product Brief [ https://github.com/SeeedDocument/ReSpeaker_Mic_Array_V2/raw/master/res/XVF3000-3100-product-brief_1.4.pdf ]
  • XVF3000 Datasheet [ https://github.com/SeeedDocument/ReSpeaker_Mic_Array_V2/raw/master/res/XVF3000-3100-TQ128-Datasheet_1.0.pdf ]
  • ReSpeaker Mic Array v2 with ROS (Robot Operating System) Middleware [ https://github.com/furushchev/respeaker_ros ]
