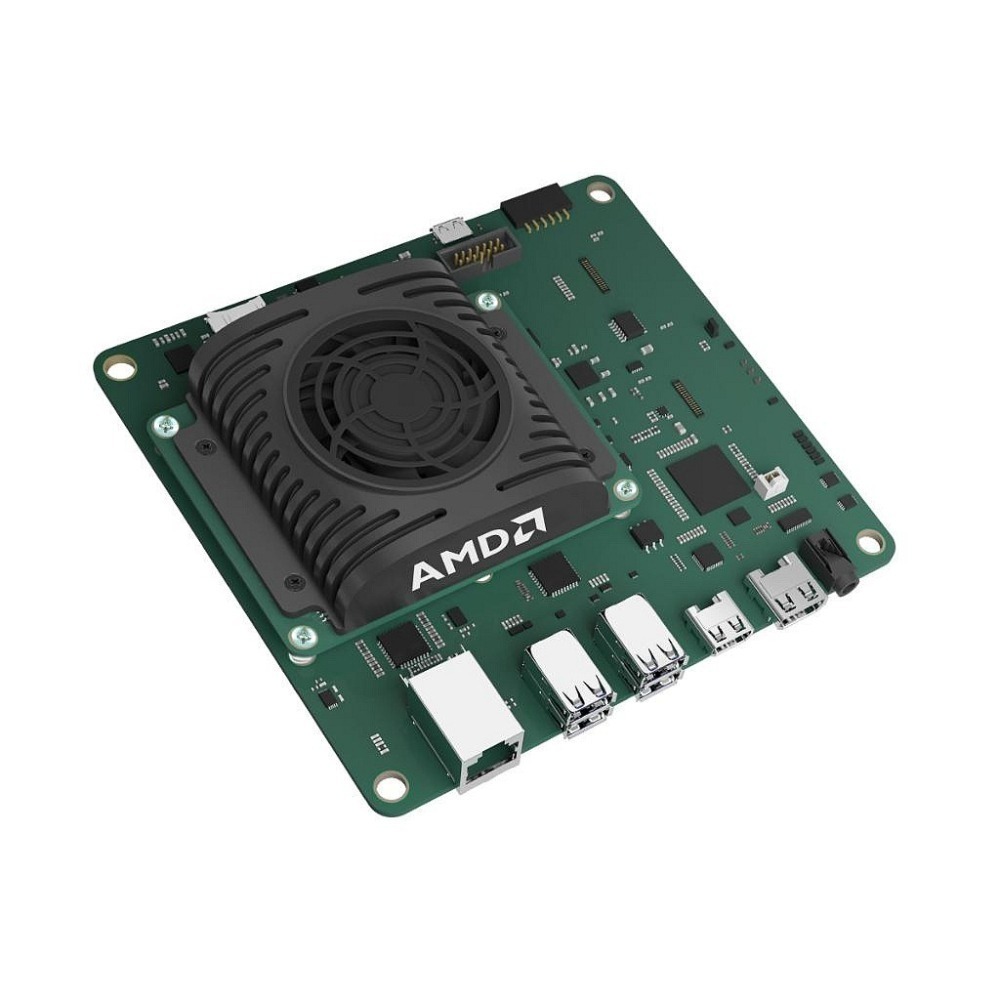

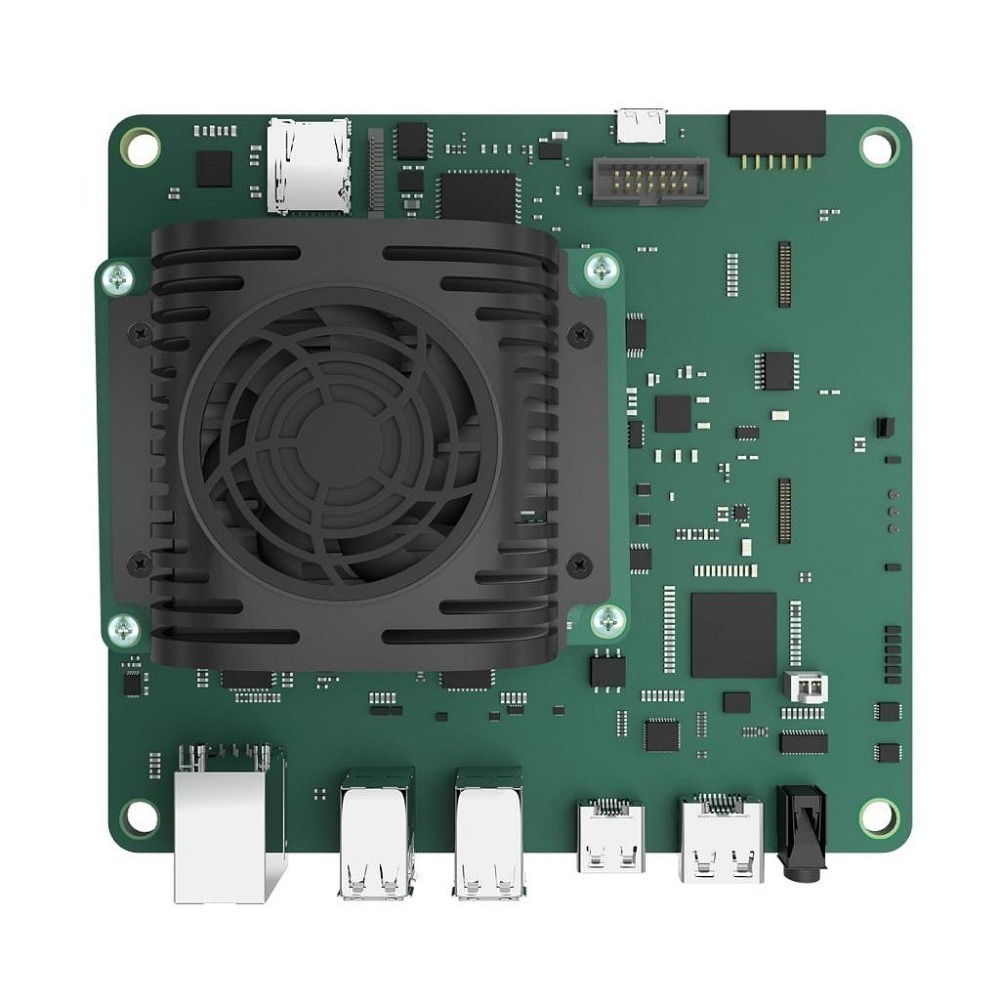

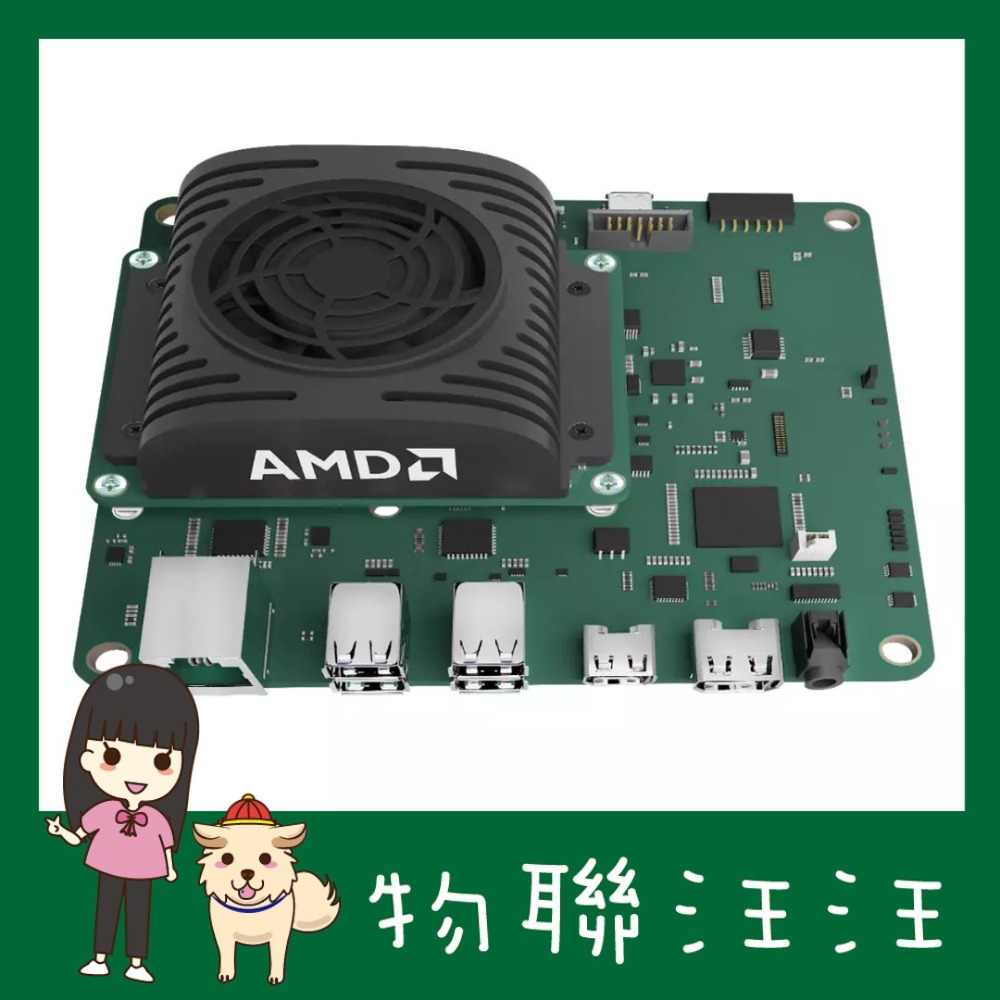

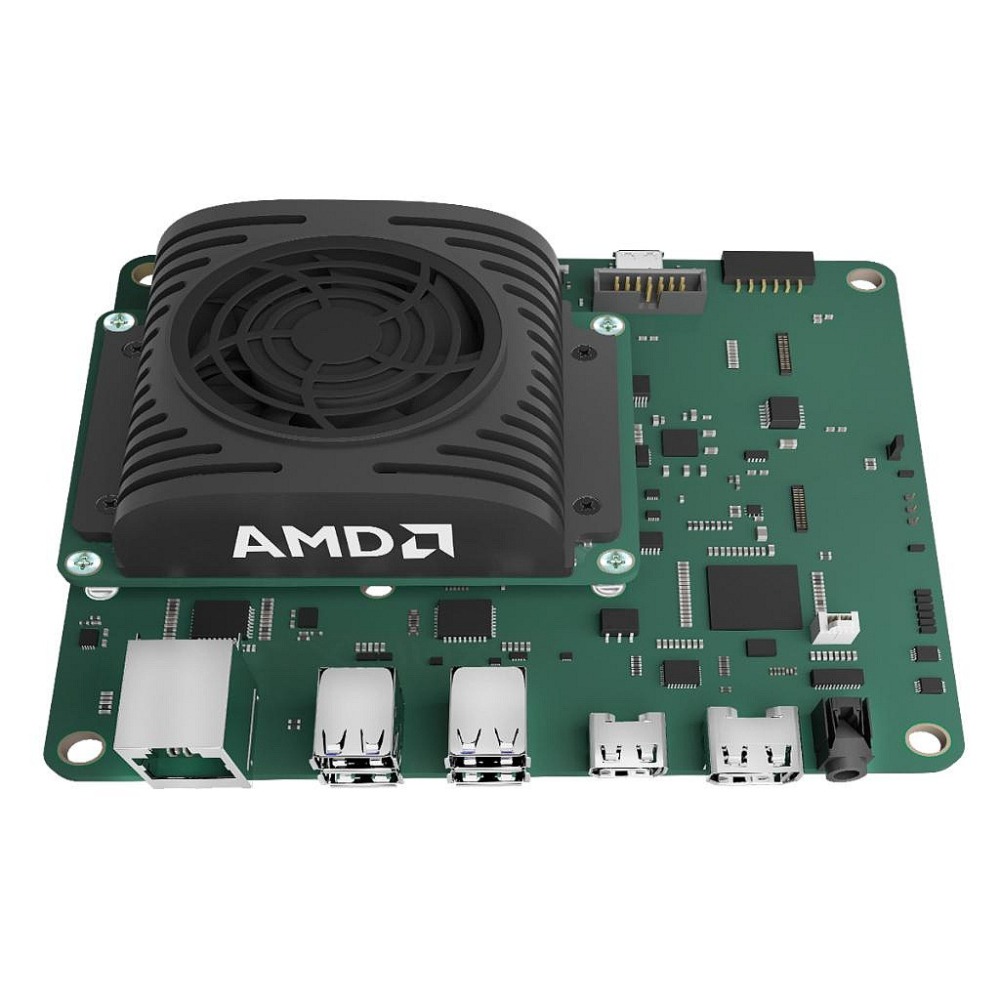

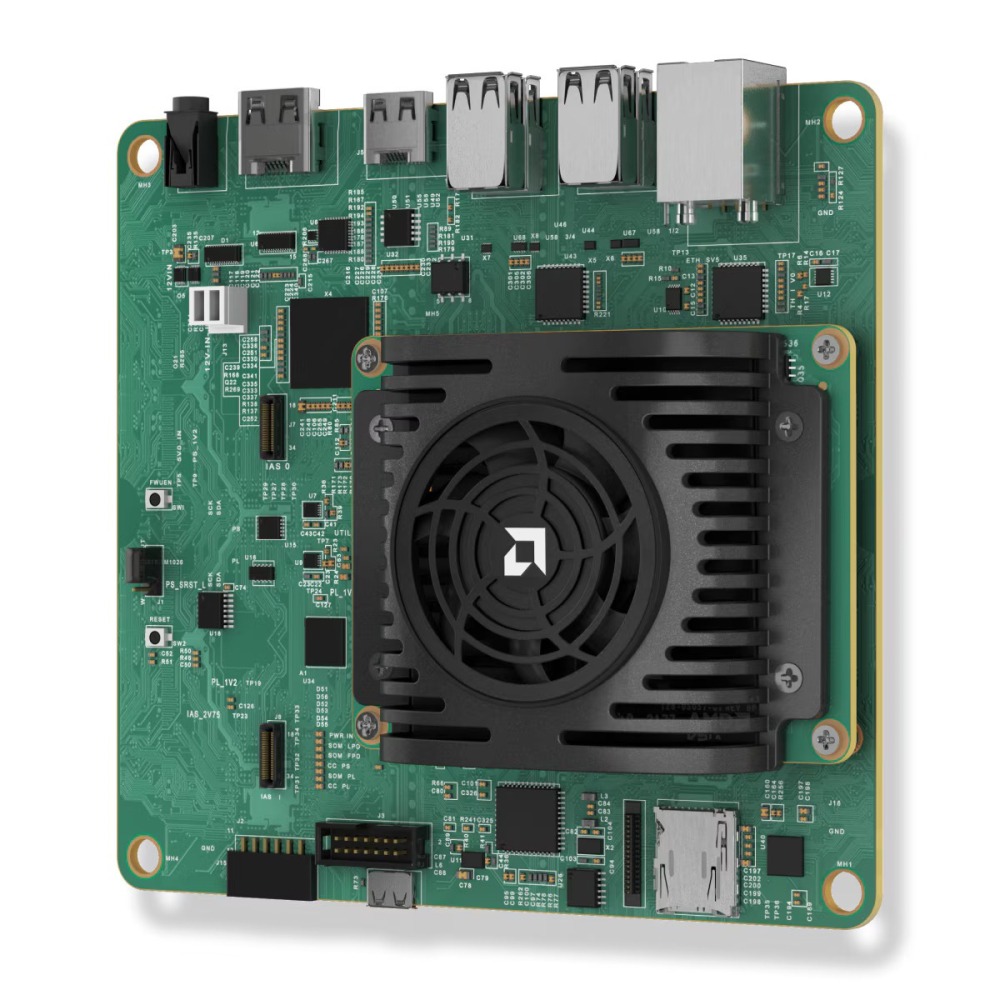

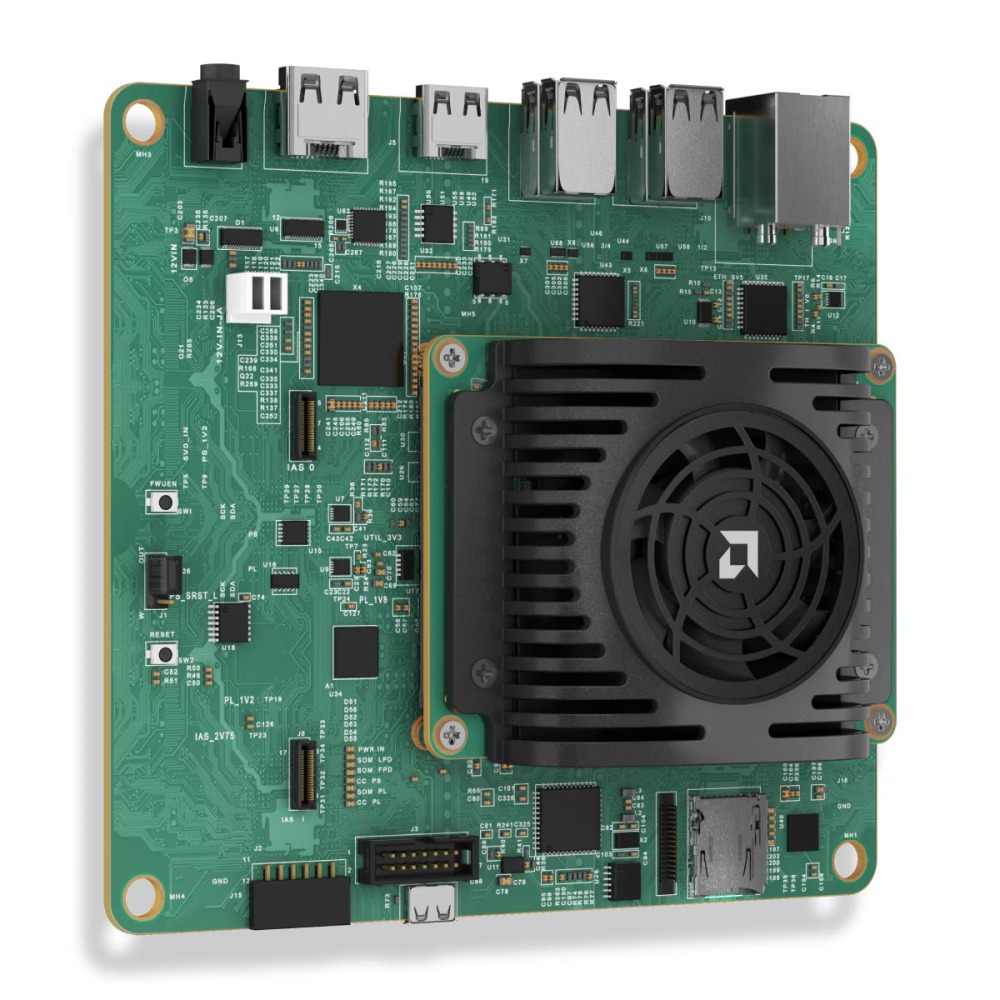

- Part Number: SK-KV260-G

| Parameter | KV260 |
|---|---|
| Device | Zynq™ UltraScale+™ MPSoC |
| Form factor | SOM + Carrier Card + Thermal Solution |
| Starter kit dimensions | 119mm x 140mm x 36mm |
| Thermal cooling solution | Active (Fan + Heatsink) |
| System logic cells | 256K |
| Block RAM blocks | 144 |
| UltraRAM blocks | 64 |
| DSP slices | 1.2K |
| Ethernet interface | One 10/100/1000 Mb/s |
| DDR memory | 4GB (4 x 512Mb x 16 bit) [non-ECC] |
| Primary boot memory | 512Mb QSPI |
| Secondary boot memory | SDHC card |
| Device Security | Zynq UltraScale+ MPSoC hardware root of trust (RoT) in support of secure boot. Infineon TPM2.0 in support of measured boot. |
| Image sensor processor | OnSemi AP1302 ISP |

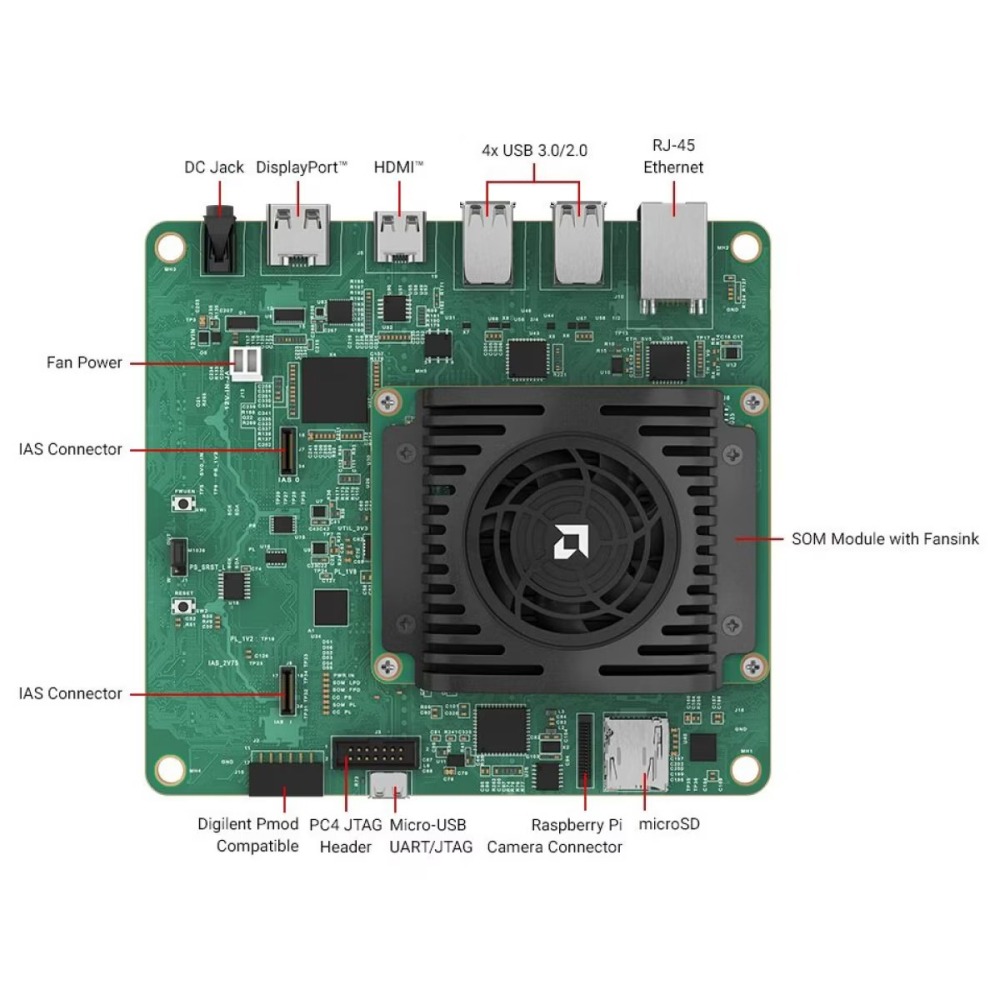

| IAS MIPI sensor interfaces | x2 |
| Raspberry Pi camera interface | x1 |
| Pmod 12-pin interface | x1 |
| USB3.0/2.0 interface | x4 |
| DisplayPort 1.2a | x1 |
| HDMI 1.4 | x1 |
單獨購買主板則不含配件包 Part Number: HW-BACCP01-SK-G,配件包內容如下

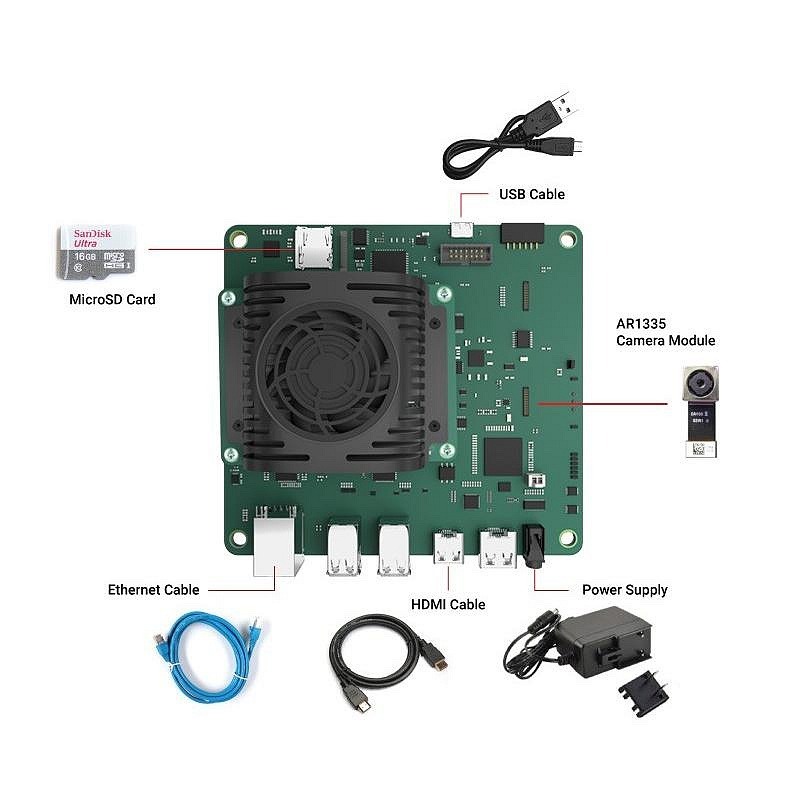

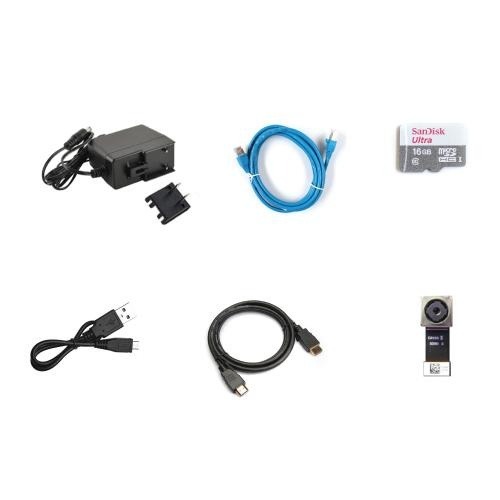

WHAT'S INSIDE

KV260 Power Supply & Adapter
AC/DC WALL MOUNT ADAPTER 12V 36W
Plugs into the DC power supply jack on the Starter Kit. Comes with interchangeable blades for major regions (North America, Europe, UK, Australia, China)

USB-A to micro-B Cable
Connects user end system (USB-A) to the micro-B connector on the starter kit to establish UART connection to setup the terminal

Ethernet Cable
Connects the user’s networking setup to the RJ-45 connector on the Starter Kit

HDMI Cable (Male to Male)
Connects the HDMI connector on the Starter Kit to an HDMI monitor/display

MicroSD card and MicroSD to SD Adapter
One 16/32/64GB MicroSD card and adapter to flash the SD card image to boot or run applications

13MP Auto Focus RGB Camera Module
Part of the ON Semiconductor IAS family of modules. 1/3.2” CMOS Sensor (AR1335)
Connects to the 2 IAS connectors of the Starter Kit
